Band 13 LTE PA Module
Applications
•
LTE Compatible Applications
TQM700013
Product Features
•
Small 10-pin 3 x 3 mm Module
•
Integrated High Performance Coupler
•
Built-in Vreg Functionality Eliminates the Need For
External Components
•
Low Quiescent Current Provides Long Talk-Time
•
High Linearity
®
•
TriQuint’s GaAs BiHEMT / CuFlip PA Technology
•
Optimized for 50 Ω
system
•
Lead-free 260 °C / RoHS / Halogen-free
TQ
0
M70
013
10 Pin
3 x 3 mm
Leadless SMT Package
Functional Block Diagram
V
CC1
RF IN
V
CC2
RF OUT
CPL IN
1-bit Bias Control
Electrical Specifications
Parameter
Max P
OUT
E-UTRA ACLR
UTRA ACLR1
UTRA ACLR2
LPM I
CQ
Max. Power Current
Rx Noise
Typ.
27.5
−40
−40
−60
11
430
−130
dBm
dBc
dBc
dBc
mA
mA
dBm/Hz
Units
NC
V
MODE
V
EN
GND
CPL OUT
Note: Typical performance for LTE
V
CC1
= V
CC2
= +3.4 VDC, V
EN
= ”High”, T
C
= 25 °C
Pin Configuration
Pin No.
1
2
3
4
5
6
7
8
9
10
Backside Pad
Label
V
CC1
RF IN
NC
V
MODE
V
EN
CPL OUT
GND
CPL IN
RF IN
V
CC1
RF/DC Ground
General Description
The TQM700013 is fully matched Power Amplifier
Module designed for use in LTE handsets. Its compact
3 x 3 mm package (including coupler) makes it ideal for
today’s extremely small data enabled phones. Its RF
performance meets the stringent linearity requirements
of LTE operation.
The TQM700013 is designed on TriQuint’s GaAs
BiHEMT technology with CuFlip® assembly offering
state of the art reliability, temperature stability and
ruggedness. The module includes built-in regulator
functionality as well as a high performance coupler for
maximum integration and space savings.
Ordering Information
Part No.
TQM700013
Description
Band 13 LTE PAM
Standard T/R size = 2500 pieces on a 7” reel
Datasheet: Rev H 4/28/14
© 2014 TriQuint
-
1 of 10
-
Disclaimer: Subject to change without notice
www.triquint.com
Band 13 LTE PA Module
Absolute Maximum Ratings
Parameter
Storage Temperature
°
RF Input Power, CW, 50Ω, T=25
C
Supply Voltage (V
CC1
, V
CC2
)
Control Voltage (V
EN
, V
MODE
)
−30
to 150 °C
+10
dBm
+4.5
V
+4.2
V
TQM700013
Typ
-
-
+1.8
-
+1.8
Recommended Operating Conditions
Parameter
Supply Voltage (V
DD
)
V
EN
“Low”
V
EN
“High”
V
MODE
“Low”
V
MODE
“High”
T
CASE
+3.2
0.0
+1.35
0.0
+1.35
−20
Rating
Min
Max Units
+4.2
+0.5
+3.1
+0.5
+3.1
+90
V
V
V
V
V
°C
Operation of this device outside the parameter ranges
given above may cause permanent damage. Exposure
exceeding absolute maximum rating conditions for
extended periods may affect device reliability. Absolute
maximum conditions are not guaranteed if multiple are
applied at the same time.
Electrical performance is measured under conditions noted in
the electrical specifications table.
Specifications are not
guaranteed over all recommended operating conditions.
Electrical Specifications
Test conditions unless otherwise noted: LTE 10 MHz QPSK 12 RB, RBstart = 0, Temp.=
+25 °C,
V
CC1
= V
CC2
= +3.4 V
Parameter
Frequency Range
PA Enable Current
Mode Control Current
2
Leakage Current
Turn on/off time
Quiescent Current
Maximum P
OUT
Supply Current
Gain
LTE Gain Variation
Gain Linearity
ACLR
EVM
Harmonic Suppression
Rx Band Noise
B13 NS_07 PS emissions
ISM Noise
GPS Noise
Conditions
Min
777
-
-
-
-
-
-
27.5
16.0
-
-
28
16
-
-
-
-
-
-
-
-
-
-
-
-
-
Typ
-
-
10
-
-
11
-
-
430
45
31
19
-
±1.0
-
-
-
-
-
-
-
-
-
-
-
DC: I
CC
to within 90% of final value
RF: P
OUT
within 1 dB of final value
LPM
HPM, Worst case LTE MPR=0dB
LPM, Worse case LTE MPR=0dB
HPM, P
OUT
= P
MAX
LPM, P
OUT
=
+16 dBm
HPM (P
OUT
≤ P
MAX
)
LPM (P
OUT
≤ +16 dBm)
All modes
All modes
LTE E-UTRA
ACLR
, P
OUT
≤ (P
MAX
– MPR)
LTE UTRA
ACLR1
, ±5 MHz, P
OU T
≤ (P
MAX
– MPR)
LTE UTRA
ACLR2
, ±10 MHz, P
OUT
≤ (P
MAX
– MPR)
P
OUT
≤ (P
MAX
– MPR)
H2
P
OUT
≤ P
MAX
, 1 MHz BW
H3+
10 MHz LTE, −31 MHz offset from Tx, 15 RB
±4.5 MHz,
20 RB
All modes, 763 – 775 MHz
2400 – 2483.5 MHz
1574 – 1577 MHz
787
0.1
0.1
-
20
6
-
-
-
-
-
34
21.5
±0.25
-
−33
−36
−39
5
−42
−42
−126
−122
−58
−143
−140
Max
Units
MHz
mA
mA
µA
µs
mA
dBm
mA
dB
dB
dB
dBc
% rms
dBc
dBm / Hz
dBm /
6.25 kHz
dBm / Hz
dBm / Hz
Datasheet: Rev H 4/28/14
© 2014 TriQuint
-
2 of 10
-
Disclaimer: Subject to change without notice
www.triquint.com
Band 13 LTE PA Module
Electrical Specifications (contd.)
Test conditions unless otherwise noted:
LTE 10 MHz QPSK 12 RB, RBstart = 0, +25 °C, V
CC1
= V
CC2
= +3.4 V
TQM700013
Parameter
Ruggedness
Stability (all spurious)
Conditions
Load VSWR = 6:1 at all angles
Load VSWR = 10:1 at all angles, No
Damage
All modes,
−40 dBc
CW Interferer
HPM
LPM
Min
-
27.5
16.0
-
27.5
16.0
-
-
Typ
-
-
-
±10
-
-
20
-
Max
-70
20
6
-
-
-
-
0.5
Units
dBc
dBm
Deg
dBc
dB
dB
Phase Discontinuity Variation
Intermodulation
Coupling Factor
Daisy-chain Insertion Loss
Channel BW
2x Channel BW
All modes, RF OUT to CPLR OUT
CPL IN to CPL OUT, 698 – 2620 MHz, V
EN
=Low
Notes:
1. RF measurements are made with 3GPP TS36.101 LTE specification compliant waveforms.
2. For Vcc1>+4.2V, maximum leakage current is degraded to 25 uA. To guarantee leakage current as specified, it is required to
keep both V
CC1
and V
CC2
on the same level or leave V
CC2
in a high impedance state.
Truth Table
Power Down / PA Off
LPM (P
OUT
≤
16 dBm)
HPM (P
OUT
≤
P
MAX
)
Condition
V
CC1
On
On
On
V
CC2
On
On
On
Low
V
EN
V
MODE
Low
Low
High
High
High
Application Circuit
V
CC1
RF IN
1
2
3
V
MODE
V
EN
4
5
10
9
8
7
6
CPL OUT
V
CC2
RF OUT
CPL IN
10uF*
10000pF
10000pF
10uF*
10000pF
10000pF
* 10uF cap is recommended when using a power supply for cleaning DC signal
Datasheet: Rev H 4/28/14
© 2014 TriQuint
-
3 of 10
-
Disclaimer: Subject to change without notice
www.triquint.com
Band 13 LTE PA Module
Pin Configuration and Description
V
CC1
RF IN
NC
V
MODE
V
EN
1
2
3
4
5
10
9
8
7
6
V
CC2
RF OUT
CPL IN
GND
CPL OUT
TQM700013
Pin No.
1
2
3
4
5
Label
6
7
8
9
10
V
CC1
RF IN
NC
V
MODE
V
EN
CPL OUT
GND
CPL IN
RF OUT
V
CC2
Description
Battery Voltage for biasing (VCCB).
RF Input. The RF circuit is DC grounded. 50 Ohm RF impedance.
No connect
Mode control pin
PA Enable Digital Control Voltage
High directivity coupler output
Ground
High directivity coupler input
RF Output. 50 Ohm RF impedance
Collector Voltage for all stages. Can be connected to DC-DC converter.
Datasheet: Rev H 4/28/14
© 2014 TriQuint
-
4 of 10
-
Disclaimer: Subject to change without notice
www.triquint.com
Band 13 LTE PA Module

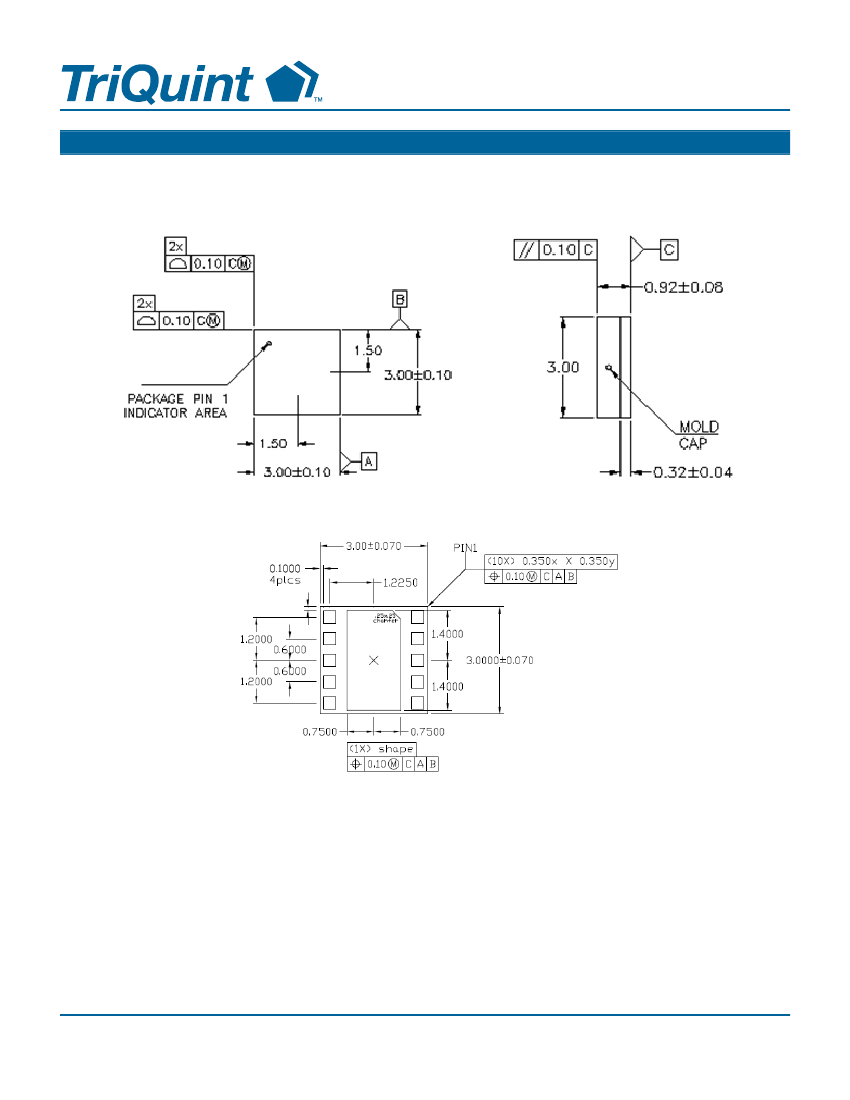

Package Marking and Dimensions
Marking: Part number –00013
Year/week code - YYWW
Lot code – XXXXX
TQM700013
00013
YYWW
XXXXX
Top View
Side View
Bottom View
Notes:
1. All dimensions are in millimeters. Angles are in degrees.
2. Dimension and tolerance formats conform to ASME Y14.4M-1994.
3. The terminal #1 identifier and terminal numbering conform to JESD 95-1 SPP-012.
Datasheet: Rev H 4/28/14
© 2014 TriQuint
-
5 of 10
-
Disclaimer: Subject to change without notice
www.triquint.com
