TQM766012
Data Sheet
Multi-mode (WCDMA B2 / CDMA BC1 / HSPA+ / LTE) 3x3mm PA Module

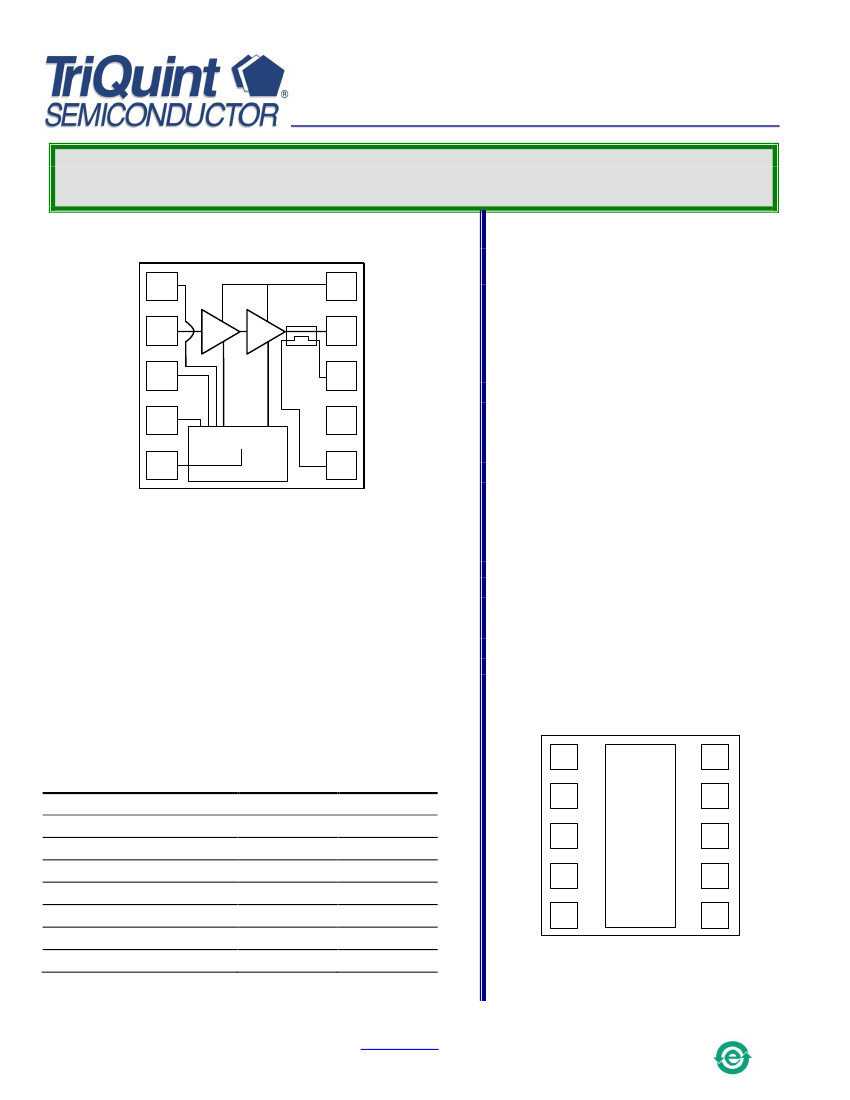

Functional Block Diagram
VCC1
VCC2
Features
GaAs BiHEMT / CuFlip
®
PA Technology
Typical Quiescent Current values:
LPM: 4 mA
MPM: 9 mA
HPM: 90 mA
Excellent Linearity in all modes
Excellent Phase discontinuity
Integrated high performance coupler
Built-in voltage regulator functionality
eliminating any external switch circuitry
Small 10-pin, 3x3mm module
Lead-free 260°C / RoHS / Halogen-free
Full ESD protection
RF IN
RF OUT
Vmode1
CPLR IN
Vmode0
GND
2-Bit Bias Control
VEN
CPLR OUT
Product Description
The TQM766012 is fully matched Power Amplifier Module designed for use in
WCDMA UMTS Band 2, CDMA BC1 (PCS) & LTE handsets. Its compact 3x3mm
package including a coupler and built-in voltage regulator makes it ideal for
today’s extremely small data enabled phones. Its RF performance meets the
stringent linearity requirements for multi-mode operation.
The TQM766012 is designed on TriQuint’s GaAs BiHEMT technology with CuFlip
®
assembly offering state of the art reliability, temperature stability and ruggedness.
The 3-Gain state PA die operates in LPM, MPM and HPM to maximize talk time
over the entire range of operating conditions. To simplify the cost/time of
calibration while in production the TQM766012 can be used in 1-bit operation;
either LPM/HPM with only 4mA of IcQ up to +13dBm in LPM, or MPM/HPM with
9mA of IcQ up to +17dBm in MPM.
Applications
WCDMA B2 Applications
CDMA2000 BC1 (PCS) Applications
HSDPA/HSUPA/HSPA+ Applications
LTE-Compatible Applications
Package Style
1
10
Electrical Specifications
Parameter
Frequency
WCDMA mode maximum
LPM Quiescent Current
ACLR5
ACLR10
Power Supply Current @ 28.6dBm
Rx Band Noise
Pout
1
Typ
1880
28.6
4
-41
-55
500
-137
Units
MHz
dBm
mA
dBc
dBc
mA
dBm/Hz
5
6
3
8
2
9
4
7
Note 1: Test Conditions WCDMA REL99 Test Mode: V
CC
=3.4VDC, V
EN
=HIGH, Tc=25°C
10-Pin Laminate Module
Top View (through package)
Data Sheet
For additional information and latest specifications, see our website:
www.triquint.com
Revision L, August 08, 2012
