68180 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power management> transformer> 68180

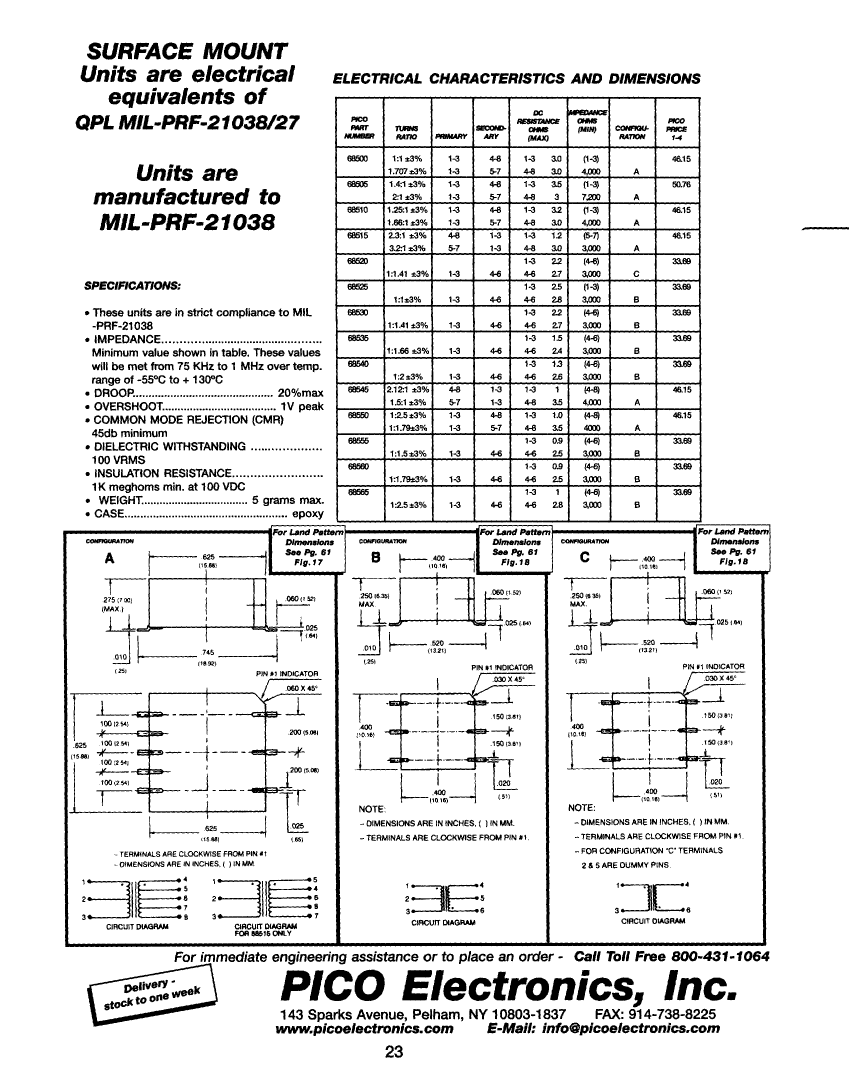

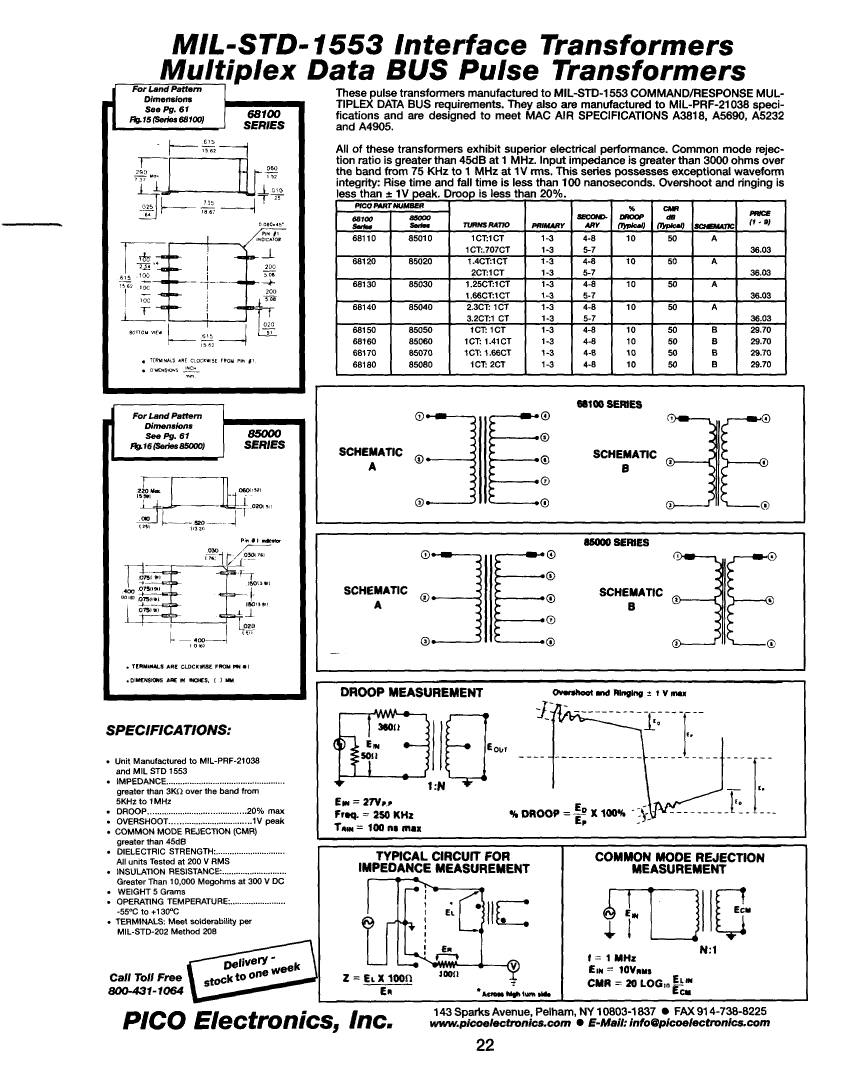

68180: DescriptionDatacom Transformer, GENERAL PURPOSE Application(s), 1CT:2CT,; CategoryPower management transformer; File Size171KB，2 Pages; ManufacturerPico Electronics Inc.

Download Datasheet Parametric Compare View All

68180 Overview

Datacom Transformer, GENERAL PURPOSE Application(s), 1CT:2CT,

68180 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Pico Electronics Inc.
Reach Compliance Code	compliant
ECCN code	EAR99
application	GENERAL PURPOSE
high	6.73 mm
JESD-609 code	e0
length	15.62 mm
Installation features	SURFACE MOUNT
Number of functions	1
Maximum operating temperature	130 °C
Minimum operating temperature	-55 °C
physical size	L15.62XB15.62XH6.73 (mm)
surface mount	YES
Terminal surface	Tin/Lead (Sn/Pb)
Transformer type	DATACOM TRANSFORMER
Turns ratio (Np:Ns)	1CT:2CT
width	15.62 mm

Preview

Download Datasheet

View All

68180 Related Products

	68180	85080	85070	68120	68150	68170	68140	68130
Description	Datacom Transformer, GENERAL PURPOSE Application(s), 1CT:2CT,	Datacom Transformer, GENERAL PURPOSE Application(s), 1CT:2CT,	Datacom Transformer, GENERAL PURPOSE Application(s), 1CT:1.66CT,	Datacom Transformer, GENERAL PURPOSE Application(s), 1.4CT:1CT; 2CT:1CT,	Datacom Transformer, GENERAL PURPOSE Application(s), 1CT:1CT,	Datacom Transformer, GENERAL PURPOSE Application(s), 1CT:1.66CT,	Datacom Transformer, GENERAL PURPOSE Application(s), 2.3CT:1CT; 3.2CT:1CT,	Datacom Transformer, GENERAL PURPOSE Application(s), 1.25CT:1CT; 1.66CT:1CT,
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Pico Electronics Inc.	Pico Electronics Inc.	Pico Electronics Inc.	Pico Electronics Inc.	Pico Electronics Inc.	Pico Electronics Inc.	Pico Electronics Inc.	Pico Electronics Inc.
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
application	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
high	6.73 mm	5.08 mm	5.08 mm	6.73 mm	6.73 mm	6.73 mm	6.73 mm	6.73 mm
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0
length	15.62 mm	10.16 mm	10.16 mm	15.62 mm	15.62 mm	15.62 mm	15.62 mm	15.62 mm
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Number of functions	1	1	1	1	1	1	1	1
Maximum operating temperature	130 °C	130 °C	130 °C	130 °C	130 °C	130 °C	130 °C	130 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
physical size	L15.62XB15.62XH6.73 (mm)	L10.16XB10.16XH5.08 (mm)	L10.16XB10.16XH5.08 (mm)	L15.62XB15.62XH6.73 (mm)	L15.62XB15.62XH6.73 (mm)	L15.62XB15.62XH6.73 (mm)	L15.62XB15.62XH6.73 (mm)	L15.62XB15.62XH6.73 (mm)
surface mount	YES	YES	YES	YES	YES	YES	YES	YES
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Transformer type	DATACOM TRANSFORMER	DATACOM TRANSFORMER	DATACOM TRANSFORMER	DATACOM TRANSFORMER	DATACOM TRANSFORMER	DATACOM TRANSFORMER	DATACOM TRANSFORMER	DATACOM TRANSFORMER
Turns ratio (Np:Ns)	1CT:2CT	1CT:2CT	1CT:1.66CT	1.4CT:1CT; 2CT:1CT	1CT:1CT	1CT:1.66CT	2.3CT:1CT; 3.2CT:1CT	1.25CT:1CT; 1.66CT:1CT
width	15.62 mm	10.16 mm	10.16 mm	15.62 mm	15.62 mm	15.62 mm	15.62 mm	15.62 mm
