REV
DESCRIPTION
REVISED PER
ER30231
NOTES: UNLESS OTHERWISE SPECIFIED
1. INTERFACE COMPLIANT TO SMPTE 304 SPECIFICATION.
2. MATERIAL SPECIFICATIONS:
CONTACTS: COPPER ALLOY
ALIGNMENT PINS: BRASS PER ASTM B16
CRIMP SLEEVE: PHOS. BRONZE
O-RINGS AND STRAIN RELIEF: SILICONE RUBBER
ALL PLASTIC PARTS: 20% GLASS FILLED POLYPROPYLENE
ALL OTHER METAL PARTS: 303 STAINLESS STEEL PER ASTM A582
3. FINISH SPECIFICATIONS:
STAINLESS STEEL PARTS: PASSIVATE
CONTACTS: .000100 MIN GOLD PER ASTM B488 OVER
.000080 MIN NICKEL PER AMS-QQN-290 (RoHS)
CRIMP SLEEVE: .000100 MIN NICKEL PER AMS-QQ-N-290 OVER
COPPER FLASH PER ASTM B734 (RoHS)
4. ELECTRICAL SPECIFICATIONS:
LOW VOLTAGE CONTACTS: 42 - 60 VAC, 1 AMP
AUX ELECTRICAL CONTACTS: 600 VAC, 10 AMP
5. ENVIRONMENTAL:
OPERATING TEMPERATURE RATING: -40°C TO 75°C
NON-OPERATING/STORAGE TEMPERTURE RATING: -40°C TO 85°C
HUMIDITY: <95 RH (AT 40°C)
BY APPD
DATE
KFC
01/07/10
XXX
6. OPTICAL:
WAVELENGTH: 1100nm - 1350nm
INSERTION LOSS: 0.3dB TYPICAL, 0.5dB MAX
RETURN LOSS: > -45dB, -50dB TYPICAL
7. REPLACEMENT KITS:
CONTACT KIT: 7760-000-00709Z
8. CABLE PREPARATION AND STRIPPING PROCEDURE: CAP-E05.
9. OPTIONAL ENVIRONMENTAL BOOT 7760-000-00705Z SOLD SEPARATELY.
10. RED LDPE DUST CAP INCLUDED (NOT SHOWN)
11. CRIMP TOOLING:
FOR FACTORY APPLICATION USE HAND TOOL KTH-1000 AND DIE KTH-2035
FOR FIELD APPLICATION USE HAND TOOL KTH-5000 AND DIE KTH-5018
05
5.254 133.45
.804 20.42
.905 22.99
3/4" WRENCH FLATS (180° APART)
9/16" WRENCH FLATS (180° APART)
MARK: 7763-4-3 (DATE CODE)
CATALOG P/N: 7763-4-3
CUSTOMER
SALES DRAWING
DRAWN
PSM
APPROVED
JCF
DMF026 B
PER ASME Y14.5M-1994
UNLESS OTHERWISE SPECIFIED:
DIMENSIONS ARE IN INCHES [MM]
TOLERANCES:
DECIMAL: .XX [X.X] ± .01 [0.3]
.XXX [X.XX] ± .005 [0.13]
.XXXX [X.XXX] ± .XXXX
ANGLES: ± 2°
SCALE: 1:1
THIRD
ANGLE
Winchester Electronics Corporation
62 Barnes Industrial Road North
Wallingford, Connecticut 06492
DATE APPROVED
04/06/10 WPM
DATE APPROVED
04/07/10
XXX
DATE
04/07/10
DATE
XX/XX/XX

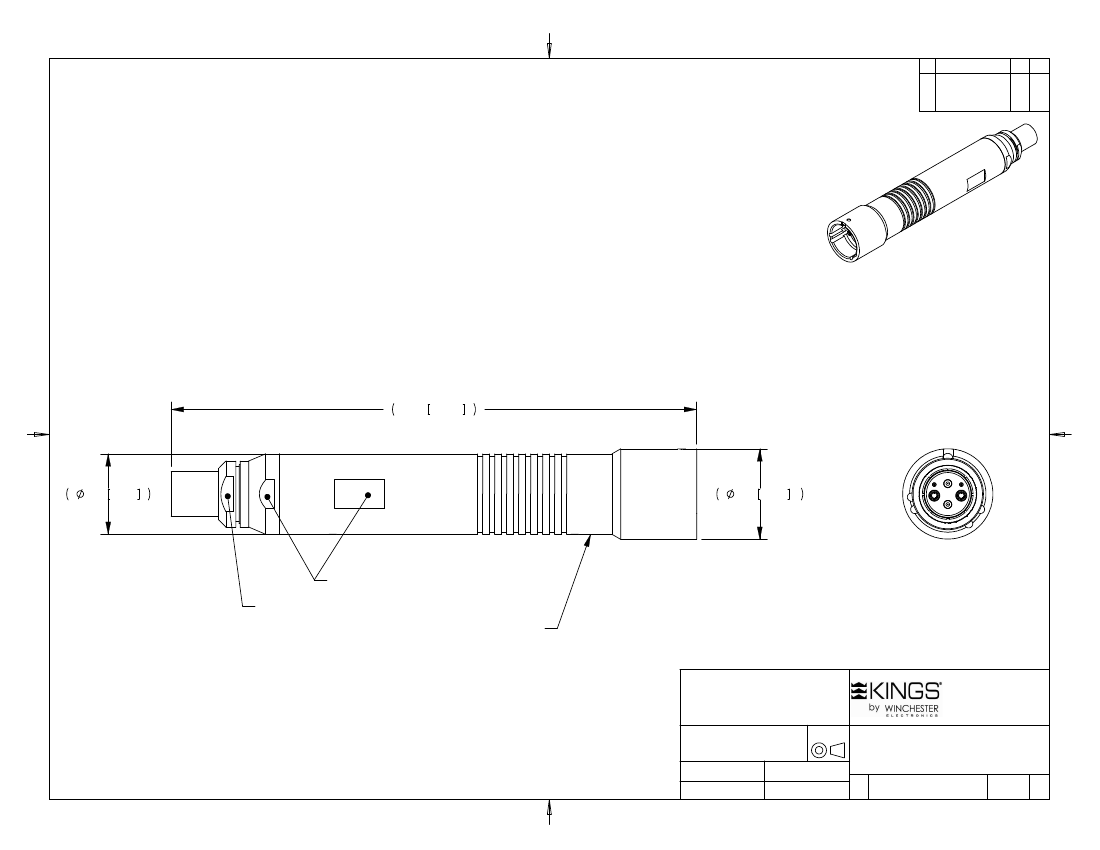

TRI-LOC, SMPTE 304, RECEPTACLE
PRE-POLISHED
A
SD7763-4-3
SHT
OF
1
2 05
REV
REV
DESCRIPTION
REVISED PER
ER30231
BY APPD
DATE
KFC
01/07/10
XXX
05

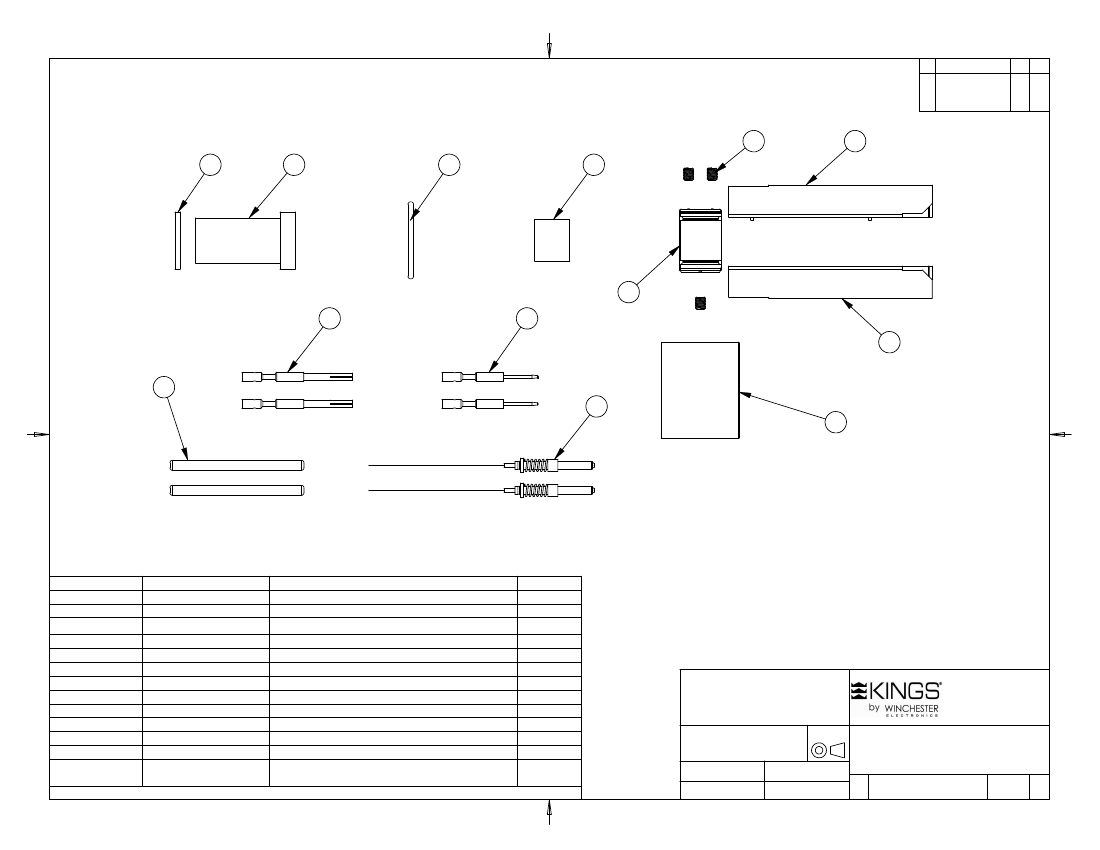

REPLACEMENT COMPONENT ORDERING NUMBERS
10
2
3
4
1
7
9
6
5
8
13
11
12
13
12
11
10
9
8
7
6
5
4
3
2
1
ITEM NO.
DMF026 B
VNFPS01-900-34
VNSC-748U
7760-000-00711Z
78-0102U
78-1012U
78-3011U
78-3010U
78-4204U
78-4203U
78-0705U
78-0701U
78-0301U
1-8156U
PART NO.
SPLICE PROTECTOR SLEEVE, 34MM
RED LDPE DUST CAP
FIBER OPTIC CONNECTOR STUB
#4-40 HEX SET SCREW
STRENGTH MEMBER SUPPORT CLAMP
JACK INSULATOR HALF SIDE "B"
JACK INSULATOR HALF SIDE "A"
JACK MALE CRIMP CONTACT
JACK FEMALE CRIMP CONTACT
REAR O-RING
REAR CABLE SEAL
WASHER FOR REAR CABLE SEAL
CRIMP SLEEVE (CABLE SHIELD FERRULE)
Description
50
25
2
10
10
25
25
50
50
25
25
25
25
7763-4-
3/QTY.
PLATING CODE(S)
CATALOG P/N: 7763-4-3
PER ASME Y14.5M-1994
UNLESS OTHERWISE SPECIFIED:
DIMENSIONS ARE IN INCHES [MM]
TOLERANCES:
DECIMAL: .XX [X.X] ± .01 [0.3]
.XXX [X.XX] ± .005 [0.13]
.XXXX [X.XXX] ± .XXXX
ANGLES: ± 2°
SCALE: 1:1
THIRD
ANGLE
Winchester Electronics Corporation
62 Barnes Industrial Road North
Wallingford, Connecticut 06492
CUSTOMER
SALES DRAWING
DRAWN
PSM
APPROVED
JCF
DATE APPROVED
04/06/10 WPM
DATE APPROVED
04/07/10
XXX
DATE
04/07/10
DATE
XX/XX/XX
TRI-LOC, SMPTE 304, RECEPTACLE
PRE-POLISHED
A
SD7763-4-3
SHT
OF
2
2 05
REV
