6899-30 datasheet, PDF - EEWORLD Datasheet

6899-30: DescriptionDatacom Transformer, 100 BASE-TX; TP-PMD; ATM Application(s), 1.25CT:1CT; 1CT:1CT; CategoryPower management transformer; File Size105KB，2 Pages; ManufacturerWurth Elektronik

Download Datasheet Parametric Compare View All

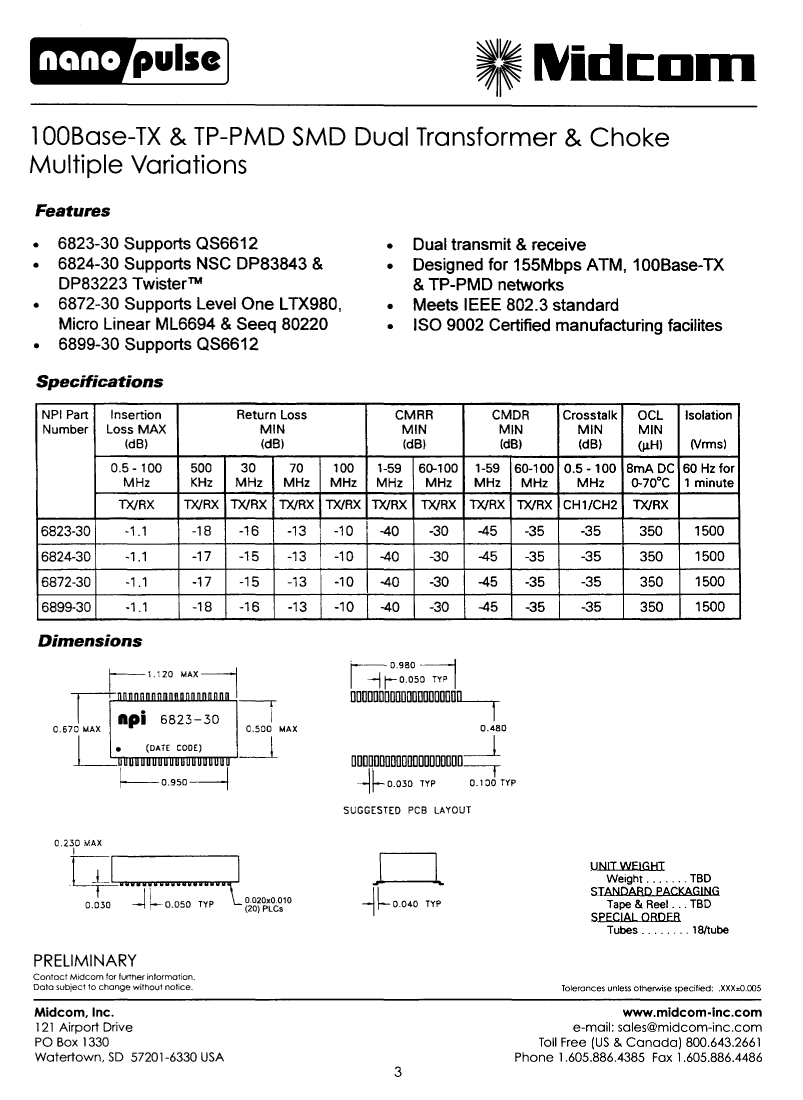

6899-30 Overview

Datacom Transformer, 100 BASE-TX; TP-PMD; ATM Application(s), 1.25CT:1CT; 1CT:1CT

Parameter Name	Attribute value
Maker	Wurth Elektronik
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	COMMON MODE CHOKE IS AVAILABLE
application	100 BASE-TX; TP-PMD; ATM
high	5.08 mm
Insulation voltage	1500 V
length	28.448 mm
Manufacturer's serial number	6899-30
Installation features	SURFACE MOUNT
Number of functions	2
method of packing	TUBE; TAPE & REEL
physical size	28.448mm X 12.7mm X 5.08mm
Primary inductance	350 µH
surface mount	YES
Transformer type	DATACOM TRANSFORMER
Turns ratio (Np:Ns)	1.25CT:1CT; 1CT:1CT
width	12.7 mm

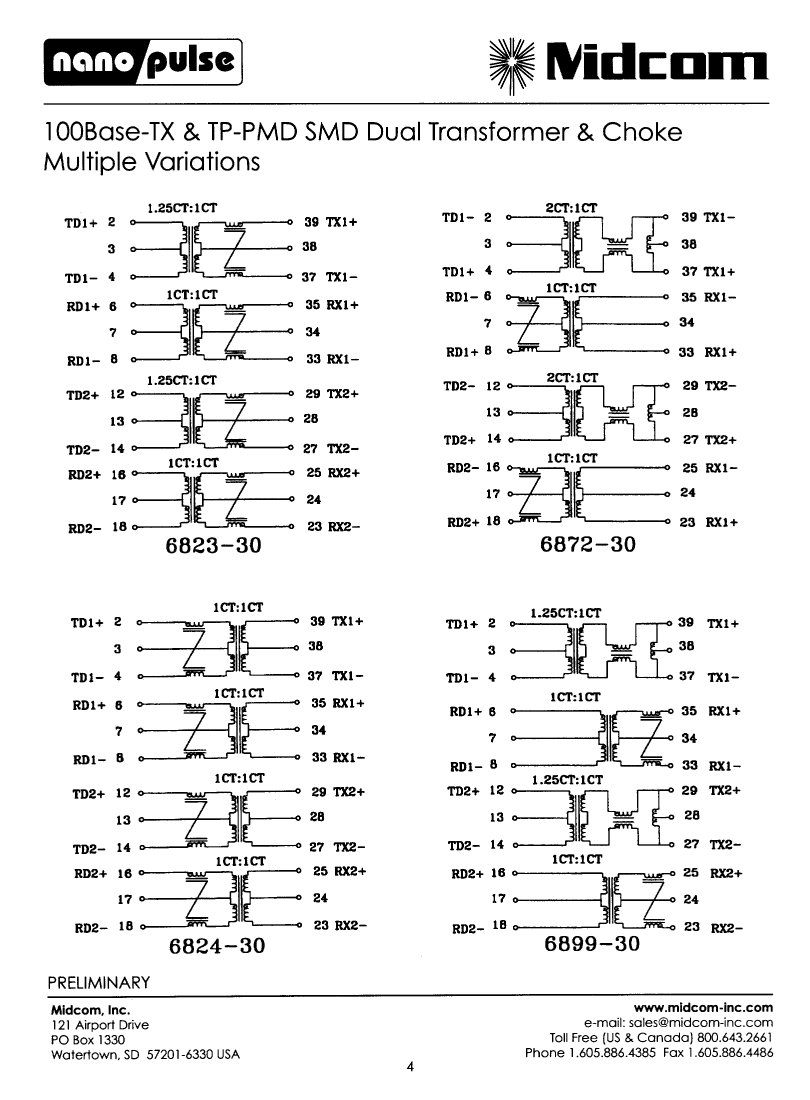

	6899-30	6823-30	6824-30
Description	Datacom Transformer, 100 BASE-TX; TP-PMD; ATM Application(s), 1.25CT:1CT; 1CT:1CT	Datacom Transformer, 100 BASE-TX; TP-PMD; ATM Application(s), 1.25CT:1CT; 1CT:1CT	Datacom Transformer, 100 BASE-TX; TP-PMD; ATM Application(s), 1CT:1CT; 1CT:1CT
Maker	Wurth Elektronik	Wurth Elektronik	Wurth Elektronik
Reach Compliance Code	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99
Other features	COMMON MODE CHOKE IS AVAILABLE	COMMON MODE CHOKE IS AVAILABLE	COMMON MODE CHOKE IS AVAILABLE
application	100 BASE-TX; TP-PMD; ATM	100 BASE-TX; TP-PMD; ATM	100 BASE-TX; TP-PMD; ATM
high	5.08 mm	5.08 mm	5.08 mm
Insulation voltage	1500 V	1500 V	1500 V
length	28.448 mm	28.448 mm	28.448 mm
Manufacturer's serial number	6899-30	6823-30	6824-30
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Number of functions	2	2	2
method of packing	TUBE; TAPE & REEL	TUBE; TAPE & REEL	TUBE; TAPE & REEL
physical size	28.448mm X 12.7mm X 5.08mm	28.448mm X 12.7mm X 5.08mm	28.448mm X 12.7mm X 5.08mm
Primary inductance	350 µH	350 µH	350 µH
surface mount	YES	YES	YES
Transformer type	DATACOM TRANSFORMER	DATACOM TRANSFORMER	DATACOM TRANSFORMER
Turns ratio (Np:Ns)	1.25CT:1CT; 1CT:1CT	1.25CT:1CT; 1CT:1CT	1CT:1CT; 1CT:1CT
width	12.7 mm	12.7 mm	12.7 mm
