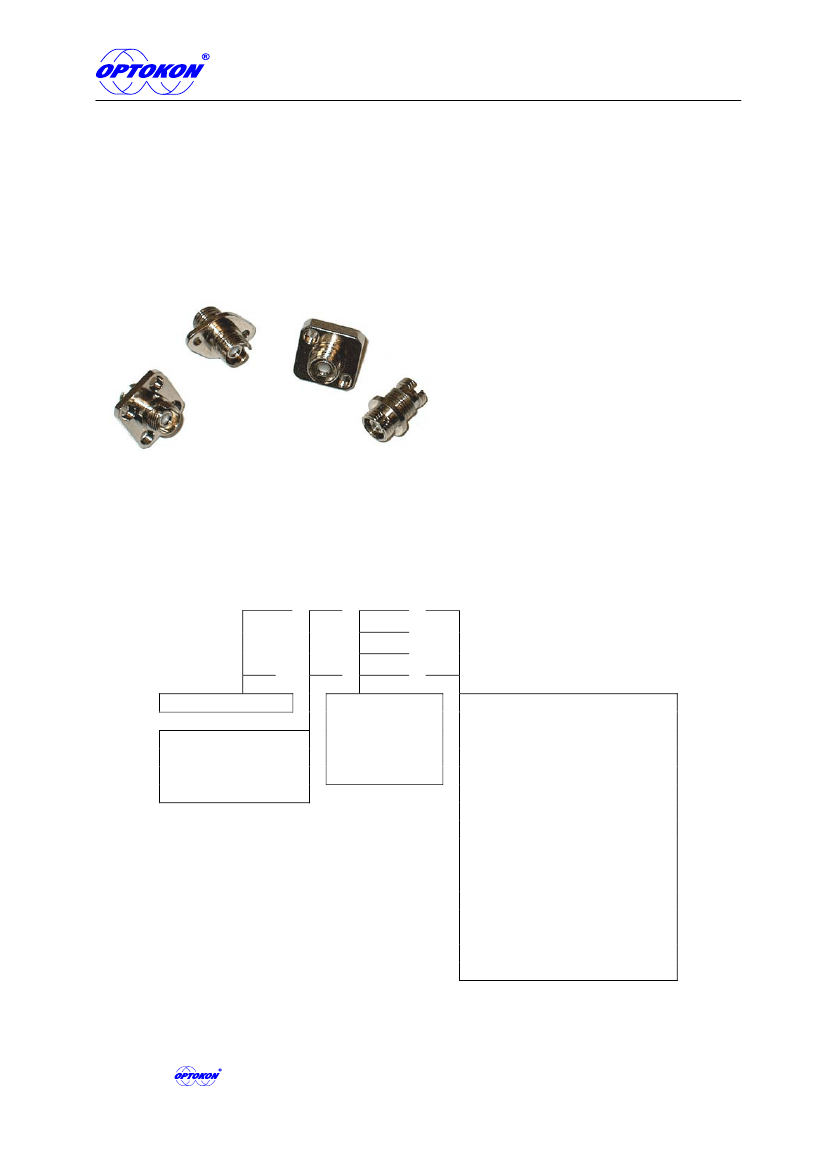

FC adapters
Description:
The FC adapters are designed and manufactured according JIS, IEC, EIA/TIA and ANSI specifications
for intermateability and optical performance. The FC adapters are offered in MM or SM performances,
for connectors with PC and APC polishing method. It is possible to exactly specify your demands
concerning keying slot width (standard Seiko Instruments or Seikoh Giken) for APC adapters, type of
sleeve (phosphor bronze or zirconia) and adapter performance: various shape of flange, D-hole, DD-
hole, etc.
Features:
•
•
•
•
•
•
Precision sleeve
Screw-type locking
Excellent detachability
Low insertion loss
Material metal
High life time – more than 1000
mating cycles
Application:
•
designed for: PC standard
APC standard Seiko Instruments
APC standard Seikoh Giken, JDSU, ...
- keying slot width = 2.40 mm
- keying slot width = 2.15 mm
- keying slot width = 2.05 mm
Ordering code:
A
- F C / APC - X X - 2 0 5 - XX
2 1 5
A
- F C / P C
Polishing Method
Alignment Sleeve:
01 Zirconia
02 Phosphor Bronze
- XX - 2 4 0 - XX
Width of Slots:
205 2.05 mm
215 2.15 mm
240 2.40 mm
Type of Flange:
square flange 15x15 mm
02 flange thickness 4.03 mm
assembled from two parts
07 flange thickness 2.03 mm
08 flange thickness 4.03 mm
circular flange, thickness 1.5 mm
11 D hole
Ø 11 mm
12 DD hole Ø 11 mm
04 D hole
Ø 14 mm
05 DD hole Ø 14 mm
oval flange 19x13mm
13 flange thickness 1.5 mm
is registered trademark of Optokon Co., Ltd. Other names and trademarks mentioned herein may be the trademarks of their respective owners.
Optokon Co., Ltd., Cerveny Kriz 250, 586 02 Jihlava, Czech Republic
tel. +420 564 040 111, fax +420 564 040 134, +420 567 311 292, www.optokon.com, info@optokon.cz
ADP_01-01_EN
21/07/2003
1
FIBER OPTIC TECHNOLOGY
CALIBRATION LABORATORY

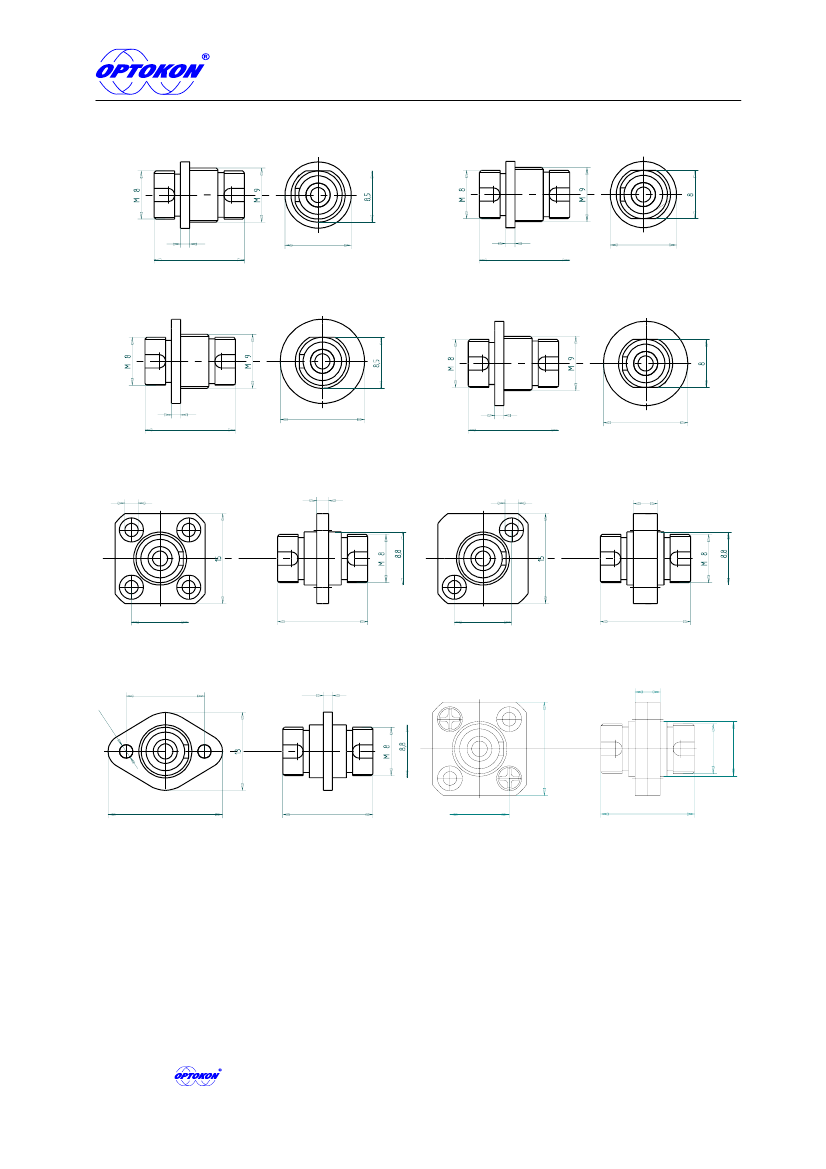

Dimensions:
1,5
15
11
1,5
15
11
A-FC / (A) PC – XX –XXX – 11
A-FC / (A) PC – XX –XXX – 12
1,5
15
14
1,5
15
14
A-FC / (A) PC – XX –XXX – 04
2
A-FC / (A) PC – XX –XXX – 05
2,2
2,2
4
9,5
15
9,5
15
A-FC / (A) PC – XX –XXX – 07
A-FC / (A) PC – XX –XXX – 08
4
13
2,2
1,5
19
15
9,5
15
A-FC / (A) PC – XX –XXX – 13
A-FC / APC (A) PC XX- XXX - 02
is registered trademark of Optokon Co., Ltd. Other names and trademarks mentioned herein may be the trademarks of their respective owners.
Optokon Co., Ltd., Cerveny Kriz 250, 586 02 Jihlava, Czech Republic
tel. +420 564 040 111, fax +420 564 040 134, +420 567 311 292, www.optokon.com, info@optokon.cz
ADP_01-01_EN
21/07/2003
2
