AE776L8-33PX datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> AE776L8-33PX

AE776L8-33PX: DescriptionMIL Series Connector, 3 Contact(s), Aluminum Alloy, Male, Crimp Terminal, Plug; CategoryThe connector The connector; File Size177KB，1 Pages; ManufacturerAero-Electric Connector; Websitehttps://www.aero-electric.com/index.html; Environmental Compliance

Download Datasheet Parametric View All

AE776L8-33PX Overview

MIL Series Connector, 3 Contact(s), Aluminum Alloy, Male, Crimp Terminal, Plug

AE776L8-33PX Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Aero-Electric Connector
Reach Compliance Code	compliant
Other features	STANDARD: MIL-DTL-26482
Back shell type	SOLID
Body/casing type	PLUG
Connector type	MIL SERIES CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
Coupling type	BAYONET
DIN compliance	NO
empty shell	NO
Environmental characteristics	CORROSION RESISTANT; ENVIRONMENT RESISTANT; FLUID RESISTANT
Filter function	NO
IEC compliance	NO
MIL compliance	YES
Manufacturer's serial number	AE776
Mixed contacts	NO
Installation type	CABLE
Options	GENERAL PURPOSE
Shell surface	NICKEL PLATED
Shell material	ALUMINUM ALLOY
Housing size	8
Termination type	CRIMP
Total number of contacts	3

Preview

Download Datasheet

View All

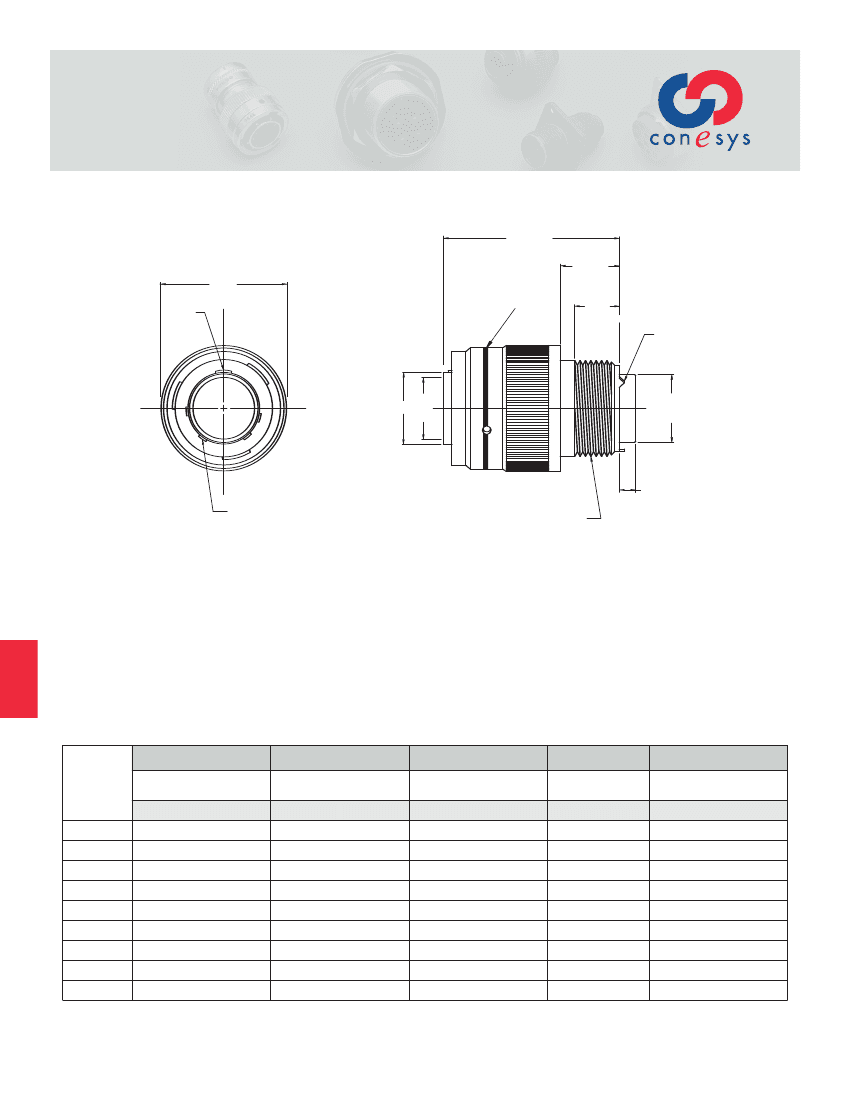

MS3476

Straight Plug

AE776

Bayonet Coupling, Crimp Removable, Rear Release

1.230(31.24)

MAX

.320(8.13)

MIN

.290

(7.37)

MIN

FULL THREAD

3 ACCESSORY TEETH

EQUALLY SPACED

MAX

COUPLING NUT

MASTER

KEY

BLUE COLOR BAND

MAX

INSERT

MAX

GROMMET

.190 (4.83)

.130 (3.30)

GROMMET EXTENSION

4 MINOR KEYS

ACCESSORY THREAD

MIL–DTL–

26482 S 2

Page 71

Page 80

Pages 84, 85

Page 70

Pages 82, 83

Page 82

Completed Part Number

Contacts, Sealing Plugs and Tools

Insert Arrangements

Performance Speciﬁcations

Insert Availability and Contact Information

Polarization

Shell

Size

Maximum

inch

.285

.402

.516

.641

.766

.855

.980

1.105

1.229

7.24

10.21

13.11

16.28

19.46

21.72

24.89

28.07

31.22

±.003

inch

.355

.483

.595

.720

.845

.945

1.070

1.195

1.320

±.08

9.02

12.27

15.11

18.29

21.46

24.00

27.18

30.35

33.53

inch

.782

.926

1.043

1.183

1.305

1.391

1.531

1.656

1.777

Maximum

19.86

23.52

26.49

30.05

33.15

35.33

38.89

42.06

45.14

Accessory Thread

Class 2A

inch

1/2-20UNF

5/8-24UNEF

3/4-20UNEF

7/8-20UNEF

1-20UNEF

1-1/16-18UNEF

1-3/16-18UNEF

1-5/16-18UNEF

1-7/16-18UNEF

.305

.405

.531

.665

.790

.869

.994

1.119

1.244

Maximum

7.75

10.29

13.49

16.89

20.07

22.07

25.25

28.42

31.60

www.conesys.com

– 76 –

sales

aero-electric.com
