TBS-25ST-1 datasheet, PDF - EEWORLD Datasheet

TBS-25ST-1: DescriptionD Type Connector, 25 Contact(s), Female, 0.109 inch Pitch, IDC Terminal, Hole .112-.124, Plug,; CategoryThe connector The connector; File Size134KB，2 Pages; ManufacturerCinch Connectivity Solutions

Download Datasheet Parametric View All

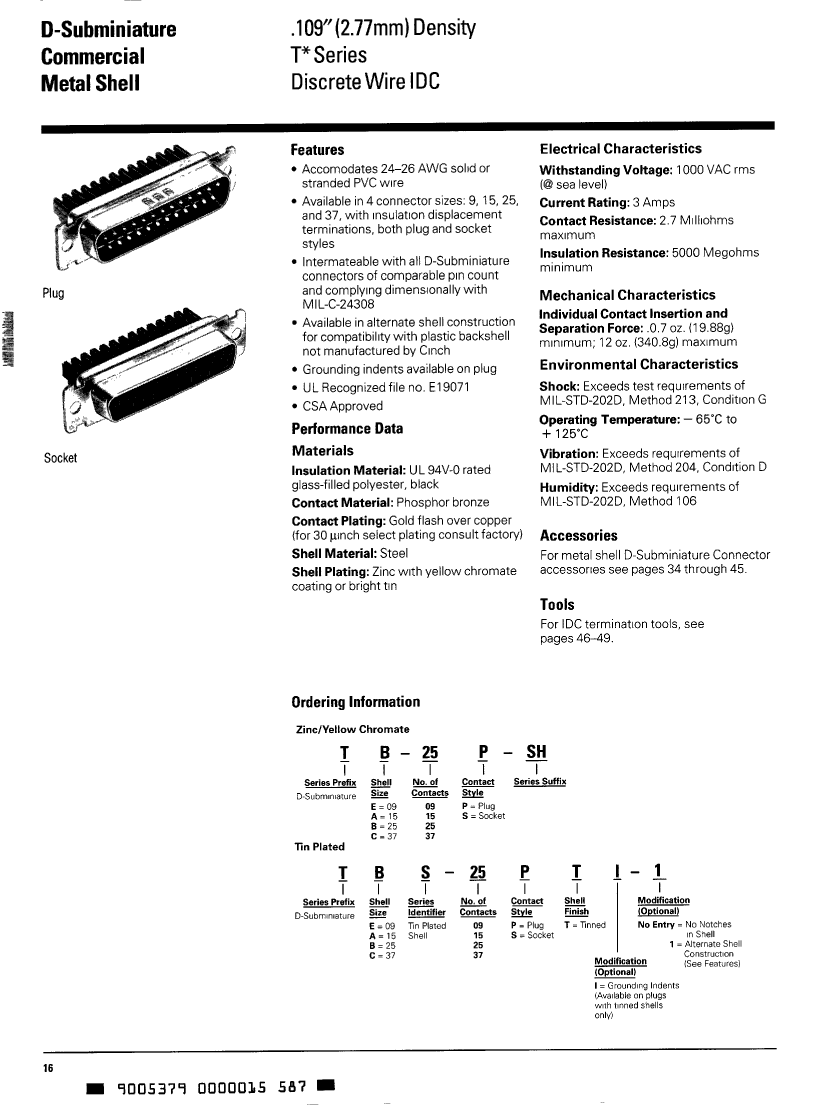

TBS-25ST-1 Overview

D Type Connector, 25 Contact(s), Female, 0.109 inch Pitch, IDC Terminal, Hole .112-.124, Plug,

Parameter Name	Attribute value
Maker	Cinch Connectivity Solutions
Reach Compliance Code	unknown

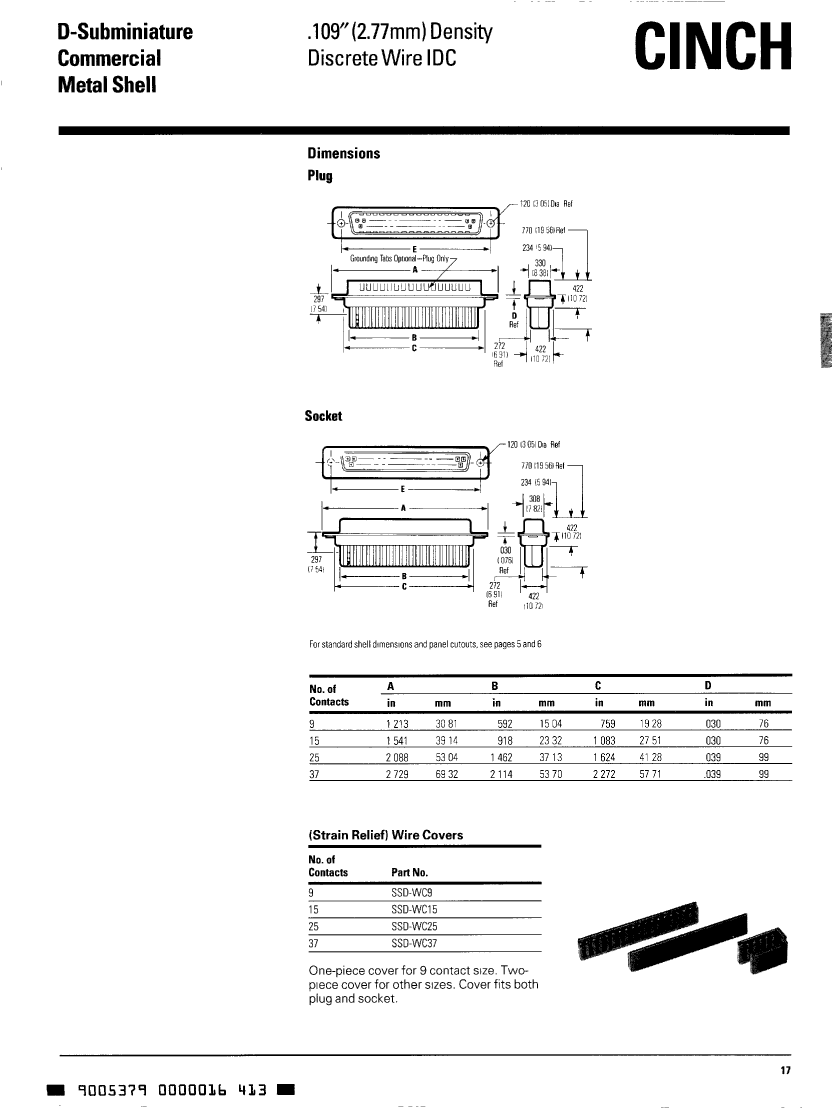

body width	0.422 inch
subject depth	0.188 inch
body length	2.088 inch
Body/casing type	PLUG
Contactor design	PREASSEM CONN
Contact to complete cooperation	AU ON CU
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	STAGGERED
Contact resistance	2.7 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1000VAC V
maximum insertion force	3.336 N
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYESTER
MIL compliance	YES
Manufacturer's serial number	T*
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Installation option 1	HOLE .112-.124
Installation option 2	NON-THREADED
Installation type	CABLE
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
Plating thickness	FLASH inch
Rated current (signal)	3 A
Guideline	UL, CSA
reliability	MIL-C-24308
Shell surface	TIN
Shell material	STEEL
Terminal length	0.348 inch
Termination type	IDC
Total number of contacts	25
Maximum wire diameter	24 AWG
Minimum wire diameter	26 AWG
Evacuation force-minimum value	.1946 N
