TC74HC4022AP datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > logic> logic> TC74HC4022AP

Preview

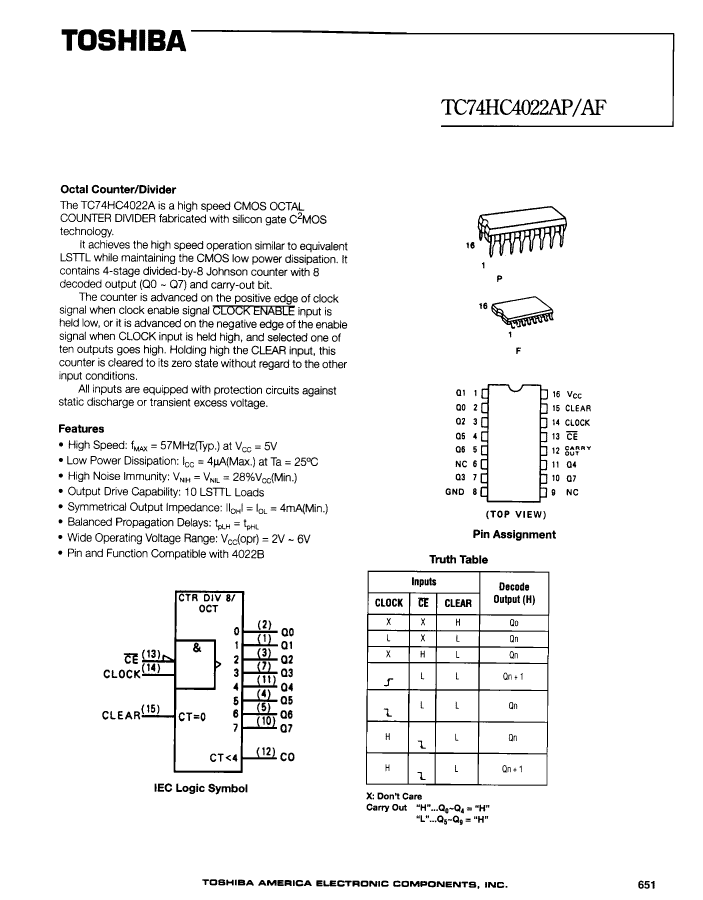

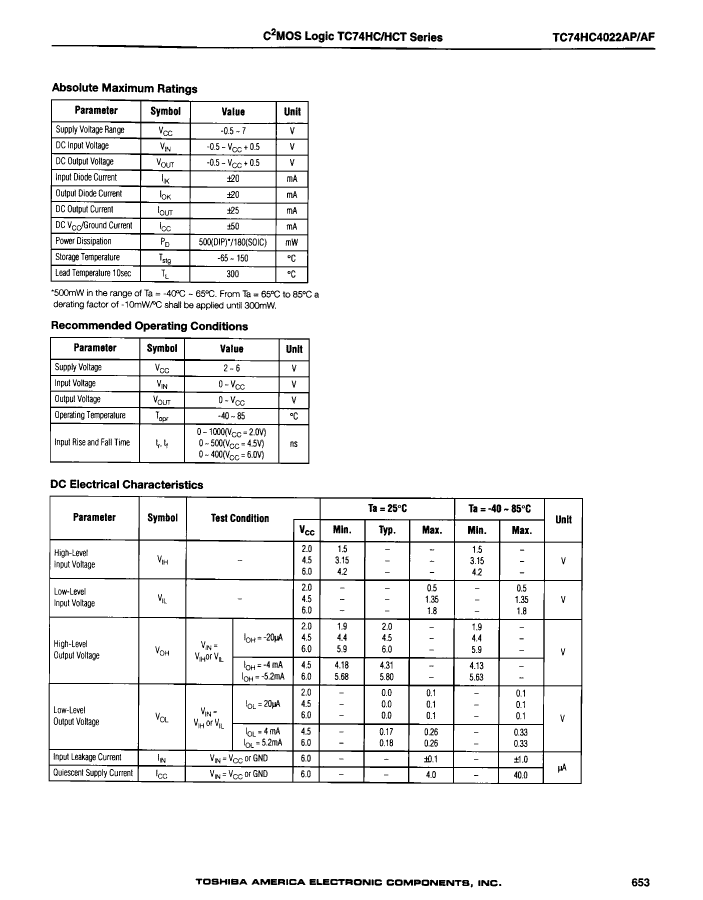

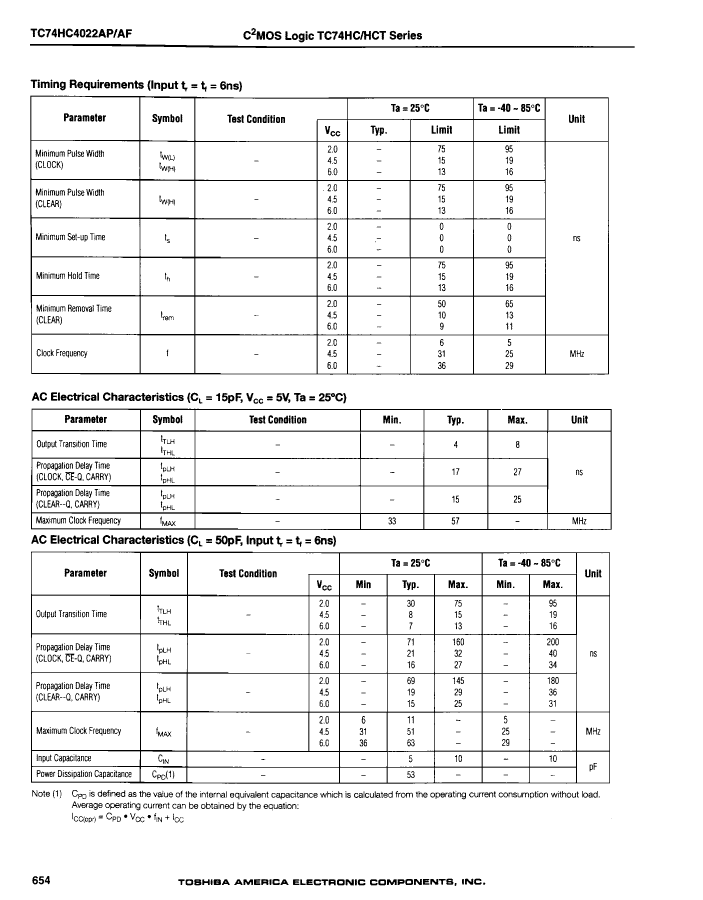

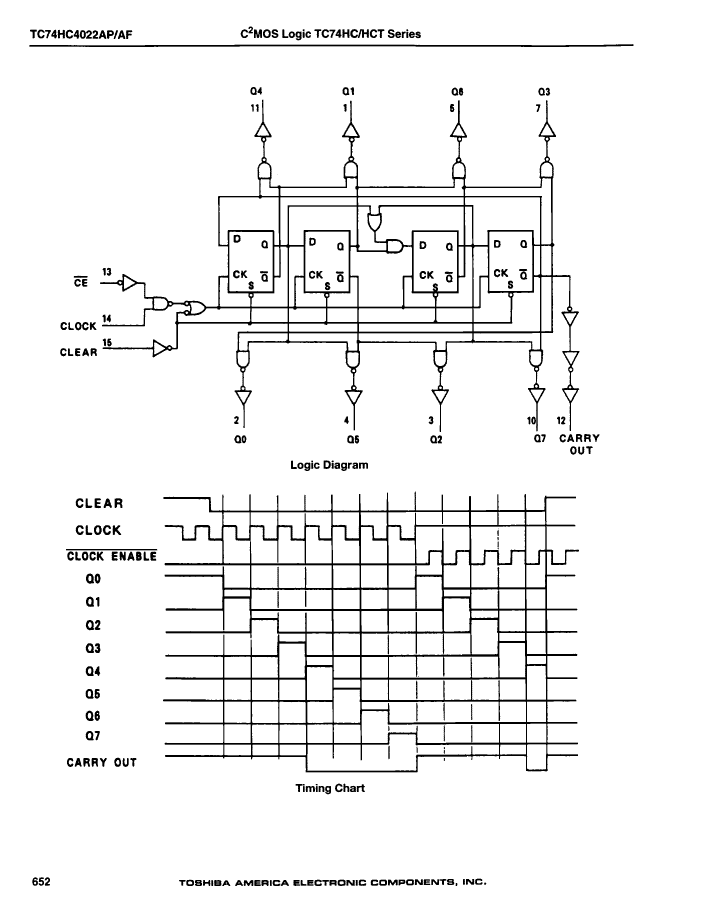

TC74HC4022AP: DescriptionIC HC/UH SERIES, SYN POSITIVE EDGE TRIGGERED 8-BIT UP RING COUNTER, PDIP16, 0.300 INCH, PLASTIC, DIP-16, Counter; Categorylogic logic; File Size107KB，4 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric Compare View All

TC74HC4022AP Overview

IC HC/UH SERIES, SYN POSITIVE EDGE TRIGGERED 8-BIT UP RING COUNTER, PDIP16, 0.300 INCH, PLASTIC, DIP-16, Counter

TC74HC4022AP Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Toshiba Semiconductor
Parts packaging code	DIP
package instruction	DIP,
Contacts	16
Reach Compliance Code	unknown

Preview

Download Datasheet

View All

TC74HC4022AP Related Products

	TC74HC4022AP	TC74HC4022AF-TP2	TC74HC4022AF-TP2EL	TC74HC4022AF-TP1	TC74HC4022AF-TP1EL	TC74HC4022AF	TC74HC4022AF-EL
Description	IC HC/UH SERIES, SYN POSITIVE EDGE TRIGGERED 8-BIT UP RING COUNTER, PDIP16, 0.300 INCH, PLASTIC, DIP-16, Counter	IC HC/UH SERIES, SYN POSITIVE EDGE TRIGGERED 8-BIT UP RING COUNTER, PDSO16, 0.300 INCH, PLASTIC, SOIC-16, Counter	IC HC/UH SERIES, SYN POSITIVE EDGE TRIGGERED 8-BIT UP RING COUNTER, PDSO16, 0.300 INCH, PLASTIC, SOIC-16, Counter	IC HC/UH SERIES, SYN POSITIVE EDGE TRIGGERED 8-BIT UP RING COUNTER, PDSO16, 0.300 INCH, PLASTIC, SOIC-16, Counter	IC HC/UH SERIES, SYN POSITIVE EDGE TRIGGERED 8-BIT UP RING COUNTER, PDSO16, 0.300 INCH, PLASTIC, SOIC-16, Counter	IC HC/UH SERIES, SYN POSITIVE EDGE TRIGGERED 8-BIT UP RING COUNTER, PDSO16, 0.300 INCH, PLASTIC, SOIC-16, Counter	IC HC/UH SERIES, SYN POSITIVE EDGE TRIGGERED 8-BIT UP RING COUNTER, PDSO16, 0.300 INCH, PLASTIC, SOIC-16, Counter
Parts packaging code	DIP	SOIC	SOIC	SOIC	SOIC	SOIC	SOIC
package instruction	DIP,	SOP,	SOP,	SOP,	SOP,	SOP, SOP16,.3	SOP,
Contacts	16	16	16	16	16	16	16
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Is it Rohs certified?	incompatible	incompatible	-	incompatible	-	incompatible	incompatible
Maker	Toshiba Semiconductor	-	-	Toshiba Semiconductor	Toshiba Semiconductor	Toshiba Semiconductor	Toshiba Semiconductor
Other features	-	JOHNSON COUNTER WITH 8 DECODED OUTPUTS; TCO OUTPUT; GATED CLOCK	JOHNSON COUNTER WITH 8 DECODED OUTPUTS; TCO OUTPUT; GATED CLOCK	JOHNSON COUNTER WITH 8 DECODED OUTPUTS; TCO OUTPUT; GATED CLOCK	JOHNSON COUNTER WITH 8 DECODED OUTPUTS; TCO OUTPUT; GATED CLOCK	JOHNSON COUNTER WITH 8 DECODED OUTPUTS; TCO OUTPUT; GATED CLOCK	JOHNSON COUNTER WITH 8 DECODED OUTPUTS; TCO OUTPUT; GATED CLOCK
Counting direction	-	UP	UP	UP	UP	UP	UP
series	-	HC/UH	HC/UH	HC/UH	HC/UH	HC/UH	HC/UH
JESD-30 code	-	R-PDSO-G16	R-PDSO-G16	R-PDSO-G16	R-PDSO-G16	R-PDSO-G16	R-PDSO-G16
JESD-609 code	-	e0	e2	-	-	e0	e0
length	-	10.3 mm	10.3 mm	10.3 mm	10.3 mm	10.3 mm	10.3 mm
Load capacitance (CL)	-	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF
Load/preset input	-	YES	YES	YES	YES	NO	YES
Logic integrated circuit type	-	RING COUNTER	RING COUNTER	RING COUNTER	RING COUNTER	RING COUNTER	RING COUNTER
Operating mode	-	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS
Number of digits	-	8	8	8	8	8	8
Number of functions	-	1	1	1	1	1	1
Number of terminals	-	16	16	16	16	16	16
Maximum operating temperature	-	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Package body material	-	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	-	SOP	SOP	SOP	SOP	SOP	SOP
Package shape	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	-	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
propagation delay (tpd)	-	40 ns	40 ns	40 ns	40 ns	40 ns	40 ns
Certification status	-	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	-	1.9 mm	1.9 mm	1.9 mm	1.9 mm	1.9 mm	1.9 mm
Maximum supply voltage (Vsup)	-	6 V	6 V	6 V	6 V	6 V	6 V
Minimum supply voltage (Vsup)	-	2 V	2 V	2 V	2 V	2 V	2 V
Nominal supply voltage (Vsup)	-	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	-	YES	YES	YES	YES	YES	YES
technology	-	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	-	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal surface	-	TIN LEAD	TIN COPPER/TIN SILVER	-	-	Tin/Lead (Sn/Pb)	TIN LEAD
Terminal form	-	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	-	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	-	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Trigger type	-	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE
width	-	5.3 mm	5.3 mm	5.3 mm	5.3 mm	5.3 mm	5.3 mm
minfmax	-	25 MHz	25 MHz	25 MHz	25 MHz	25 MHz	25 MHz
