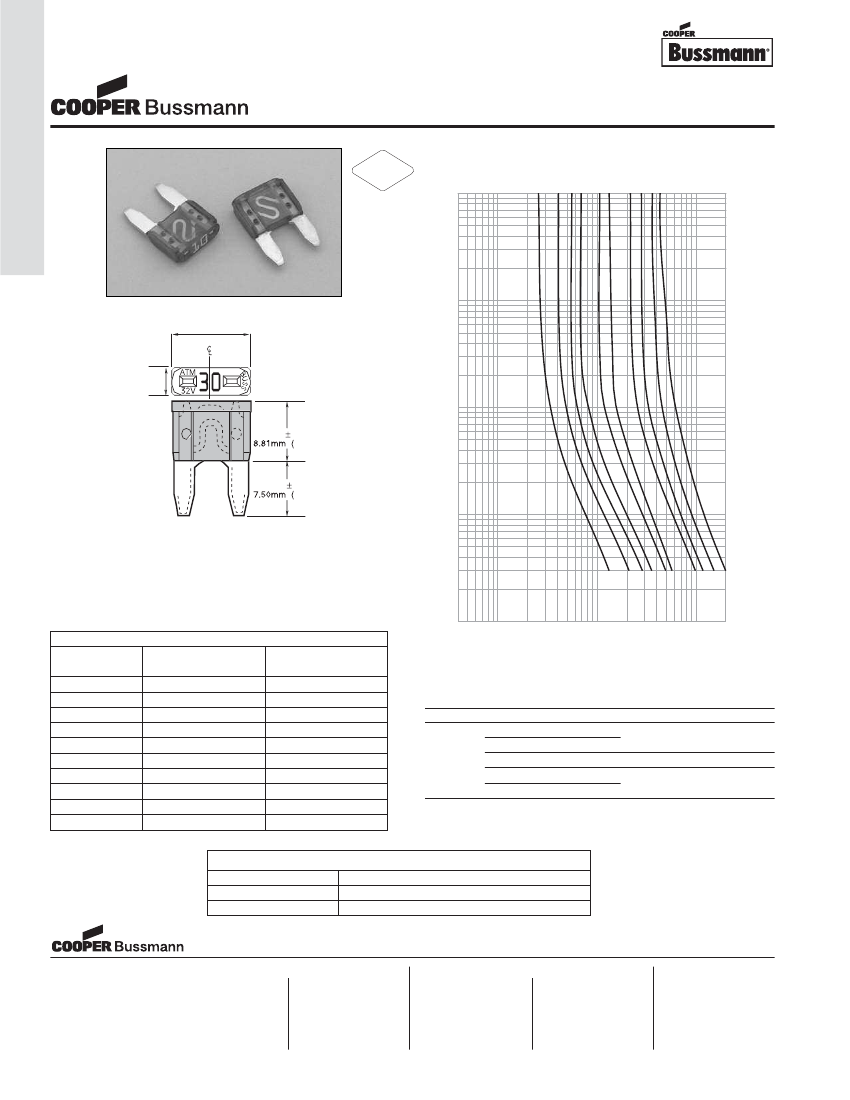

Automotive Fuses - Blade
Blade-Type Fuses
ATM Series, Fast Acting
Time-Current Characteristic Curves–Average Melt
7.5A
10A
100
15A
20A
25A
30A
2A
3A
4A
5A
RoHS
2002/95/EC
AMPERE
RATING
10
Dimensional Data
.430"
10.92mm
TIME IN SECONDS
.15"
3.81mm
1
.347" ( 0.016)
±0.41)
.295" ( 0.012)
±0.30)
.1
Catalog Symbol:
ATM
Fast-Acting
Ampere Ratings:
2 to 30 Amperes
Interrupting Rating:
1,000 Amperes
Ordering:
Specify packaging and product code
.01
.4
1
10
100
—
2-20 Amps
Product
Code
ATM-2
ATM-3
ATM-4
ATM-5
ATM-7 1/2
ATM-10
ATM-15
ATM-20
ATM-25
ATM-30
Body
Color
Gray
Violet
Pink
Tan
Brown
Red
Lt. Blue
Yellow
Natural White
Green
Voltage
Rating DC
32V
32V
32V
32V
32V
32V
32V
32V
32V
32V
CURRENT IN AMPERES
Recommended Bussmann Fuseholders
Blade-Type
Part
HHM
HHM-B
ATM
HHM-C
HHL
HHL-B
Description
Fuseholder w/Cover
Body Only
Cover Only
Fuseholder w/Cover
Body Only
Fuse Size
3-30 Amps
Wire Size
#12 Lead Wire;
4" Length
—
#16 Lead Wire;
4" Length
PACKAGING CODE
Packaging Code
Blank
BK
Description
5 pieces of fuses packed in a tin
500 pieces of fuses packed in a carton
