0275020.MRT1L datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Circuit protection> Circuit protection> 0275020.MRT1L

0275020.MRT1L: DescriptionVERY FAST BLOW ELECTRIC FUSE, 20A, 32VAC, 32VDC, 100A (IR), THROUGH HOLE; CategoryCircuit protection Circuit protection; File Size549KB，3 Pages; ManufacturerLittelfuse; Websitehttp://www.littelfuse.com; Environmental Compliance

Download Datasheet Parametric View All

0275020.MRT1L Overview

VERY FAST BLOW ELECTRIC FUSE, 20A, 32VAC, 32VDC, 100A (IR), THROUGH HOLE

0275020.MRT1L Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Littelfuse
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Other features	RATED BREAKING CAPACITY AT 32 VDC: 300 A
Fusing characteristics	VERY FAST
body height	7.87 mm
Body length or diameter	3.38 mm
Circuit protection type	ELECTRIC FUSE
Fuse size	PICO
JESD-609 code	e3
Joule integral nominal	115 J
Installation features	THROUGH HOLE
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
method of packing	TAPE AND REEL
physical size	3.38mm x 7.87mm
Pre-discharge rating	203 A2/s
Rated breaking capacity	100 A
Rated current	20 A
Rated voltage	32 V
Rated voltage (AC)	32 V
Rated voltage (DC)	32 V
Guideline	UL
surface mount	NO
Terminal surface	Tin (Sn)
Terminal shape	PIN WIRE
Disconnect time or delay	14400 s
Base Number Matches	1

Preview

Download Datasheet

View All

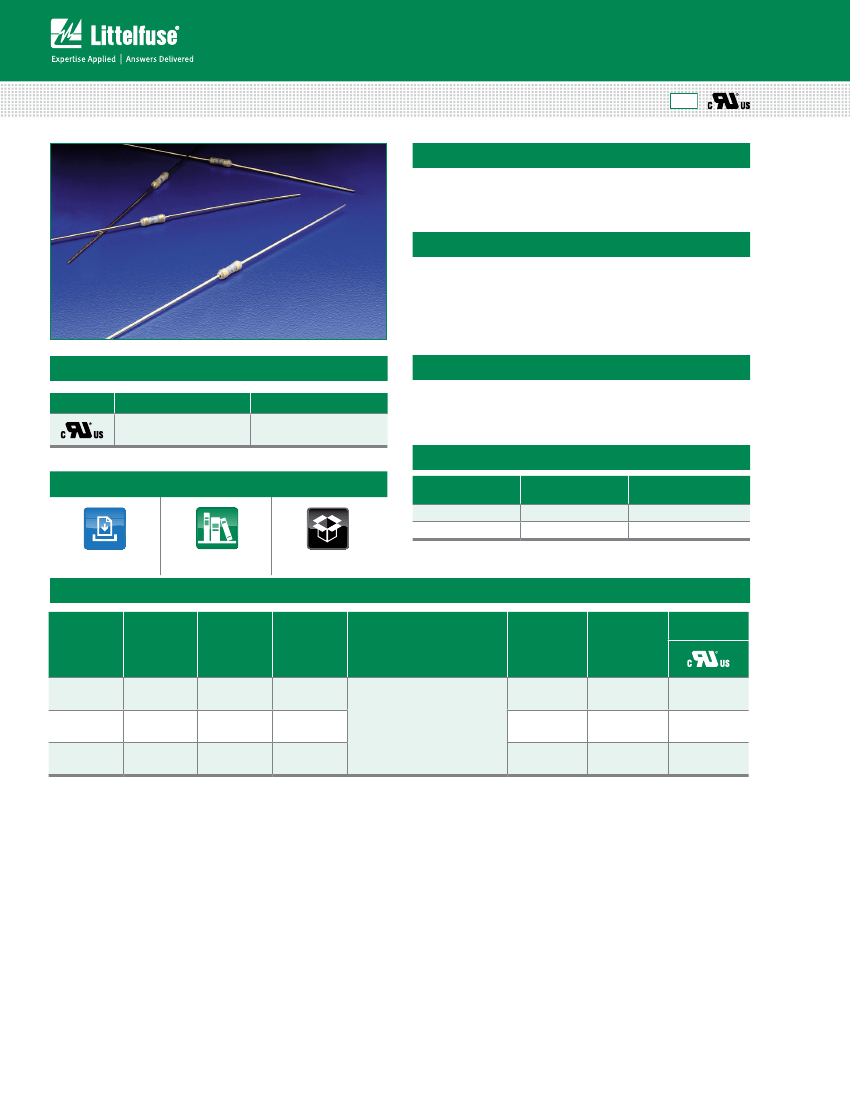

Axial Lead & Cartridge Fuses

PICO

> Very Fast-Acting Fuse > 275 Series

275 Series, PICO

Very Fast-Acting Fuse

Description

RoHS

The PICO

Very Fast-Acting Fuse is designed to meet an

extensive array of performance characteristics in a

space-saving subminiature package.

Features

• Very fast-acting

• Small size

• High current rating

(20A- 30A)

Agency Approvals

Agency

Agency File Number

Ampere Range

• RoHS compliant

• Wide operating

temperature range

• Low temperature rerating

Applications

• Power supply

• PC server

Electrical Characteristics

• Networking equipment

• Storage system

E10480

20A - 30A

Additional Information

% of Ampere

Rating

100%

200%

Ampere Rating

20A - 30A

Opening Time

4 Hours,

Min.

10 Seconds,

Max.

Datasheet

Resources

Samples

Electrical Characteristics

Ampere

Rating

(A)

20.0

25.0

30.0

Max

Voltage

Rating

(V)

300A@32VDC

100A@32VAC

Nominal Cold

Resistance

(Ohms)

0.0033

0.0024

0.0020

Nominal

Melting

t (A

sec)

203

288

355

Agency

Approvals

Amp Code

Ordering

Number

Interrupting

Rating

020.

025.

030.

0275020.

0275025.

0275030.

Application testing is strongly recommended. Specifications are subject to change without notice.

Revised: 02/15/18
