DSW1058-A

Description
Isolator, 1930MHz Min, 1990MHz Max
CategoryWireless rf/communication    Radio frequency and microwave
File Size224KB,1 Pages
ManufacturerTrak Microwave Corp.
Download Datasheet Parametric View All

DSW1058-A Overview

Isolator, 1930MHz Min, 1990MHz Max

DSW1058-A Parametric

Parameter NameAttribute value
MakerTrak Microwave Corp.
Reach Compliance Codeunknown
Maximum input power (CW)48.45 dBm
Maximum insertion loss0.45 dB
Maximum operating frequency1990 MHz
Minimum operating frequency1930 MHz
Maximum operating temperature70 °C
Minimum operating temperature-10 °C
RF/Microwave Device TypesISOLATOR

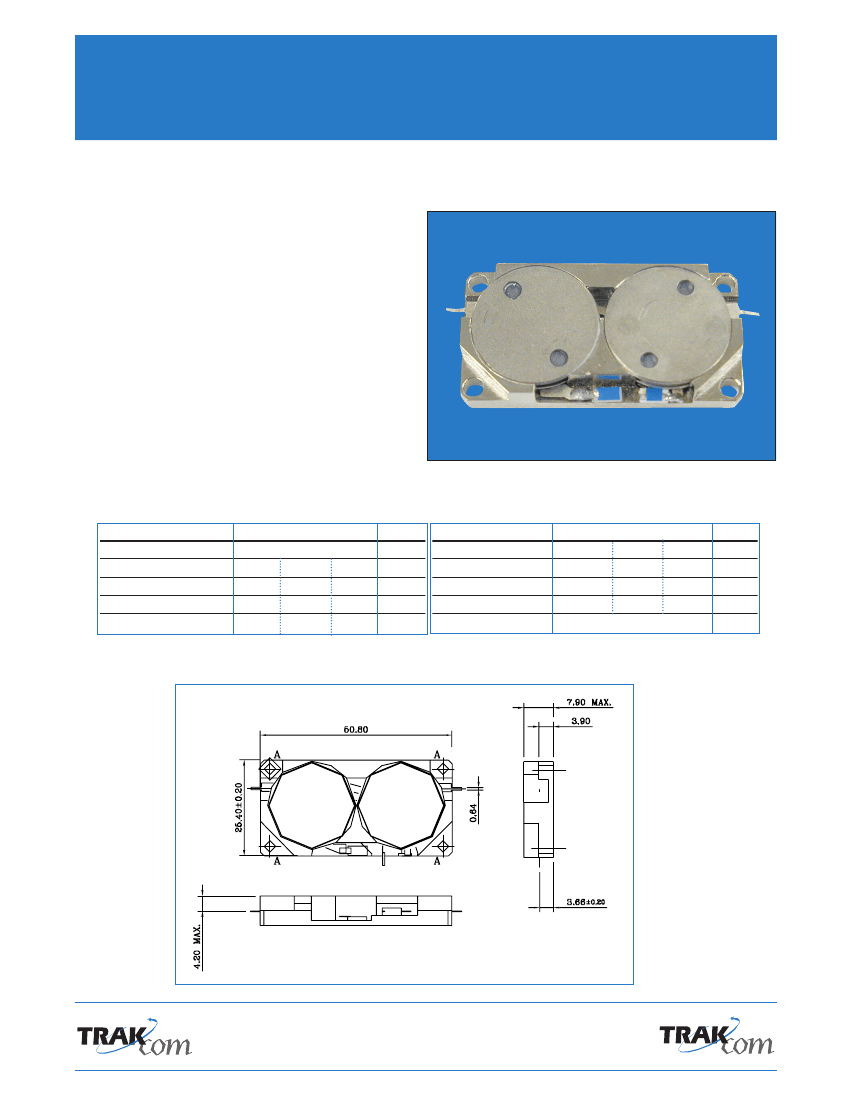

Isolator
Dual Junction Drop-In
Model: DSW1058-A
Application - WIRELESS
w
Base Station
w
Filter Subsystems, Combiners, and Amplifiers
w
PCS1900/DCS1800, EGSM, TDMA, UMTS
w
Excellent IM3 Performance
w
Rugged Construction
Benefits
w
Integral Terminations
w
Magnetic Screening
w
20 dB Reverse Power Sense
Features
Specifications
Parameter
Frequency
Isolation
Insertion Loss
Return Loss
Specification
1930 - 1990
Min Typ Max
50
55
-
-
0.4
0.5
20
24
-
Unit Parameter
MHz
Operating Temp.
dB Forward Power
dB Reverse Power
dB Interface
Specification
Min Typ Max
-10
-
+70
-
-
70
-
-
10
Tab
Unit
o
C
W
W
-
Drawing
TRAK Microwave Limited
Dunsinane Avenue, Dundee, Scotland DD2 3QF
Phone: +44 (0)1382 427 200
w
Fax: +44 (0)1382 833 599
E-mail: trakeurope@trak.com
w
www.trak.com
Specifications subject to change without notice
z1999
TRAK Communications, Inc. Doc #SC182ads200
