Heat Shrinkable Terminal, Splices, Disconnects
Heat Shrinkable
These ring terminals, butt splices and
disconnects are self-insulated with heat
shrinkable polyolefin and internally coated
sealant. Upon completed installation, a
fully sealed connection is achieved to
protect the joint against the degrading
effects of galvanic action, corrosion, and
environmental exposure.

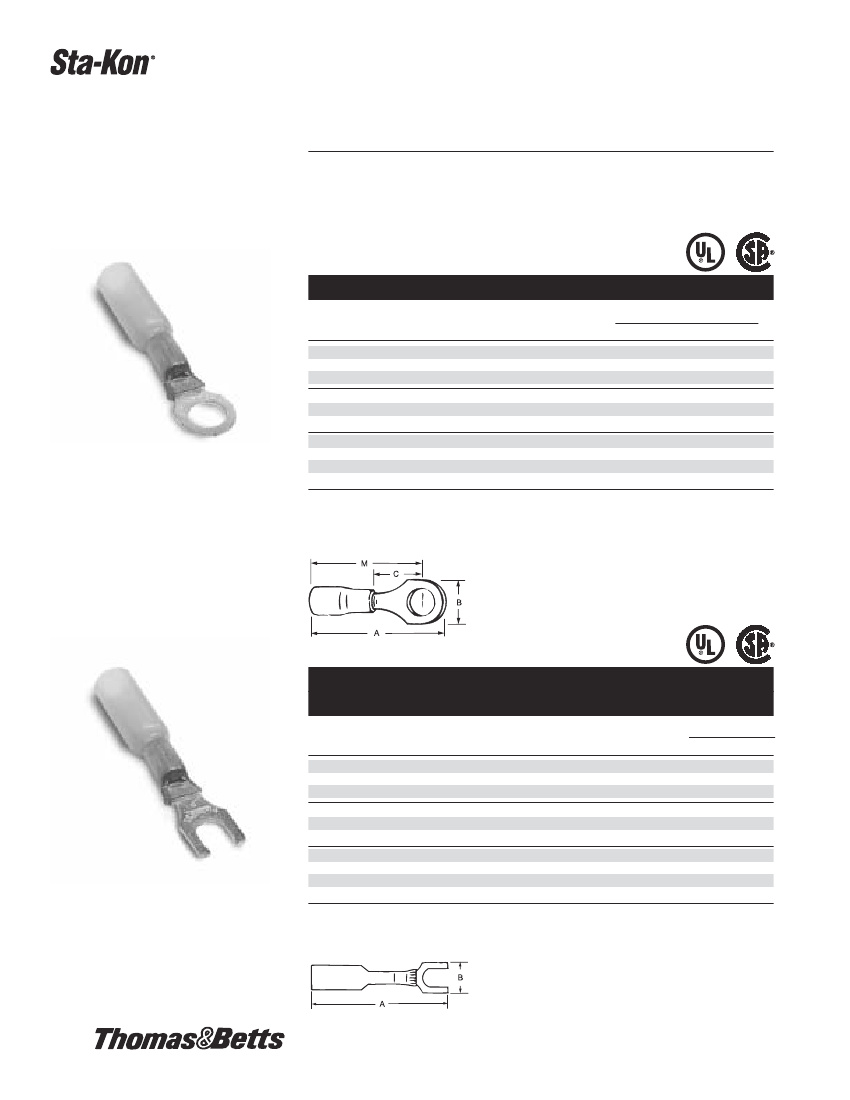

Heat Shrinkable Ring Terminals – Expanded Insulation Support
Cat.
No.
RAS18-6X
RAS18-8X
RAS18-10X
RBS14-6X
RBS14-8X
RBS14-10X
RCS10-6X
RCS10-8X
RCS10-10X
RCS10-14X
Pkg.
Qty.
100
100
100
100
100
100
50
50
50
50
Wire
Range
22-18
22-18
22-18
16-14
16-14
16-14
12-10
12-10
12-10
12-10
Max.
Ins.
.170
.170
.170
.200
.200
.200
.250
.250
.250
.250
Bolt
Hole
#6
#8
#10
#6
#8
#10
#6
#8
#10
1/4"
Wt./Lbs.
Per
1000
2
3
2
3
3
3-1/2
3
5
5
6
Dimensions
A
1.23
1.26
1.26
1.23
1.23
1.26
1.34
1.34
1.34
1.34
B
.25
.31
.31
.25
.25
.31
.31
.37
.37
.49
C
.27
.27
.27
.27
.27
.27
.27
.27
.27
.32
M
1.10
1.10
1.10
1.10
1.10
1.10
1.15
1.15
1.15
1.15
These ring terminals are self-insulated with heat
shrinkable polyolefin and internally coated
sealant. Upon completed installation, a fully
sealed connection is achieved to protect the joint
against the degrading effects of galvanic action,
corrosion, and environmental exposure.
RAS & RBS stock thickness: .03
RCS stock thickness: .04
U.L. Listed E9809
Installing tool: WT1255
Note: Not available on Mylar Tape.
Heat Shrinkable Locking Fork Terminals – Expanded
Insulation Support
Cat.
No.
RAS18-6FLX
RAS18-8FLX
RAS18-10FLX
RBS14-6FLX
RBS14-8FLX
RBS14-10FLX
RCS10-6FLX
RCS10-8FLX
RCS10-10FLX
RCS10-14FLX
Pkg.
Qty.
100
100
100
100
100
100
50
50
50
50
Wire
Range
22-18
22-18
22-18
16-14
16-14
16-14
12-10
12-10
12-10
12-10
Max.
Ins.
.170
.170
.170
.200
.200
.200
.250
.250
.250
.250
Bolt
Hole
#6
#8
#10
#6
#8
#10
#6
#8
#10
1/4"
Wt./Lbs.
Per
1000
5
5
5
6
6
6
8
8
8
8
Dimensions
A
1.350
1.350
1.350
1.350
1.350
1.350
1.350
1.350
1.350
1.350
B
.25
.29
.29
.25
.29
.29
.31
.37
.37
.49
U.L. Listed E9809
Installing tool: WT1255
Note: Heat Shrinkable terminals not available on Mylar Tape.
162
Heat Shrinkable Terminal, Splices, Disconnects

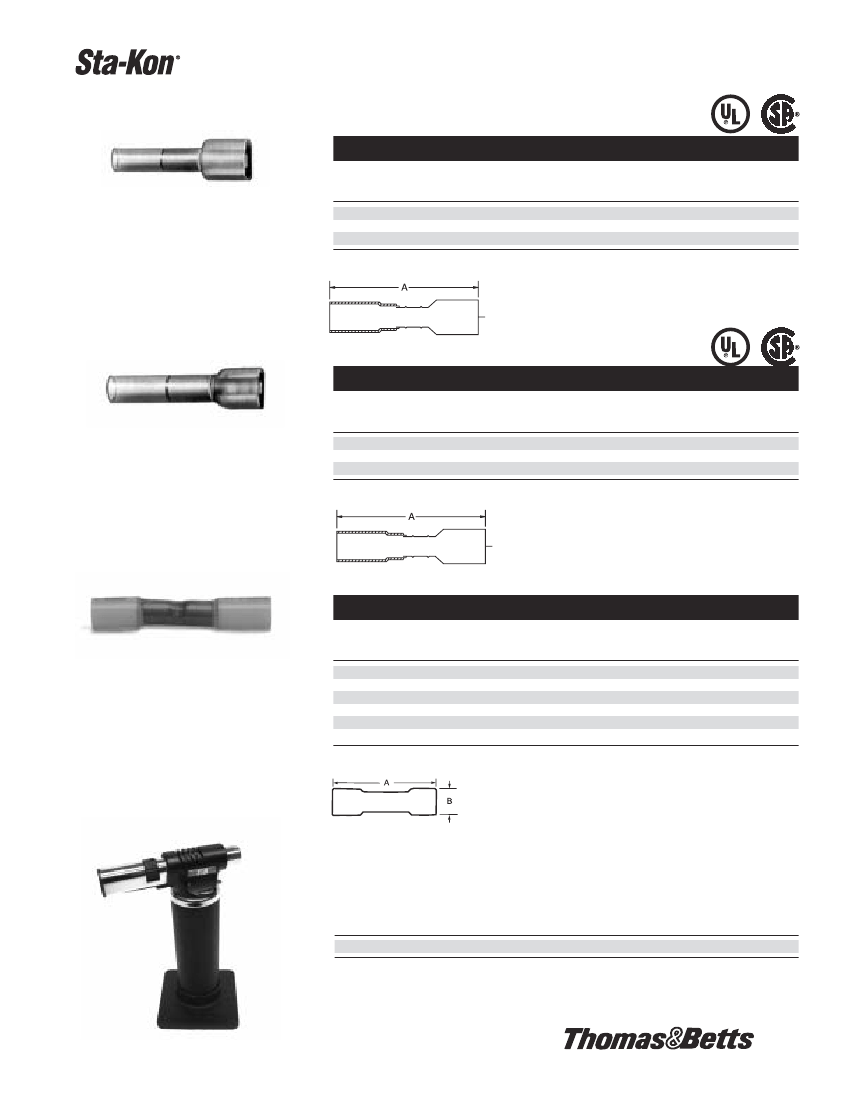

Heat Shrinkable-Fully Insulated 250 Disconnects – Female
Cat.
No.
RAS18-250AX
RBS14-250AX
RCS10-250AX
Installing tool: WT1255
Pkg.
Qty.
25
25
50
Wire
Range
22-18
16-14
12-10
Max.
Ins
.170
.200
.250
Tab
Size
.250 x .032
.250 x .032
.250 x .032
Wt./Lbs.
Per
1000
4
5
6
A
1.82
1.77
1.80
Heat Shrinkable-Fully Insulated 250 Disconnects – Male
Cat.
No.
18RAS-251TX
14RBS-251TX
10RCS-251TX
Installing tool: WT1255
Pkg.
Qty.
25
25
25
Wire
Range
22-18
16-14
12-10
Max.
Ins
.170
.200
.250
Tab
Size
.250 x .032
.250 x .032
.250 x .032
Wt./Lbs.
Per
1000
4
5
6
A
1.80
1.75
1.80
Heat Shrinkable Splices – Butt Type – Expanded Insulation
Cat.
No.
2RAS18X
RAAS22X
2RBS14X
RBBS22X
2RCS10X
RCCS22X
Installing tool: WT1255
Pkg.
Qty.
50
1000
50
500
25
500
Wire
Range
22-18
22-18
16-14
16-14
12-10
12-10
Max.
Ins
.170
.170
.200
.200
.250
.250
Wt./Lbs.
Per
1000
3
3
3
3
7
7
A
1.50
1.50
1.50
1.50
1.60
1.60
B
.25
.25
.26
.26
.31
.31
These butt splices are self-insulated with heat
shrinkable polyolefin and internally coated
sealant. Upon completed installation, a fully
sealed connection is achieved to protect the joint
against the degrading effects of galvanic action,
corrosion, and environmental exposure.
Cat. No.
WT-PTORCH
Description
Hand-Held Butane Torch (Butane not supplied)
WT-PTORCH
163
