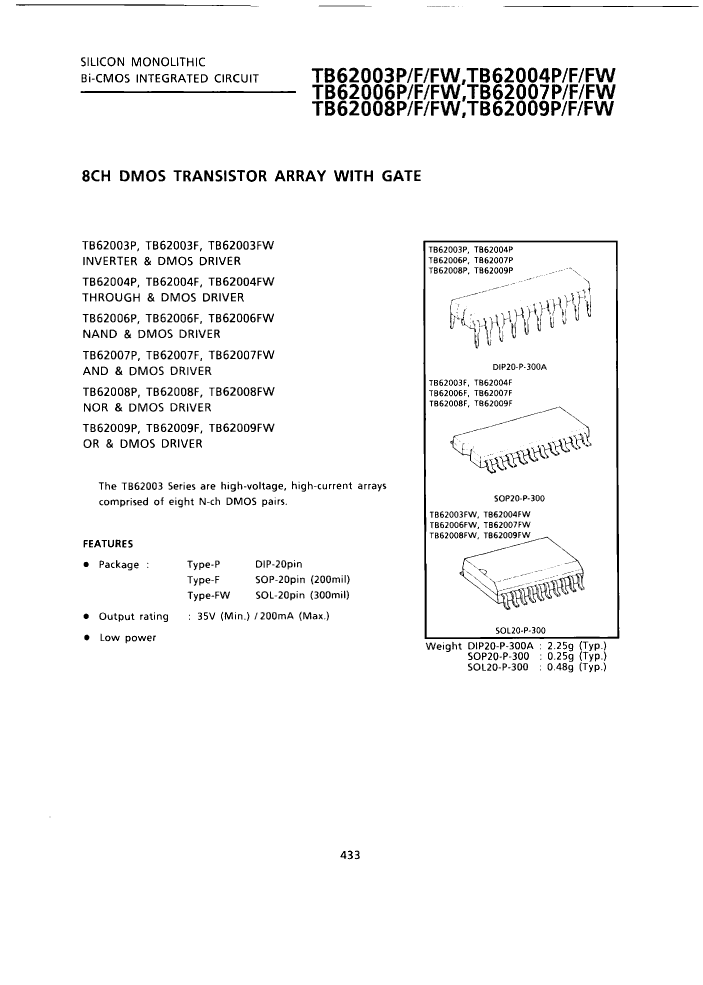

IC 8 CHANNEL, BUF OR INV BASED PRPHL DRVR, PDSO20, 0.300 INCH, PLASTIC, SOL-20, Peripheral Driver

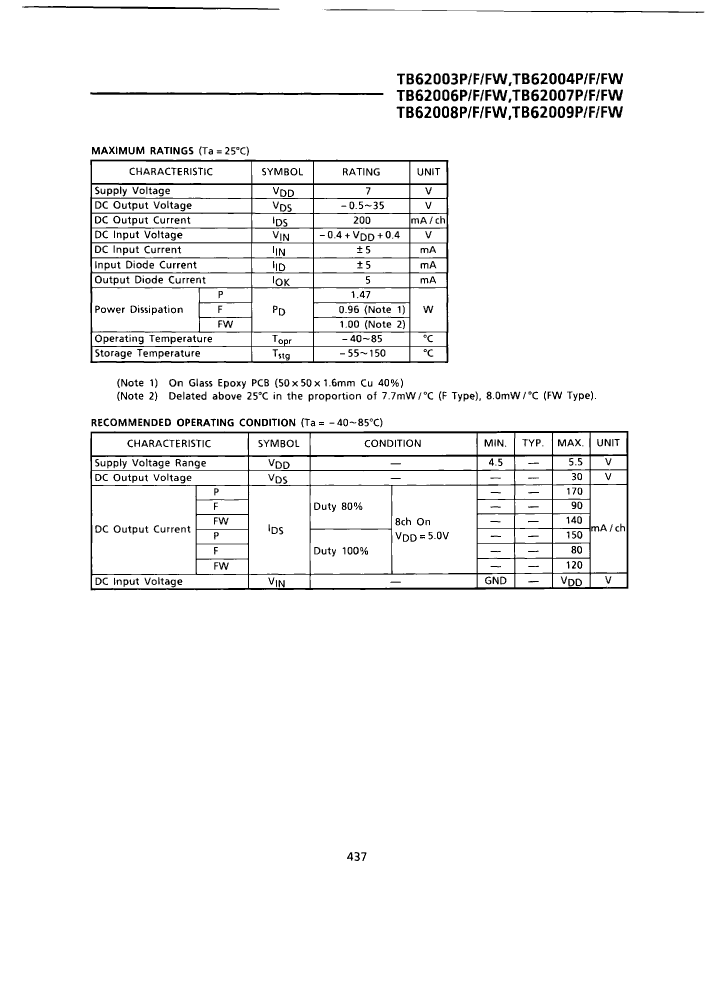

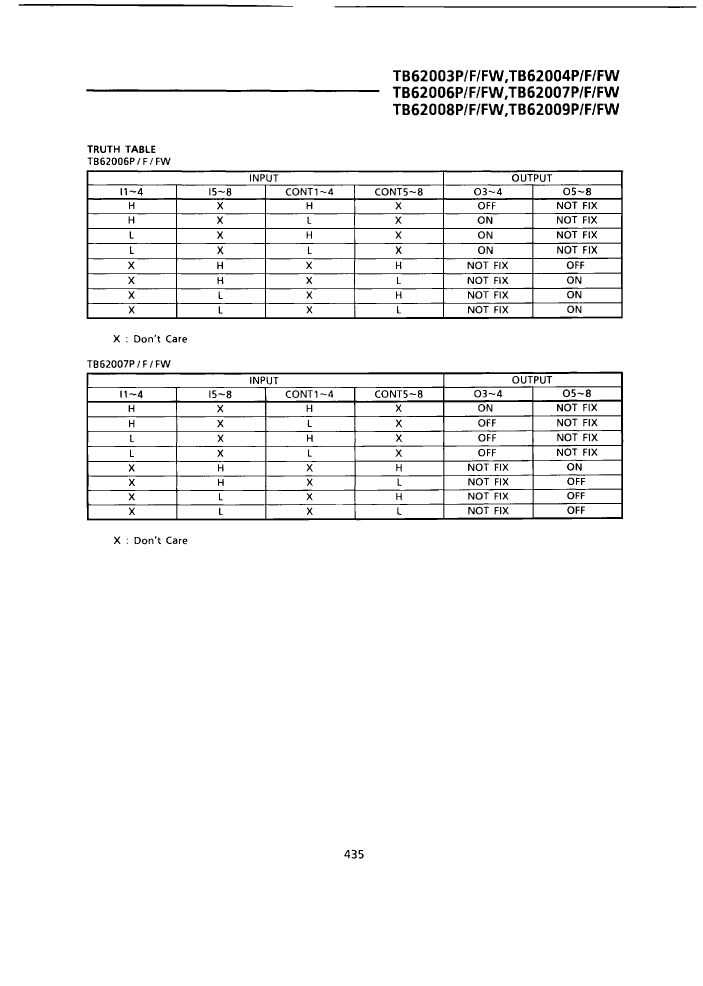

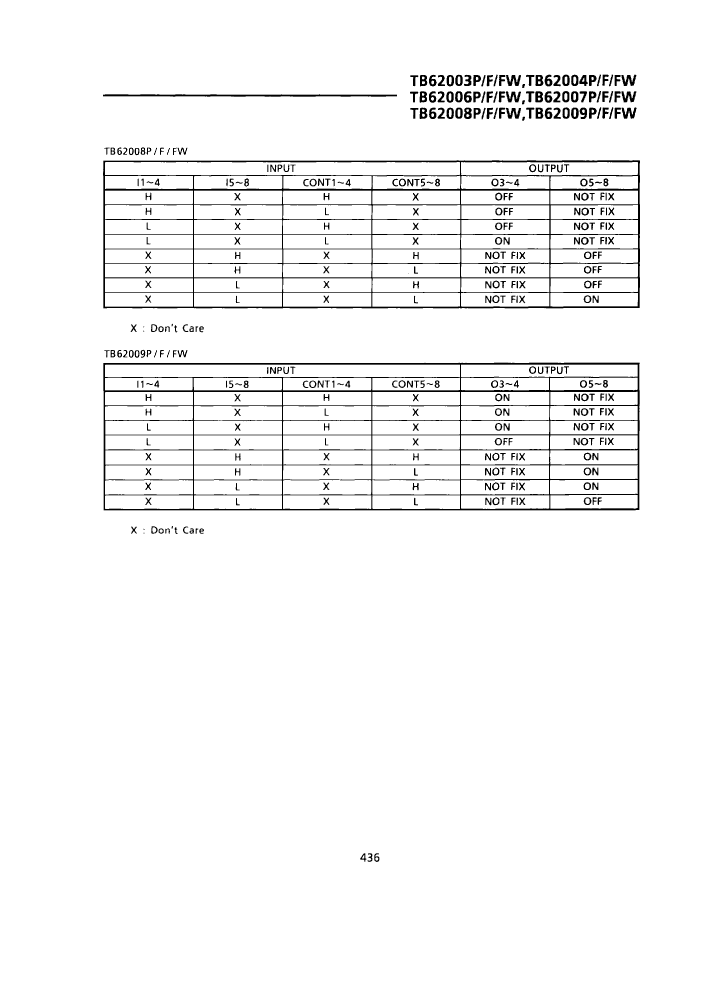

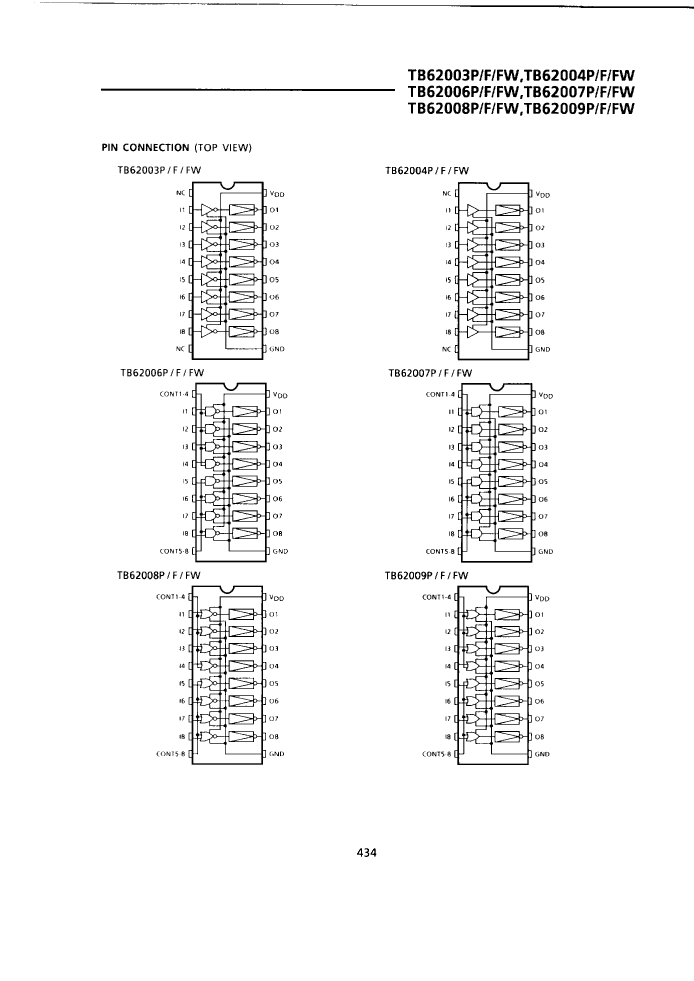

| Parameter Name | Attribute value |
| Is it lead-free? | Contains lead |
| Is it Rohs certified? | incompatible |
| Maker | Toshiba Semiconductor |
| Parts packaging code | SOIC |
| package instruction | SOP, |
| Contacts | 20 |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| Interface integrated circuit type | BUFFER OR INVERTER BASED PERIPHERAL DRIVER |
| JESD-30 code | R-PDSO-G20 |
| JESD-609 code | e0 |
| length | 12.8 mm |
| Number of functions | 8 |
| Number of terminals | 20 |
| Maximum operating temperature | 85 °C |
| Minimum operating temperature | -40 °C |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | SOP |
| Package shape | RECTANGULAR |
| Package form | SMALL OUTLINE |
| Peak Reflow Temperature (Celsius) | 240 |
| Certification status | Not Qualified |
| Maximum seat height | 2.7 mm |
| Maximum supply voltage | 5.5 V |
| Minimum supply voltage | 4.5 V |
| Nominal supply voltage | 5 V |
| surface mount | YES |
| technology | BICMOS |
| Temperature level | INDUSTRIAL |
| Terminal surface | TIN LEAD |
| Terminal form | GULL WING |
| Terminal pitch | 1.27 mm |
| Terminal location | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| width | 7.5 mm |
| TD62004FW | TD62006FW | TD62008FW | TD62007FW | TD62003FW | TD62008P | TD62009FW | |
|---|---|---|---|---|---|---|---|
| Description | IC 8 CHANNEL, BUF OR INV BASED PRPHL DRVR, PDSO20, 0.300 INCH, PLASTIC, SOL-20, Peripheral Driver | IC 0.14 A 8 CHANNEL, BUF OR INV BASED PRPHL DRVR, PDSO20, 0.300 INCH, PLASTIC, SOL-20, Peripheral Driver | IC 0.14 A 8 CHANNEL, BUF OR INV BASED PRPHL DRVR, PDSO20, 0.300 INCH, PLASTIC, SOL-20, Peripheral Driver | IC 0.14 A 8 CHANNEL, BUF OR INV BASED PRPHL DRVR, PDSO20, 0.300 INCH, PLASTIC, SOL-20, Peripheral Driver | IC 8 CHANNEL, BUF OR INV BASED PRPHL DRVR, PDSO20, 0.300 INCH, PLASTIC, SOL-20, Peripheral Driver | IC 0.17 A 8 CHANNEL, BUF OR INV BASED PRPHL DRVR, PDIP20, 0.300 INCH, PLASTIC, DIP-20, Peripheral Driver | IC 0.14 A 8 CHANNEL, BUF OR INV BASED PRPHL DRVR, PDSO20, 0.300 INCH, PLASTIC, SOL-20, Peripheral Driver |
| Parts packaging code | SOIC | SOIC | SOIC | SOIC | SOIC | DIP | SOIC |
| package instruction | SOP, | SOP, | SOP, | SOP, | SOP, | DIP, | SOP, |
| Contacts | 20 | 20 | 20 | 20 | 20 | 20 | 20 |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown | unknown | unknown |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
| Interface integrated circuit type | BUFFER OR INVERTER BASED PERIPHERAL DRIVER | BUFFER OR INVERTER BASED PERIPHERAL DRIVER | BUFFER OR INVERTER BASED PERIPHERAL DRIVER | BUFFER OR INVERTER BASED PERIPHERAL DRIVER | BUFFER OR INVERTER BASED PERIPHERAL DRIVER | BUFFER OR INVERTER BASED PERIPHERAL DRIVER | BUFFER OR INVERTER BASED PERIPHERAL DRIVER |
| JESD-30 code | R-PDSO-G20 | R-PDSO-G20 | R-PDSO-G20 | R-PDSO-G20 | R-PDSO-G20 | R-PDIP-T20 | R-PDSO-G20 |
| length | 12.8 mm | 12.8 mm | 12.8 mm | 12.8 mm | 12.8 mm | 24.6 mm | 12.8 mm |
| Number of functions | 8 | 8 | 8 | 8 | 8 | 8 | 8 |
| Number of terminals | 20 | 20 | 20 | 20 | 20 | 20 | 20 |
| Maximum operating temperature | 85 °C | 85 °C | 85 °C | 85 °C | 85 °C | 85 °C | 85 °C |
| Minimum operating temperature | -40 °C | -40 °C | -40 °C | -40 °C | -40 °C | -40 °C | -40 °C |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| encapsulated code | SOP | SOP | SOP | SOP | SOP | DIP | SOP |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | IN-LINE | SMALL OUTLINE |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum seat height | 2.7 mm | 2.7 mm | 2.7 mm | 2.7 mm | 2.7 mm | 4.45 mm | 2.7 mm |
| Maximum supply voltage | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V |
| Minimum supply voltage | 4.5 V | 4.5 V | 4.5 V | 4.5 V | 4.5 V | 4.5 V | 4.5 V |
| Nominal supply voltage | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V |
| surface mount | YES | YES | YES | YES | YES | NO | YES |
| technology | BICMOS | BICMOS | BICMOS | BICMOS | BICMOS | BICMOS | BICMOS |
| Temperature level | INDUSTRIAL | INDUSTRIAL | INDUSTRIAL | INDUSTRIAL | INDUSTRIAL | INDUSTRIAL | INDUSTRIAL |
| Terminal form | GULL WING | GULL WING | GULL WING | GULL WING | GULL WING | THROUGH-HOLE | GULL WING |
| Terminal pitch | 1.27 mm | 1.27 mm | 1.27 mm | 1.27 mm | 1.27 mm | 2.54 mm | 1.27 mm |
| Terminal location | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL |
| width | 7.5 mm | 7.5 mm | 7.5 mm | 7.5 mm | 7.5 mm | 7.62 mm | 7.5 mm |
| Maker | Toshiba Semiconductor | - | Toshiba Semiconductor | Toshiba Semiconductor | Toshiba Semiconductor | Toshiba Semiconductor | Toshiba Semiconductor |
| Nominal output peak current | - | 0.14 A | 0.14 A | 0.14 A | - | 0.17 A | 0.14 A |
