Thermoelectric Module Datasheet
Performance Parameters
RMT Ltd
1MD03-008-XX
Type
ΔT
max
K
Q
max
W
I
max
A
U
max
V
AC R
Ohm
H
mm
1MD03-008-xx (N=8)
1MD03-008-04
1MD03-008-05
71
72
0.6
0.5
1.1
1.0
0.9
0.9
1.1
Performance specified at 300K, vacuum
0.7
0.9

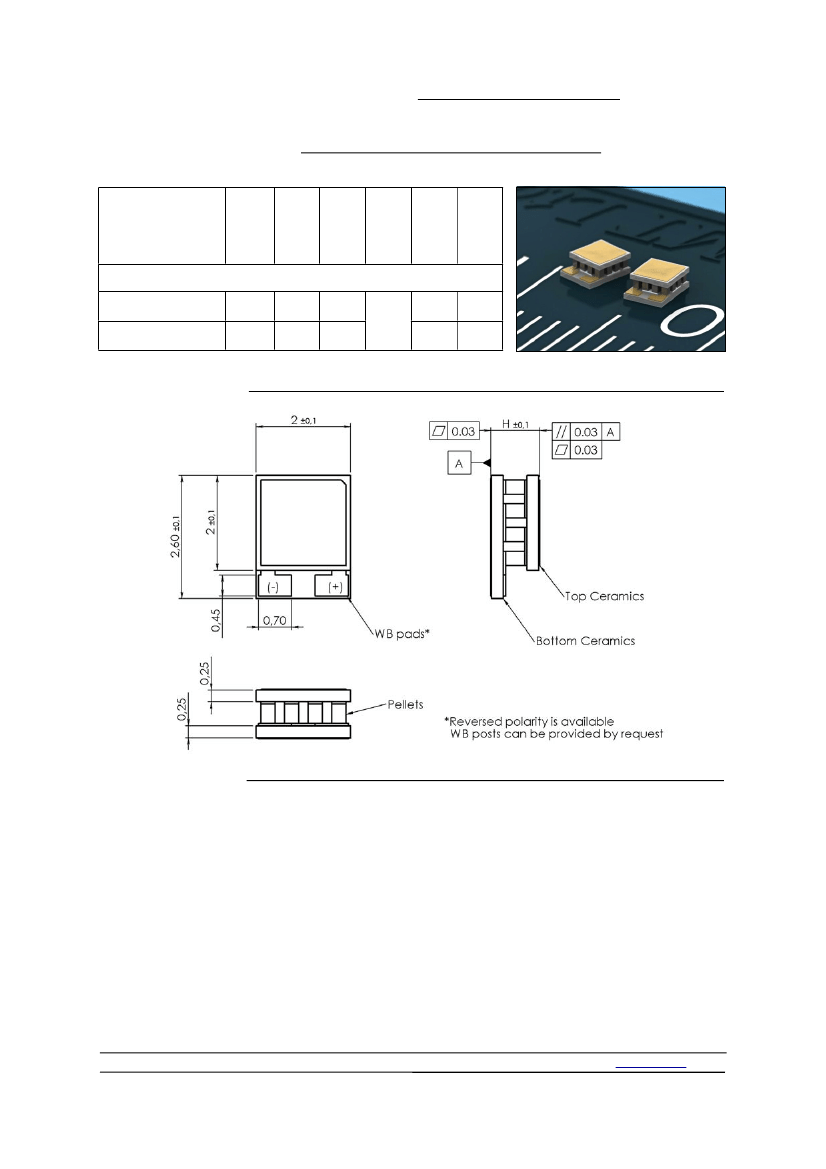

Technical Drawing
Options available
A. TEC Assembly:
Solder SnSb (Tmelt=230°C)
B. Ceramics:
1.Pure Al
2
O
3
(100%)
2.Alumina (Al
2
O
3
- 96%)
3.Aluminum Nitride (AlN)
100% Al
2
O
3
used be default
C. Ceramics Surface Options
D. Thermistor (optional)
1. Blank ceramics
Can be mounted to cold side
2. Metallized:
ceramics edge. Calibration
2.1 Ni / Sn(Bi)
is available.
2.2 Gold plating
3. Metallized and pre-tinned:
E. Terminal contacts
3.1 Solder 94 (PbSnBi, Tmelt=94°C)
1. Au plated WB pads
3.2 Solder 117 (In-Sn, Tmelt=117°C)
2. Au plated WB posts
3.3 Solder 138 (Sn-Bi, Tmelt=138°C)
3. Pre-tinned Copper wires
3.4 Solder 183 (Pb-Sn, Tmelt=183°C)
4. Insulated Wires
53 Leninskij prosp. Moscow 119991 Russia, ph: +7-499-132-6817, fax: +7-499-783-3664, web:
www.rmtltd.ru
Copyright 2011. RMT Ltd. The design and specifications of products can be changed by RMT Ltd without notice.
Page 1 of 3
Thermoelectric Module Datasheet

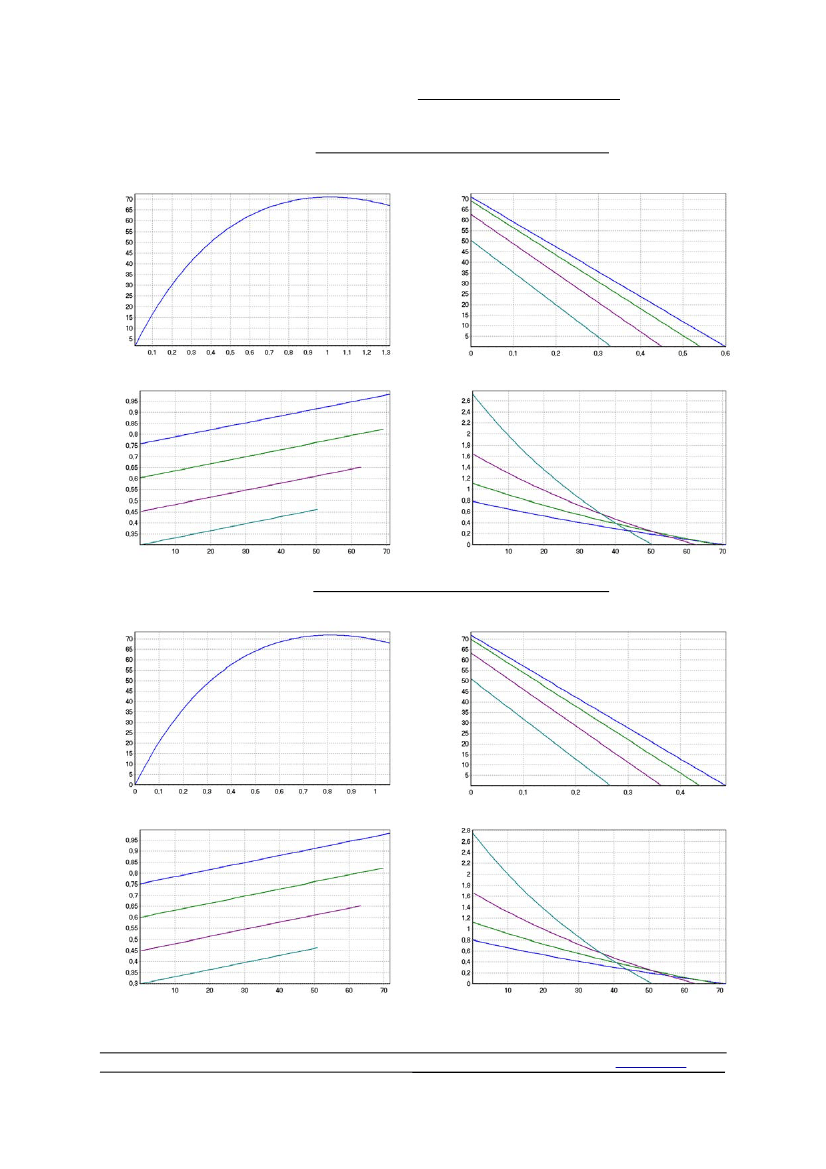

Performance Plots @300K
RMT Ltd
1MD03-008-04
Temperature difference, K
Current, A
Temperature difference, K
Heat Pumped at the Cold Side, W
Voltage, V
Temperature difference, K
C.O.P
Temperature difference, K
Performance Plots @300K
1MD03-008-05
Temperature difference, K
Current, A
Temperature difference, K
Heat Pumped at the Cold Side, W
Voltage, V
Temperature difference, K
C.O.P
Temperature difference, K
Color Legend:
Imax,
0.8 Imax,
0.6 Imax,
0.4 Imax
53 Leninskij prosp. Moscow 119991 Russia, ph: +7-499-132-6817, fax: +7-499-783-3664, web:
www.rmtltd.ru
Copyright 2011. RMT Ltd. The design and specifications of products can be changed by RMT Ltd without notice.
Page 2 of 3
Thermoelectric Module Datasheet

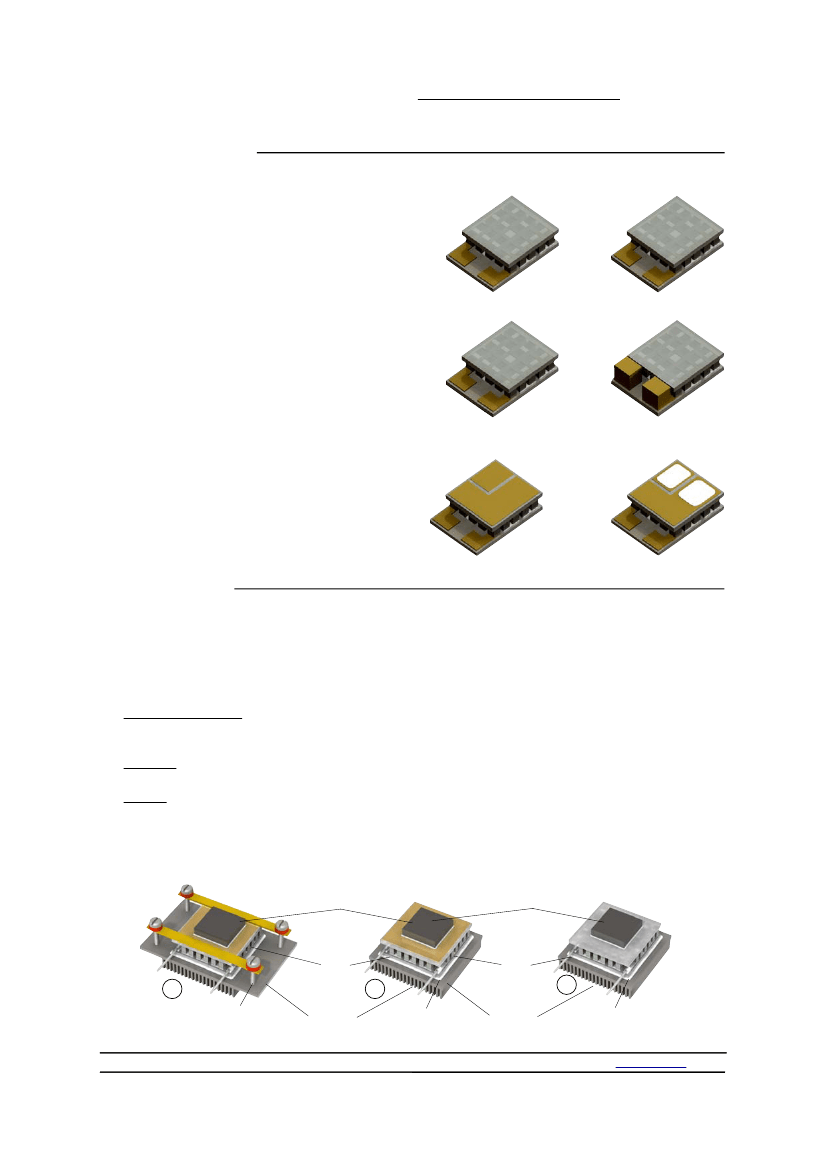

Additional Options
TEC Polarity
TEC Polarity can be changed for free by request. The
specified in this datasheet polarity is typical.
It can be reversed without charge in accordance to
Customer application requirements.
RMT Ltd
-
+
+
-
WB Posts or Pads
WB pads or WB posts solutions are available. WB
pads (no posts) are provided as standard. WB Posts
solution is provided in accordance to Customer’s
demands and depending of TEC height.
WB Pads
WB Posts
Customized Au Patterns
Customized Au patterns solution on TEC cold side
ceramics is available. Selective Pre-tinning solution is
available. Please, contact us for additional
information about customized Au patterns
requirements.
Au Pattern
Pre-tinning
Application Tips
1. Never heat TE module more than 200˚C (TEC
assembled at 230˚C).
2. Never use TE module without attached heat sink
at hot (bottom) side.
3. Connect TE module to DC power supply
according to polarity.
4. Do not apply DC current higher than Imax.
Installation
1. Mechanical Mounting. TEC is placed between two heat exchangers . This construction is fixed by screws or
in another mechanical way. It is suitable for large modules (with dimensions 30x30mm and larger). Miniature
types require other assembling methods in most cases.
2. Soldering. This method is suitable for a TE module with metallized outside surfaces. RMT provides this
option and also makes pre-tinning for TE modules.
3. Glueing. It is an up-to-date method that is used by many customers due to availability of glues with good
thermoconductive properties. A glue is usually based on some epoxy compound filled with some
thermoconductive material such as graphite or diamond powders, silver, SiN and others. The application of
a specific type depends on application features and the type of a TE module.
Object being cooled
Object being cooled
TEC
1
Screw mounting
Heatsink
2
Soldering
TEC
3
Heatsink
Gluing
53 Leninskij prosp. Moscow 119991 Russia, ph: +7-499-132-6817, fax: +7-499-783-3664, web:
www.rmtltd.ru
Copyright 2011. RMT Ltd. The design and specifications of products can be changed by RMT Ltd without notice.
Page 3 of 3
