UNR Open-Frame Series
Single Output
Non-Isolated, 15-20 Amp
5V
IN,
1.5-3.3V
OUT
DC/DC Converters
Features
■
Output: Non-isolated
1.5V or 1.8V @ 20 Amps
2.5V or 3.3V @ 15 or 20 Amps
Input Voltage: 4.75-5.5V (5V nominal)
Package: 2" x 2" x 0.49" open-frame with
attached heat sink
Full synchronous-rectifier topology
Efficiencies as high as 91%
Noise as low as 75mVp-p
Stable no-load operation
Excellent thermal derating
Output short-circuit protection
On/off control, trim and sense functions
UL60950/EN60950 certified
Qual tested, HALT tested, EMI tested
■
■
■
■
■
■
■
■
■
■
■
DATEL’s 30-66W UNR Series deliver an excellent solution to situations in which
users of modern DSP’s and CPLD’s requiring up to 20 Amps of "low-voltage"
(1.5-3.3V) current are constrained to drawing that power from a legacy 5V bus.
These are non-isolated DC/DC converters that deliver up to 20 Amps of 1.5-3.3V
current from a 5V input. Combining a modern, fully synchronous buck topology with
a unique, integrated-metal-technology (IMT) package, the automatically assembled
30-66W UNR’s deliver high efficiency (to 91%), excellent thermal performance (to
+70°C with 100lfm air flow), and low cost.
These converters require no compromises. They are fully line (±0.1%) and
load (±0.5%) regulated and feature low noise (typically 75mVp-p) and quick step
response (50msec). Their feature set includes V
OUT
trim capability, an on/off control
function, output remote-sense pins, and output overcurrent detection and short-
circuit protection ("hiccup" technique with auto-recovery). Their unique package
integrates an anodized aluminum heat sink with the circuit’s thermal-clad aluminum
baseplate. With minimal air flow (100lfm), all models deliver full output power/current
up to +65°C.
All UNR 30-66W Open-Frame DC/DC Converters are UL1950/EN60950 certi-
fied. Safety certifications, EMC compliance test reports, and qualification (including
HALT) test reports are available upon request.
+INPUT
(7)
10.5Ω
+OUTPUT
(4)
+SENSE
(3)
INPUT
RETURN
(8)
10.5Ω
VOLTAGE
BOOST
+V
CC
ON/OFF
CONTROL
(6)
PWM
CONTROLLER
OVERCURRENT
DETECTION
REFERENCE &
ERROR AMP
OUTPUT
RETURN
(5)
–SENSE
(2)
V
OUT
TRIM
(1)

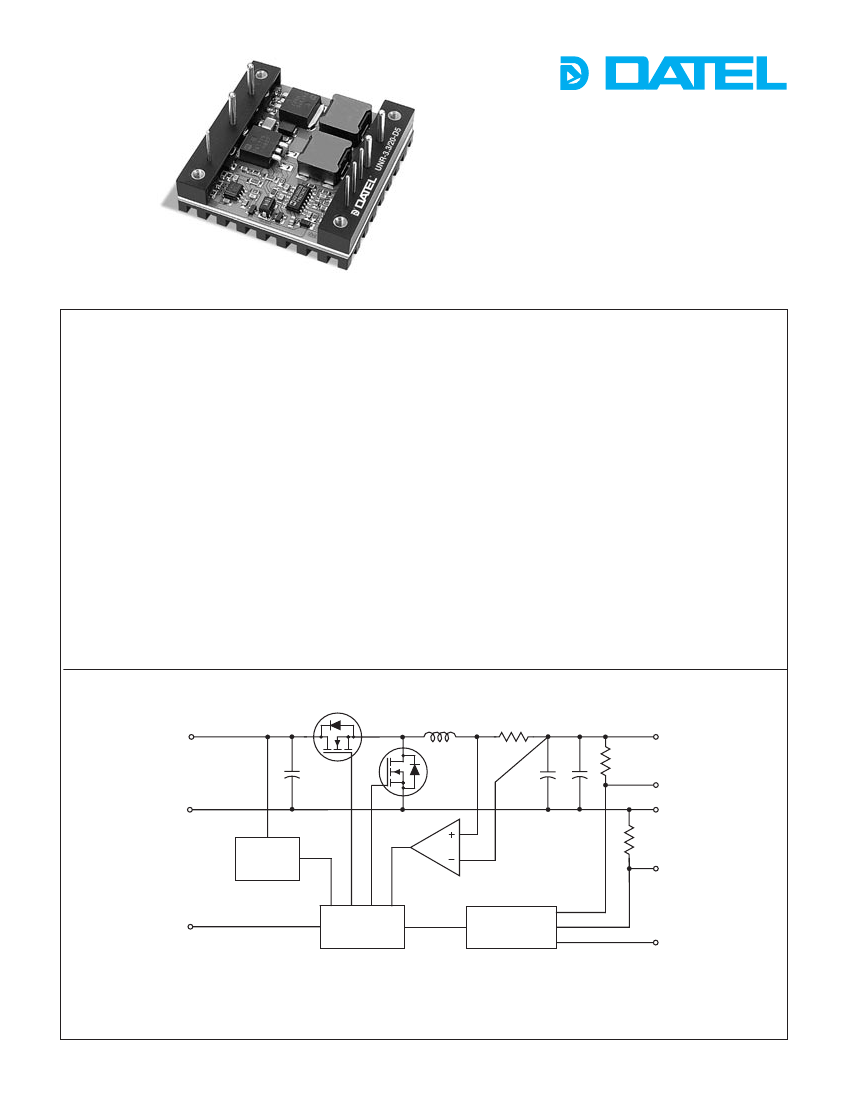

Figure 1. Simplified Schematic
DATEL, Inc., Mansfield, MA 02048 (USA)
•
Tel: (508)339-3000, (800)233-2765 Fax: (508)339-6356
•
Email: sales@datel.com
•
Internet: www.datel.com
UNR Series
N O N - I S O L AT E D , 3 0 - 6 6 W, O P E N - F R A M E D C / D C C O N V E R T E R S
Performance Specifications and Ordering Guide
V
OUT
(Volts)
1.5
1.8
2.5
2.5
3.3
3.3
➀
Input
Regulation (Max.)
Line
±0.1%
±0.1%
±0.1%
±0.1%
±0.1%
±0.1%
Output
Model
UNR-1.5/20-D5
UNR-1.8/20-D5
UNR-2.5/15-D5
UNR-2.5/20-D5
UNR-3.3/15-D5
UNR-3.3/20-D5
PRELIMINARY
I
OUT
(Amps)
20
20
15
20
15
20
R/N (mVp-p)
➁
Typ.
80
80
75
75
75
75
Max.
100
100
120
120
120
120
Load
➂
±0.5%
±0.5%
±0.5%
±0.5%
±0.5%
±0.5%
V
IN
Nom.
(Volts)
5
5
5
5
5
5
Range
(Volts)
4.75-5.5
4.75-5.5
4.75-5.5
4.75-5.5
4.75-5.5
4.75-5.5
I
IN
➃
(mA/A)
150/7080
150/8500
150/8430
150/11360
150/10880
150/14830
Efficiency
Min.
82.5%
83.5%
86%
83%
87%
86%
Typ.
84%
85%
89%
86%
91%
89%
Package
(Case,
Pinout)
C21, P26
C21, P26
C21, P26
C21, P26
C21, P26
C21, P26
➀
Typical at T
A
= +25°C under nominal line voltage and full-load conditions, unless
otherwise noted. All models are tested and specified with a 22µF output capacitor with a
200mΩ ESR and a 4000µF input capacitor with 9.75Arms ripple-current rating and 20mΩ ESR.
See I/O Filtering and Noise Reduction for more details.
➁
Ripple/Noise (R/N) is tested/specified over a 20MHz bandwidth. Output noise may be further
reduced by installing additional external output caps. See I/O Filtering and Noise Reduction.
➂
These devices have no minimum-load requirements and will regulate under no-load conditions.
➃
Nominal line voltage, no-load/full-load conditions.
PART NUMBER STRUCTURE
MECHANICAL SPECIFICATIONS
U NR
-
3.3
/
20
-
D5
Output Configuration:
U
= Unipolar
Non-Isolated
Nominal Output Voltage:
1.2, 1.5, 1.8, 2.5 or 3.3 Volts
Input Voltage Range:
D5
= 4.75 to 5.5 Volts (5V nominal)
Maximum Rated Output
Current in Amps
0.25
(6.35)
Case C21
2.00
(50.80)
0.49
(12.45)
0.040 ±0.002 DIA.
(1.016 ±0.051)
4 PLACES
1.600
(40.64)
0.080 ±0.002 DIA.
(2.032 ±0.051)
4 PLACES
1
0.600
(15.24)
3 EQ. SP. @
0.200 (5.08)
6
2
3
4
0.400
(10.16)
0.500
(12.70)
7
0.320
(8.13)
2.00
1.640
(41.66)
(50.80)
5
8
BOTTOM VIEW
#4-40 THD THRU
4 PLACES
1.640
(41.66)
DIMENSIONS ARE IN INCHES (MM)
0.180
(4.57)
0.180
(4.57)
I/O Connections
Pin
1
2
3
4
5
6
7
8
Function P26
Trim
–Sense
+Sense
+Output
Output Return
On/Off Control
+Input
Input Return
2
N O N - I S O L AT E D, 3 0 - 6 6 W, O P E N - F R A M E D C / D C C O N V E RT E R S
UNR Models
Performance/Functional Specifications
Typical @ T
A
= +25°C under nominal line voltage and full-load conditions unless noted.
➀
Absolute Maximum Ratings
Input Voltage:
Continuous
Transient (100msec)
Input Reverse-Polarity Protection
Input/Output Overvoltage Protection
Output Current
Input
Input Voltage Range
Input Current:
Normal Operating Conditions
Standby/Off Mode
Input Ripple Current:
UNR-1.5/20-D5, UNR-1.8/20-D5
UNR-2.5/15-D5
UNR-2.5/20-D5
UNR-3.3/15-D5
UNR-3.3/20-D5
Input Filter Type
Overvoltage Protection
Reverse-Polarity Protection
On/Off Control
(Pin 6)
➂
4.75 to 5.5 Volts (5V nominal)
See Ordering Guide
TBD
260mAp-p
150mAp-p
140mAp-p
100mAp-p
150mAp-p
Capacitive (74µF)
None
None
On = open or +4V to +V
IN
; I
IN
= TBD
Off = +0.4V to 1V; I
IN
= TBD
5 Volts
7 Volts
None
None
Current limited. Devices can
withstand a sustained output
short circuit without damage.
–40 to +105°C
+300°C
Storage Temperature
Lead Temperature
(Soldering, 10 sec.)
These are stress ratings. Exposure of devices to any of these conditions may adversely
affect long-term reliability. Proper operation under conditions other than those listed in the
Performance/Functional Specifications Table is not implied.
Output
V
OUT
Accuracy
(50% load)
V
OUT
Trim Range
(3.3V
OUT
models):
➃
Trim pin tied to +Output
Trim pin tied to Output Return
Minimum Loading
Temperature Coefficient
Ripple/Noise
(20MHz BW)
Line/Load Regulation
Efficiency
Overcurrent Protection:
➁
Technique
15 Amp Models
20 Amp Models
Average Output Current
Transient Response
(50 to 75% step)
Start-Up Time:
➄
V
IN
to V
OUT
On/Off to V
OUT
Switching Frequency
Operating Temperature
(Ambient):
➅
Without Derating
With Derating
Storage Temperature
Dimensions
Shielding
Attached Heatsink
Circuit Board
Pin Material
Weight
±1% maximum
V
OUT
= <1.53 Volts
V
OUT
= >3.6 Volts
No load
±0.02% per °C
See Ordering Guide
See Ordering Guide
See Ordering Guide
"Hiccup" with auto-recovery
146 to 173% (160% typical)
115 to 130% (120% typical)
1 Amp typical, 3 Amps maximum
TECHNICAL NOTES
Return Current Paths
These are non-isolated DC/DC converters. The Input Return and Output
Return pins are connected to each other internally. To the extent possible,
all input and load currents should be returned through the Input Return and
Output Return, respectively (via low-impedance runs). Any control signals
applied to the On/Off Control pin should be referenced to Input/Output
Return.
I/O Filtering and Noise Reduction
Dynamic Characteristics
50µsec to ±2% of final value
30msec
30msec
200kHz (±20kHz)
All models in the UNR 30-66W Series are tested and specified with an
external 22µF output capacitor (200mΩ ESR) and a 4000µF input capacitor
with a 9.75Arms ripple-current rating. External input capacitance is required
and must be rated to handle the input ripple current as follows:
I
RMS
= I
OUT
V
OUT
V
IN
(
1 – V
OUT
)
V
IN
Environmental
–40 to +35-65°C
to +100°C (See Derating Curves)
–40 to +105°C
(The large value of the input capacitor is due mainly to output characteristics
of DATEL's outgoing ATE test system. Ripple current rating is an important
consideration for the end user.) In critical applications, input/output ripple/
noise may be further reduced by installing additional I/O caps.
External input capacitors serve primarily as energy-storage elements. They
should be selected for bulk capacitance (at appropriate frequencies), low
ESR, and high rms-ripple-current ratings. The switching nature of modern
DC/DC converters requires that dc input voltage sources have low ac
impedance, and highly inductive source impedances can affect system
stability. Your specific system configuration may necessitate additional con-
siderations.
Output ripple/noise (also referred to as periodic and random deviations or
PARD) can be reduced below specified limits using filtering techniques, the
simplest of which is the installation of additional external output capacitors.
Output capacitors function as true filter elements and should be selected for
bulk capacitance, low ESR, and appropriate frequency response. Any scope
measurements of PARD should be made directly at the DC/DC output pins
with scope probe ground less than 0.5" in length.
Physical
2" x 2" x 0.49" (51 x 51 x 12.45mm)
Open-frame
Black anodized aluminum
Single-layer conductors on aluminum base
Brass, solder dip alloy
1.7 ounces (48.2 grams)
➀
All models are tested and specified with a 22µF output capacitor with a 200mΩ ESR and a
4000µF input capacitor with 9.75Arms ripple-current rating and 20mΩ ESR. See I/O Filtering
and Noise Reduction for more details. These devices have no minimum-load requirements
and will regulate under no-load conditions.
➁
See Output Overcurrent Detection for details.
➂
See On/Off Control for details.
➃
See Output Voltage Trimming for details.
➄
See Start-Up Time for details.
➅
See Temperature Derating for details.
3
UNR Series
N O N - I S O L AT E D , 3 0 - 6 6 W, O P E N - F R A M E D C / D C C O N V E R T E R S
Output ripple/noise (also referred to as periodic and random deviations or
PARD) can be reduced below specified limits using filtering techniques, the
simplest of which is the installation of additional external output capacitors.
Output capacitors function as true filter elements and should be selected for
bulk capacitance, low ESR, and appropriate frequency response. Any scope
measurements of PARD should be made directly at the DC/DC output pins
with scope probe ground less than 0.5" in length.
All external capacitors should have appropriate voltage ratings and be
located as close to the converters as possible. Temperature variations for all
relevant parameters should be taken into consideration.
The most effective combination of external I/O capacitors will be a function
of your line voltage and source impedance, as well as your particular load
and layout conditions. Our Applications Engineers can recommend potential
solutions and discuss the possibility of our modifying a given device’s internal
filtering to meet your specific requirements. Contact our Applications Engi-
neering Group for additional details.
Input Fusing
UNR 30-66W Series DC/DC converters are not internally fused. Certain
applications and or safety agencies may require the installation of fuses at
the inputs of power conversion components. Fuses should also be used if the
possibility of sustained, non-current-limited, input-voltage polarity reversals
exist. To allow for inrush transients, fuses should rated for approximately 2
times the maximum input rms current.
Input Overvoltage and Reverse-Polarity Protection
UNR 30-66W Series DC/DC converters do not incorporate either input over-
voltage or input reverse-polarity protection. Input voltages in excess of the
listed absolute maximum ratings and input polarity reversals of longer than
"instantaneous" duration can cause permanent damage to these devices.
On/Off Control
The On/Off Control pin may be used for remote on/off operation. UNR 30-
66W Series DC/DC converters are designed so that they are enabled when
the control pin is pulled high or left open, and disabled when the control pin
is pulled low (see Performance Specifications for limits). As shown in Figure
2, all models have internal 5kΩ pull-up resistors to +Input.
Dynamic control of the on/off function is best accomplished with a mechani-
cal relay or open-collector/open-drain drive circuit (optically isolated if appro-
priate). The drive circuit should be able to sink appropriate current when
activated and withstand appropriate voltage when deactivated.
7
+INPUT
5kΩ
6
ON/OFF
CONTROL
8
INPUT
RETURN
Figure 2. Driving the On/Off Control Pin
Applying an external voltage to the On/Off Control pin when no input power
is applied to the converter can cause permanent damage to the converter.
The on/off control function, however, is designed such that the converter
can be disabled (control pin pulled low) while input power (system 5V
power) is ramping up and then "released" once the input has stabilized.
The time duration between the point at which the converter is released and
its fully loaded output settles to within specified accuracy can be found in
the Performance/Functional Specifications Table. See Start-Up Time for more
details.
Start-Up Time
The V
IN
to V
OUT
Start-Up Time is the interval between the time at which a
ramping input voltage crosses the lower limit of the specified input voltage
range (4.75 Volts) and the fully loaded output voltage enters and remains
within it specified accuracy band. Actual measured times will vary with input
source impedance, external input capacitance, and the slew rate and final
value of the input voltage as it appears to the converter.
The On/Off to V
OUT
Start-Up Time assumes the converter is turned off via
the Remote On/Off Control with the nominal input voltage already applied to
the converter. The specification defines the interval between the time at which
the converter is turned on and the fully loaded output voltage enters and
remains within its specified accuracy band. See Typical Performance Curves
for details
Output Overvoltage Protection
UNR 30-66W Series DC/DC converters do not incorporate output overvolt-
age protection. In the extremely rare situation in which the device’s feedback
loop is broken, the output voltage may run to excessively high levels (V
OUT
=
V
IN
). If it is absolutely imperative that you protect your load against any and
all possible overvoltage situations, voltage limiting circuitry must be provided
external to the power converter.
Output Overcurrent Detection
Overloading the output of a power converter for an extended period of
time will invariably cause internal component temperatures to exceed their
maximum ratings and eventually lead to component failure. High-current-
carrying components such as inductors, FET's and diodes are at the highest
risk. UNR 30-66W Series DC/DC converters incorporate an output overcur-
rent detection and shutdown function that serves to protect both the power
converter and its load.
4
N O N - I S O L AT E D, 3 0 - 6 6 W, O P E N - F R A M E D C / D C C O N V E RT E R S
UNR Models
When the output current of a thermally stabilized converter exceeds the
maximum rating (15A models by 20% typ., 30% max.; 20A models by 60%
typ., 73% max.), the internal overcurrent detection circuit automatically shuts
down the converter by discharging the soft-start circuit of the pulse width
modulator (PWM). In this off state, which is similar to that achieved by pulling
the On/Off Control low, the output voltage quickly drops as the output capaci-
tors discharge into the load. Since there is no longer any output current,
the overcurrent detection circuit is released, allowing the soft-start circuit
to recharge and the converter to turn on again. If the faulty load condition
persists, the overcurrent detection circuit will again discharge the soft-start
circuit and shut down the converter. This continuous on/off cycling of the
converter is referred to as “hiccup mode.” Once the overload condition is
removed, the converter remains on, and the output voltage is quickly restored
to its regulated value.
The components used to sense the output current have large temperature
coefficients. Consequently, in a “cold-start” situation, the Overcurrent Detec-
tion Point may temporarily move to 160% to 195% for 15A models and 120%
to 145% for 20A models above the rated current specification. The device
quickly heats up, particularly if an overload situation exists, and restores the
normal Overcurrent Detection Point.
The overcurrent detection circuitry helps keep internal current levels and
operating temperatures within safe operating limits. Nevertheless, sustained
operation at current levels above the rated output current but below the Over-
current Detection Point may result in permanent damage to the converter
(unless active cooling keeps internal temperatures below safe limits).
Output Voltage Trimming
Trimming is accomplished with either a trimpot or a single fixed resistor. The
trimpot should be connected between +Output and Output Return with its
wiper connected to the Trim pin as shown in Figure 3 below.
+OUTPUT
+INPUT
TRIM
INPUT
RETURN
Trim Up
OUTPUT
RETURN
Trim
Down
LOAD
Note:
Install either a fixed trim-up resistor or a fixed trim-down resistor
depending upon desired output voltage.
Figure 4. Trim Connections Using Fixed Resistors
UNR-1.5/20-D5 Trim Equations
½
½½½½½½½½½½½½
½½½½½½
½½½½
½½½½½½
½½
½½½½½½½½
½½½½½½½
½
½½½½½
½
½½
½½½½½
½½½½½½
½
½½½½½½½
½½½½½½
½½
½½½½½½
UNR-1.8/20-D5 Trim Equations
½
½½½½½½½½½½½½
½½½½½½
½½½½
½½½½½½
½½
½½½½½½½½
½½½½½½½
½
½½½½½
½
½½
½½½½½
½½½½½½
½
½½½½½½½
½½½½½½
½½
½½½½½½
UNR-2.5/15-D5 & UNR-2.5/20-D5 Trim Equations
½
½½½½½½½½½½½½
½½½½½½
½½½½
½½½½½
½½
½½½½½½½½
½½½½½½½
½
½½½½
½
½½
½½½½½
½½½½½½
+OUTPUT
+INPUT
TRIM
INPUT
RETURN
20kΩ
5-10
Turns
½
½½½½½½½
½½½½½½
½½
LOAD
½½½½½½
OUTPUT
RETURN
UNR-3.3/15-D5 & UNR-3.3/20-D5 Trim Equations
½
½½½½½½½½½½½½
½½½½½½
½½½½
½½½½½
½½
½½½½½½½½
½½½½½½½
½
½½½½½
½
½½
½½½½½
½½½
Figure 3. Trim Connections Using a Trimpot
½
½½½½½½½
½½½½½½
½½
½½½
A trimpot can be used to determine the value of a single fixed resistor
which should be connected, as shown in Figure 4, between the Trim pin and
+Output to trim down the output voltage, or between the Trim pin and Output
Return to trim up the output voltage. Fixed resistors should be metal-film
types with absolute TCR’s less than 100ppm/°C to ensure stability.
The equations and look-up table below can be used as starting points for
selecting specific trim-resistor values. Recall that untrimmed devices are
guaranteed to be
±1%
accurate.
Note: Resistor values are in kΩ. Accuracy of adjustment is subject to
tolerances of resistors and factory-adjusted, initial output accuracy.
V
O
= desired output voltage.
Temperature Derating
The outstanding electrical efficiency of the UNR 30-66W Series' synchro-
nous-rectifier design and the excellent thermal conductivity of its aluminum
base PCB/Heatsink construction combine to eliminate the need for supple-
mental forced-air cooling in the majority of routine applications. See Derat-
ing Curves.
5
Analog electronics
京公网安备 11010802033920号
EEWORLD
