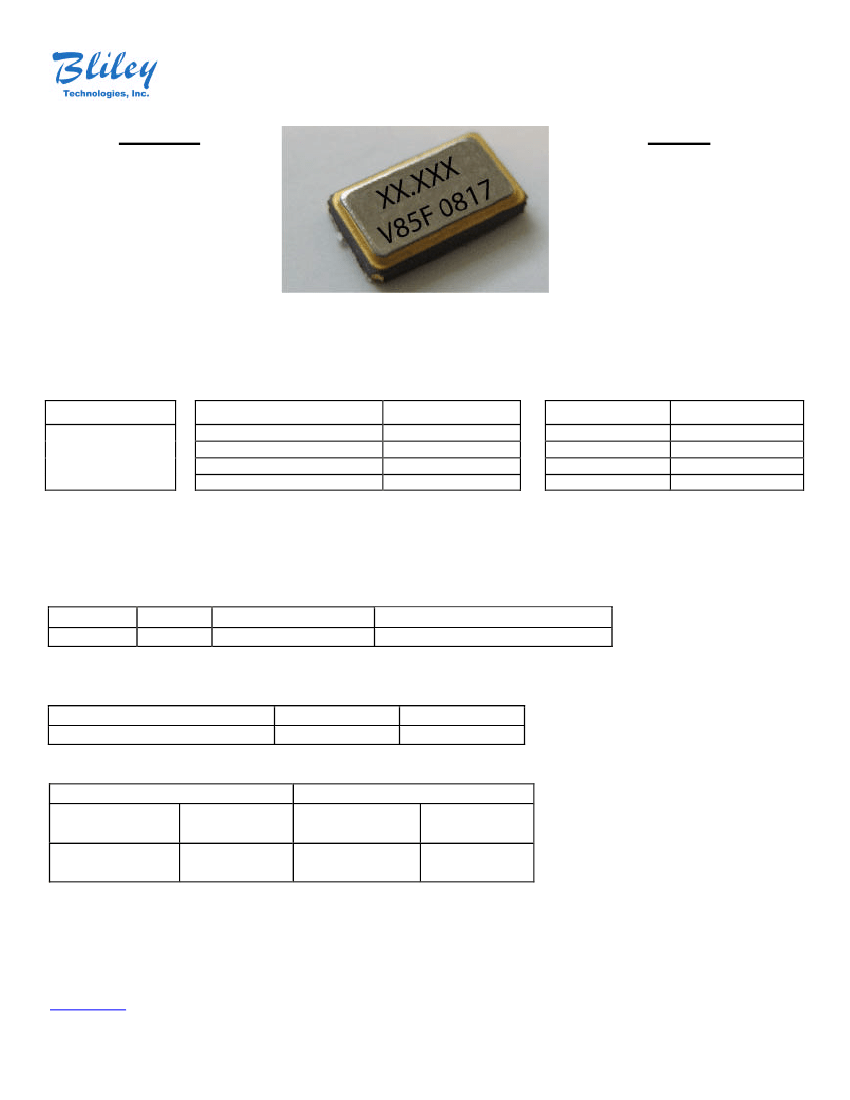

7.0 mm x 5.0 mm VCXO
Description:
The V85F Voltage-controlled Crystal
Oscillator (VCXO) Series products
provide a wide range of options in
frequency stability, operating
temperature range, and multiple
supply voltages in a 7.0 x 5.0 mm
SMD package.
V85F series
Features:
Available in frequencies from 1.500
MHz to 200 MHz
•
•
•
•
•
Tri-state Enable/Disable
Hermetically sealed ceramic
SMD package
TTL/HCMOS compatible
RoHS-6/Leadfree compliant
Frequency Range,
Frequency
Operating Temperature
Operating Temperature
Product Code
Frequency Stability:
Freq. Stability
+/- 25 ppm
+/- 50 ppm
+/- 75 ppm
+/-100ppm
Product Code
A
B
C
D
-10 to +60C
A
1.5 to 200.0 MHz
0 to +70C
B
-20 to 70C
C
-40 to 85C
D
Frequency stability only refers to frequency drift over temperature.
Frequency tolerance at 25C will be +/- 15 ppm max. at midrange control voltage.
Frequency versus +/- 10% power supply variation will be: +/- 5 ppm max.
Frequency versus +/- 10% load variation will be +/- 3 ppm max.
Not all combinations of stability and temperature ranges available.
Aging:
(typical at 156MHz after 30 days continuous operation)
Frequency
156 MHz
Timeframe
1st Year
Aging
+/- 5.0ppm
Product Code
N/A
Supply Voltage (Vs):
Power Supply (Vs)
Product Code
3.3 Vdc +/-10%
C
5.0 Vdc +/-10%
D
Frequency versus Voltage:
3.3 volt
5.0 volt
0 to 3.3v
Product Code
0.5v to 4.5v
Product Code
on Pin 1
on Pin1
+/-100 ppm min
N/A
+/-100 ppm min
N/A
www.bliley.com
2545 West Grandview Blvd Erie, PA. 16506
Page 1 of 4
Tel (814) 838-3571
Rev 1.2
7.0 mm x 5.0 mm VCXO
Current Consumption ( I
DD
):
I
DD
( at 3.3V )
Frequency Range ( MHz )
1.500 to 19.999
20.000 to 49.999
50.000 to 79.999
80.000to 159.999
160.000 to 200.000
mA
10
20
30
40
50
I
DD
( at 5.0V )
mA
15
30
35
N/A
N/A
V85F series
**N/A means those operating frequencies not available at 5.0 volt supply
Environmental:
Storage Temperature
-55 to +125
°C
Output Waveform:
Output Symmetry
Rise Time ( nS )
Fall Time ( nS )
Output Voltage
At 50% V
DD
Tr
Tf
V
OH
90% V
DD
V
OL
Min
45%
Typical
50%
Max
55%
10
10
10% V
DD
Output Load Choices:
Output Load ( pF )
Product Code
15
A
50
B
Start-up Time: 10 mS max.
Tri-state function( TS ) Pin 2 or Pin 5:
Tri-state Function
Product Code
Pin 2 TS; Pin 5 N/C
A
Pin 2 N/C; Pin5 TS
B
www.bliley.com
2545 West Grandview Blvd Erie, PA. 16506
Page 2 of 4
Tel (814) 838-3571
Rev 1.2
7.0 mm x 5.0 mm VCXO
Ordering Options:
Product
Operating
Family
Temperature
V85F
A
V85F
B
V85F
C
V85F
D
Frequency
Stability
A
B
C
Supply
Voltage
C
D
Output
Load
A
B
V85F series
Tri-state
Pin select
A
B
Operating
Frequency
XXX.XXXXMHz
XXX.XXXXMHz
XXX.XXXXMHz
XXX.XXXXMHz
V85F C A C A A
10.0000MHz
Part Number Build Example
**Consult Bliley sales if other options required
** Not all combinations of operating frequency and supply voltage are available.
RoHs compliant ; -20 to 70C ; +/- 25 ppm with a 3.3 volt supply;15 pF load; Pin 2 TS;
And 10 MHz nominal operating frequency.
www.bliley.com
2545 West Grandview Blvd Erie, PA. 16506
Page 3 of 4
Tel (814) 838-3571
Rev 1.2

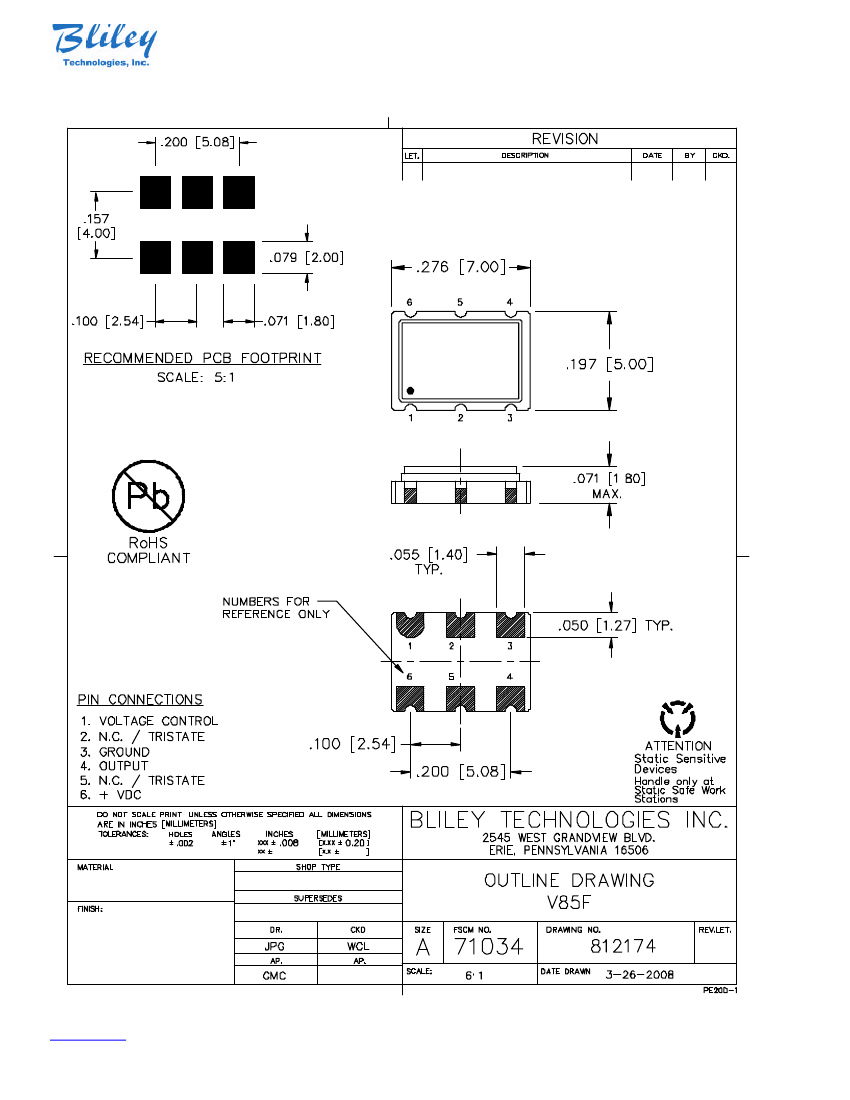

7.0 mm x 5.0 mm VCXO
V85F series
www.bliley.com
2545 West Grandview Blvd Erie, PA. 16506
Page 4 of 4
Tel (814) 838-3571
Rev 1.2
7.0 mm x 5.0 mm VCXO
V85F series
How to Order This Product:
Contact Bliley Technologies with Product Selection Code from Ordering Options Section above.
Attn:
Sales @ Bliley
Fax:
814-833-2712
Phone: 814-838-3571
Email:
info@bliley.com
Web:
www.bliley.com
Date: ____________
From:
Name: ____________________ Company: ___________________
Fax: ______________________ Phone: _____________________
Email: _________________________________________________
Quantities to Quote: ______________ Target Price: $___________
Application / Reference #: _________________________________
www.bliley.com
2545 West Grandview Blvd Erie, PA. 16506
Page 5 of 4
Tel (814) 838-3571
Rev 1.2
