D15S81C4GI00 datasheet, PDF - EEWORLD Datasheet

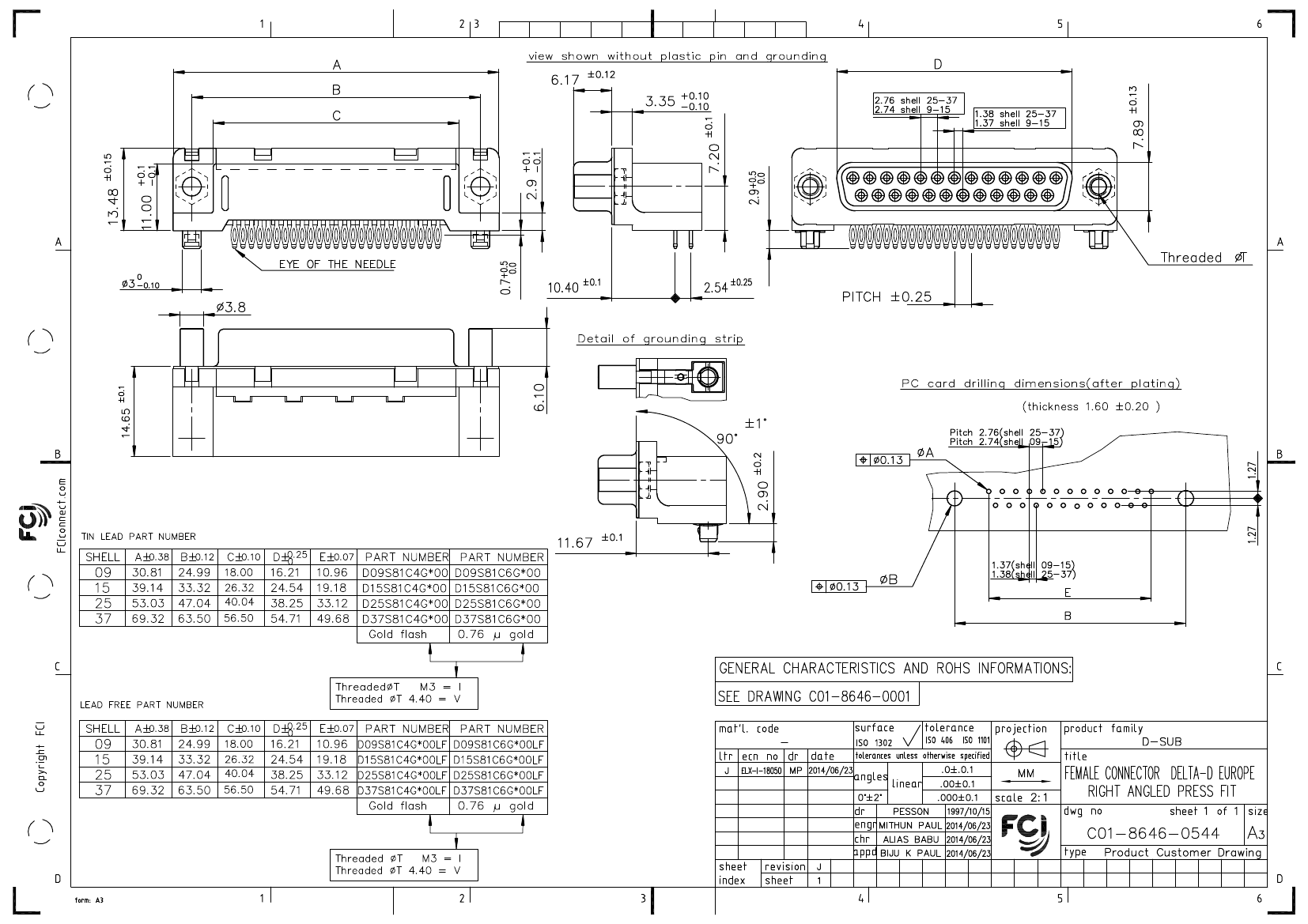

D15S81C4GI00: DescriptionD Subminiature Connector, 15 Contact(s), Female, 0.108 inch Pitch, Press Fit Terminal, M3, Plug,; CategoryThe connector The connector; File Size86KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

D15S81C4GI00 Overview

D Subminiature Connector, 15 Contact(s), Female, 0.108 inch Pitch, Press Fit Terminal, M3, Plug,

Parameter Name	Attribute value
Objectid	2139148465
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	8.5
body width	0.531 inch
subject depth	0.577 inch
body length	1.541 inch
Body/casing type	PLUG
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN/LEAD OVER NICKEL
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	STAGGERED
Contact resistance	10 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1400VAC V
empty shell	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	4.8928 N
Insulation resistance	5000000000 Ω
insulator material	POLYETHYLENE
MIL compliance	NO
Plug contact pitch	0.108 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Installation option 1	M3
Installation option 2	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	2.54 mm
Plating thickness	FLASH inch
Rated current (signal)	5 A
Guideline	UL
Shell surface	TIN
Shell material	STEEL
Housing size	2/A
Terminal length	0.114 inch
Terminal pitch	2.7432 mm
Termination type	PRESS FIT
Total number of contacts	15
UL Flammability Code	94V-0
Evacuation force-minimum value	.3058 N

PDS: Rev :J

STATUS:Released

Printed: Jul 04, 2014
