D15P90C8PX00LF: DescriptionD Type Connector, 15 Contact(s), Male, 0.108 inch Pitch, Press Fit Terminal, #4-40; CategoryThe connector The connector; File Size58KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric View All

D15P90C8PX00LF Overview

D Type Connector, 15 Contact(s), Male, 0.108 inch Pitch, Press Fit Terminal, #4-40

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Amphenol
Reach Compliance Code	compliant
body width	0.494 inch
subject depth	0.22 inch
body length	1.541 inch
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	STAGGERED
Contact resistance	10 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1400VAC V
maximum insertion force	4.8928 N
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	D
Plug contact pitch	0.108 inch
Match contact row spacing	0.112 inch
Installation option 1	#4-40
Installation option 2	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	2.8448 mm
Plating thickness	50u inch
Rated current (signal)	5 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	TIN OVER NICKEL
Terminal length	0.134 inch
Terminal pitch	2.7432 mm
Termination type	PRESS FIT
Total number of contacts	15
Evacuation force-minimum value	.3058 N

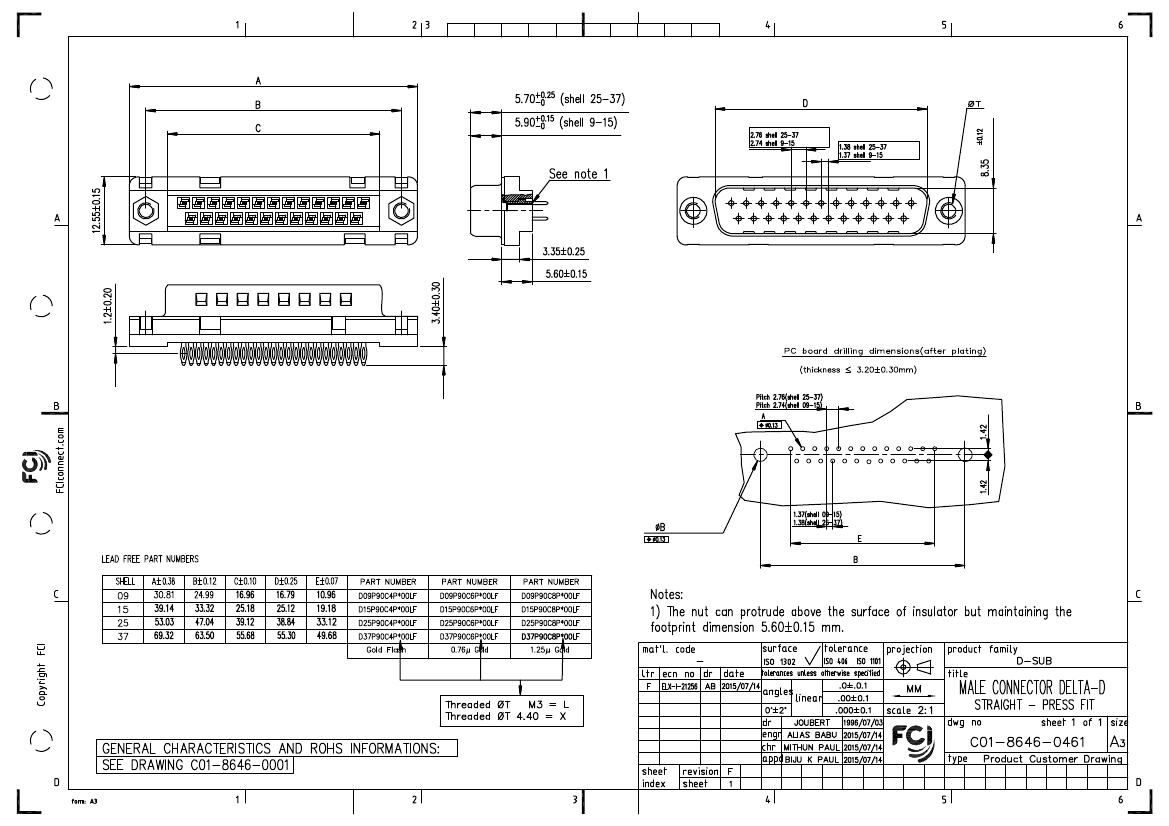

PDS: Rev :F

STATUS:Released

Printed: Jul 20, 2015
