L-934SRC-J4-TNR2.54 datasheet, PDF

L-934SRC-J4-TNR2.54: DescriptionSingle Color LED, Super Bright Red, Water Clear, T-1, 3mm, ROHS COMPLIANT PACKAGE-2; CategoryLED optoelectronic/LED photoelectric; File Size302KB，6 Pages; ManufacturerKingbright; Websitehttp://www.us.kingbright.com; Environmental Compliance

Download Datasheet Parametric View All

L-934SRC-J4-TNR2.54 Overview

Single Color LED, Super Bright Red, Water Clear, T-1, 3mm, ROHS COMPLIANT PACKAGE-2

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Kingbright
package instruction	ROHS COMPLIANT PACKAGE-2
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	HIGH RELIABILITY
color	SUPER BRIGHT RED
Configuration	SINGLE
Maximum forward current	0.03 A
Lens type	WATER CLEAR
Nominal luminous intensity	4500.0 mcd
Installation features	RADIAL MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	4.6 mm

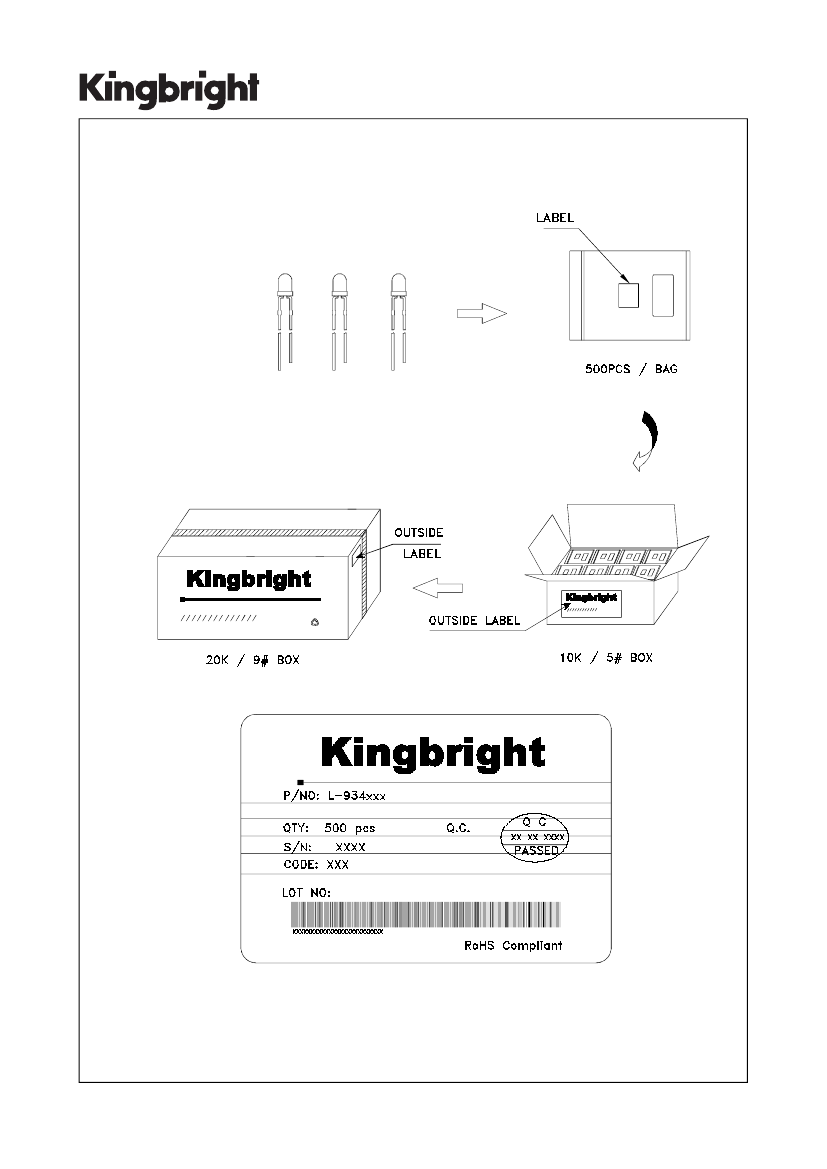

method of packing	TAPE AND REEL
peak wavelength	660 nm
shape	ROUND
size	3 mm
surface mount	NO
T code	T-1
Terminal pitch	2.54 mm
perspective	34 deg

T-1 (3mm) SOLID STATE LAMP

Part Number: L-934SRC-J4

Super Bright Red

Features

Low power consumption.

Popular T-1 diameter package.

General purpose leads.

Reliable and rugged.

Long life - solid state reliability.

Available on tape and reel.

RoHS compliant.

Description

The Super Bright Red source color devices are made with

AlGaInP on Si substrate Light Emitting Diode.

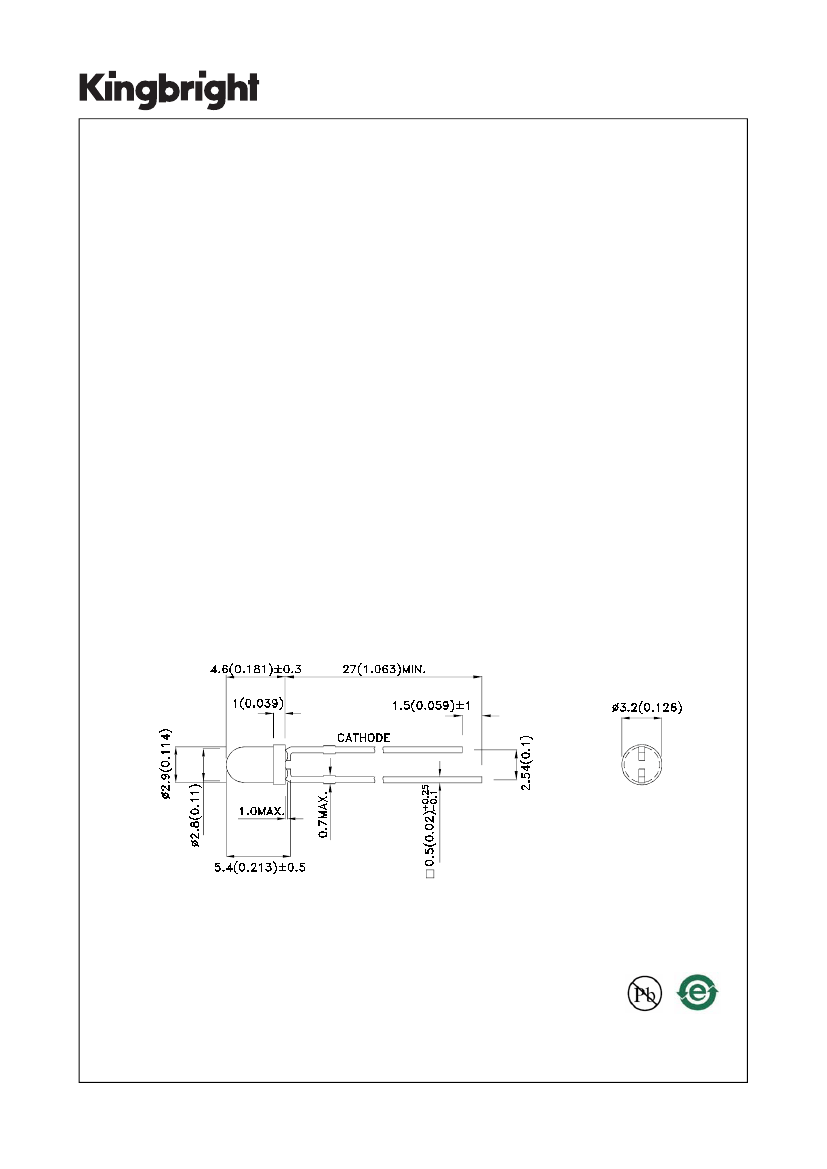

Package Dimensions

Notes:

1. All dimensions are in millimeters (inches).

2. Tolerance is ±0.25(0.01") unless otherwise noted.

3. Lead spacing is measured where the leads emerge from the package.

4. The specifications, characteristics and technical data described in the datasheet are subject to change without prior notice.

SPEC NO: DSAM7494

APPROVED: WYNEC

REV NO: V.1A

CHECKED: Allen Liu

DATE: NOV/16/2012

DRAWN: F.Cui

PAGE: 1 OF 6

ERP: 1101032239
