XO3-VT/AE14.7456MHZ datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> oscillator> XO3-VT/AE14.7456MHZ

Preview

XO3-VT/AE14.7456MHZ: DescriptionCMOS Output Clock Oscillator, 14.7456MHz Nom; CategoryPassive components oscillator; File Size49KB，1 Pages; ManufacturerGolledge Electronics; Websitehttp://www.golledge.com/

Download Datasheet Parametric View All

XO3-VT/AE14.7456MHZ Overview

CMOS Output Clock Oscillator, 14.7456MHz Nom

XO3-VT/AE14.7456MHZ Parametric

Parameter Name	Attribute value
Maker	Golledge Electronics
Reach Compliance Code	unknown
Other features	TRISTATE ENABLE/DISABLE FUNCTION
maximum descent time	7 ns
Frequency Adjustment - Mechanical	NO
frequency stability	20%
Manufacturer's serial number	XO3-VT
Installation features	THROUGH HOLE MOUNT
Nominal operating frequency	14.7456 MHz
Maximum operating temperature	70 °C
Minimum operating temperature
Oscillator type	CMOS
physical size	13.2mm x 13.2mm x 5.1mm
longest rise time	7 ns
Nominal supply voltage	3.3 V
surface mount	NO
maximum symmetry	60/40 %

Preview

Download Datasheet

View All

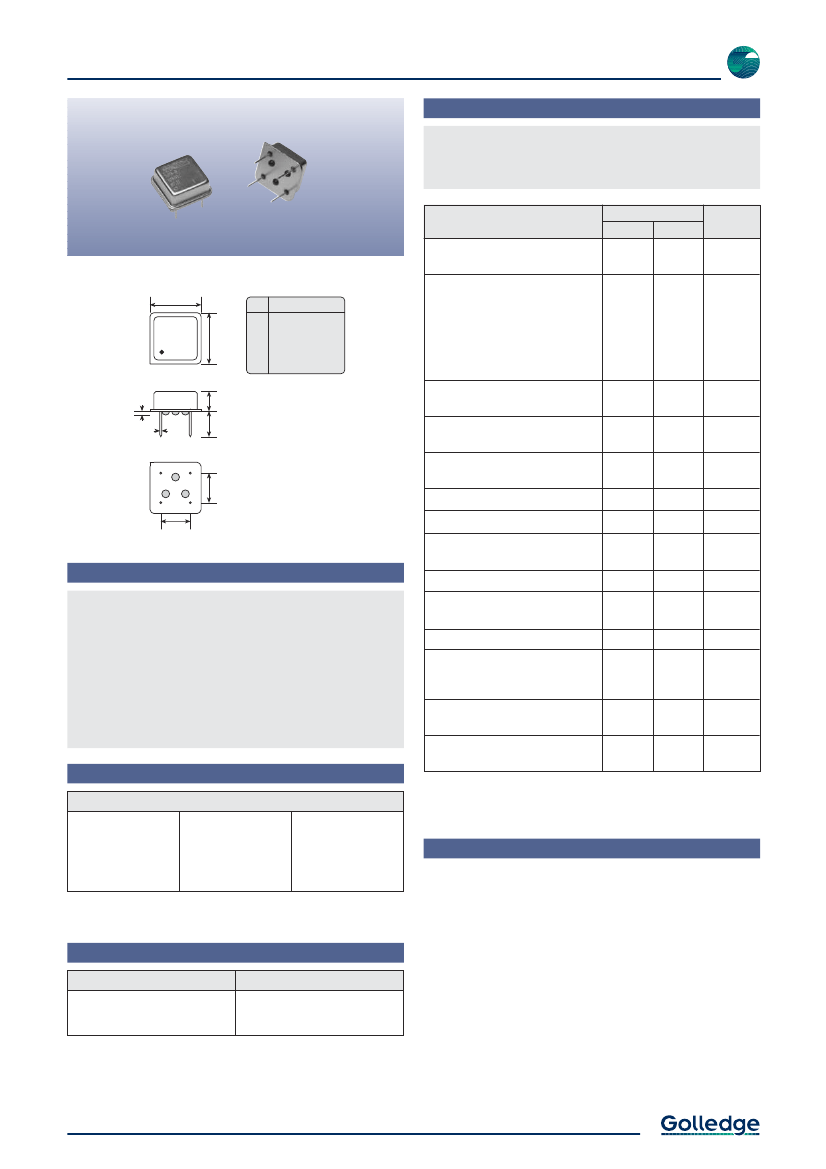

3.3V Oscillator Mil Temp

Specifications

XO3V & XO3VT

XO3V: Standard stability option

XO3VT: Tight stability option

Product

XO3V

XO3VT

Parameters

Frequency range:

80.0kHz ~ 20.0MHz

13.20

(max)

1

13.20

(max)

4

5

8

CONNECTION

Not connected or

Enable/Disable

Option

Codes

Ground

Output

Supply

Frequency stability* (max):

±50ppm over 0 to +70°C

±80ppm over -40 to +85°C

±100ppm over -55 to +125°C

±20ppm over 0 to +70°C

±30ppm over -40 to +85°C

±50ppm over -55 to +125°C

Operable temperature range:

-55 to +125°C

Storage temperature range:

-65 to +125°C

Supply voltage (V

DD

):

+3.3V (±5%)

A

B

C

A

B

C

1.00

5.10

(max)

6.40

(max)

0.50Ø

1

8

4

7.62

5

Supply current (max):

Driving ability:

Scale 1:1

Logic levels:

10mA

CMOS

7.62

Features

‘0’ level = 0.4V max

‘1’ level = 90% V

DD

min

5ms max

Start up time:

«

3.3V supply

Military temperature range

HCMOS / TTL compatible output

Excellent shock resistance

Enable / disable tristate option

Waveform symmetry:

40:60 max @ 50%V

DD

Rise / fall times:

7ns max

Enable / disable function:

None (pin 1 NC)

Tristate (control via pin 1)

Shock resistance:

5,000G, 0.3ms, ½ sine

Vibration resistance:

10G / 10 ~ 2,000Hz

Standard.

18.4320

19.2000

19.6608

20.0000

Optional - Please specify required code(s) when ordering

E

Standard Frequencies

Frequencies in MHz

10.0000

10.1500

10.2300

10.2400

11.0592

12.0000

12.2880

12.8000

13.0000

14.7456

16.0000

16.3840

* Frequency stability is inclusive of calibration @ 25°C, operating temperature range, supply

voltage change, load change and ageing over 10 years.

Ordering Information

Product + option codes + frequency

eg:

XO3V/A 10.0MHz

±50ppm 0+70°C

XO3VT/CE 20.0MHz

±50ppm -55+125°C with enable / disable

Option code X (eg XO3V/X) denotes a custom specification.

Binary divisions of these frequencies also available.

Other frequencies may be available on request. Please consult our sales office.

Enable / Disable Function

Input (pin 1)

Open

‘1’ level

‘0’ level

Output (pin 5)

Enabled

High Impedance

Tel:

+44 1460 256 100

19 Mar 2002

Fax:

+44 1460 256 101

E-mail:

sales@golledge.com

Web:

www.golledge.com
