BSX46 datasheet, PDF - EEWORLD Datasheet

BSX46: DescriptionTRANSISTOR,BJT,NPN,60V V(BR)CEO,1A I(C),TO-205AD; CategoryDiscrete semiconductor The transistor; File Size169KB，4 Pages; ManufacturerSTMicroelectronics; Websitehttp://www.st.com/

Download Datasheet Parametric Compare View All

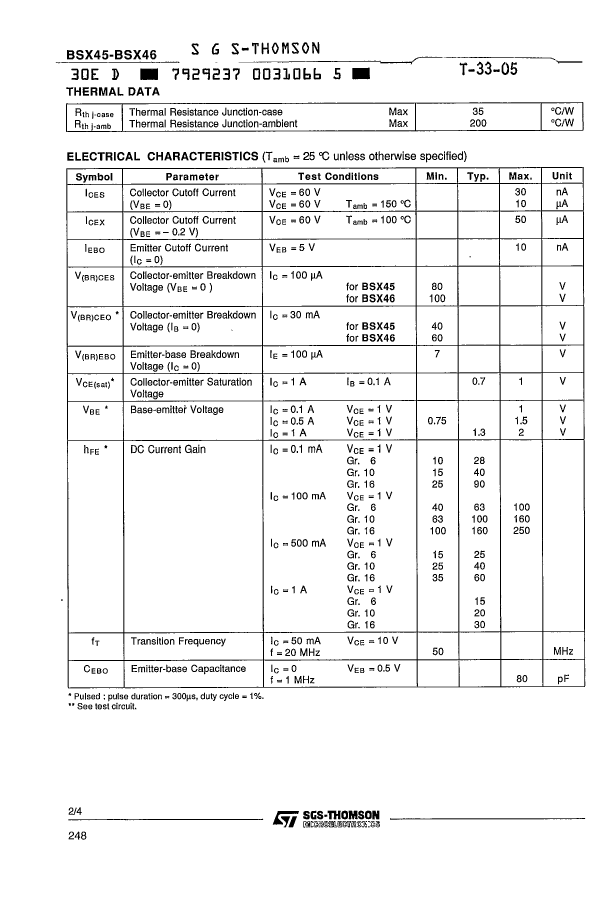

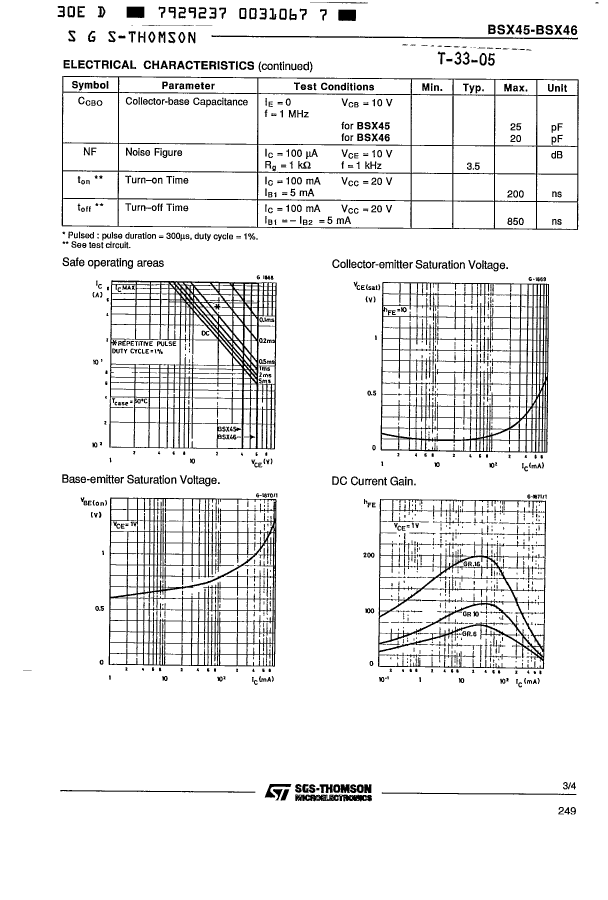

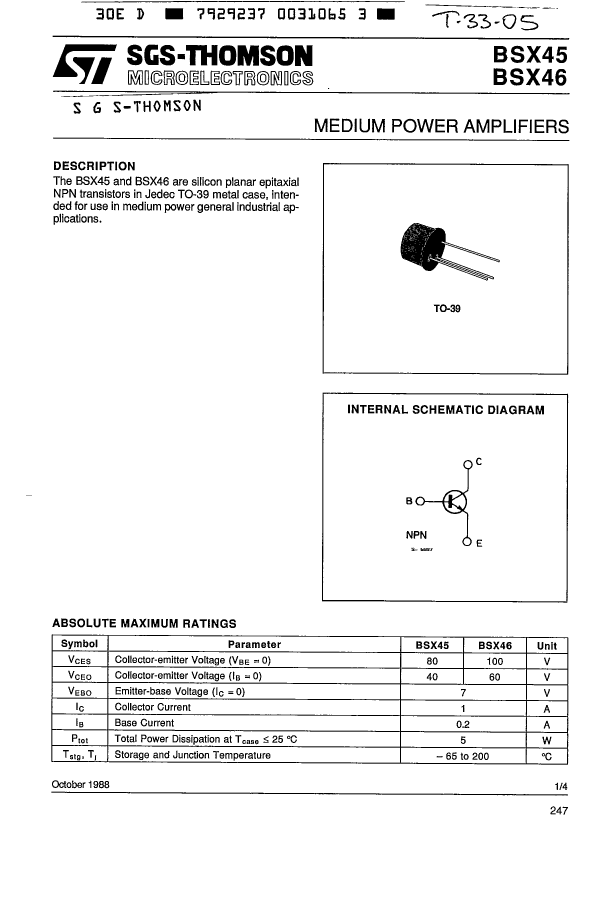

BSX46 Overview

TRANSISTOR,BJT,NPN,60V V(BR)CEO,1A I(C),TO-205AD

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	STMicroelectronics
Reach Compliance Code	not_compliant
Maximum collector current (IC)	1 A
Configuration	Single
Minimum DC current gain (hFE)	40
JESD-609 code	e0
Maximum operating temperature	175 °C
Polarity/channel type	NPN
Maximum power dissipation(Abs)	5 W
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)

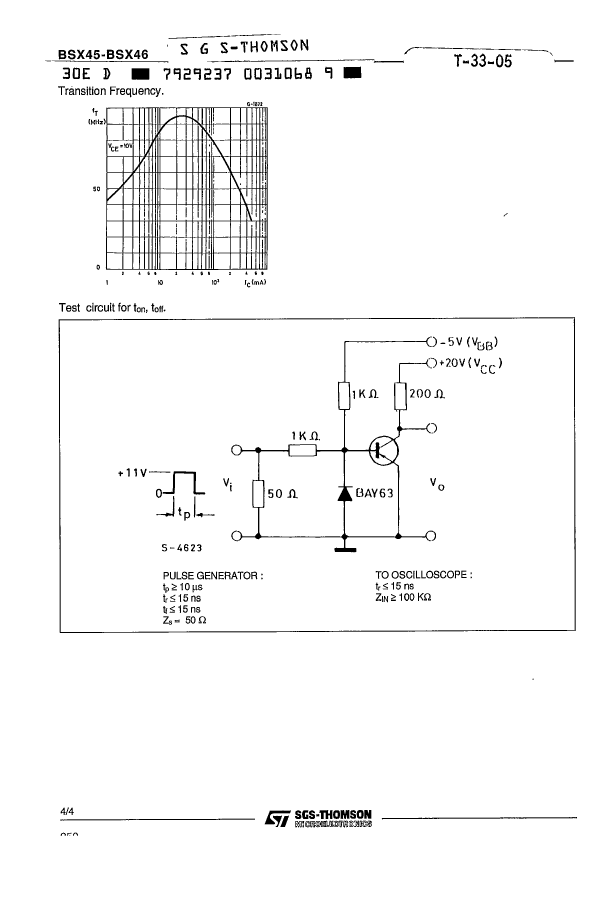

Nominal transition frequency (fT)	50 MHz

	BSX46	BSX46-16	BSX45	BSX45-6	BSX45-10	BSX46-6
Description	TRANSISTOR,BJT,NPN,60V V(BR)CEO,1A I(C),TO-205AD	TRANSISTOR,BJT,NPN,60V V(BR)CEO,1A I(C),TO-205AD	TRANSISTOR,BJT,NPN,40V V(BR)CEO,1A I(C),TO-205AD	TRANSISTOR,BJT,NPN,40V V(BR)CEO,1A I(C),TO-205AD	TRANSISTOR,BJT,NPN,40V V(BR)CEO,1A I(C),TO-205AD	TRANSISTOR,BJT,NPN,60V V(BR)CEO,1A I(C),TO-205AD
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant
Maximum collector current (IC)	1 A	1 A	1 A	1 A	1 A	1 A
Configuration	Single	Single	Single	Single	Single	Single
Minimum DC current gain (hFE)	40	100	40	40	63	40
JESD-609 code	e0	e0	e0	e0	e0	e0
Maximum operating temperature	175 °C	175 °C	175 °C	175 °C	175 °C	175 °C
Polarity/channel type	NPN	NPN	NPN	NPN	NPN	NPN
Maximum power dissipation(Abs)	5 W	5 W	5 W	5 W	5 W	5 W
surface mount	NO	NO	NO	NO	NO	NO
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Nominal transition frequency (fT)	50 MHz	50 MHz	50 MHz	50 MHz	50 MHz	50 MHz
Maker	STMicroelectronics	STMicroelectronics	-	STMicroelectronics	STMicroelectronics	STMicroelectronics
