NPN BSX62-BSX63
SWITCHING TRANSISTORS
C
The BSX62 and BSX63 are NPN switching transistors mounted in
TO-39 metal package.
They are intended for use in medium power switching.
High current and low voltage.
Compliance to RoHS.
B
E
ABSOLUTE MAXIMUM RATINGS
Value
BSX62
40
60
5
3
3
500
5
200
-65 to +150
-65 to +150
Symbol
V
CEO
V
CBO
V
EBO
I
C
I
CM
I
BM
P
D
T
J
T
amb
T
Stg
Ratings
Collector-Emitter Voltage I
B
=0
Collector-Base Voltage
I
E
=0
Emitter-Base Voltage
I
C
=0
Collector Current
Collector Peak Current
Base Peak Current
Total Power Dissipation
T
amb
= 25°
Junction Temperature
Operating ambient temperature
Storage Temperature range
BSX63
60
80
Unit
V
V
V
A
A
mA
W
°C
THERMAL CHARACTERISTICS
Symbol
R
thJ-a
R
thJ-c
Ratings
Thermal Resistance, Junction to ambient
Thermal Resistance, Junction to case
Value
200
28
Unit
°C/W
°C/W
SWITCHING TIMES
Symbol
t
on
t
off
Turn-on time
Turn-off time
Ratings
I
Con
= 1 A; I
Bon
= 50 mA
I
Boff
= -50 mA
Value
300
1.5
Unit
ns
µs
COMSET SEMICONDUCTORS
1/3
NPN BSX62-BSX63

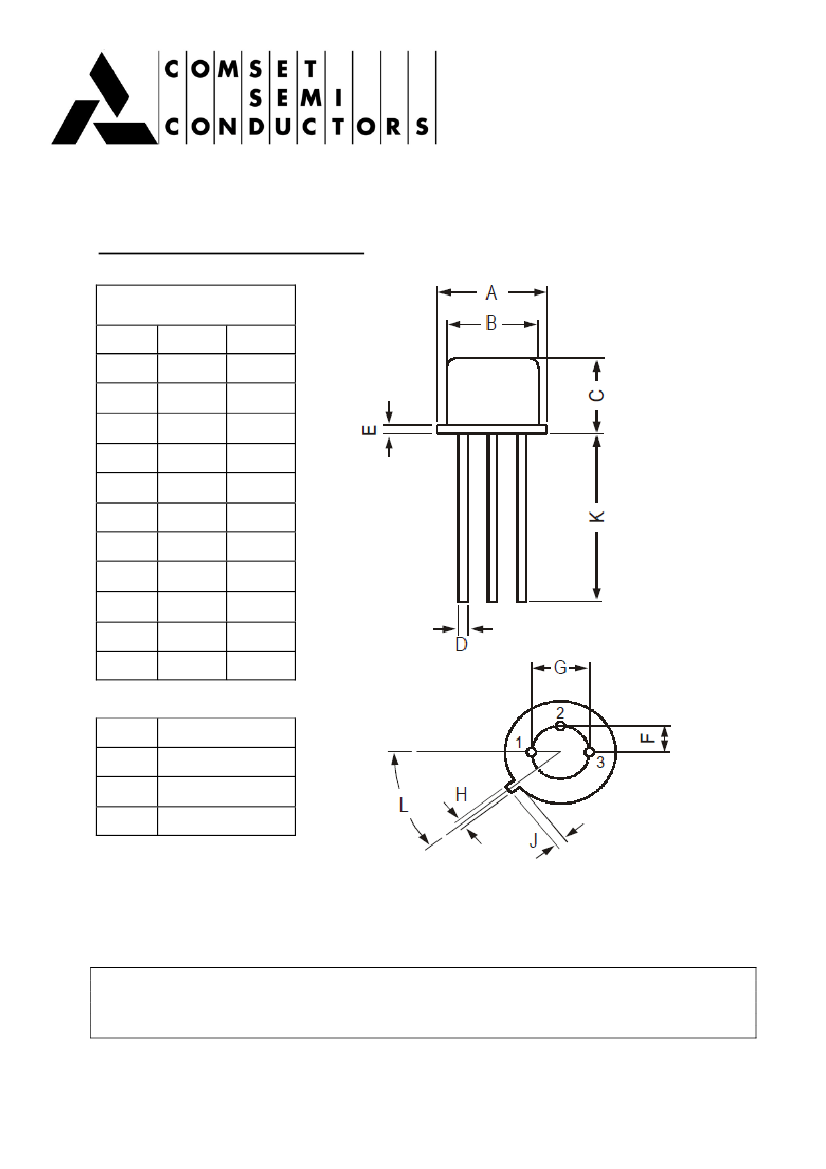

MECHANICAL DATA CASE TO-39
DIMENSIONS (mm)
min
max
9.39
8.50
6.60
0.53
0.88
2.66
5.33
0.86
1.02
-
48°
A
B
C
D
E
F
G
H
J
K
L
8.50
7.74
6.09
0.40
-
2.41
4.82
0.71
0.73
12.70
42°
Pin 1 :
Pin 2 :
Pin 3 :
Case :
Emitter
Base
Collector
Collector
Revised August 2012
Information furnished is believed to be accurate and reliable. However, Comset Semiconductors assumes no responsibility for the consequences of
use of such information nor for any infringement of patents or other rights of third parties which may results from its use. Data are subject to change
without notice. Comset Semiconductors makes no warranty, representation or guarantee regarding the suitability of its products for any particular
purpose, nor does Comset Semiconductors assume any liability arising out of the application or use of any product and specifically disclaims any and
all liability, including without limitation consequential or incidental damages. Comset Semiconductors’ products are not authorized for use as critical
components in life support devices or systems.
www.comsetsemi.com
26/09/2012
