5962-8963201PA datasheet, PDF - EEWORLD Datasheet

5962-8963201PA: DescriptionOperational Amplifier, 2 Func, 2000uV Offset-Max, BIPolar, CDIP8; CategoryAnalog mixed-signal IC Amplifier circuit; File Size406KB，14 Pages; ManufacturerHarris; Websitehttp://www.harris.com/

Download Datasheet Parametric Compare View All

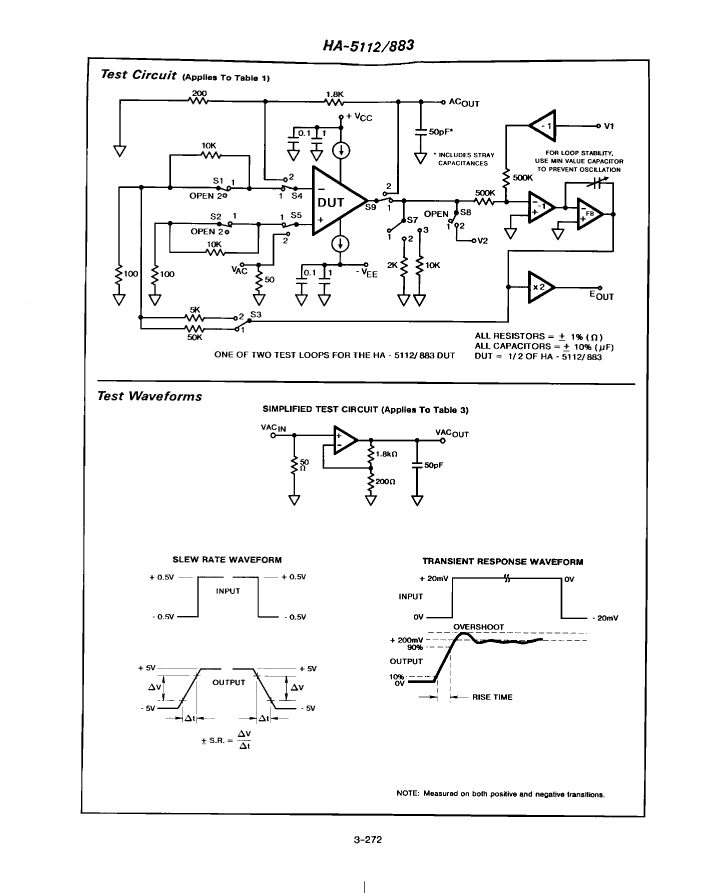

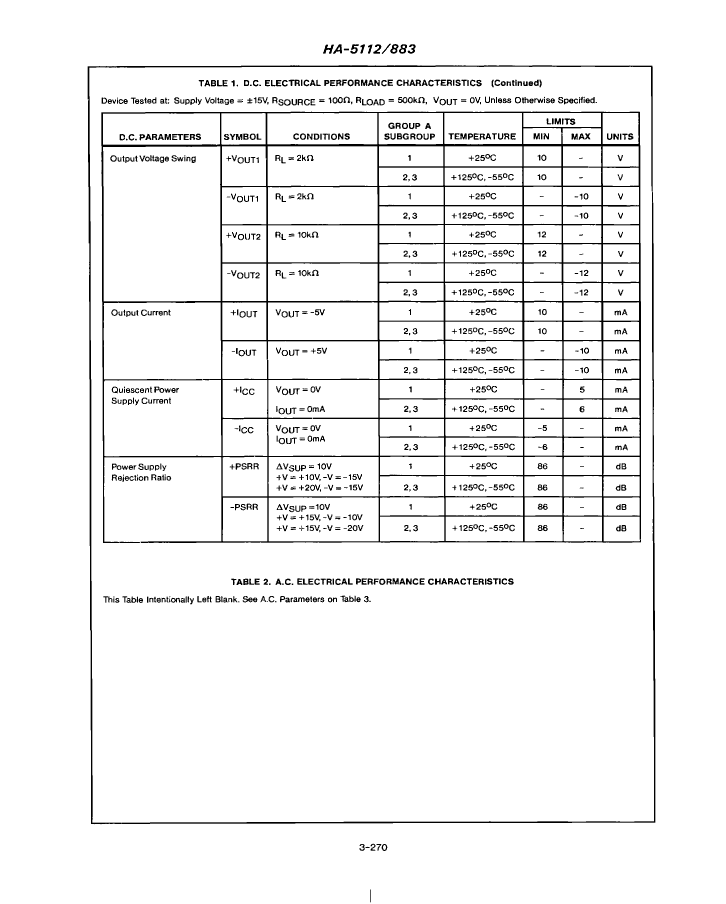

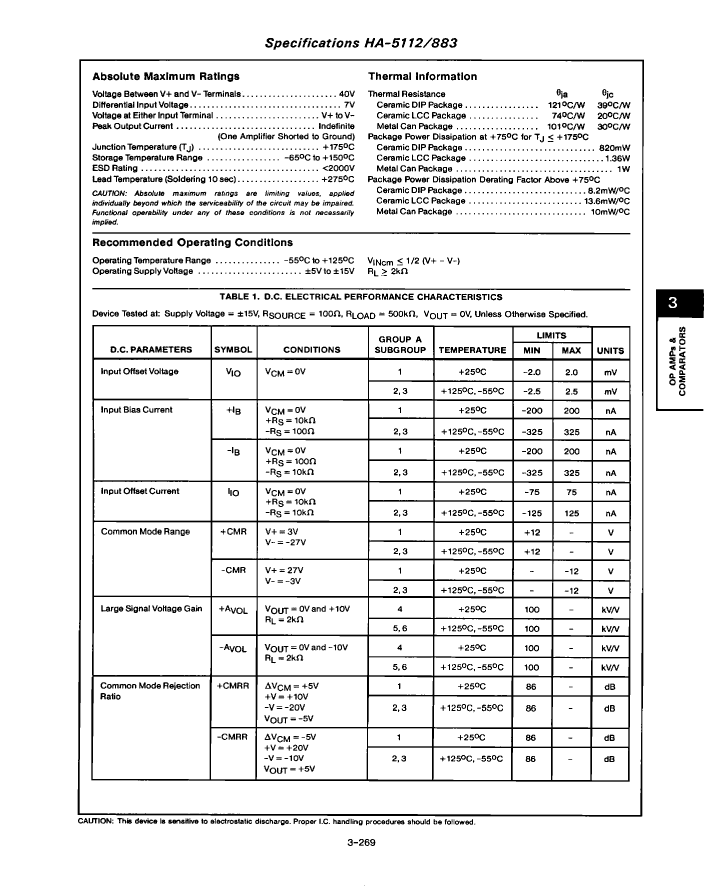

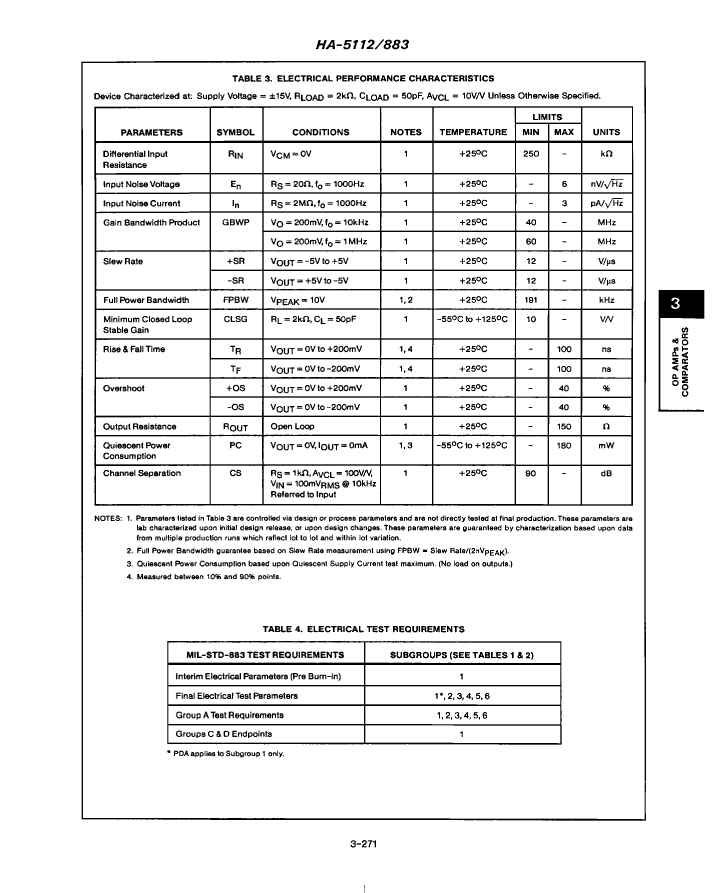

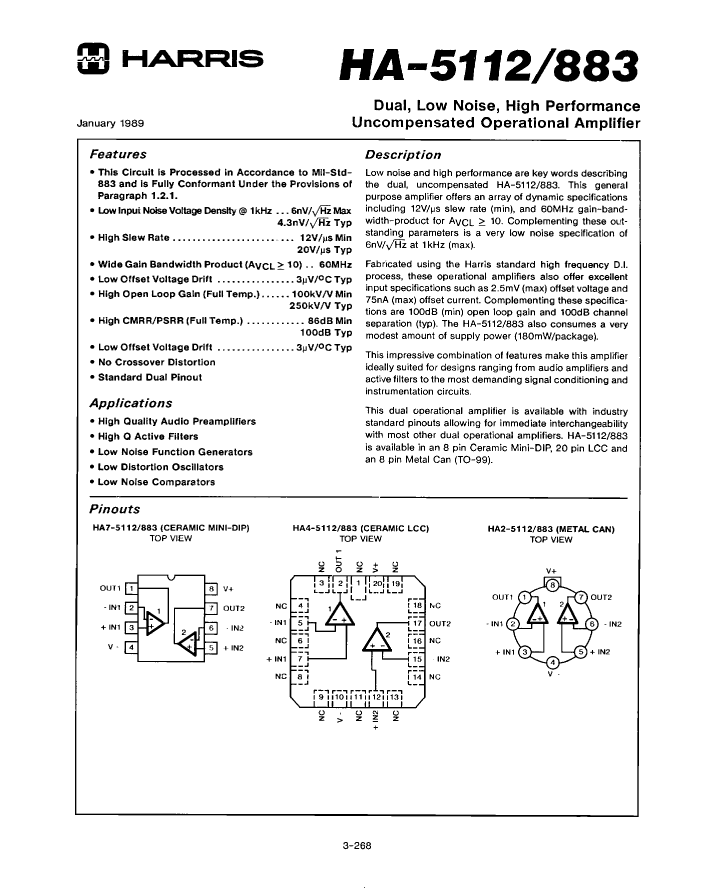

5962-8963201PA Overview

Operational Amplifier, 2 Func, 2000uV Offset-Max, BIPolar, CDIP8

Parameter Name	Attribute value
Maker	Harris
package instruction	DIP,
Reach Compliance Code	unknown
ECCN code	EAR99
Amplifier type	OPERATIONAL AMPLIFIER
Maximum average bias current (IIB)	0.2 µA
Nominal Common Mode Rejection Ratio	86 dB
Maximum input offset voltage	2000 µV
JESD-30 code	R-GDIP-T8
JESD-609 code	e0
Negative supply voltage upper limit	-20 V
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of functions	2
Number of terminals	8
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Nominal slew rate	12 V/us
Supply voltage upper limit	20 V
Nominal supply voltage (Vsup)	15 V
surface mount	NO
technology	BIPOLAR
Temperature level	MILITARY
Terminal surface	TIN LEAD
Terminal form	THROUGH-HOLE
Terminal location	DUAL
Nominal Uniform Gain Bandwidth	33000 kHz

	5962-8963201PA	5962-8963201PX
Description	Operational Amplifier, 2 Func, 2000uV Offset-Max, BIPolar, CDIP8	Operational Amplifier, 2 Func, 2000uV Offset-Max, BIPolar,
Maker	Harris	Harris
package instruction	DIP,	DIP,
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
Amplifier type	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER
Maximum average bias current (IIB)	0.2 µA	0.2 µA
Nominal Common Mode Rejection Ratio	86 dB	86 dB
Maximum input offset voltage	2000 µV	2000 µV
JESD-609 code	e0	e0
Negative supply voltage upper limit	-20 V	-20 V
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V
Number of functions	2	2
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED
encapsulated code	DIP	DIP
Package form	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified
Nominal slew rate	12 V/us	12 V/us
Supply voltage upper limit	20 V	20 V
Nominal supply voltage (Vsup)	15 V	15 V
surface mount	NO	NO
technology	BIPOLAR	BIPOLAR
Temperature level	MILITARY	MILITARY
Terminal surface	TIN LEAD	TIN LEAD
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal location	DUAL	DUAL
Nominal Uniform Gain Bandwidth	33000 kHz	33000 kHz
