NOTES: UNLESS OTHERWISE SPECIFIED
1. FOR GENERAL SERIES SPECIFICATIONS, SEE 74-0000.
2. MATERIAL SPECIFICATIONS: BRASS PER ASTM B16.
3. FINISH SPECIFICATIONS:
.000030 MIN. GOLD PER ASTM B488 OVER .000050 MIN. NICKEL PER AMS QQ-N-290.
4. ELECTRICAL SPECIFICATIONS:
CURRENT RATING: 30 AMPS MAX
5. SUGGESTED FOR USE WITH 12 GA WIRE OR EQUIVALENT.
6. REFER TO CAP10-01 FOR CABLE ASSEMBLY PROCEDURE.
REV
DESCRIPTION
REVISED PER
ER11418
BY APPD
DATE
DAO
01/07/09
DAO
B
.395 10.03
.218 5.54
.250 6.35
.105
±.003
2.67
±.08
.275 6.99
.144 3.66
.069 1.75
.250 6.35
CATALOG P/N: 01381
.095 2.41 MAX
PER ASME Y14.5M-1994
UNLESS OTHERWISE SPECIFIED:
DIMENSIONS ARE IN INCHES [MM]
TOLERANCES:
DECIMAL: .XX [X.X] ± .01 [0.3]
.XXX [X.XX] ± .005 [0.13]
.XXXX [X.XXX] ± .XXXX
ANGLES: ± 2°
SCALE: 6:1
THIRD
ANGLE
Winchester Electronics Corporation
62 Barnes Industrial Road North
Wallingford, Connecticut 06492

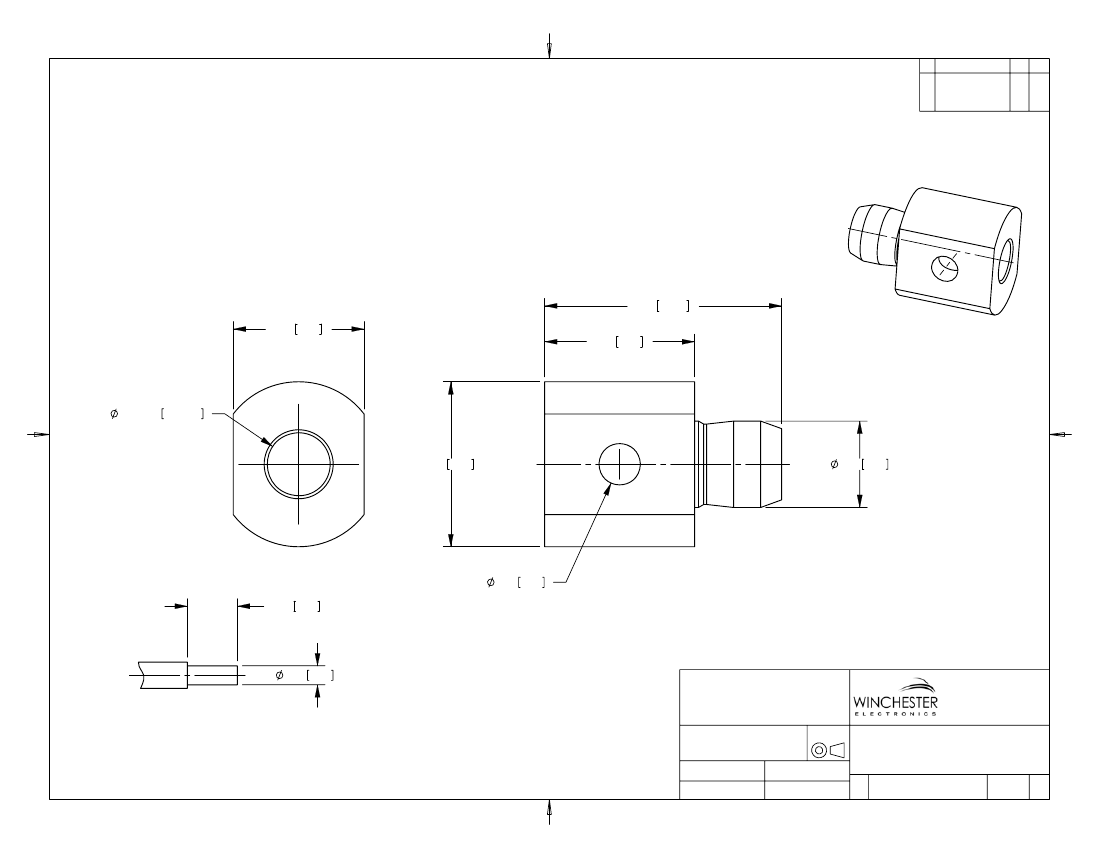

RECOMMENDED CABLE TRIM DIMENSIONS
SCALE: 2:1
CUSTOMER
SALES DRAWING
DRAWN
LMD
APPROVED
WPM
POWER SNAP
STRAIGHT MALE
CABLE MOUNT
SHT
OF
REV
DATE APPROVED
02/15/06
BL
DATE APPROVED
09/18/08
XXX
DATE
09/19/08
DATE
XX/XX/XX
A
SD01381
1
1
B
DMF029 B
