D15P91C6PI00LF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> D15P91C6PI00LF

D15P91C6PI00LF: DescriptionD Subminiature Connector, 15 Contact(s), Male, Press Fit Terminal, LEAD FREE; CategoryThe connector The connector; File Size110KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

D15P91C6PI00LF Overview

D Subminiature Connector, 15 Contact(s), Male, Press Fit Terminal, LEAD FREE

D15P91C6PI00LF Parametric

Parameter Name	Attribute value
Maker	Amphenol
package instruction	LEAD FREE
Reach Compliance Code	compliant
ECCN code	EAR99
Connector type	D SUBMINIATURE CONNECTOR
Contact point gender	MALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Mixed contacts	NO
Installation type	BOARD
Options	GENERAL PURPOSE
Housing size	2/A
Termination type	PRESS FIT
Total number of contacts	15

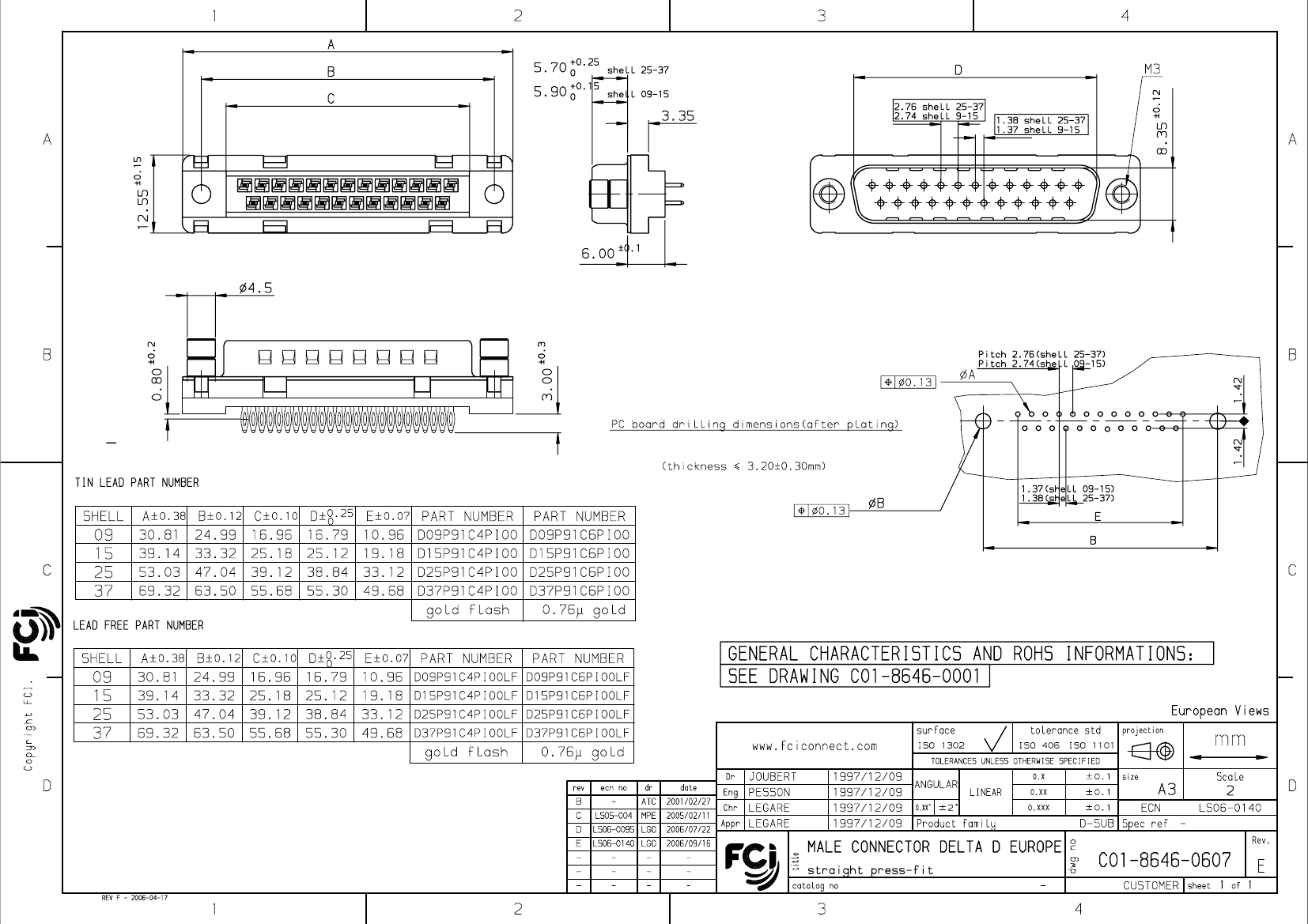

Preview

Download Datasheet

View All

PDM: Rev:E

STATUS:

Released

Printed: Jan 18, 2011

D15P91C6PI00LF Related Products

	D15P91C6PI00LF	D09P91C4PI00LF	D25P91C6PI00	1-2119791-1	1-2119805-7	D25P91C4PI00LF	D09P91C4PI00	D09P91C6PI00	D15P91C4PI00	D15P91C4PI00LF
Description	D Subminiature Connector, 15 Contact(s), Male, Press Fit Terminal, LEAD FREE	D Subminiature Connector, 9 Contact(s), Male, Press Fit Terminal, LEAD FREE	D Subminiature Connector, 25 Contact(s), Male, Press Fit Terminal	THIS DRAWING IS A CONTROLLED DOCUMENT FOR TYCO ELECTRONICS CORPORATION	THIS DRAWING IS A CONTROLLED DOCUMENT FOR TYCO ELECTRONICS CORPORATION	D Subminiature Connector, 25 Contact(s), Male, Press Fit Terminal, LEAD FREE	D Subminiature Connector, 9 Contact(s), Male, Press Fit Terminal	D Subminiature Connector, 9 Contact(s), Male, Press Fit Terminal	D Subminiature Connector, 15 Contact(s), Male, Press Fit Terminal	D Subminiature Connector, 15 Contact(s), Male, Press Fit Terminal, LEAD FREE
Maker	Amphenol	Amphenol	Amphenol	-	-	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol
Reach Compliance Code	compliant	compliant	compliant	-	-	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	-	-	EAR99	EAR99	EAR99	EAR99	EAR99
Connector type	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	-	-	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR
Contact point gender	MALE	MALE	MALE	-	-	MALE	MALE	MALE	MALE	MALE
DIN compliance	NO	NO	NO	-	-	NO	NO	NO	NO	NO
empty shell	NO	NO	NO	-	-	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	-	-	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	-	-	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	-	-	NO	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	-	-	NO	NO	NO	NO	NO
Installation type	BOARD	BOARD	BOARD	-	-	BOARD	BOARD	BOARD	BOARD	BOARD
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	-	-	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Housing size	2/A	1/E	3/B	-	-	3/B	1/E	1/E	2/A	2/A
Termination type	PRESS FIT	PRESS FIT	PRESS FIT	-	-	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT
Total number of contacts	15	9	25	-	-	25	9	9	15	15
