PCS-E36PMD datasheet, PDF - EEWORLD Datasheet

PCS-E36PMD: DescriptionTelecom and Datacom Connector, 36 Contact(s), Male, IDC Terminal, M2.5, Receptacle, ROHS COMPLIANT; CategoryThe connector The connector; File Size114KB，1 Pages; ManufacturerHonda Tsushin Kogyo Co., Ltd.; Environmental Compliance

Download Datasheet Parametric View All

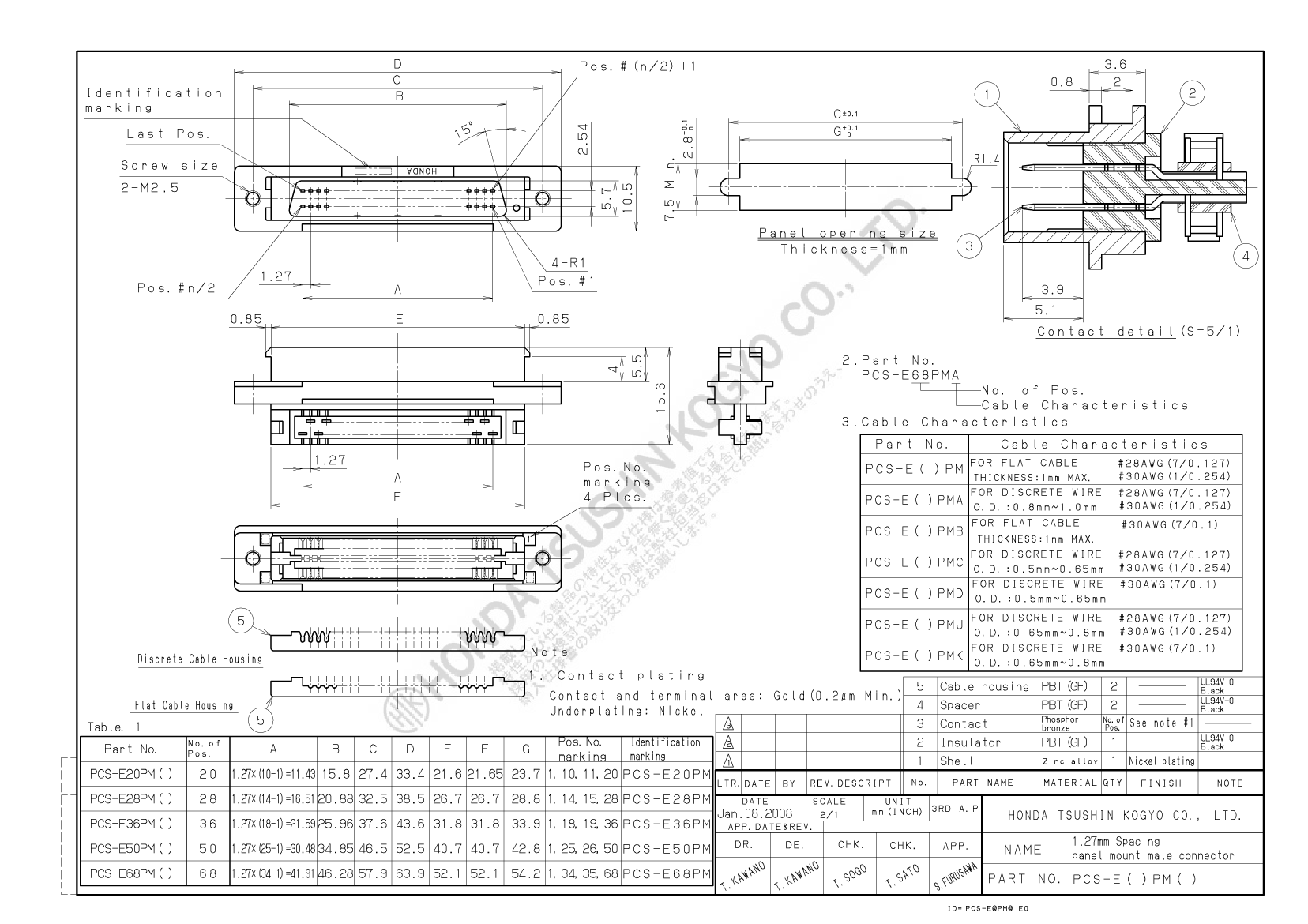

PCS-E36PMD Overview

Telecom and Datacom Connector, 36 Contact(s), Male, IDC Terminal, M2.5, Receptacle, ROHS COMPLIANT

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Honda Tsushin Kogyo Co., Ltd.
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	NONE
body width	0.413 inch
subject depth	0.397 inch
body length	1.716 inch
Body/casing type	RECEPTACLE
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	35 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	750VAC V
empty shell	NO
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
MIL compliance	NO
Plug contact pitch	0.05 inch
Match contact row spacing	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	M2.5
Installation type	CABLE AND PANEL
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	NICKEL
Shell material	ZINC ALLOY
Termination type	IDC
Total number of contacts	36
UL Flammability Code	94V-0
Maximum wire diameter	30 AWG
Minimum wire diameter	30 AWG
