TA76 datasheet, PDF - EEWORLD Datasheet

TA76: DescriptionSmall Signal Bipolar Transistor, 0.1A I(C), 40V V(BR)CEO, 5-Element, NPN, Silicon; CategoryDiscrete semiconductor The transistor; File Size957KB，12 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/

Download Datasheet Parametric View All

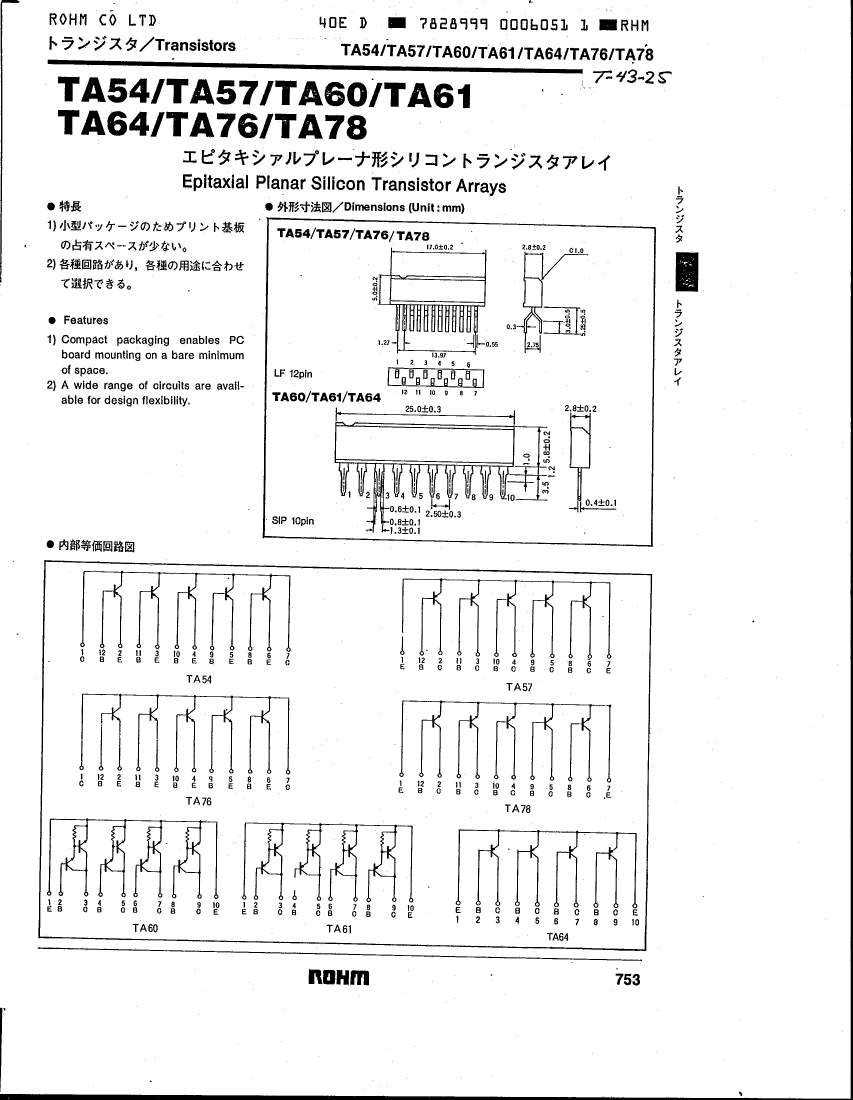

TA76 Overview

Small Signal Bipolar Transistor, 0.1A I(C), 40V V(BR)CEO, 5-Element, NPN, Silicon

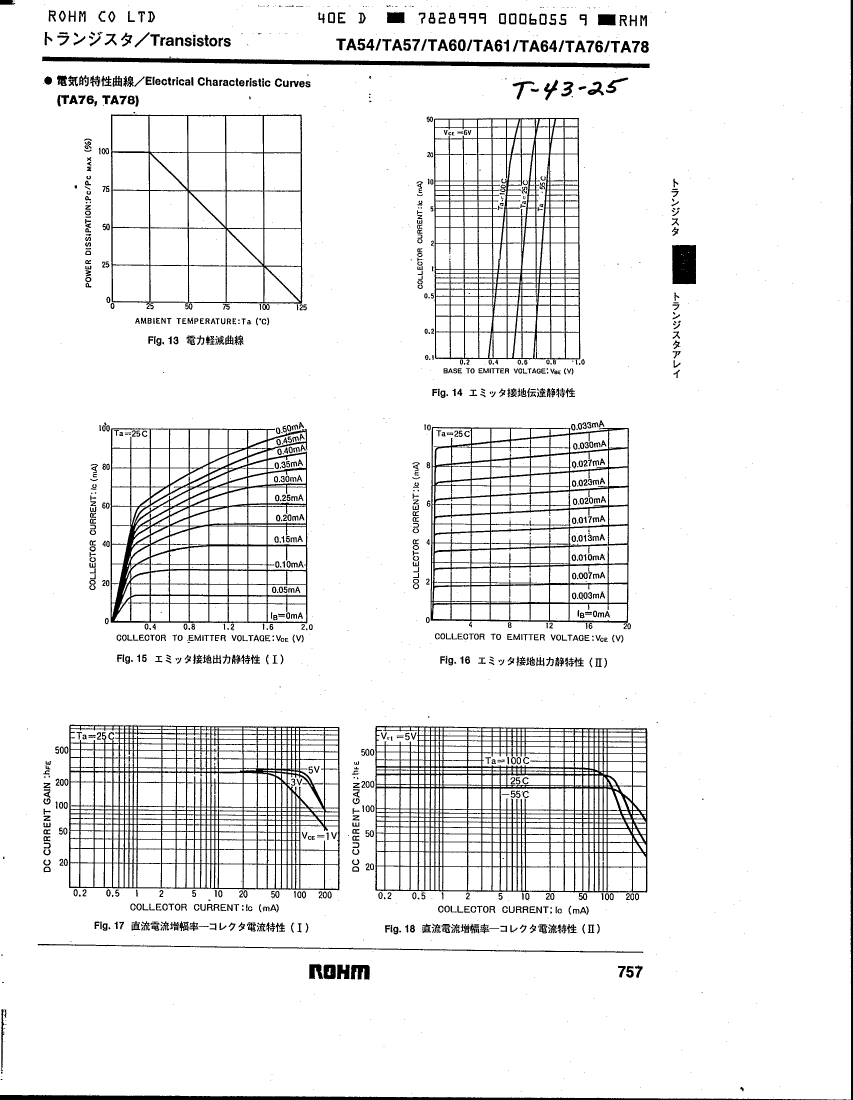

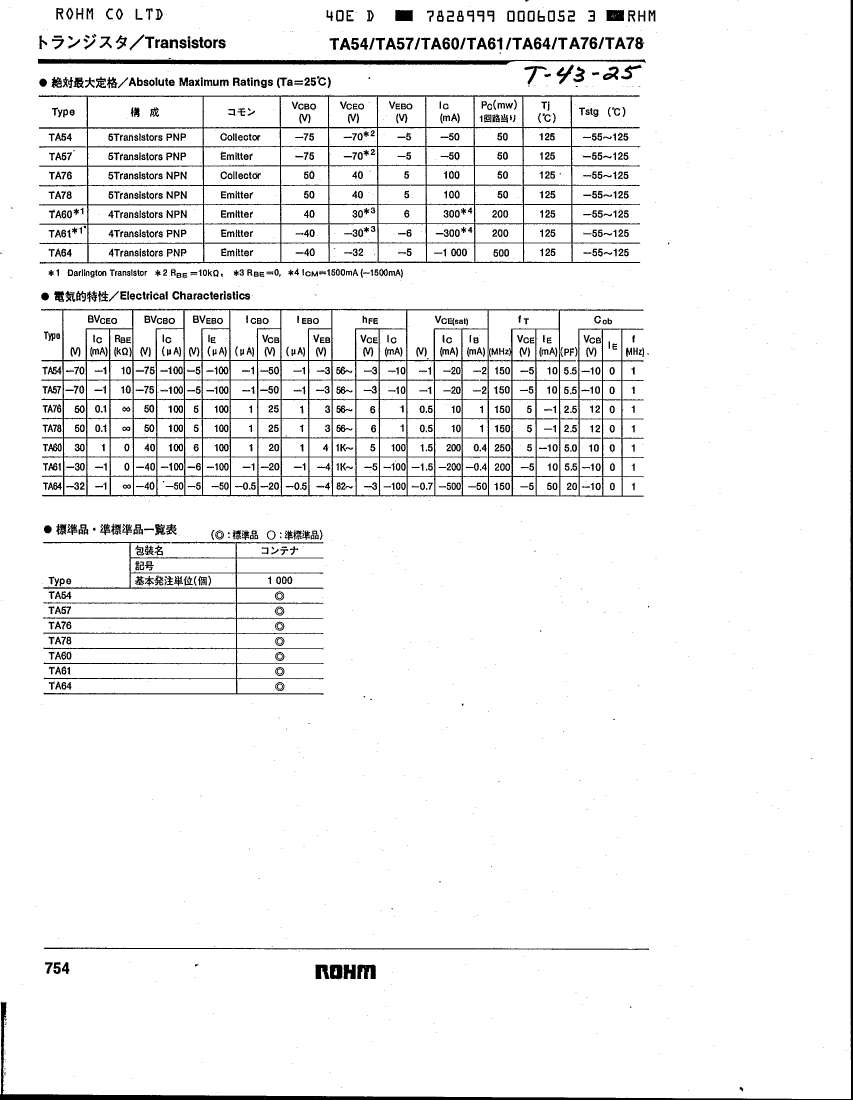

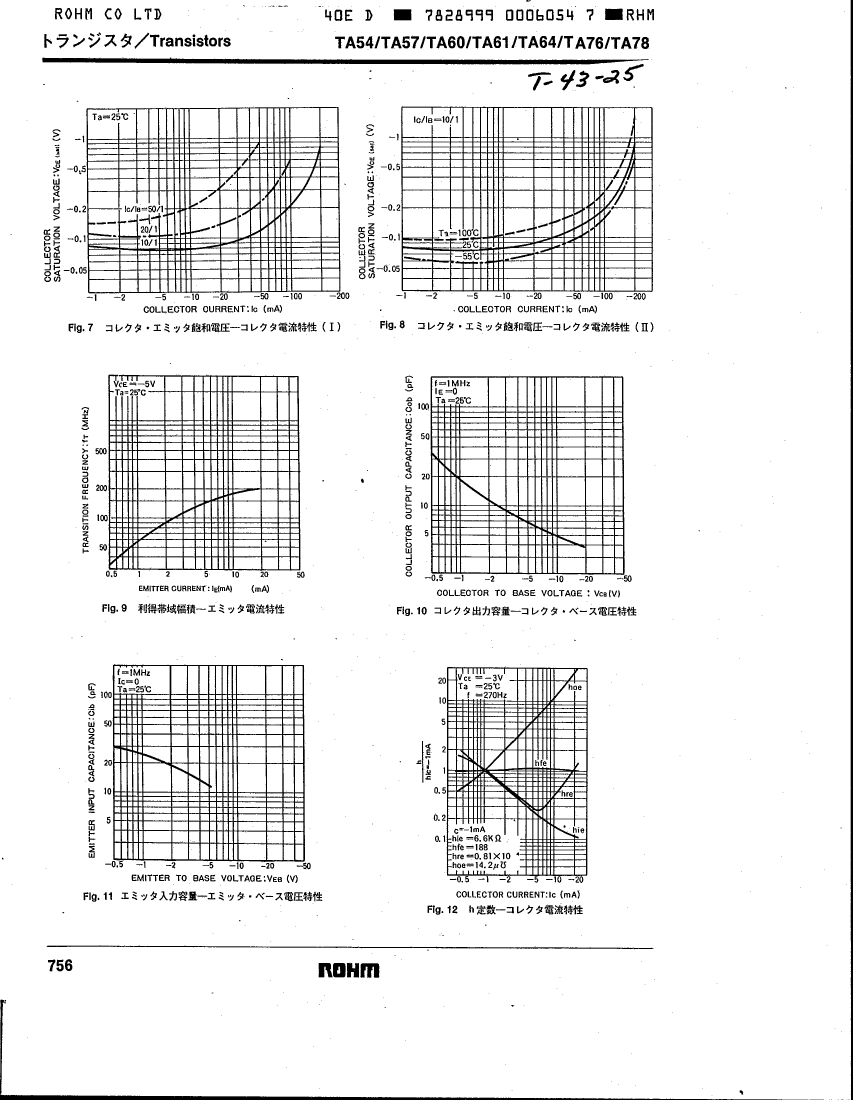

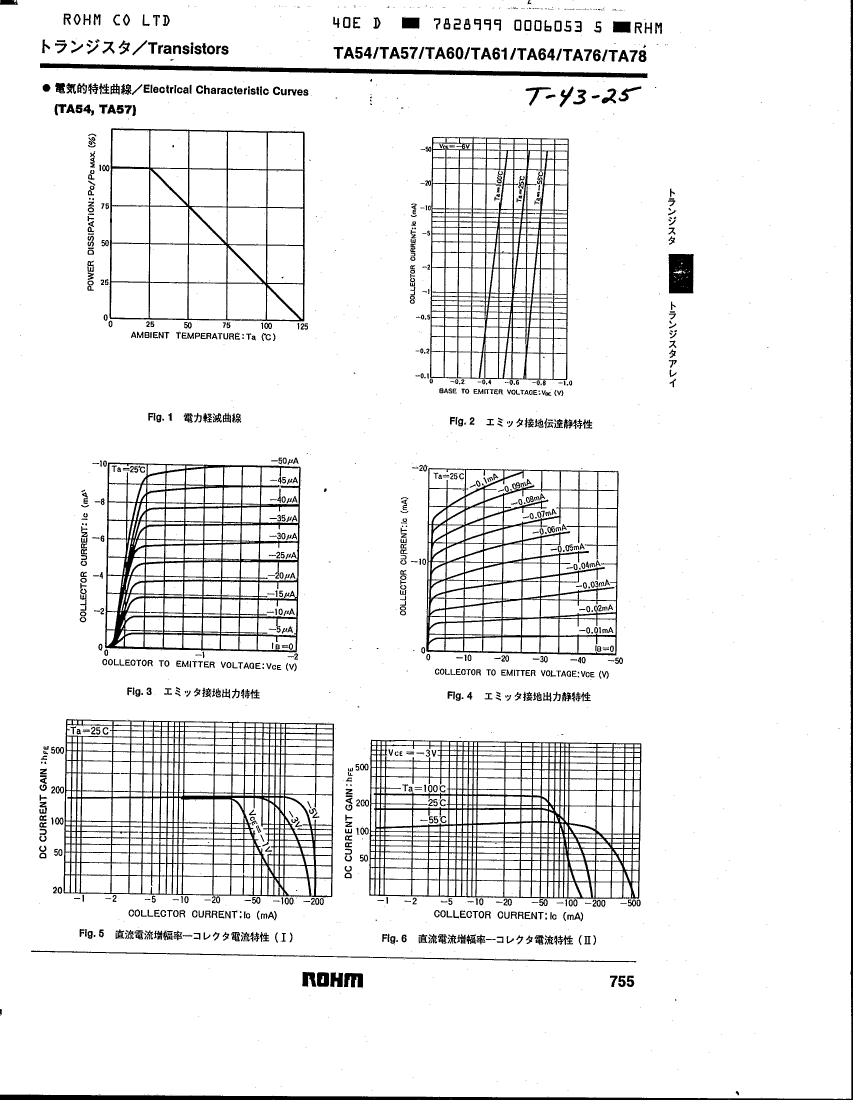

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	ROHM Semiconductor
package instruction	IN-LINE, R-PZIP-T12
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum collector current (IC)	0.1 A
Collector-based maximum capacity	2.5 pF
Collector-emitter maximum voltage	40 V
Configuration	COMMON COLLECTOR, 5 ELEMENTS
Minimum DC current gain (hFE)	56
JESD-30 code	R-PZIP-T12
JESD-609 code	e0
Number of components	5
Number of terminals	12
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Polarity/channel type	NPN
Certification status	Not Qualified
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal location	ZIG-ZAG
Maximum time at peak reflow temperature	NOT SPECIFIED
transistor applications	SWITCHING
Transistor component materials	SILICON
Nominal transition frequency (fT)	150 MHz
VCEsat-Max	0.5 V
