DOMINANT
Innovating Illumination
TM
DATA SHEET:
Opto Technologies
Power DomiLED
TM
AlInGaP : DWx
Power DomiLED
TM

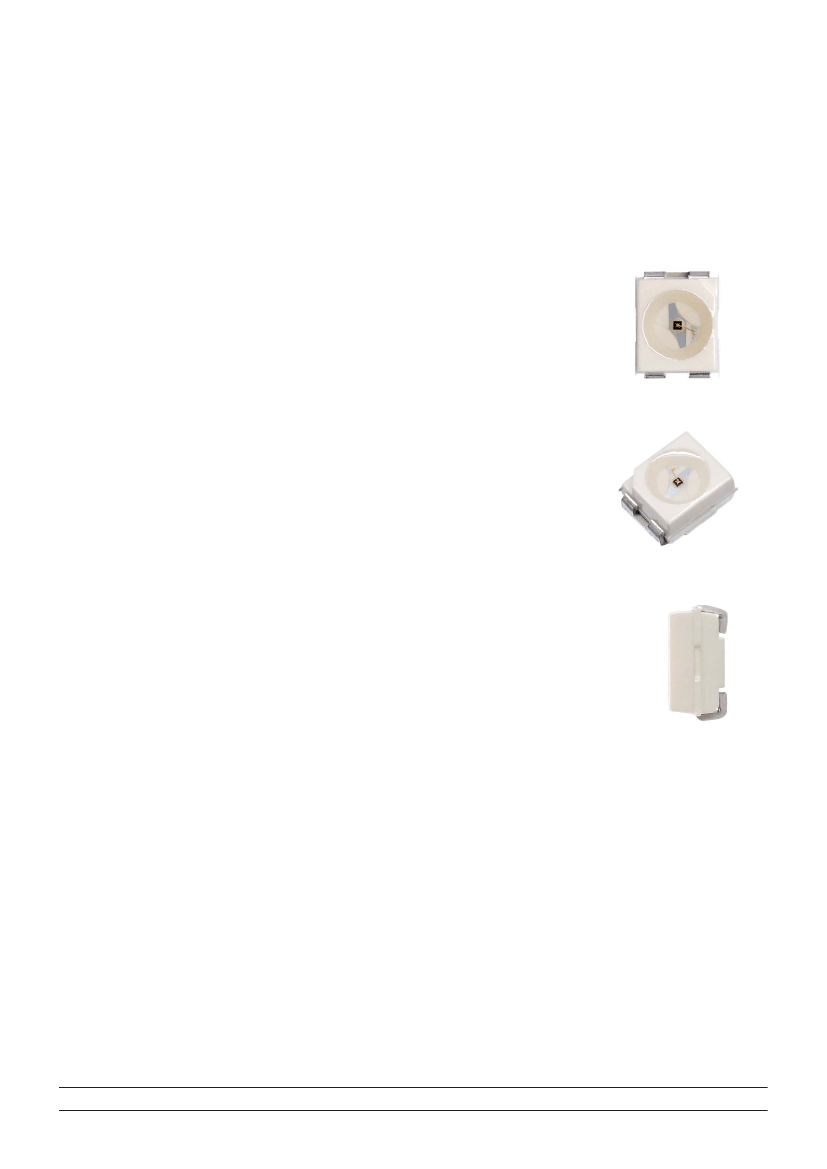

With its significant power in terms brightness, viewing angle and variety of
application possibilities,
Power DomiLED™
truly is a standout performer!
Ideal for automotive interior lighting as well as home, office and industrial
applications, it is also a proven performer in electronic signs and signals.
Features:
>
>
>
>
>
>
High brightness surface mount LED using thin film technology.
120° viewing angle.
Small package outline (LxWxH) of 3.2 x 2.8 x 1.8mm.
Qualified according to JEDEC moisture sensitivity Level 2.
Compatible to IR reflow soldering.
Environmental friendly; RoHS compliance.
Applications:
> Automotive:
Interior applications, eg: switches, telematics, climate control system,
dashboard, etc.
Exterior applications, eg: signal lighting, Center High Mounted Stop Light
(CHMSL)
> Signage: full colour display video notice board, signage, special effect
lighting.
> Industrial: white goods (eg: Oven, microwave, etc.), light bar, illuminated
advertising.
> Lighting: architecture lighting, general lighting, garden light, channel light.
© 2005 DomiLED is a trademark of DOMINANT Opto Technologies.
All rights reserved. Product specifications are subject to change without notice.
1
29/12/2011 V17.0
DOMINANT
Innovating Illumination
TM
Opto Technologies
AlInGaP : DWx
Optical Characteristics at Tj=25˚C
Part Ordering
Number
DWS-SJS-ST2-1
DWS-SJS-T2V1-1
DWR-SJS-TU2-1
DWR-TJS-UV2-1
DWR-TJS-VW2-1
DWA-SJS-UV2-1
DWA-SJS-VW1-1
DWO-SJS-UV2-1
DWY-SJS-UV1-1
DWY-SJS-U2V-1
DWY-TJS-UV2-1
DWP-SJS-PQ1-1
DWP-SJS-P2R1-1
DWP-SJS-Q2R-1
Not for new design
NOTE
1. All part number above comes in a quantity of 2000 units per reel.
2. Other luminous intensity groups may also be available upon request.
3. Luminous intensity is measured with an accuracy of ± 11%.
4. Wavelength binning is carried for all units as per the wavelength-binning table. Only one wavelength group is allowed for each reel.
5. An optional Vf bining is also available upon request. Bining scheme is as per following table.
Color
Super Red, 632nm
Super Red, 632nm
Red, 625nm
Red, 625nm
Red, 625nm
Amber, 615nm
Amber, 615nm
Orange, 605nm
Yellow, 587nm
Yellow, 587nm
Yellow, 587nm
Pure Green, 560nm
Pure Green, 560nm
Pure Green, 560nm
Viewing
Angle˚
120
120
120
120
120
120
120
120
120
120
120
120
120
120
Luminous Intensity @ IF = 50mA IV (mcd)
Min.
Typ.
Max.
180.0
355.0
285.0
450.0
715.0
450.0
715.0
450.0
450.0
560.0
450.0
45.0
56.0
90.0
285.0
560.0
450.0
715.0
1125.0
715.0
1000.0
715.0
560.0
900.0
715.0
56.0
90.0
135.0
450.0
900.0
715.0
1125.0
1800.0
1125.0
1400.0
1125.0
900.0
1125.0
1125.0
90.0
140.0
180.0
Electrical Characteristics at Tj=25˚C
Part Number
DWS-SJS, DWR-SJS, DWA-SJS,
DWO-SJS, DWY-SJS, DWP-SJS
DWR-TJS, DWY-TJS
Vf @ If = 50mA
Min. (V)
1.7
1.7
Typ. (V)
2.1
2.6
Max. (V)
2.6
3.2
V
r
@ I
r
= 10uA
Min. (V)
12
12
Forward voltages are measure using a current pulse of 1 ms and with an accuracy of ± 0.1V.
2
29/12/2011 V17.0
DOMINANT
Innovating Illumination
TM
Opto Technologies
AlInGaP : DWx
Absolute Maximum Ratings
Maximum Value
DC forward current
Peak pulse current; (tp ≤ 10µs, Duty cycle = 0.1)
Reverse voltage
ESD threshold (HBM)
LED junction temperature
Operating temperature
Storage temperature
Power dissipation (at room temperature)
70
100
12
2
125
-40 … +100
-40 … +100
225
Unit
mA
mA
V
kV
˚C
˚C
˚C
mW
Wavelength Grouping
Color
DWS; Super Red
DWR-SJ; Red
DWR-TJ; Red (TS)
DWA; Amber
Group
Full
Full
Full
Full
W
X
Wavelength distribution (nm)
625 - 640
620 - 630
620 - 635
610 - 621
610 - 615
615 - 621
600 - 612
600 - 603
603 - 606
606 - 609
609 - 612
582 - 594
582 - 585
585 - 588
588 - 591
591 - 594
552.5 - 564.5
552.5 - 555.5
555.5 - 558.5
558.5 - 561.5
561.5 - 564.5
DWO; Orange
Full
W
X
Y
Z
DWY; Yellow
Full
W
X
Y
Z
DWP; Pure Green
Full
W
X
Y
Z
Dominant wavelength is measured with an accuracy of ± 1 nm.
3
29/12/2011 V17.0
DOMINANT
Innovating Illumination
TM
Opto Technologies
AlInGaP : DWx
Luminous Intensity Group at Tj=25˚C
Brightness Group
P1
P2
Q1
Q2
R1
R2
S1
S2
T1
T2
U1
U2
V1
V2
W1
W2
Luminous intensity is measured with an accuracy of ± 11%.
Luminous Intensity
IV (mcd)
45.0 ... 56.0
56.0 ... 71.5
71.5 ... 90.0
90.0 ... 112.5
112.5 ... 140.0
140.0 ... 180.0
180.0 ... 224.0
224.0 ... 285.0
285.0 ... 355.0
355.0 ... 450.0
450.0 ... 560.0
560.0 ... 715.0
715.0 ... 900.0
900.0 ... 1125.0
1125.0 ... 1400.0
1400.0 ... 1800.0
Vf Bining (Optional)
Vf @ If = 50mA
50
51
52
53
54
Forward voltage, Vf is measured with an accuracy of ± 0.1V.
Please consult sales and marketing for special part number to incorporate Vf binning.
Forward Voltage (V)
1.7 ... 2.0
2.0 ... 2.3
2.3 ... 2.6
2.6 ... 2.9
2.9 ... 3.2
4
29/12/2011 V17.0
DOMINANT
Innovating Illumination
TM
Opto Technologies
AlInGaP : DWx
Voltage
Current

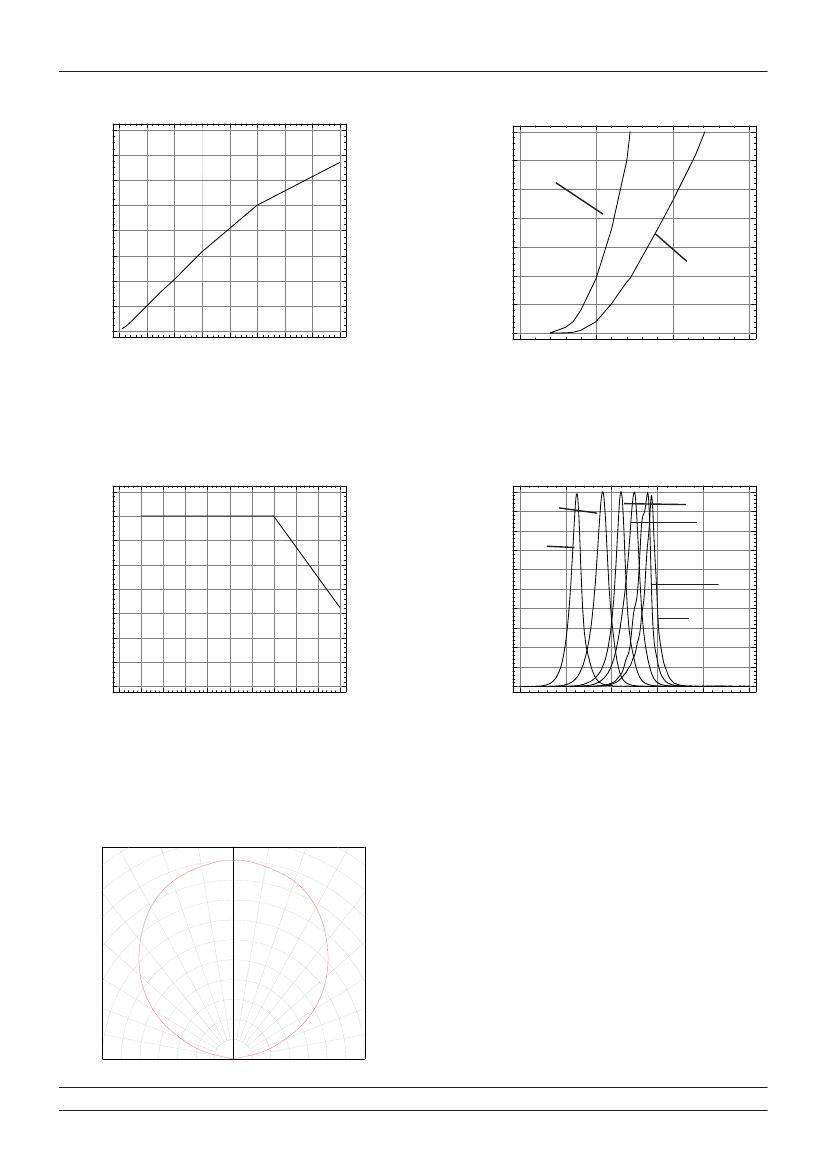

Forward Current Vs Forward Voltage
2.3
70
Relative Luminous Intensity Vs Forward Current
Relative Intensity Vs Forward Current
Relative Intensity; Normalized at 50mA
Relative Intensity; Normalized at 50mA
1.6
1.4
1.4
1.2
1.2
1
1
0.8
0.8
0.6
0.6
0.4
0.4
0.2
0
0
10
20
30
40
50
60
70
80
Forward Current,
Forward Voltage; V
mA
60
2.2
50
2.1
40
30
2
20
1.9
10
1.8
0
AS AllnGaP
TS AllnGaP
0
1.5
20
2
40
2.5 60
80
3
Forward Current; mA
Current,
Forward Current, mA
Forward Voltage; V
Maximum Current Vs Ambient Temperature
Relative Intensity
Allowable Forward Current, mA
80
70
Relative Intensity Vs Wavelength
1000
1
0.9
0.8
0.7
100
0.6
0.5
0.4
10
0.3
0.2
0.1
1
0
1
500
550
600 10 650
700
100
750
Yellow
Pure
Green
Orange
Forward Current, mA
Forward Current, mA
Amber
60
50
40
30
20
10
0
0
10
20
30
40
50
60
70
80
90 100
Red
Super Red
Ambient Temperature
Duty Ratio, nm
Wavelength; %
Radiation Pattern
30°
20°
10°
0°
1.0
40°
0.8
50°
0.6
60°
70°
80°
90°
0.4
0.2
0
5
29/12/2011 V17.0
