DDA-SJB-T2V-1-I3 datasheet, PDF

DDA-SJB-T2V-1-I3: DescriptionSingle Color LED, Amber, 3.20 X 2.80 MM, 1.80 MM HEIGHT, ROHS COMPLIANT, PLASTIC PACKAGE-2; CategoryLED optoelectronic/LED photoelectric; File Size918KB，12 Pages; ManufacturerDOMINANT; Websitehttp://www.dominant-semi.com/

Download Datasheet Parametric Compare View All

DDA-SJB-T2V-1-I3 Overview

Single Color LED, Amber, 3.20 X 2.80 MM, 1.80 MM HEIGHT, ROHS COMPLIANT, PLASTIC PACKAGE-2

Parameter Name	Attribute value
Maker	DOMINANT
package instruction	3.20 X 2.80 MM, 1.80 MM HEIGHT, ROHS COMPLIANT, PLASTIC PACKAGE-2
Reach Compliance Code	unknown
Other features	SUPPORTS INFRARED
color	AMBER
Configuration	SINGLE
Maximum forward current	0.05 A
JESD-609 code	e3
Nominal luminous intensity	715.0 mcd
Installation features	SURFACE MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	100 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	1.75 mm
method of packing	TAPE AND REEL
shape	ROUND
surface mount	YES
Terminal surface	TIN
Terminal pitch	3 mm
perspective	120 deg

DOMINANT

Innovating Illumination

DATA SHEET:

Opto Technologies

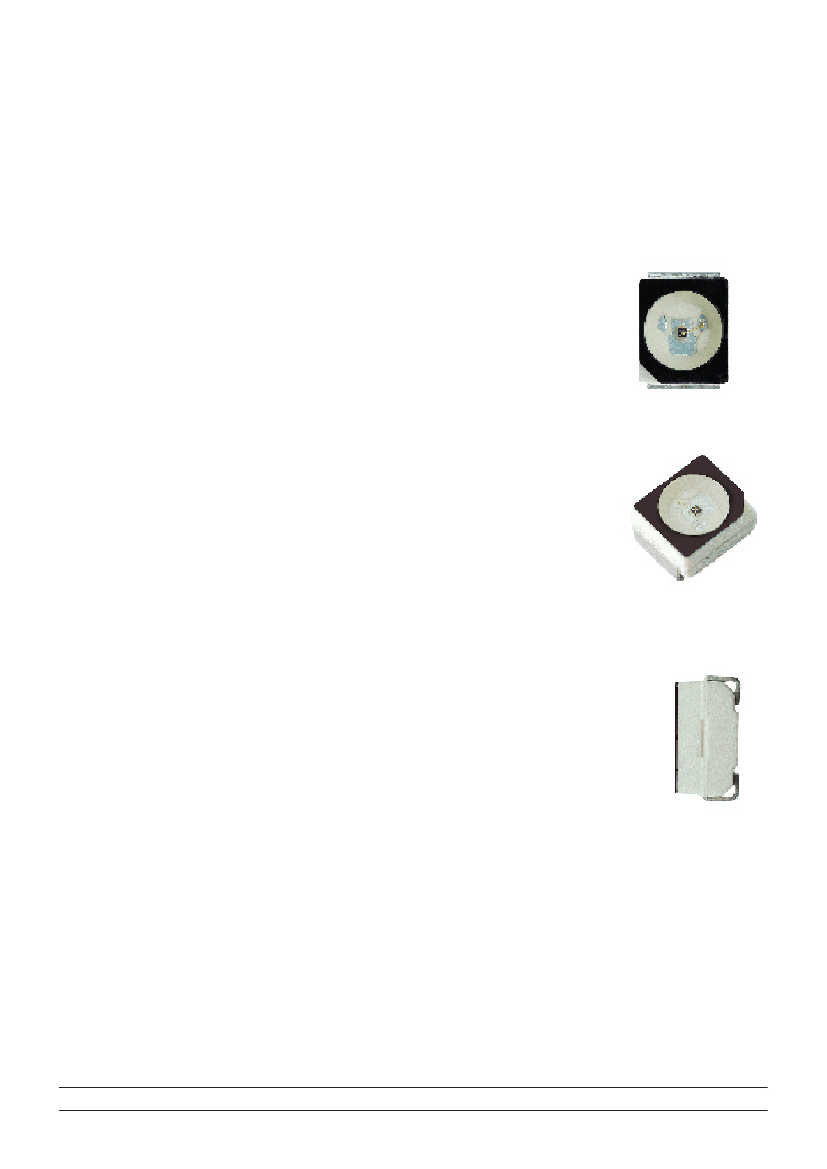

DomiLED

AlInGaP : DDx-xJB-I3

DomiLED

Synonymous with function and performance, the

DomiLED

series is

perfectly suited for a variety of cross-industrial applications due to its

small package outline, durability and superior brightness.

Features:

High brightness surface mount LED.

120° viewing angle.

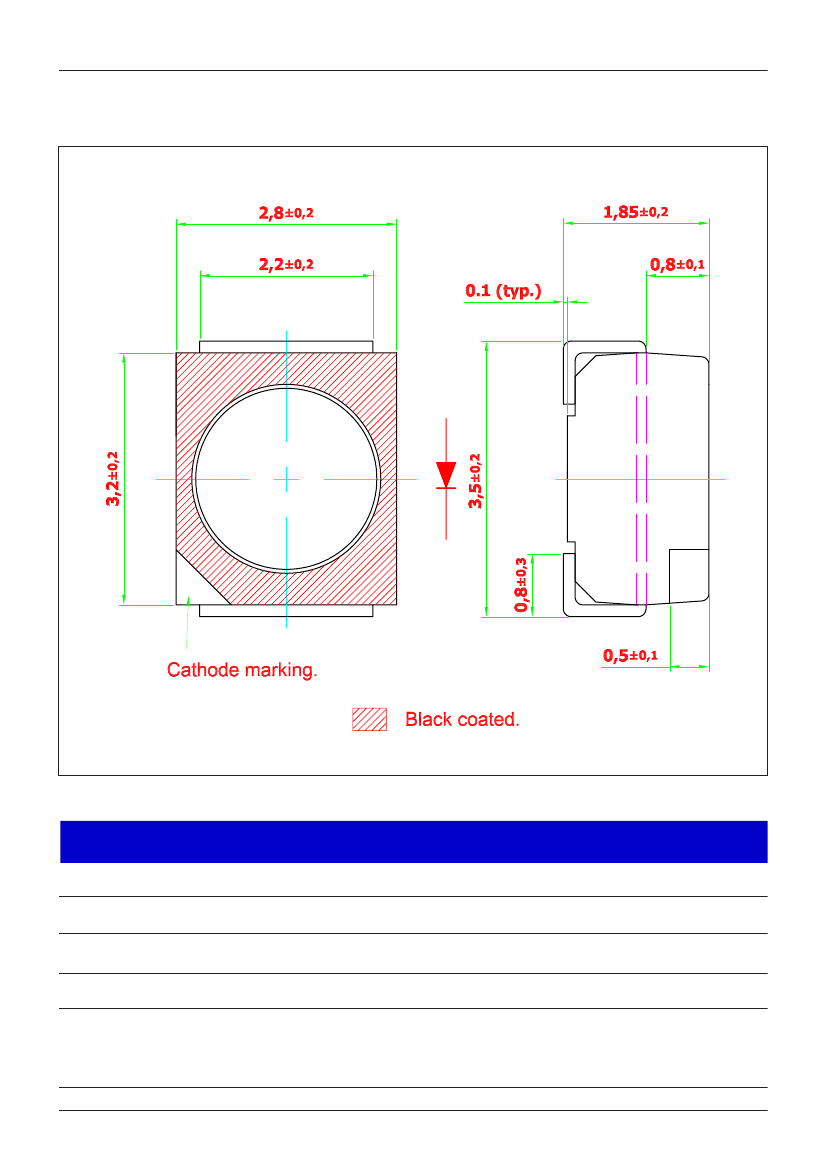

Small package outline (LxWxH) of 3.2 x 2.8 x 1.8mm.

Qualified according to JEDEC moisture sensitivity Level 2.

Compatible to IR reflow soldering.

Environmental friendly; RoHS compliance.

Applications:

Automotive: interior applications, eg: switches, telematics,

climate control system, dashboard, etc.

Display: full color display video notice board.

10/12/2012 V4.0

	DDA-SJB-T2V-1-I3	DDY-SJB-T2V-1-I3
Description	Single Color LED, Amber, 3.20 X 2.80 MM, 1.80 MM HEIGHT, ROHS COMPLIANT, PLASTIC PACKAGE-2	Single Color LED, Yellow, 3.20 X 2.80 MM, 1.80 MM HEIGHT, ROHS COMPLIANT, PLASTIC PACKAGE-2
Maker	DOMINANT	DOMINANT
package instruction	3.20 X 2.80 MM, 1.80 MM HEIGHT, ROHS COMPLIANT, PLASTIC PACKAGE-2	3.20 X 2.80 MM, 1.80 MM HEIGHT, ROHS COMPLIANT, PLASTIC PACKAGE-2
Reach Compliance Code	unknown	unknown
Other features	SUPPORTS INFRARED	SUPPORTS INFRARED
color	AMBER	YELLOW
Configuration	SINGLE	SINGLE
Maximum forward current	0.05 A	0.05 A
JESD-609 code	e3	e3
Nominal luminous intensity	715.0 mcd	715.0 mcd
Installation features	SURFACE MOUNT	SURFACE MOUNT
Number of functions	1	1
Number of terminals	2	2
Maximum operating temperature	100 °C	100 °C
Minimum operating temperature	-40 °C	-40 °C
Optoelectronic device types	SINGLE COLOR LED	SINGLE COLOR LED
total height	1.75 mm	1.75 mm
method of packing	TAPE AND REEL	TAPE AND REEL
shape	ROUND	ROUND
surface mount	YES	YES
Terminal surface	TIN	TIN
Terminal pitch	3 mm	3 mm
perspective	120 deg	120 deg
