PSE Technology Corporation
SPECIFICATION FOR APPROVAL
CUSTOMER
NOMINAL FREQUENCY
PRODUCT TYPE
SPEC. NO. ( P/N )
CUSTOMER P/N
ISSUE DATE
VERSION
APPROVED
PREPARED
32.768000 KHz
TYPE KD 5.0x3.2 SEAM SEALED CRYSTAL CLOCK OSCILLATOR
KD3270037
0
May 23, 2011
A
QA
APPROVED BY CUSTOMER：
AVL Status
Please return one copy with approval to PSE-TW
PSE Technology Corporation
No.2, Tzu-Chiang 5th Rd, Chung Li Industrial Park,
Chung Li City, Taoyuan County, Taiwan (R.O.C.)
TEL: 886-3-451-8888
FAX: 886-3-461-3865
http://www.saronix-ecera.com.tw
*Pb-free
*RoHS Compliant
*HF-Halogen Free
*REACH Compliant
E0-R-4-014 Rev. E
Page
i
TYPE KD 5.0x3.2 SEAM SEALED CRYSTAL CLOCK OSCILLATOR
KD3270037
VERSION HISTORY
Version
No.
A
Version
Date
May.23,2011
Customer Receipt
Date
Supplier Receipt
Date
Initial Release
Description
VER. A
23-May-11
Notes
E0-R-4-014 Rev. E
Page
ii
TYPE KD 5.0x3.2 SEAM SEALED CRYSTAL CLOCK OSCILLATOR
KD3270037
ELECTRICAL SPECIFICATIONS
SRe Part Number :
KD3270037
VER. A
23-May-11
Item
Nominal Frequency
Frequency Stability
Operating Temperature Range
Supply Voltage
Logic Type
Supply Current, Output Enabled
Supply Current, Output Disabled
Duty Cycle (Symmetry)
Rise / Fall Time
Output Voltage "0" Level
Output Voltage "1" Level
Output Load
Start Up Time
Storage Temperature Range
Symbol
Fo
FT
TR
V
DD
LT
I
DD
/OE
I
DD
/OD
DC/SY
T
R
/T
F
V
OL
V
OH
CL
Specifications
32.768000
± 50
-40 to +85
+1.8V ± 5%
LVCMOS
0.3
10
45 / 55
15
10% V
DD
90% V
DD
15
10
-55°C to +125°C
Units
KHz
ppm
°C
V
**See note
Notes
mA
µA
%
ns
V
V
pF
ms
°C
Max.
Max.
Measured 50% of Waveform
Measured at 10 / 90% of Waveform
Max.
Min.
Max.
Max.
※
This product doesn't include harmful substance that stipulated by SONY SS-00259 Level 1 and S-AT2-001 Level 1 standard. RoHS Compliant (Pb - Free).
**Stability includes all combinations of Operating Temperature, Load changes, rated Input (Supply) Voltage changes, Initial
Calibration Tolerance (25°C), Aging (1 year at 25°C Average Effective Ambient Temperature), Shock and Vibration.
Output Enable / Disable Function
Parameter
Input Voltage (Pin1), Output Enable
Input Voltage (Pin1), Output Disable (low power standby)
Internal Pullup Resistance
Output Disable Delay
Output Enable Delay
Min.
0.7V
DD
Typ.
Max.
0.3V
DD
Units
V
V
KΩ
ns
ms
Or Open
Notes
Output is Hi-Z
470
100
10
E0-R-4-014 Rev. E
Page 1
TYPE KD 5.0x3.2 SEAM SEALED CRYSTAL CLOCK OSCILLATOR
KD3270037

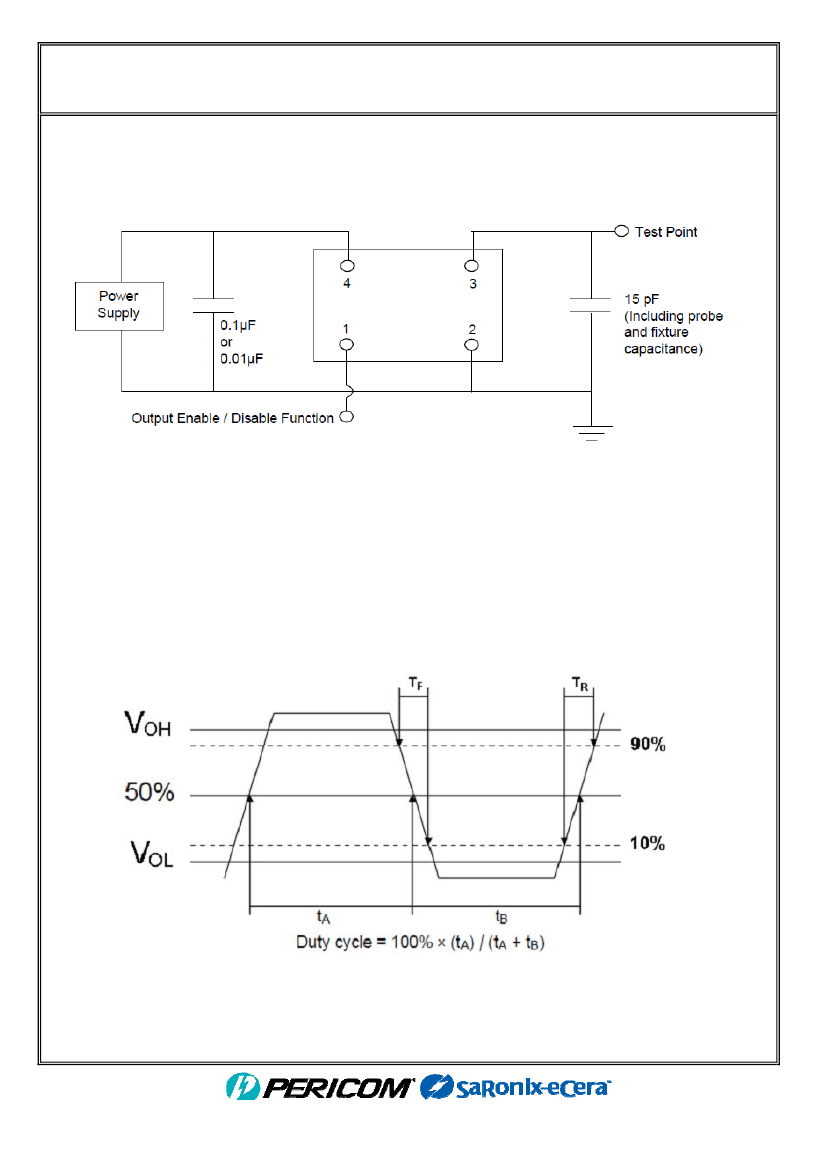

TEST CIRCUIT
VER. A
23-May-11
OUTPUT WAVEFORM
E0-R-4-014 Rev. E
Page 2
TYPE KD 5.0x3.2 SEAM SEALED CRYSTAL CLOCK OSCILLATOR
KD3270037
RELIABILITY SPECIFICATIONS
ENVIRONMENTAL:
a) THERMAL SHOCK: MIL-STD-883, Method 1011, Condition A
b) MOISTURE RESISTANCE: MIL-STD-883, Method 1004
c) VIBRATION: MIL-STD-883, Method 2007, Condition A
d) RESISTANCE TO SOLDERING HEAT: J-STD-020D Table 5-2 Pb-free devices
(except 2 cycles max)
e) HAZARDOUS SUBSTANCE: Pb - free and RoHS Compliant.
VER. A
23-May-11
MECHANICAL:
a) SHOCK: MIL-STD-883, Method 2002, Condition B
b) SOLDERABILITY: JESD22-B102-D Method 2 (Preconditioning E)
c) TERMINAL STRENGTH: MIL-STD-883, Method 2004, Test Condition D
d) GROSS LEAK: MIL-STD-883, Method 1014, Condition C
e) FINE LEAK: MIL-STD-883, Method 1014, Condition A2, R1=2x10
-8
atm cc/s
f) SOLVENT RESISTANCE: MIL-STD-202, Method 215

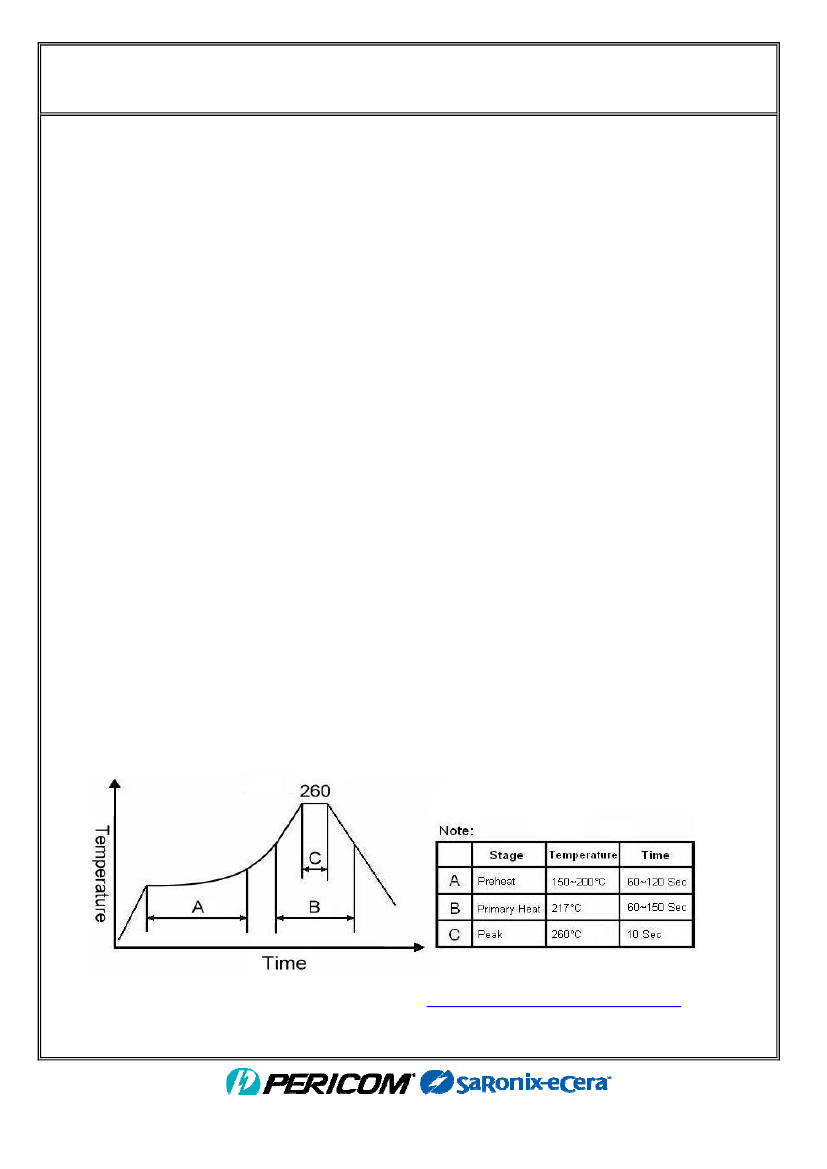

SUGGESTED IR REFLOW PROFILE
*As per IPC-JEDEC J-STD-020D
For soldering reflow profile and reliability test ratings go to:
http://www.pericom.com/pdf/sre/reflow.pdf
E0-R-4-014 Rev. E
Page 3
