13.14
Ø2.30 ±0.10 (NOTE 5, 6)
0.10
Z Y
A
2.57
1.5
2.0
2
2
8
2
Ø0.70 ±0.05 (9X, NOTE 5)
0.10
A B
Ø
2.30 ±0.10 (NOTE 5,6)
0.10
Z Y
B
(16.70)
11.78±0.20
KEEP OUT ZONE
2
2.5
3.07
7
(15.88)
CONNECTOR
FRONT EDGE

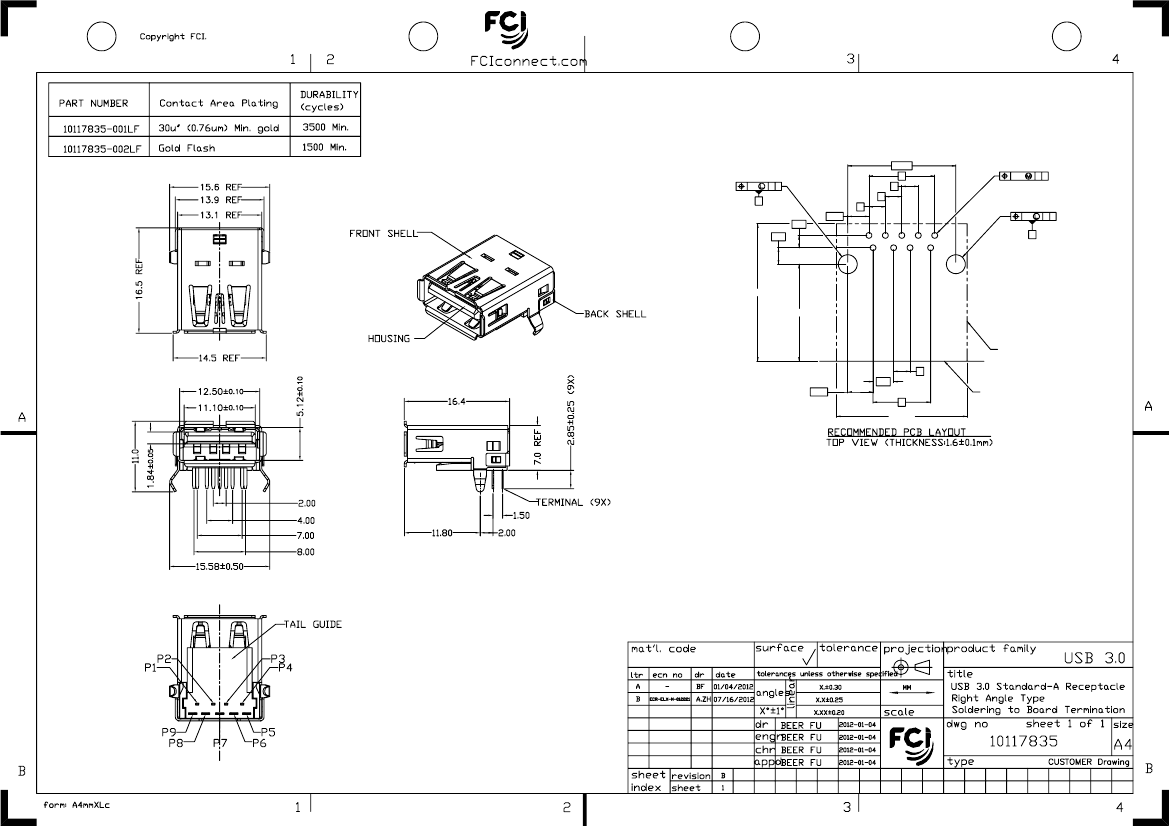

Notes:
1) Materials and Finish
Housing & Tail Guide: Glass fiber filled thermoplastic reisn, UL94 V-0 rated, color blue.
Terminals: Copper Alloy,
50u"(1.27um) Min. Ni underplated over all.
Contact area: see table
Tail area:
80u"(2.0um) Min. Matte Tin plated.
Front Shell: Copper Alloy, 50u"(1.27um) Min. Ni plated over all.
Back Shell: Stell, 80u"(2.0um) Min. Ni plated over all.
2) Product specifcation refer to FCI GS-12-0928.
3) Package specification refer to GS-14-2157 (Tray package style).
4) This product will withstand exposure to 260°C peak temp. for 10 seconds in a wave soldering application
with recommended thick circuit board.
5) Product meets European Union Directives and other country requlations as desribed in FCI GS-22-008.
6) Recommeded PCB hole is finished plating throug hole (PTH) size.
7) Datum Z,Y and basic dimensions were constructed by customer.
ASME Y14.5
ASME Y14.5
PDS: Rev :B
STATUS:Released
Printed: Jul 30, 2012
