67285-0000 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 67285-0000

67285-0000: DescriptionUSB Connector, 4 Contact(s), Female, Right Angle, Solder Terminal, M3x0.5, Receptacle; CategoryThe connector The connector; File Size144KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

67285-0000 Overview

USB Connector, 4 Contact(s), Female, Right Angle, Solder Terminal, M3x0.5, Receptacle

67285-0000 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Molex
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	BLACK COLOR, WITH SCREW FLANGE
Board mount options	SOLDERABLE RETENTION CLIPS
body width	0.657 inch
subject depth	0.614 inch
body length	0.472 inch
Body/casing type	RECEPTACLE
Connector type	USB CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
Contact resistance	30 mΩ
Contact style	USB, SER B SQ
DIN compliance	NO
Dielectric withstand voltage	750VAC V
Durability	1500 Cycles
empty shell	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	35.1392 N
Insulation resistance	1000000000 Ω
insulator material	GLASS FILLED POLYESTER
MIL compliance	NO
Manufacturer's serial number	67285
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	M3X0.5
Installation option 2	SCREW
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Maximum operating temperature	40 °C
Minimum operating temperature
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Plating thickness	FLASH inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	TIN LEAD
Shell material	COPPER ALLOY
Terminal length	0.11 inch
Terminal pitch	2.4892 mm
Termination type	SOLDER
Total number of contacts	4
UL Flammability Code	94V-0
Evacuation force-minimum value	9.7856 N

67285-0000 Preview

FEATURES AND SPECIFICATIONS

Features and Beneﬁts

Screw ﬂange for panel mounting provides robust

connector securement

Short body design saves PCB real estate

Staked housing provides excellent solder-tail alignment

facilitating PCB mounting

Housing stand-offs for anti-solder bridging

Kinked boardlocks provide secure PCB retention

Housing available in black or white

Reference Information

Product Speciﬁcation: PS-67998-0000

Packaging: Tray

Mates With: USB ‘B’ Plug

Designed In: Millimeters

Electrical

Voltage: 30V

Current: 1.0A

Contact Resistance: 30m

Ω

max.

Dielectric Withstanding Voltage: 750V AC

Insulation Resistance: 1000 M

Ω

min.

Mechanical

Mating Force: 35N max.

Unmating Force: 10N min.

Durability: 1500 cycles

Physical

Housing: Black or white, glass ﬁber-ﬁlled polyester,

UL 94V-0

Contact: Phosphor Bronze

Metal Shell: Copper Alloy

Plating: Gold Flash or 30

" Gold

Operating Temperature: 0 to +40°C

Universal Serial Bus

Shielded I/O

Type ‘B’ Receptacle

67285

Single Right Angle,

Short Body

With Screw Flange

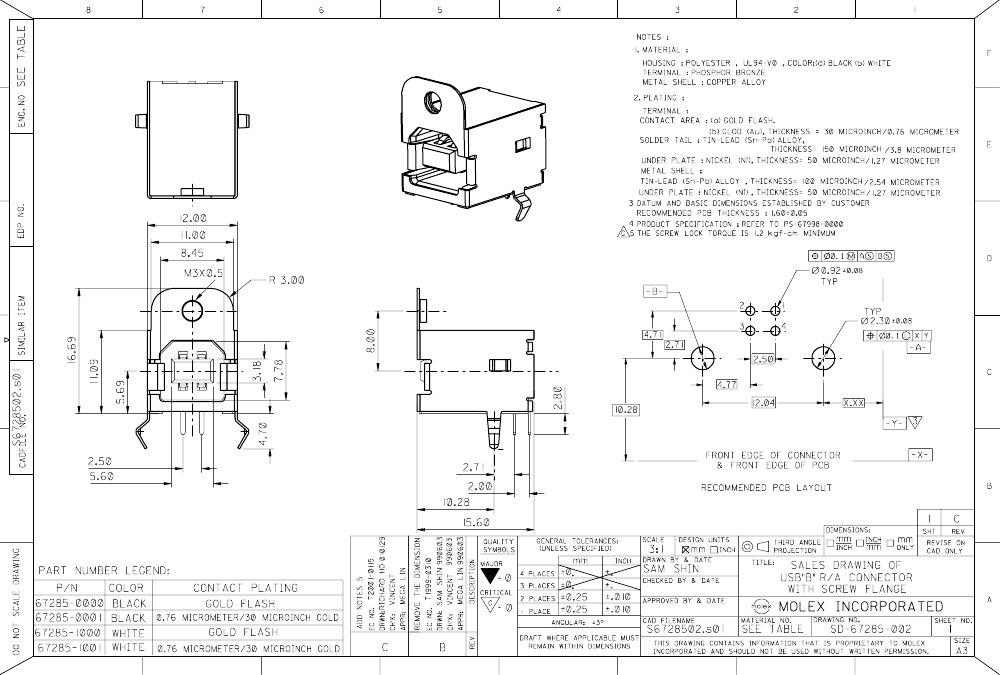

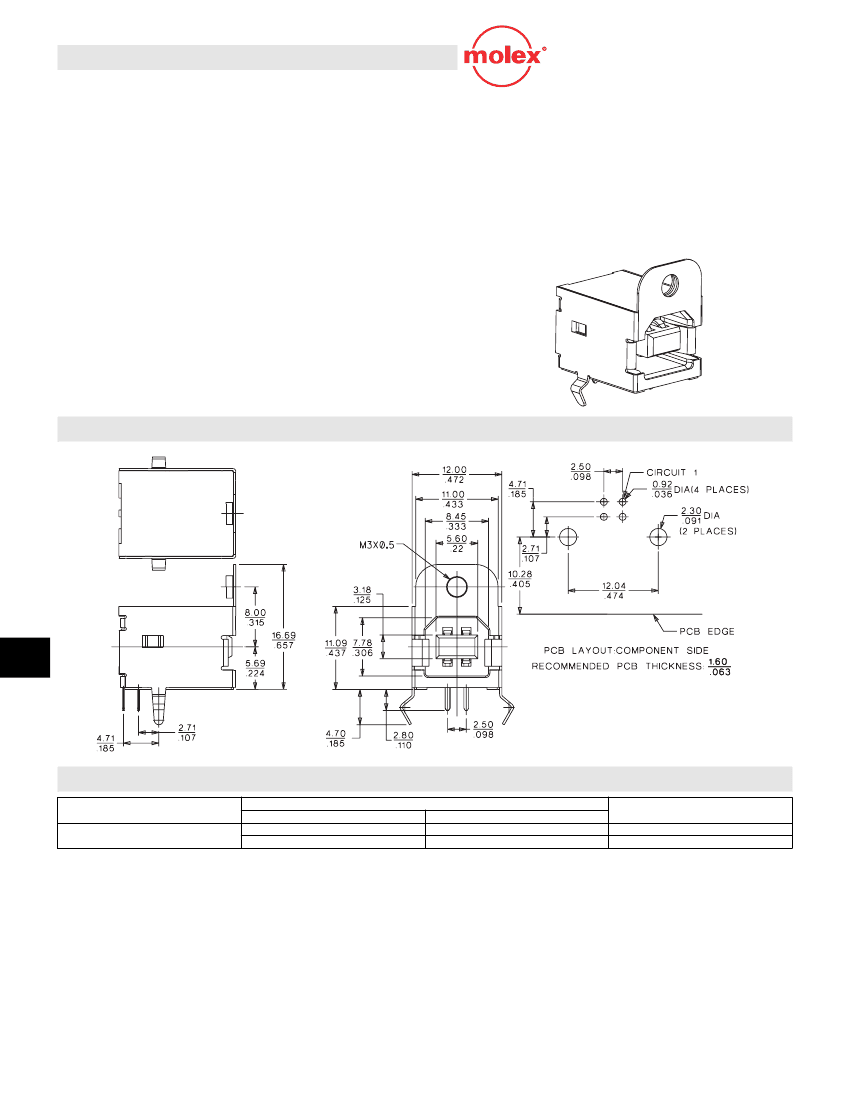

CATALOG DRAWING (FOR REFERENCE ONLY)

I/O Connectors

ORDERING INFORMATION

Circuits

Order No.

Black

67285-0000

67285-0001

White

67285-1000

67285-1001

Plating

Gold Flash

" Gold

N-28

MX01

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

67285-0000 Related Products

	67285-0000	67285-0001	67285-1000	67285-1001
Description	USB Connector, 4 Contact(s), Female, Right Angle, Solder Terminal, M3x0.5, Receptacle	USB Connector, 4 Contact(s), Female, Right Angle, Solder Terminal, M3x0.5, Receptacle	Telecom and Datacom Connector, 4 Contact(s), Female, Right Angle, Solder Terminal, M3x0.5, Receptacle	Telecom and Datacom Connector, 4 Contact(s), Female, Right Angle, Solder Terminal, M3x0.5, Receptacle
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Maker	Molex	Molex	Molex	Molex
Reach Compliance Code	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99
Other features	BLACK COLOR, WITH SCREW FLANGE	BLACK COLOR, WITH SCREW FLANGE	WHITE COLOR, WITH SCREW FLANGE	WHITE COLOR, WITH SCREW FLANG
Board mount options	SOLDERABLE RETENTION CLIPS	SOLDERABLE RETENTION CLIPS	SOLDERABLE RETENTION CLIPS	SOLDERABLE RETENTION CLIPS
body width	0.657 inch	0.657 inch	0.657 inch	0.657 inch
subject depth	0.614 inch	0.614 inch	0.614 inch	0.614 inch
body length	0.472 inch	0.472 inch	0.472 inch	0.472 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	USB CONNECTOR	USB CONNECTOR	USB CONNECTOR	USB CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact resistance	30 mΩ	30 mΩ	30 mΩ	30 mΩ
Contact style	USB, SER B SQ	USB, SER B SQ	USB, SER B SQ	USB, SER B SQ
DIN compliance	NO	NO	NO	NO
Dielectric withstand voltage	750VAC V	750VAC V	750VAC V	750VAC V
Durability	1500 Cycles	1500 Cycles	1500 Cycles	1500 Cycles
empty shell	NO	NO	NO	NO
Filter function	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO
maximum insertion force	35.1392 N	35.1392 N	35.1392 N	35.1392 N
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
insulator material	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER
MIL compliance	NO	NO	NO	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO
Installation option 1	M3X0.5	M3X0.5	M3X0.5	M3X0.5
Installation option 2	SCREW	SCREW	SCREW	SCREW
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE
PCB row number	2	2	2	2
Maximum operating temperature	40 °C	40 °C	40 °C	40 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm
Plating thickness	FLASH inch	30u inch	FLASH inch	30u inch
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Rated current (signal)	1 A	1 A	1 A	1 A
Guideline	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Shell surface	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD
Shell material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
Terminal length	0.11 inch	0.11 inch	0.11 inch	0.11 inch
Terminal pitch	2.4892 mm	2.4892 mm	2.4892 mm	2.4892 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	4	4	4	4
UL Flammability Code	94V-0	94V-0	94V-0	94V-0
Evacuation force-minimum value	9.7856 N	9.7856 N	9.7856 N	9.7856 N
