Printed-circuit board connector - BCH-500H- 8 GN - 5445083
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
PCB headers, nominal current: 12 A, rated voltage (III/2): 320 V, number of positions: 8, pitch: 5 mm, color:
pastel green, contact surface: Tin, mounting: Wave soldering

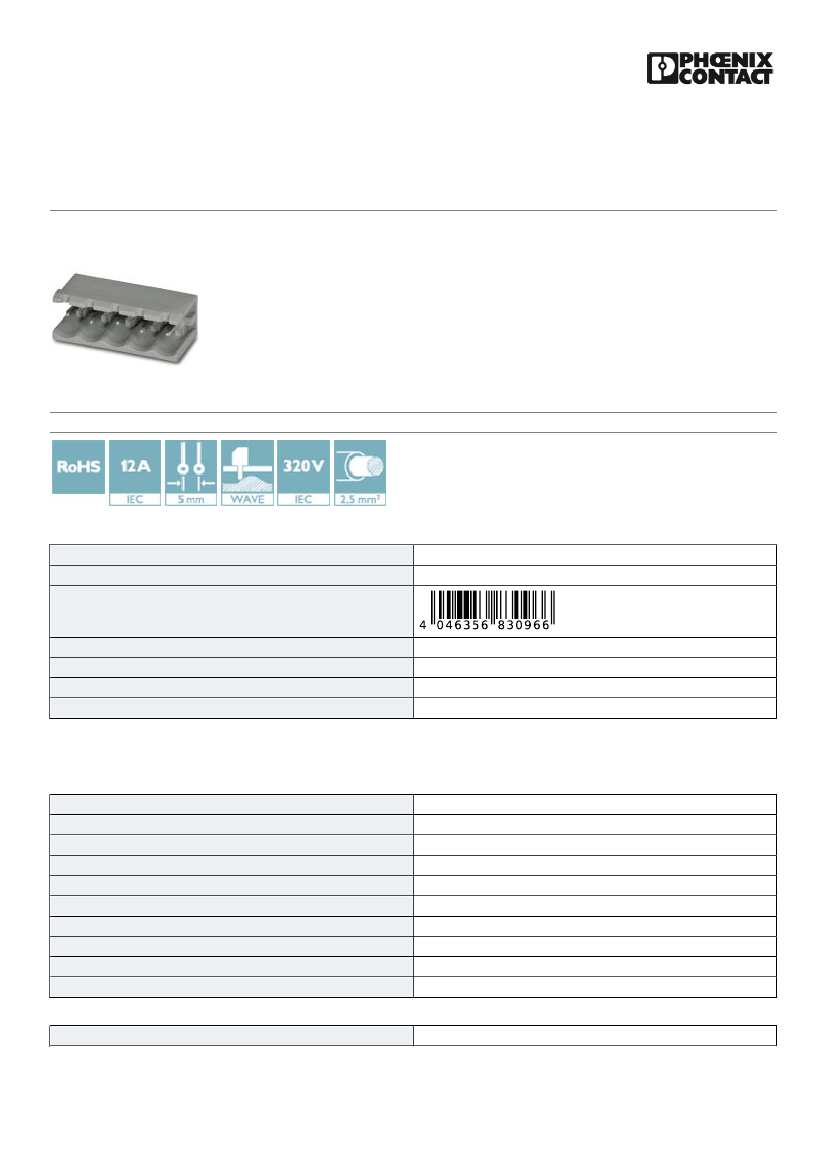

The figure shows a 5-pos. version
of the product in gray
Key Commercial Data
Packing unit
Minimum order quantity
GTIN
GTIN
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
4046356830966
2.600 g
85366930
China
100 pc
100 pc
Technical data
Dimensions
Length [ l ]
Width
Pitch
Dimension a
Width [ w ]
Height [ h ]
Height
Length of the solder pin
Pin dimensions
Length
12 mm
40 mm
5 mm
35 mm
40 mm
12.1 mm
8.6 mm
3.5 mm
1 x 1 mm
12 mm
General
Range of articles
BCH-H
12/30/2018 Page 1 / 5
https://www.phoenixcontact.com/in/products/5445083
Printed-circuit board connector - BCH-500H- 8 GN - 5445083
Technical data
General
Insulating material group
Rated surge voltage (III/3)
Rated surge voltage (III/2)
Rated surge voltage (II/2)
Rated voltage (III/3)
Rated voltage (III/2)
Rated voltage (II/2)
Connection in acc. with standard
Nominal current I
N
Maximum load current
Insulating material
Flammability rating according to UL 94
Color
Number of positions
I
4 kV
4 kV
4 kV
250 V
320 V
400 V
EN-VDE
12 A
12 A
PA
V0
pastel green
8
Standards and Regulations
Connection in acc. with standard
Flammability rating according to UL 94
EN-VDE
CUL
V0
Environmental Product Compliance
China RoHS
Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
Drawings
Dimensional drawing
22
12
a+5
(a+5,08)
15
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
272607xx
27260701
27260701
27260700
12/30/2018 Page 2 / 5
3,5
2
8,6
2,5
(2,54)
5
(5,08)
a
https://www.phoenixcontact.com/in/products/5445083
Printed-circuit board connector - BCH-500H- 8 GN - 5445083
Classifications
eCl@ss
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
eCl@ss 9.0
27260700
27440402
27440402
27440402
ETIM
ETIM 3.0
ETIM 4.0
ETIM 5.0
ETIM 6.0
EC001121
EC002637
EC002637
EC002637
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
30211801
39121432
39121432
39121409
39121409
Approvals
Approvals
Approvals
IECEE CB Scheme / VDE Gutachten mit Fertigungsüberwachung / EAC / cULus Recognized
Ex Approvals
Approval details
IECEE CB Scheme
http://www.iecee.org/
DE1-58974
VDE Gutachten mit
Fertigungsüberwachung
Nominal voltage UN
Nominal current IN
mm²/AWG/kcmil
http://www2.vde.com/de/Institut/Online-Service/
VDE-gepruefteProdukte/Seiten/Online-Suche.aspx
40040694
320 V
12 A
0.2-2.5
12/30/2018 Page 3 / 5
https://www.phoenixcontact.com/in/products/5445083
Printed-circuit board connector - BCH-500H- 8 GN - 5445083
Approvals
EAC
D
300 V
10 A
B.01742
cULus Recognized
Nominal voltage UN
Nominal current IN
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm E60425-20071007
B
300 V
15 A

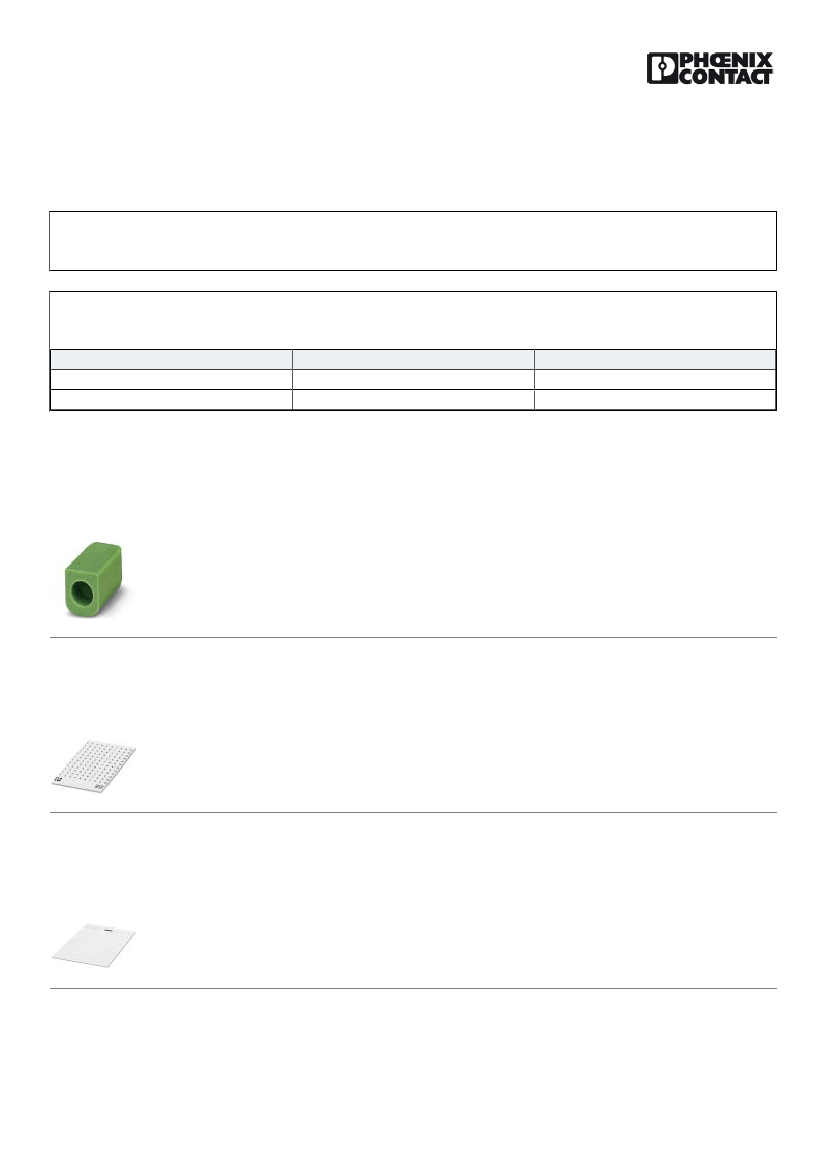

Accessories
Accessories
Filler plug
Accessories - MSTB-BL - 1755477
Keying cap, for forming sections, plugs onto header pin, green insulating material
Labeled terminal marker
Marker card - SK 5/3,8:FORTL.ZAHLEN - 0804183
Marker card, Card, white, labeled, Horizontal: consecutive numbers 1 ... 10, 11 ... 20, etc. up to 91 ... (99)100,
mounting type: adhesive, for terminal block width: 5 mm, lettering field size: 5 x 3.8 mm
Terminal marking
Marker card - SK U/3,8 WH:UNBEDRUCKT - 0803906
Marker card, Sheet, white, unlabeled, can be labeled with: PLOTMARK, CMS-P1-PLOTTER, Office printing systems,
mounting type: adhesive, for terminal block width: 210 mm, lettering field size: 186 x 3.8 mm
12/30/2018 Page 4 / 5
https://www.phoenixcontact.com/in/products/5445083
Printed-circuit board connector - BCH-500H- 8 GN - 5445083
Accessories
Coding section - CR-BC-M - 5436157
Coding section
Phoenix Contact 2018 © - all rights reserved
http://www.phoenixcontact.com
12/30/2018 Page 5 / 5
