MM3Z2V4B-MM3Z75VB — Zener Diodes
October 2010
MM3Z2V4B-MM3Z75VB
Zener Diodes
Features
•
•
•
•
Wide Zener Voltage Range Selection, 2.4V to 75V
VZ Tolerance Selection of
±2%
(B Series)
Very Small and Thin SMD package
Matte Tin(Sn) finish, Pb Free
Connection Diagram
1
2
2
* Band Denotes Cathode
1
SOD-323F
Absolute Maximum Ratings
Symbol
P
D
T
STG
T
J
Power Dissipation
T
A
= 25°C unless otherwise noted
Parameter
Storage Temperature Range
Maximum Junction Temperature
Value
200
-65 to +150
150
Units
mW
°C
°C
mA
Maximum Regulator Current
P
D
/V
Z
I
ZM
* These ratings are limiting values above which the serviceability of the diode may be impaired.
Thermal Characteristics
Symbol
R
θJA
Parameter
Thermal Resistance, Junction to Ambient
Value
595
Unit
°C/W
* Device mounted on FR-4 PCB minimum land pad.
Electrical Characteristics
Symbol
V
F
T
A
= 25°C unless otherwise specified
Parameter/ Test condition
Forward Voltage / I
F
=10mA
Min.
--
Typ.
--
Max.
1.0
Unit
V
Package Marking and Ordering Information
Device Marking
Refer to
Product table list
Device
Refer to
Product table list
Package
SOD-323F
Packing
Tape & Reel
Reel Size
7’
Tape Width
12mm
Quantity
3,000
© 2010 Fairchild Semiconductor Corporation
MM3Z2V4B-MM3Z75VB Rev. A4
1
www.fairchildsemi.com
MM3Z2V4B-MM3Z75VB — Zener Diodes
Electrical Characteristics
Device
Type
MM3Z2V4B
MM3Z2V7B
MM3Z3V0B
MM3Z3V3B
MM3Z3V6B
MM3Z3V9B
MM3Z4V3B
MM3Z4V7B
MM3Z5V1B
MM3Z5V6B
MM3Z6V2B
MM3Z6V8B
MM3Z7V5B
MM3Z8V2B
MM3Z9V1B
MM3Z10VB
MM3Z11VB
MM3Z12VB
MM3Z13VB
MM3Z15VB
MM3Z16VB
MM3Z18VB
MM3Z20VB
MM3Z22VB
MM3Z24VB
MM3Z27VB
MM3Z30VB
MM3Z33VB
MM3Z36VB
MM3Z39VB
MM3Z43VB
MM3Z47VB
MM3Z51VB
MM3Z56VB
MM3Z62VB
MM3Z68VB
MM3Z75VB
T
A
=25°C unless otherwise noted
Z
ZT
(Ω)
@ I
ZT
Max.
2.45
2.75
3.06
3.37
3.67
3.98
4.39
4.79
5.20
5.71
6.32
6.94
7.65
8.36
9.28
10.20
11.22
12.24
13.26
15.30
16.32
18.36
20.40
22.44
24.48
27.54
30.60
33.66
36.72
39.78
43.86
47.94
52.02
57.12
63.24
69.36
76.50
Max.
94
94
89
89
84
84
84
75
56
37
9
14
14
14
14
18
18
23
28
28
37
42
51
51
65
75
75
75
84
122
141
160
169
188
202
226
240
I
ZT
(mA)
-
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
2
2
2
2
2
2
2
2
2
2
2
2
Z
ZK
(Ω)
@ I
ZK
Max.
564
564
564
564
564
564
564
470
451
376
141
75
75
75
94
141
141
141
160
188
188
212
212
235
235
282
282
306
329
329
353
353
376
400
423
447
470
I
ZK
(mA)
-
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
I
R
(μA)
@ V
R
Max
45
18
9
4.5
4.5
2.7
2.7
2.7
1.8
0.9
2.7
1.8
0.9
0.63
0.45
0.18
0.09
0.09
0.09
0.045
0.045
0.045
0.045
0.045
0.045
0.045
0.045
0.045
0.045
0.045
0.045
0.045
0.045
0.045
0.045
0.045
0.045
V
R
(V)
-
1
1
1
1
1
1
1
2
2
2
4
4
5
5
6
7
8
8
8
10.5
11.2
12.6
14.0
15.4
16.8
18.9
21.0
23.0
25.2
27.3
30.1
33.0
35.7
39.2
43.4
47.6
52.5
Device
Marking
0Z
1Z
2Z
3Z
4Z
5Z
6Z
7Z
8Z
9Z
AZ
BZ
CZ
DZ
EZ
FZ
GZ
HZ
JZ
KZ
LZ
MZ
NZ
PZ
RZ
SZ
TZ
UZ
VZ
WZ
XZ
YZ
Z
Z
Z
>Z
<Z
Min.
2.35
2.65
2.94
3.23
3.53
3.82
4.21
4.61
5.00
5.49
6.08
6.66
7.35
8.04
8.92
9.80
10.78
11.76
12.74
14.70
15.68
17.64
19.60
21.56
23.52
26.46
29.40
32.34
35.28
38.22
42.14
46.06
49.98
54.88
60.76
66.64
73.5
V
Z
(V) @ I
ZT
Typ.
2.4
2.7
3.0
3.3
3.6
3.9
4.3
4.7
5.1
5.6
6.2
6.8
7.5
8.2
9.1
10
11
12
13
15
16
18
20
22
24
27
30
33
36
39
43
47
51
56
62
68
75
Notes :
1. The Zener Voltage (V
Z
) is tested under pulse condition of 10mS.
2. The device numbers listed have a standard tolerance on the nominal zener voltage of
±2%.
3. The zener impedance is derived from the 60-cycle ac voltage, which results when an ac current having an rms value
equal to 10% of the dc zener current (I
ZT
or I
ZK
) is superimposed to I
ZT
or I
ZK
.
© 2010 Fairchild Semiconductor Corporation
MM3Z2V4B-MM3Z75VB Rev. A4
2
www.fairchildsemi.com
MM3Z2V4B-MM3Z75VB — Zener Diodes

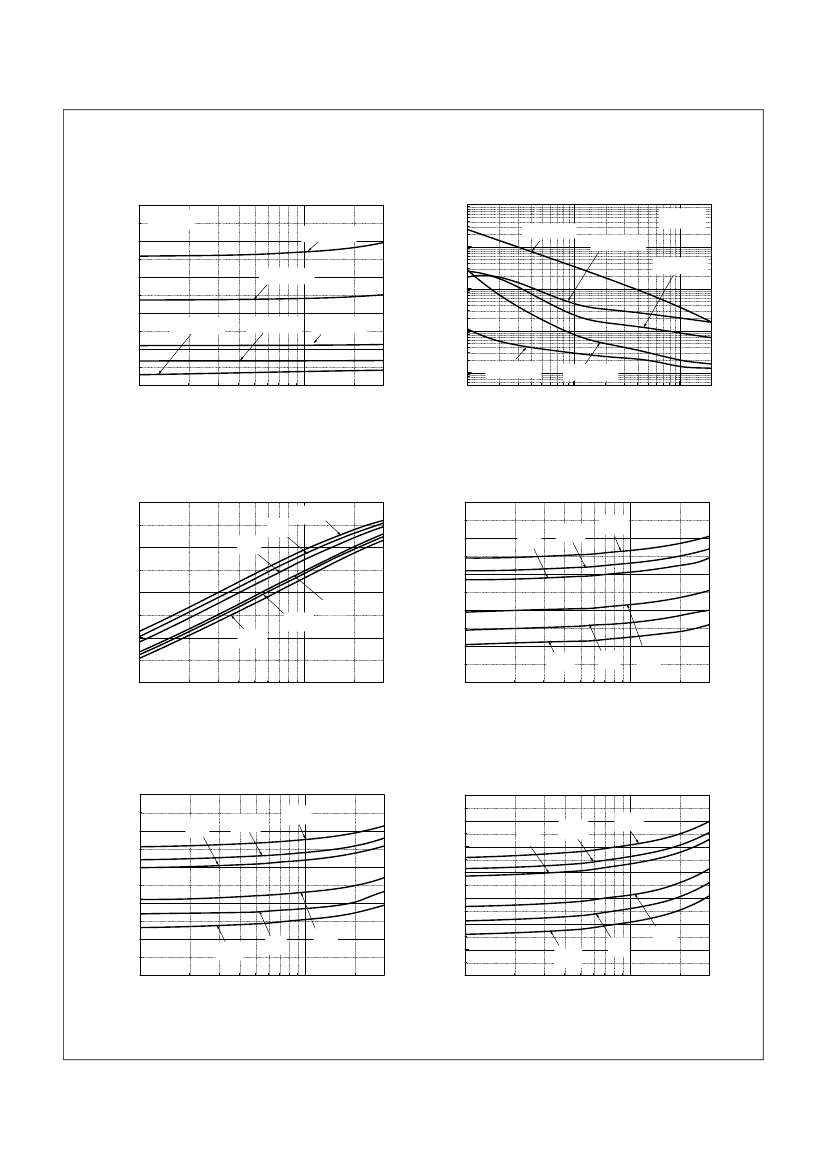

Typical Performance Characteristics
Figure 1. Zener current vs. Zener Voltage
50
Figure 2. Zener current vs. Zener Impedence
10000
T
A
= 25 C
40
O
T
A
= 25 C
MM3Z36VB
1000
O
MM3Z3V6B
MM3Z36VB
MM3Z24VB
100
30
MM3Z24VB
20
MM3Z3V6B
10
MM3Z6V8C
MM3Z11VB
Z
Z
- Impedance [ohms]
VZ - Zener Voltage [V]
10
1
0
1
2
3
4
5
6 7 8 9 10
20
30
0.1
MM3Z6V8C
MM3Z11VB
1
10
I
Z
- Zener Current, [mA]
I
Z
- Zener Current, [mA]
Figure 3. MM3Z3V6B
Zener current vs. Zener Voltage
4.5
Figure 4. MM3Z6V8C
Zener current vs. Zener Voltage
7.4
-25 C
-0 C
4.0
O
O
25 C
O
7.2
85 C
O
100 C
O
125 C
O
VZ - Zener Voltage [V]
VZ - Zener Voltage [V]
7.0
3.5
85 C
100 C
3.0
O
O
O
6.8
125 C
6.6
-25 C
2.5
1
2
3
4
5
6 7 8 9
20
30
O
-0 C
5
6 7 8 9
O
25 C
O
6.4
1
2
3
4
20
30
I
Z
- Zener Current, [mA]
I
Z
- Zener Current, [mA]
Figure 5. MM3Z11VB
Zener current vs. Zener Voltage
12.5
Figure 6. MM3Z24VB
Zener current vs. Zener Voltage
28
12.0
85 C
O
100 C
O
125 C
O
27
85 C
VZ - Zener Voltage [V]
26
O
100 C
O
125 C
O
VZ - Zener Voltage [V]
11.5
25
11.0
24
23
10.5
-25 C
10.0
1
2
3
4
5
O
-0 C
O
25 C
O
25 C
22
O
-0 C
-25 C
O
O
21
6 7 8 9
20
30
1
2
3
4
5
6 7 8 9
20
30
I
Z
- Zener Current, [mA]
I
Z
- Zener Current, [mA]
© 2010 Fairchild Semiconductor Corporation
MM3Z2V4B-MM3Z75VB Rev. A4
3
www.fairchildsemi.com
MM3Z2V4B-MM3Z75VB — Zener Diodes
Typical Performance Characteristics
(Continued)
Figure 7. MM3Z36VB
Zener current vs. Zener Voltage
42
O
125 C
O
40
85 C
O
100 C
VZ - Zener Voltage [V]
38
36
34
25 C
-0 C
-25 C
O
O
O
32
1
2
3
4
5
6 7 8 9
20
30
I
Z
- Zener Current, [mA]
© 2010 Fairchild Semiconductor Corporation
MM3Z2V4B-MM3Z75VB Rev. A4
4
www.fairchildsemi.com
MM3Z2V4B-MM3Z75VB — Zener Diodes

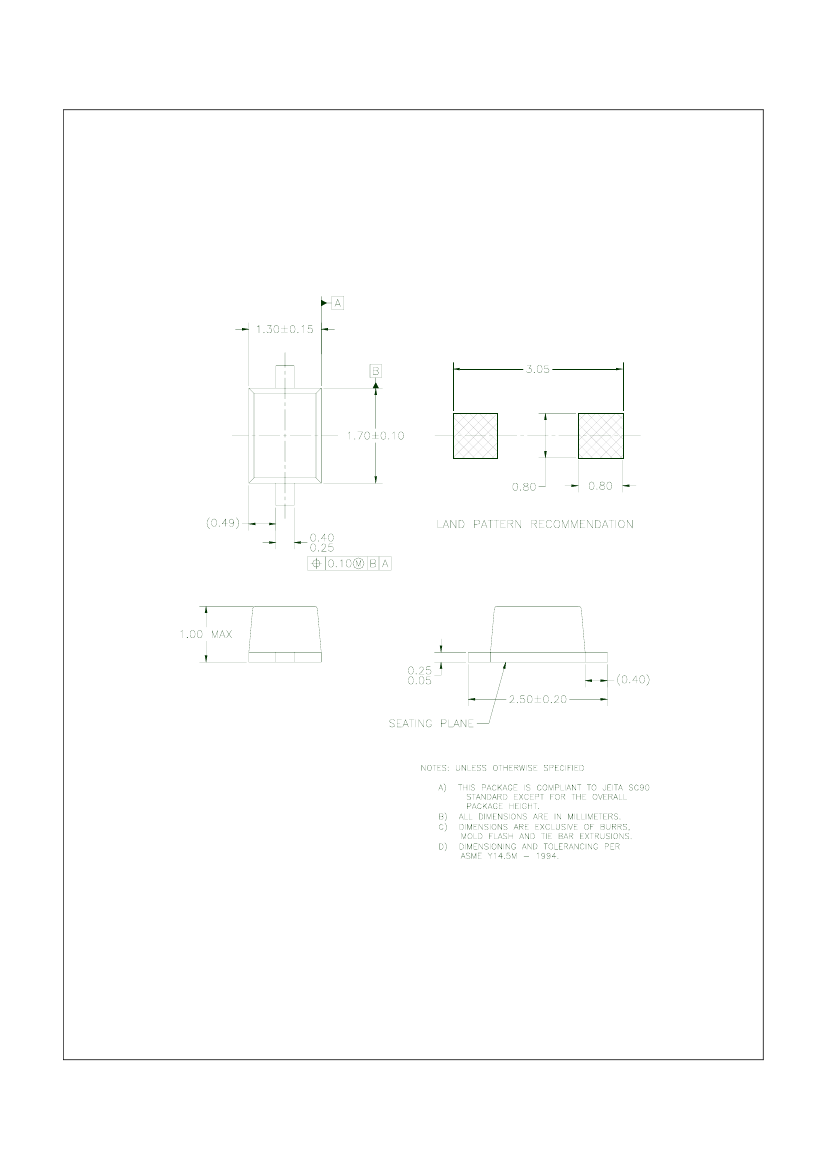

Physical Dimensions
SOD-323F
Dimensions in Millimeters
© 2010 Fairchild Semiconductor Corporation
MM3Z2V4B-MM3Z75VB Rev. A4
5
www.fairchildsemi.com
