UIS3316HCM-152F datasheet, PDF

Datasheet> All Categories > Passive components> inductor> UIS3316HCM-152F

UIS3316HCM-152F: DescriptionGeneral Purpose Inductor, 1.5uH, 20%, 1 Element, SMD, ROHS COMPLIANT; CategoryPassive components inductor; File Size53KB，2 Pages; ManufacturerElec & Eltek; Websitehttp://www.eleceltek.com; Environmental Compliance

Download Datasheet Parametric Compare View All

UIS3316HCM-152F Overview

General Purpose Inductor, 1.5uH, 20%, 1 Element, SMD, ROHS COMPLIANT

UIS3316HCM-152F Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Elec & Eltek
Reach Compliance Code	unknown
ECCN code	EAR99
DC Resistance	0.008 Ω
Nominal inductance(L)	1.5 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	UIS3316HC
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
self resonant frequency	90 MHz
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	ONE SURFACE
Test frequency	0.1 MHz
Tolerance	20%

Preview

Download Datasheet

View All

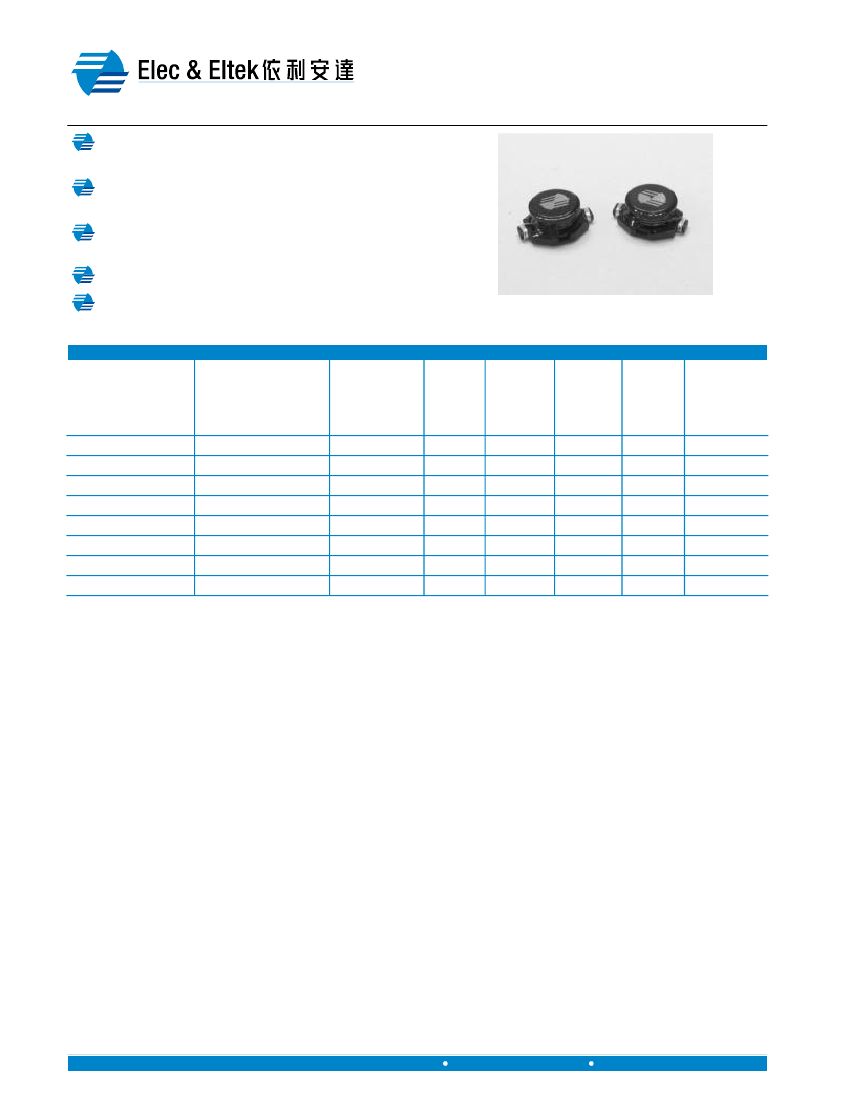

SMT POWER INDUCTORS

E & E Magnetic Products Limited

Drum Type, UIS3316HC Series, Self-Leaded

Suitable for DC/DC conversions in notebook

CHEMATICS

computer,

PDAs and plamtop.

Small size and high performance with low

profile

Unshielded and self-leaded design for pick and place

handling

Inductance range from 0.33 to 4.7 micro H

RoHS compliant versions are available

LECTRICAL

PECIFICATION @

25°C

Part

Number

RoHS

Part

Number

UIS3316HCM-331F

UIS3316HCM-681F

UIS3316HCM-102F

UIS3316HCM-152F

UIS3316HCM-222F

UIS3316HCM-272F

UIS3316HCM-332F

UIS3316HCM-472F

Inductance

L (uH

20%)

0.33

0.68

1.0

1.5

2.2

2.7

3.3

4.7

DCR

Ω

)

Max

2.0

5.0

6.0

8.0

11.0

12.0

14.0

18.0

SRF

(MHz)

Typ

300

200

100

Isat

(A)

Irms

(A)

Marking

(XYYY)

UIS3316HCM-331

UIS3316HCM-681

UIS3316HCM-102

UIS3316HCM-152

UIS3316HCM-222

UIS3316HCM-272

UIS3316HCM-332

UIS3316HCM-472

20.0

13.0

11.0

9.0

7.8

7.0

6.4

5.4

16.0

12.0

10.0

9.0

7.4

6.6

5.9

4.8

M331

M681

M102

M152

M222

M272

M332

M472

Notes:

1. Inductance is tested at 100kHz, 0.1Vrms.

2. Inductance drops 10% typical at Isat.

∆T=40ºC

rise typical at Irms.

4. Operating temperature range: -40°C to +85°C.

5. Contact EEMPL for RoHS compliant version availability.

6. The part temperature (ambient temperature + temperature rise) should not exceed the upper limit of the operating

temperature under worst case operating conditions. Circuit design, component placement, PWB trace size and

thickness, airflow and other cooling provisions all affect the part temperature. Part temperature should be verified

in the end application.

2/F Block A, 94 Tokwawan Road, Kowloon, Hong Kong

Tel: (852) 2765 3888

Fax: (852) 2954 3304

PI028(06)

Revised in 06/07

UIS3316HCM-152F Related Products

	UIS3316HCM-152F	UIS3316HCM-472F	UIS3316HCM-332F	UIS3316HCM-331F	UIS3316HCM-331	UIS3316HCM-152	UIS3316HCM-222F	UIS3316HCM-222	UIS3316HCM-472	UIS3316HCM-332
Description	General Purpose Inductor, 1.5uH, 20%, 1 Element, SMD, ROHS COMPLIANT	General Purpose Inductor, 4.7uH, 20%, 1 Element, SMD, ROHS COMPLIANT	General Purpose Inductor, 3.3uH, 20%, 1 Element, SMD, ROHS COMPLIANT	General Purpose Inductor, 0.33uH, 20%, 1 Element, SMD, ROHS COMPLIANT	General Purpose Inductor, 0.33uH, 20%, 1 Element, SMD,	General Purpose Inductor, 1.5uH, 20%, 1 Element, SMD,	General Purpose Inductor, 2.2uH, 20%, 1 Element, SMD, ROHS COMPLIANT	General Purpose Inductor, 2.2uH, 20%, 1 Element, SMD,	General Purpose Inductor, 4.7uH, 20%, 1 Element, SMD,	General Purpose Inductor, 3.3uH, 20%, 1 Element, SMD,
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Contains lead	Contains lead	Lead free	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	conform to	conform to	conform to	conform to	incompatible	incompatible	conform to	incompatible	incompatible	incompatible
Maker	Elec & Eltek	Elec & Eltek	Elec & Eltek	Elec & Eltek	Elec & Eltek	Elec & Eltek	Elec & Eltek	Elec & Eltek	Elec & Eltek	Elec & Eltek
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknow	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
DC Resistance	0.008 Ω	0.018 Ω	0.014 Ω	0.002 Ω	0.002 Ω	0.008 Ω	0.011 Ω	0.011 Ω	0.018 Ω	0.014 Ω
Nominal inductance(L)	1.5 µH	4.7 µH	3.3 µH	0.33 µH	0.33 µH	1.5 µH	2.2 µH	2.2 µH	4.7 µH	3.3 µH
Inductor Applications	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	UIS3316HC	UIS3316HC	UIS3316HC	UIS3316HC	UIS3316HC	UIS3316HC	UIS3316HC	UIS3316HC	UIS3316HC	UIS3316HC
Number of functions	1	1	1	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2	2	2	2
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
self resonant frequency	90 MHz	45 MHz	65 MHz	300 MHz	300 MHz	90 MHz	90 MHz	90 MHz	45 MHz	65 MHz
Shape/Size Description	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
shield	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES
Terminal location	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED
Terminal shape	ONE SURFACE	ONE SURFACE	ONE SURFACE	ONE SURFACE	ONE SURFACE	ONE SURFACE	ONE SURFACE	ONE SURFACE	ONE SURFACE	ONE SURFACE
Test frequency	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz
Tolerance	20%	20%	20%	20%	20%	20%	20%	20%	20%	20%
