UIS3308M-103F datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> UIS3308M-103F

UIS3308M-103F: DescriptionGeneral Purpose Inductor, 10uH, 20%, 1 Element, SMD, ROHS COMPLIANT; CategoryPassive components inductor; File Size52KB，2 Pages; ManufacturerElec & Eltek; Websitehttp://www.eleceltek.com; Environmental Compliance

Download Datasheet Parametric View All

UIS3308M-103F Overview

General Purpose Inductor, 10uH, 20%, 1 Element, SMD, ROHS COMPLIANT

UIS3308M-103F Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Elec & Eltek
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
DC Resistance	0.11 Ω
Nominal inductance(L)	10 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	UIS3308
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
self resonant frequency	35 MHz
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	ONE SURFACE
Test frequency	0.1 MHz
Tolerance	20%

Preview

Download Datasheet

View All

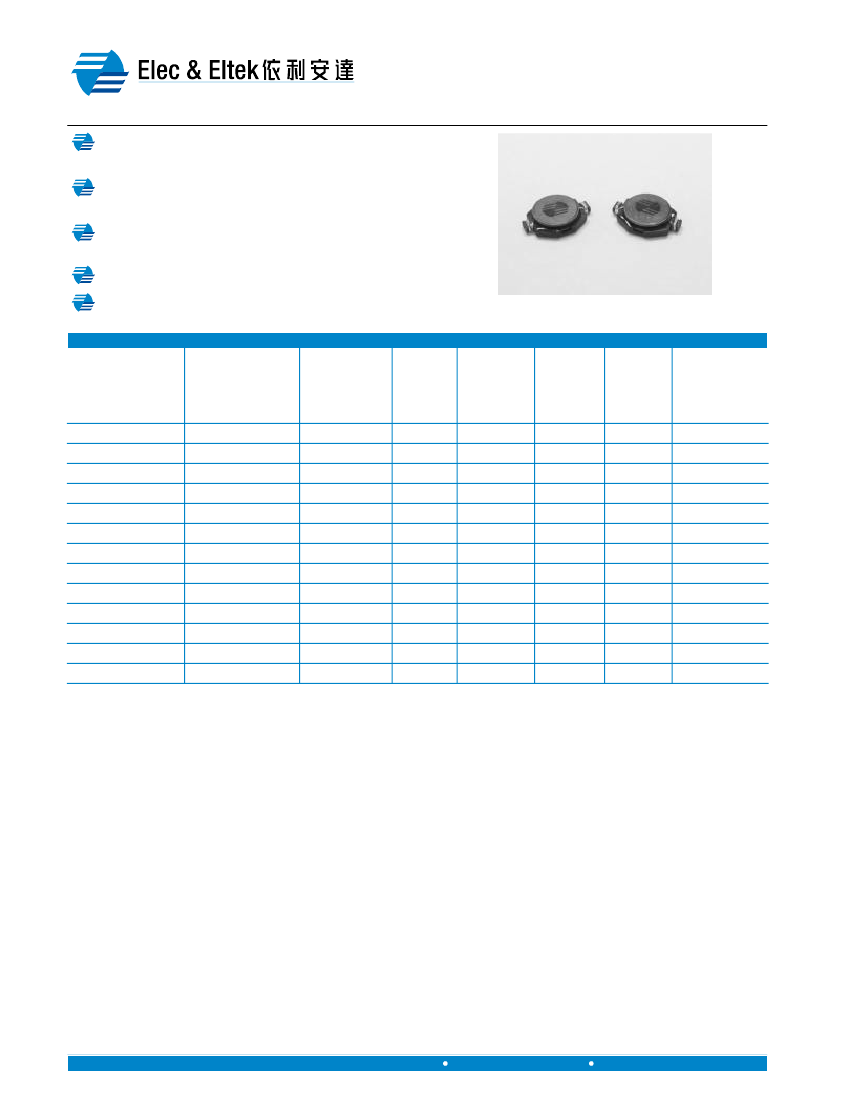

SMT POWER INDUCTORS

E & E Magnetic Products Limited

Drum Type, UIS3308 Series, Self-Leaded

Suitable for DC/DC conversions in notebook

CHEMATICS

computers,

PDAs and plamtops

Small size and high performance with low

profile

Unshielded and self-leaded design for pick and place

handling

Inductance range from 10 to 1000 micro H

RoHS compliant versions are available

LECTRICAL

PECIFICATION @

25°C

Part

Number

RoHS

Part

Number

UIS3308M-103F

UIS3308M-153F

UIS3308M-223F

UIS3308M-333F

UIS3308M-473F

UIS3308M-683F

UIS3308M-104F

UIS3308M-154F

UIS3308M-224F

UIS3308M-334F

UIS3308M-474F

UIS3308M-684F

UIS3308M-105F

Inductance

L (uH

20%)

100

150

220

330

470

680

1000

DCR

(mΩ)

Max

110

150

230

300

390

660

840

1200

1900

2700

4000

5300

8400

SRF

(MHz)

Typ

2.5

Isat

(A)

Irms

(A)

Marking

(XYYY)

UIS3308M-103

UIS3308M-153

UIS3308M-223

UIS3308M-333

UIS3308M-473

UIS3308M-683

UIS3308M-104

UIS3308M-154

UIS3308M-224

UIS3308M-334

UIS3308M-474

UIS3308M-684

UIS3308M-105

2.4

2.0

1.6

1.4

1.0

0.9

0.7

0.6

0.5

0.4

0.3

0.2

0.1

2.0

1.5

1.3

1.1

0.8

0.7

0.6

0.5

0.4

0.3

0.2

0.1

0.05

M103

M153

M223

M333

M473

M683

M104

M154

M224

M334

M474

M684

M105

Notes:

1. Inductance is tested at 100kHz, 0.1Vrms.

2. Inductance drops 10% typical at Isat.

∆T=30ºC

rise typical at Irms.

4. Operating temperature range: -40°C to +85°C.

5. Contact EEMPL for RoHS compliant version availability.

6. The part temperature (ambient temperature + temperature rise) should not exceed the upper limit of the operating

temperature under worst case operating conditions. Circuit design, component placement, PWB trace size and

thickness, airflow and other cooling provisions all affect the part temperature. Part temperature should be verified

in the end application.

2/F Block A, 94 Tokwawan Road, Kowloon, Hong Kong

Tel: (852) 2765 3888

Fax: (852) 2954 3304

PI002(06)

Revised in 06/07
