4820P-1-153FLF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> The resistor> 4820P-1-153FLF

4820P-1-153FLF: DescriptionArray/Network Resistor, Isolated, Metal Glaze/thick Film, 1.6W, 15000ohm, 50V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 2254, SO-20; CategoryPassive components The resistor; File Size84KB，3 Pages; ManufacturerBourns; Websitehttp://www.bourns.com; Environmental Compliance

Download Datasheet Parametric View All

4820P-1-153FLF Overview

Array/Network Resistor, Isolated, Metal Glaze/thick Film, 1.6W, 15000ohm, 50V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 2254, SO-20

4820P-1-153FLF Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Bourns
package instruction	SO-20
Reach Compliance Code	not_compliant
ECCN code	EAR99
structure	Chip
Component power consumption	0.16 W
The first element resistor	15000 Ω
JESD-609 code	e2
lead spacing	1.27 mm
Manufacturer's serial number	4800P
Installation features	SURFACE MOUNT
Network Type	ISOLATED
Number of components	1
Number of functions	10
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package height	2.03 mm
Package length	13.72 mm
Package shape	RECTANGULAR PACKAGE
Package form	SMT
Package width	5.59 mm
method of packing	TR, 13 INCH
Rated power dissipation(P)	1.6 W
Rated temperature	70 °C
Guideline	AEC-Q200
resistance	15000 Ω
Resistor type	ARRAY/NETWORK RESISTOR
series	4800P
size code	2254
surface mount	YES
technology	METAL GLAZE/THICK FILM
Temperature Coefficient	100 ppm/°C
Temperature coefficient tracking	50 ppm/°C
Terminal surface	Tin/Copper (Sn/Cu)
Terminal shape	GULL WING
Tolerance	1%
Operating Voltage	50 V

Preview

Download Datasheet

View All

Features

Standard E.I.A. package compatible with

automatic placement equipment

Tape and reel packaging standard

Marking on contrasting background for

permanent identification

Compliant leads to reduce solder joint

fatiguing

Standard electrical schematics: isolated,

bussed, dual terminator

Custom circuits are available

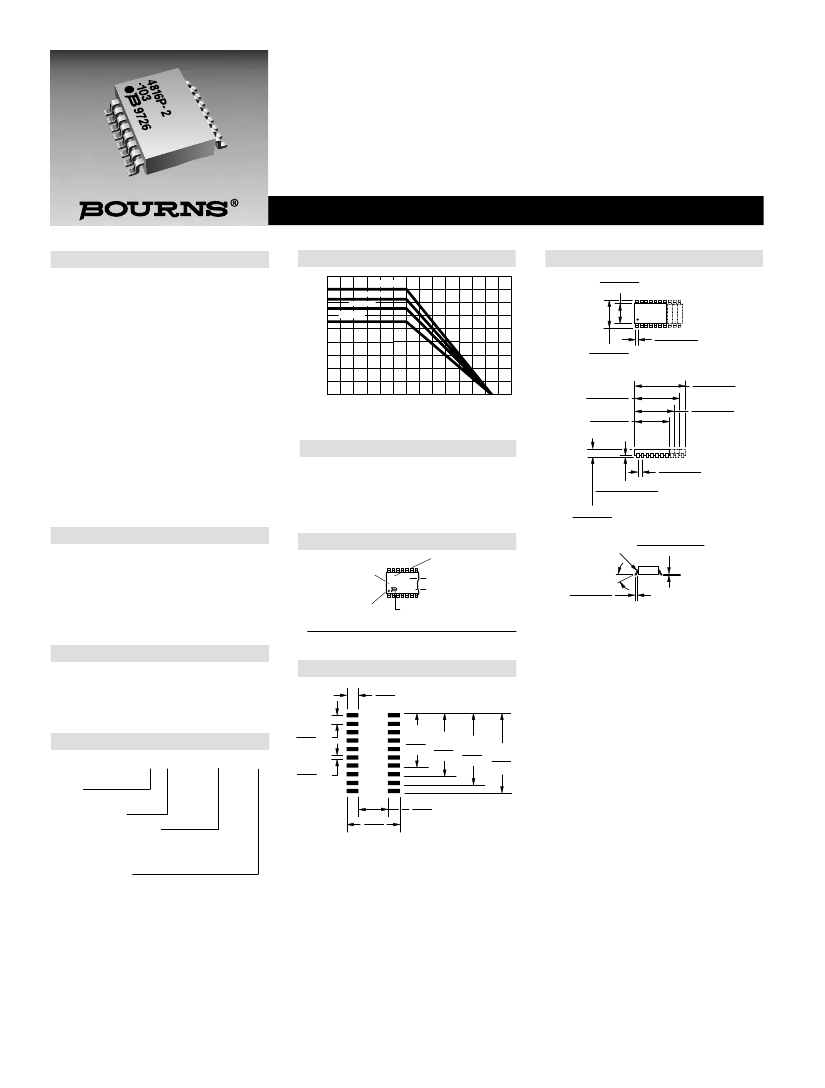

4800P Series - Thick Film Surface Mounted Medium Body

Product Characteristics

Resistance Range

.....................10 ohms to 2.2 megohms

Maximum Operating Voltage.............50V

Temperature Coefficient of Resistance

50Ω and above.................±100ppm/°C

below 50Ω ........................±250ppm/°C

TCR Tracking

...............50ppm/°C max.; equal values

100ppm/°C 50W and above

Operating Temperature

...................................-55°C to +125°C

Insulation Resistance

..........................10,000 megohms min.

Dielectric Withstanding Voltage

.............................................200 VRMS

Lead Solderability

.....Meet requirements of MIL-STD-202

Method 208

Environmental Characteristics

TESTS PER MIL-STD-202 ........∆R MAX.

Short Time Overload...................±0.25%

Load Life .....................................±1.00%

Moisture Resistance ...................±0.50%

Resistance to Soldering Heat .....±0.25%

Thermal Shock............................±0.25%

Physical Characteristics

Flammability .........Conforms to UL94V-0

Lead Frame Material

..........................Copper, solder coated

Body Material ..................Novolac epoxy

How To Order

Package Power Temp. Derating Curve

1.6

1.4

WATTS

1.2

1.0

125

AMBIENT TEMPERATURE (

C )

4820P

4818P

4816P

4814P

Product Dimensions

5.59

.12

(.220

.005)

7.62

.25

(.300

.010)

.432

.076

TYP.

(.017

.003)

12.45

.12

(.490

.005)

9.91

.12

(.390

.005)

13.72

.12

(.540

.005)

11.18

.12

(.440

.005)

Package Power Rating at 70°C

4814P......................................1.12 watts

4816P......................................1.28 watts

4818P......................................1.44 watts

4820P......................................1.60 watts

Typical Part Marking

PART NUMBER

RESISTANCE

CODE

PIN ONE

INDICATOR

4816P-1

-330

YYWW

.13 + .12/ - .00

(.005 + .005/ - .000)

2.03

.12

(.080

.005)

1.27

.076

TYP.

(.050

.003*)

R = .008" TYP.

8° MAX.

.611

.101

(.024

.004)

.305 + .000/ - .101

(.012 + .000/ - .004)

CIRCUIT

DATE CODE

MANUFACTURER'S

TRADEMARK

Lead coplanarity .102mm (.004 inch) max. at mounting surface.

Governing dimensions are in metric. Dimensions in parentheses

are inches and are approximate.

*Terminal centerline to centerline measurements made at point of

emergence of the lead from the body.

Recommended Land Pattern

2.0

TYP.

(.079)

1.27

TYP.

(.050)

48 16 P - 1 - 103

.63

TYP.

(.025)

SOM-14

8.26 SOM-16 SOM-18

9.53

(.325)

10.80 SOM-20

(.375)

(.425) 12.07

(.475)

Model

(48 = SOM Pkg)

Number of Pins

Electrical Configuration

• 1 or 4 = Isolated*

• 2 = Bussed*

• 3 = Dual Terminator*

Resistance Code

• First 2 digits are significant

• Third digit represents the

number of zeros to follow.

*For tube packaging, use T01, T02, T03 or T04.

Consult factory for other available options.

8.9

(.350)

4.9

(.193)

NOTE: Land pattern dimensions are based on

design rules established by the Institute for Inter-

connecting and Packaging Electronic Circuits in

IPC-SM-782.

Specifications are subject to change without notice.
