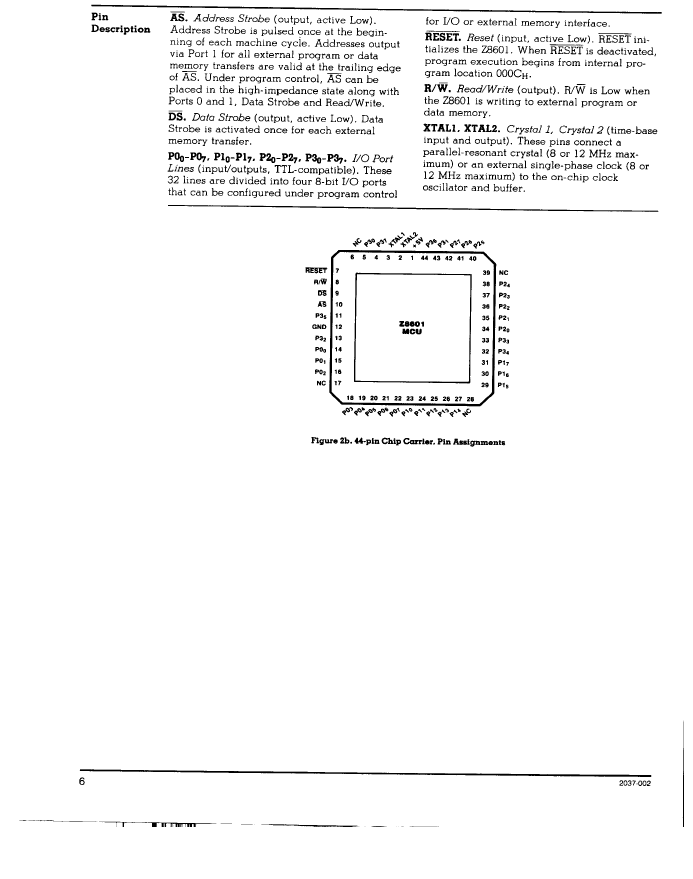

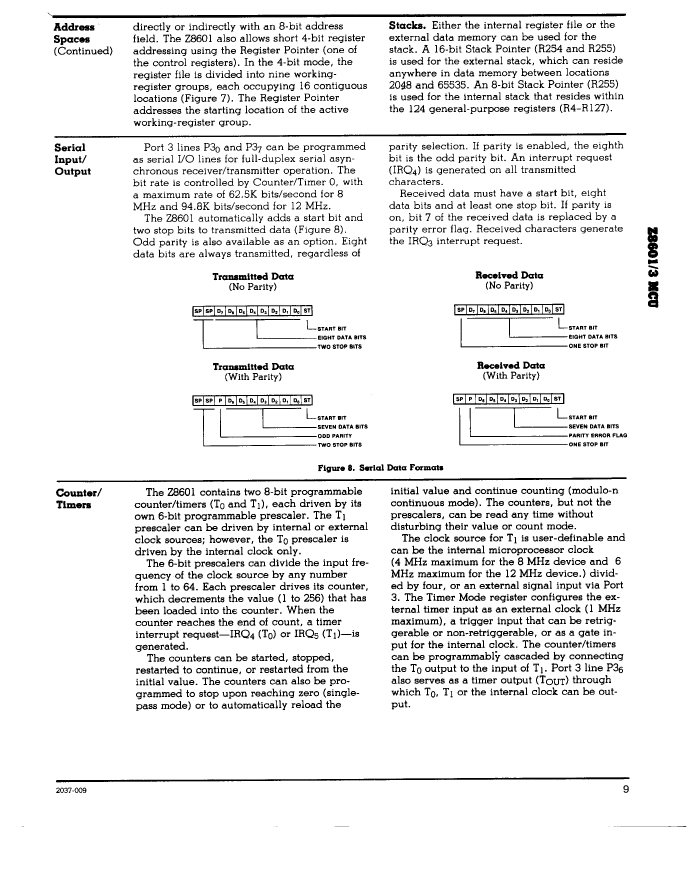

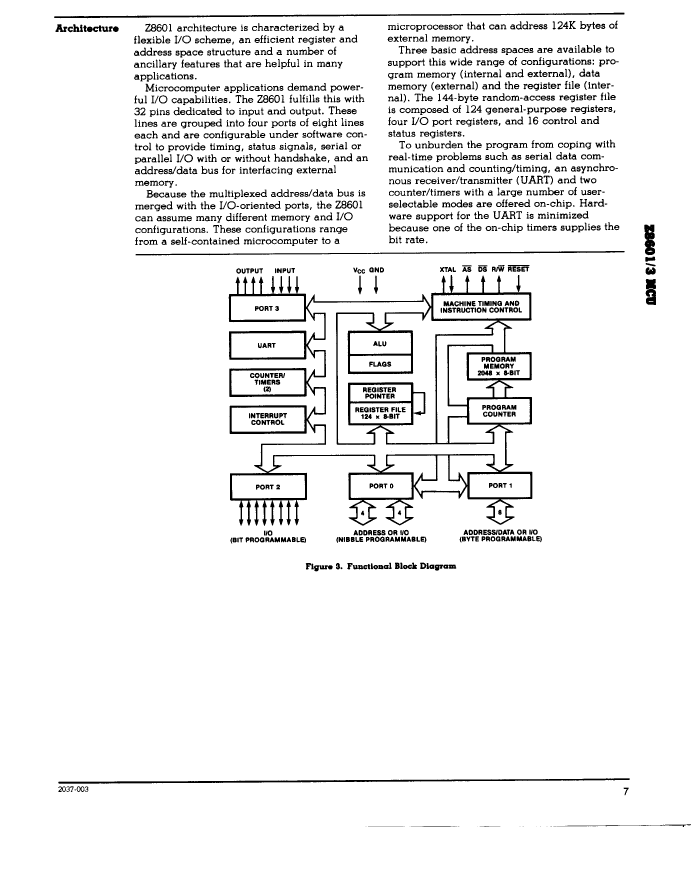

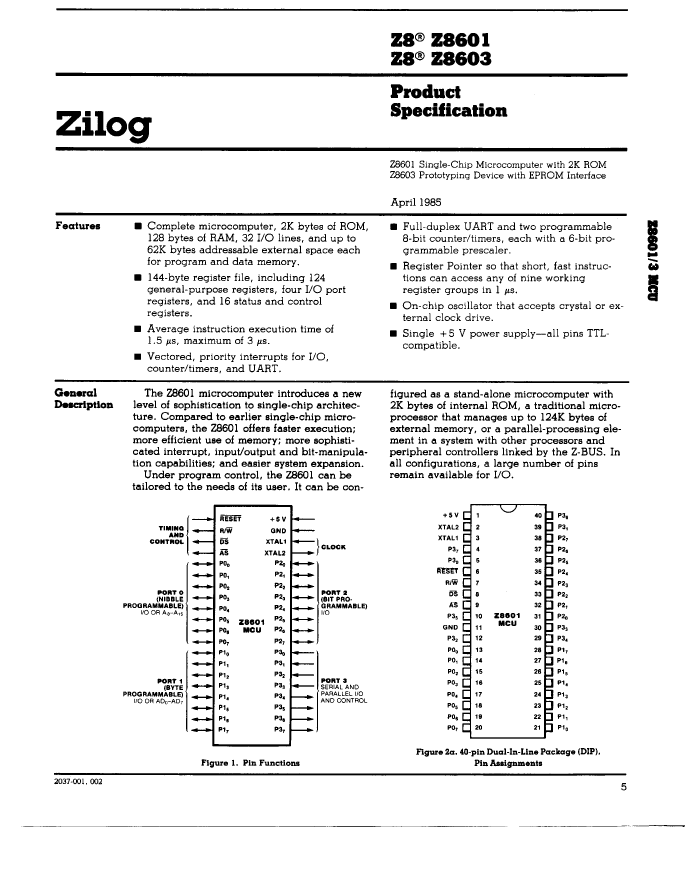

Z8601-12VS Overview

Microcontroller, 8-Bit, MROM, Z8 CPU, 12MHz, CMOS, PQCC44

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Zilog, Inc.
package instruction	QCCJ, LDCC44,.7SQ
Reach Compliance Code	unknown
bit size	8
CPU series	Z8
JESD-30 code	S-PQCC-J44
JESD-609 code	e0
Number of terminals	44
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	QCCJ
Encapsulate equivalent code	LDCC44,.7SQ
Package shape	SQUARE
Package form	CHIP CARRIER
power supply	5 V
Certification status	Not Qualified

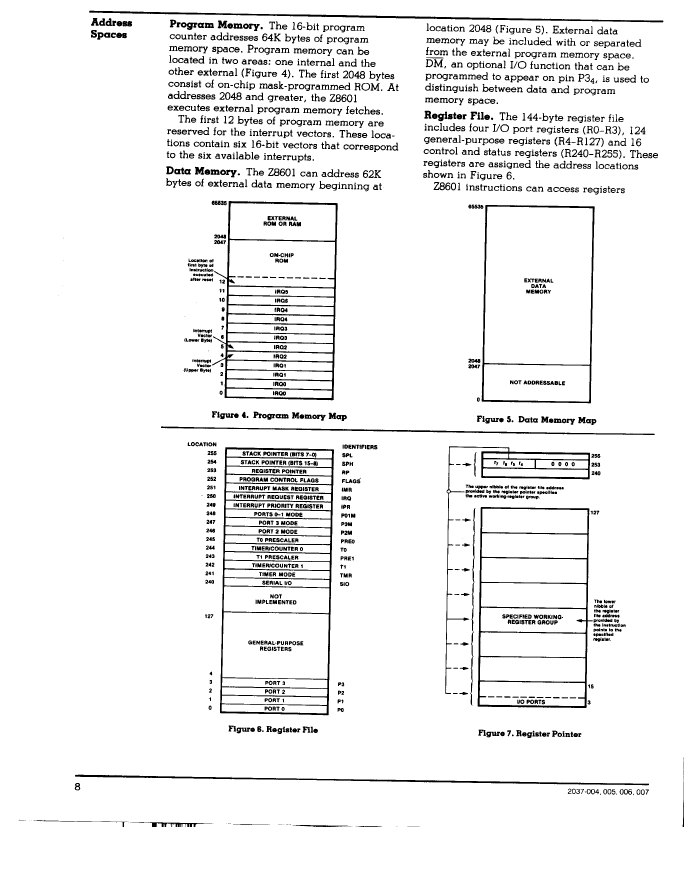

RAM (bytes)	124
rom(word)	2048
ROM programmability	MROM
speed	12 MHz
Maximum slew rate	180 mA
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	QUAD

This Material Copyrighted By Its Respective Manufacturer

	Z8601-12VS	Z8601-12CS
Description	Microcontroller, 8-Bit, MROM, Z8 CPU, 12MHz, CMOS, PQCC44	Microcontroller, 8-Bit, MROM, Z8 CPU, 12MHz, CMOS, CDIP40
Is it Rohs certified?	incompatible	incompatible
Maker	Zilog, Inc.	Zilog, Inc.
package instruction	QCCJ, LDCC44,.7SQ	DIP, DIP40,.6
Reach Compliance Code	unknown	unknown
bit size	8	8
CPU series	Z8	Z8
JESD-30 code	S-PQCC-J44	R-XDIP-T40
JESD-609 code	e0	e0
Number of terminals	44	40
Maximum operating temperature	70 °C	70 °C
Package body material	PLASTIC/EPOXY	CERAMIC
encapsulated code	QCCJ	DIP
Encapsulate equivalent code	LDCC44,.7SQ	DIP40,.6
Package shape	SQUARE	RECTANGULAR
Package form	CHIP CARRIER	IN-LINE
power supply	5 V	5 V
Certification status	Not Qualified	Not Qualified
RAM (bytes)	124	124
rom(word)	2048	2048
ROM programmability	MROM	MROM
speed	12 MHz	12 MHz
Maximum slew rate	180 mA	180 mA
Nominal supply voltage	5 V	5 V
surface mount	YES	NO
technology	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	J BEND	THROUGH-HOLE
Terminal pitch	1.27 mm	2.54 mm
Terminal location	QUAD	DUAL
