Specification for release
Customer
:
Ordercode:
Description:
Package:
82400274
TVS Diode Array WE-TVS
SC70-6L
DATUM / DATE : 2010-01-27
A
Features:
•
ESD Protection for 4 high-speed I/O channels and VDD
•
Provide ESD protection for each channel to
IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact)
IEC 61000-4-4 (EFT) (5/50ns) 20A (I/O), 40A (VDD)
IEC 61000-4-5 (Lightning) 6A (8/20µs)
•
Below 5V operating voltage: 2.5 - 3.3 - 4.2 - 5.0V
•
Ultra Low capacitance: 1.2pF typical
Mechanical Characteristics:
•
SC70-6L Package
•
Molding compound flamability rating: UL94V-0
•
Packaging: Tape & Reel
B

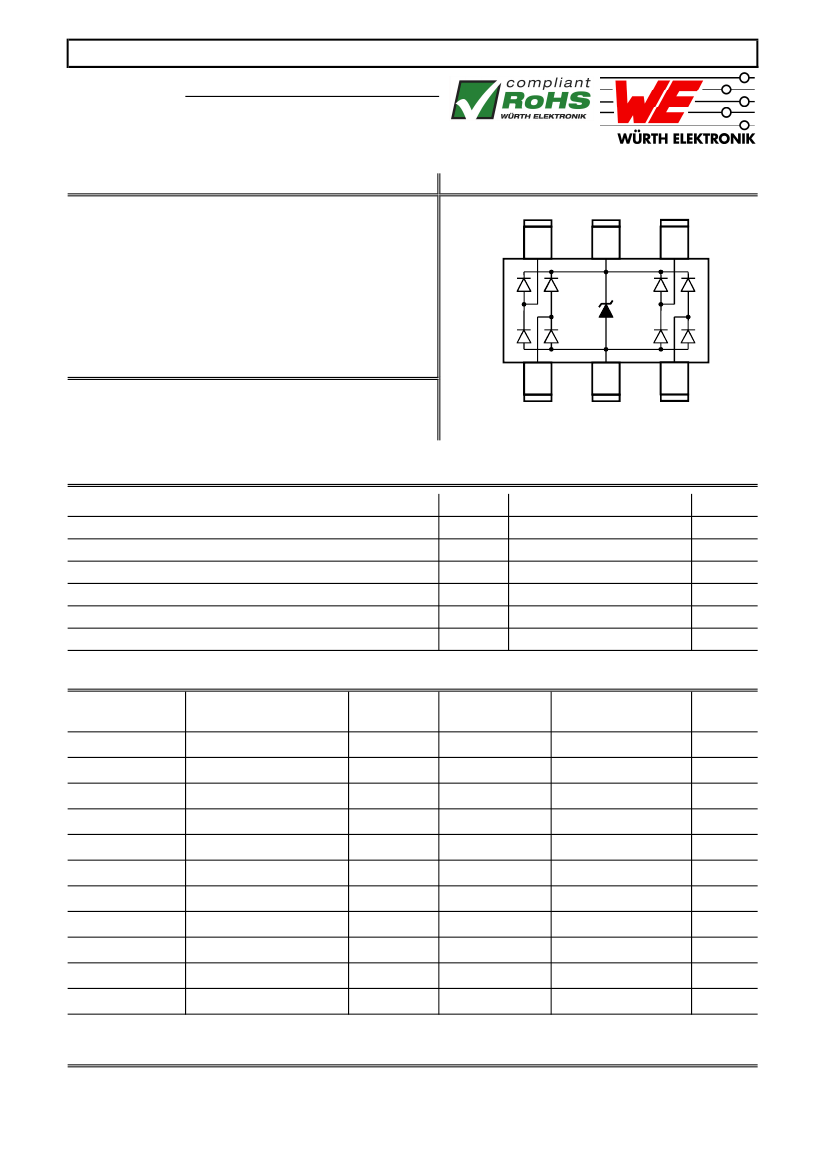

Schematic and Pin Configuration:
I/O 4
VDD
I/O 3
6
5
4
1
2
3
I/O 1
GND
I/O 2
C
Absolute Maximum Ratings:
Peak Pulse Current (tp = 8/20µs)
Operating Supply Voltage, VDD to GND
ESD per IEC 61000-4-2 (Air / Contact), I/O to GND
ESD per IEC 61000-4-2 (Air / Contact), VDD to GND
DC Voltage at any I/O Pin
Operating Temperature
Storage Temperature
Symbol
I
PP
V
DC
V
ESD,IO
V
ESD,VDD
V
IO
T
Op
T
Sto
Rating
6
6
16 / 12
16 / 12
(GND -0,5) to (VDD +0,5)
-55 to +85
-20 to +60
Unit
A
V
kV
kV
V
°
C
°
C
D
Electrical Characterisitcs:
Properties
Test Conditions
Value
min
V
RWM
V
BV
I
R
V
F
v
C
v
Cl,IO
v
Cl,VDD
C
IO
C
X
Pin 5 to Pin 2
I
BV
=1mA, Pin 5 to Pin 2
V
Pin5
=5V, Pin 5 to Pin 2
I
F
= 15mA, Pin 2 to Pin 5
I
PP
=5A, tp=8/20µs, I/O to GND
I
TLP
= 17A, I/O to GND
I
TLP
= 17A, VDD to GND
V
Pin5
=5V, V
Pin2
=0V, V
IO
=2.5V,
f=1MHz, I/O to GND
V
Pin5
=5V, V
Pin2
=0V, V
IO
=2.5V
f=1MHz, between I/O pins
Value
typ
Value
max
5
Unit
V
V
6.0
5
0.8
8
12.5
9.0
1.2
0.1
1.6
0.2
1.0
9
µA
V
V
V
V
pF
pF
Würth Elektronik eiSos GmbH & Co. KG
D-74638 Waldenburg · Max-Eyth-Strasse 1 · Germany · Phone (+49) (0) 7942 - 945 - 0 · Fax (+49) (0) 7942 - 945 - 400
PAGE 1 OF 5
http://www.we-online.com
Specification for release
Customer
:
Ordercode:
Description :
Package:
82400274
TVS Diode Array WE-TVS
SC70-6L
DATUM / DATE : 2010-01-27
E

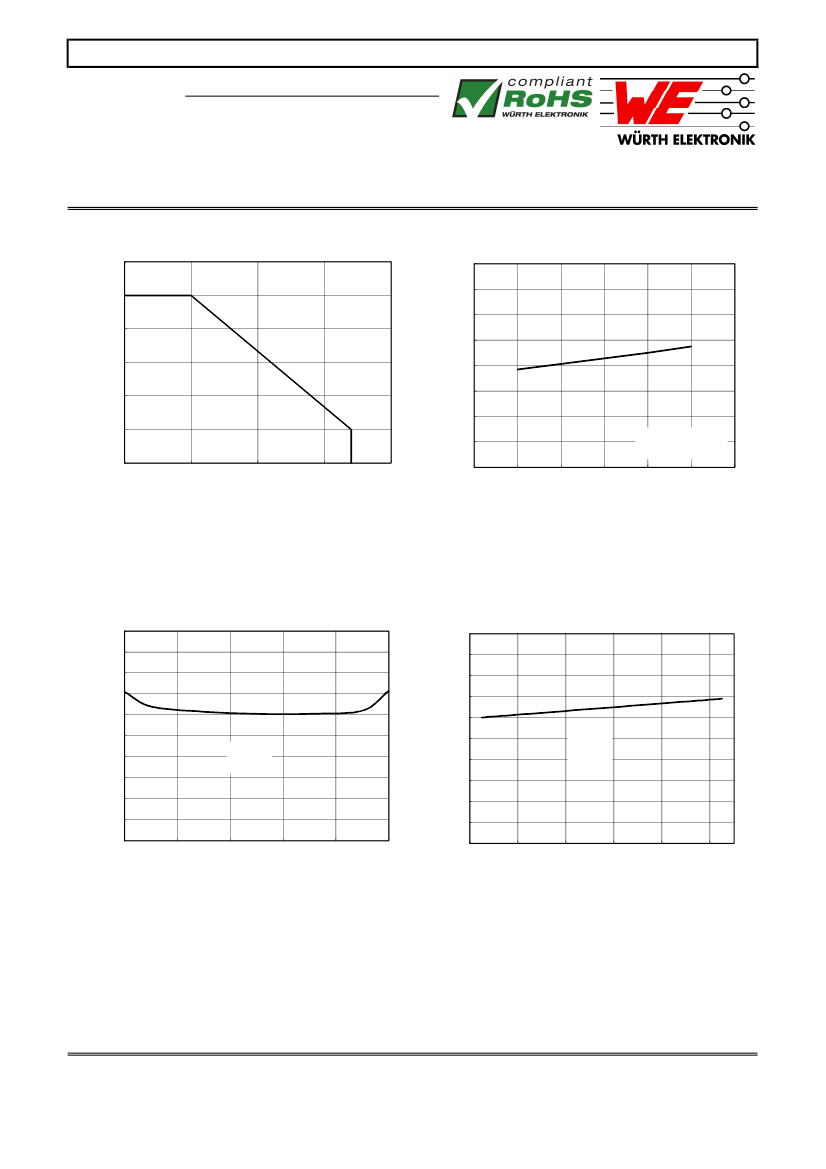

Typical Characteristics:
Peak Pulse Derating in % of PeakPulse Current in %
120
16
Temp
0
100
Ipp
100
100
20
Clamping Voltage [V]
12
10
8
6
4
14
Current
2
5
6
Voltage
7,7
9
9,5
25
85
85
80
0
60
40
20
2
0
0
25
50
Ambient Temperature T
A
(℃)
75
100
0
1
2
3
4
Waveform Parameters:
tr= 8 µs
td = 20µs
5
6
7
Peak Pulse Current [A]
Power Derating Curve
I/O Clamping Voltage vs. Peak Pulse Current
2,0
1,8
1,6
1,4
Capacitance [pF]
1,2
1,0
0,8
0,6
0,4
0,2
0,0
0
1
2
Voltage [V]
3
4
5
2,0
U
0
0,5
1,5
2,5
3,5
4,5
5
C
1,42
1,28
1,23
1,21
1,21
1,24
VDD = 5V
1,43
GND = 0V
f = 1MHz
C
0,8
0,77
0,76
Capacitance [pF]
1,8
1,6
1,4
T
25
C
1,2
C
0,8
0,75
0,74
0,73
0,75
125
1,2
1,0
0,8
0,6
0,4
0,2
0,0
20
40
60
VDD = 5V
GND = 0V
f = 1MHz
1,38
0,75
80
100
120
Temperature [°
C]
Variation of C
IO
vs. V
IO
Variation of C
IO
vs. Temp.
Würth Elektronik eiSos GmbH & Co. KG
D-74638 Waldenburg · Max-Eyth-Strasse 1 · Germany · Phone (+49) (0) 7942 - 945 - 0 · Fax (+49) (0) 7942 - 945 - 400
http://www.we-online.com
PAGE 2 OF 5
Specification for release
Customer
:
Ordercode:
Description :
Package:
82400274
TVS Diode Array WE-TVS
SC70-6L
DATUM / DATE : 2010-01-27
E
Typical Characteristic:
18,0
I/O to GND
16,0
14,0
12,0
TLP Current [A]
10,0
U
VDD to GND
0,5
9
9,5
I/O start
6,9
12,5
6,2
9
I/O to GND
0,1
0,1
0,1
0,2
17
VDD to GND
0,1
0,1
0,1
Pulse
100ns
DUT
I
V
8,0
6,0
4,0
2,0
0,0
0
I/O end
VDD start
VDD end
0,2
17
Rise time: 1ns
2
4
6
8
10
12
14
TLP Voltage [V]

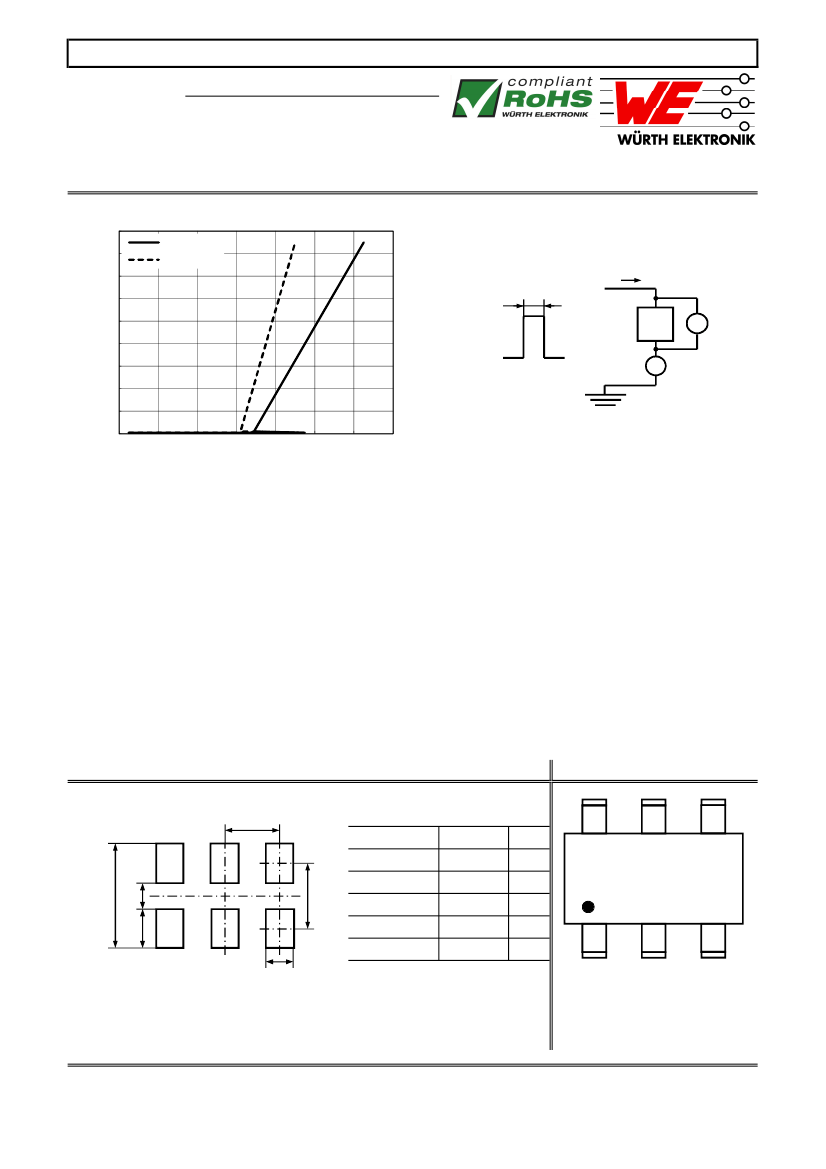

Transmission Line Pulsing (TLP) Measurement
Transmission Line Pulsing System
F
Recommended Land Layout:
G
Body Marking:
6
5
4
C
A
B
C
F
E
D
0.40
0.85
0.65
1.85
1.00
2.70
mm
mm
mm
mm
mm
1
2
3
W04XY
D
E
F
B
mm
A
W04: Device Code
X: Date Code
Y: Control Code
Würth Elektronik eiSos GmbH & Co. KG
D-74638 Waldenburg · Max-Eyth-Strasse 1 · Germany · Phone (+49) (0) 7942 - 945 - 0 · Fax (+49) (0) 7942 - 945 - 400
http://www.we-online.com
PAGE 3 OF 5
Specification for release
Customer
:
Ordercode:
Description :
Package:
82400274
TVS Diode Array WE-TVS
SC70-6L
DATUM / DATE : 2010-01-27
H

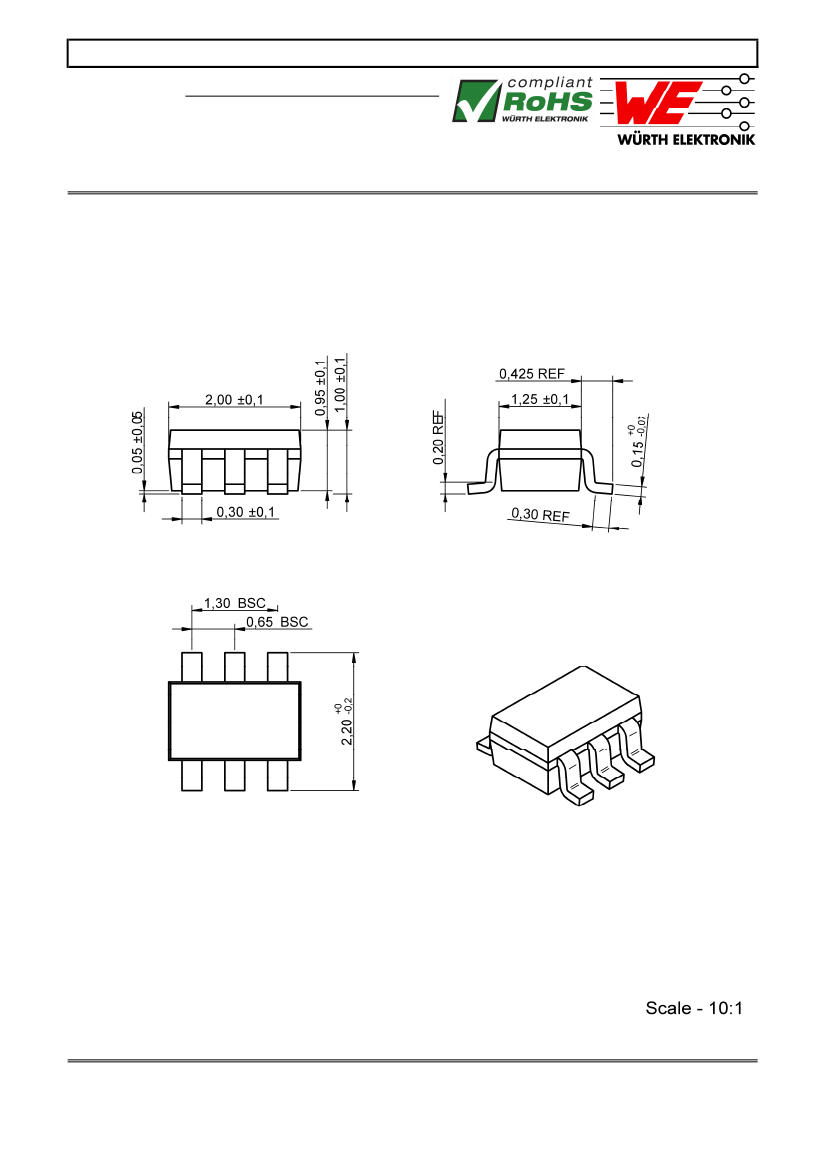

Dimensions:
Würth Elektronik eiSos GmbH & Co. KG
D-74638 Waldenburg · Max-Eyth-Strasse 1 · Germany · Phone (+49) (0) 7942 - 945 - 0 · Fax (+49) (0) 7942 - 945 - 400
http://www.we-online.com
PAGE 4 OF 5
Specification for release
Customer
:
Ordercode:
Description :
Package:
82400274
TVS Diode Array WE-TVS
SC70-6L
I

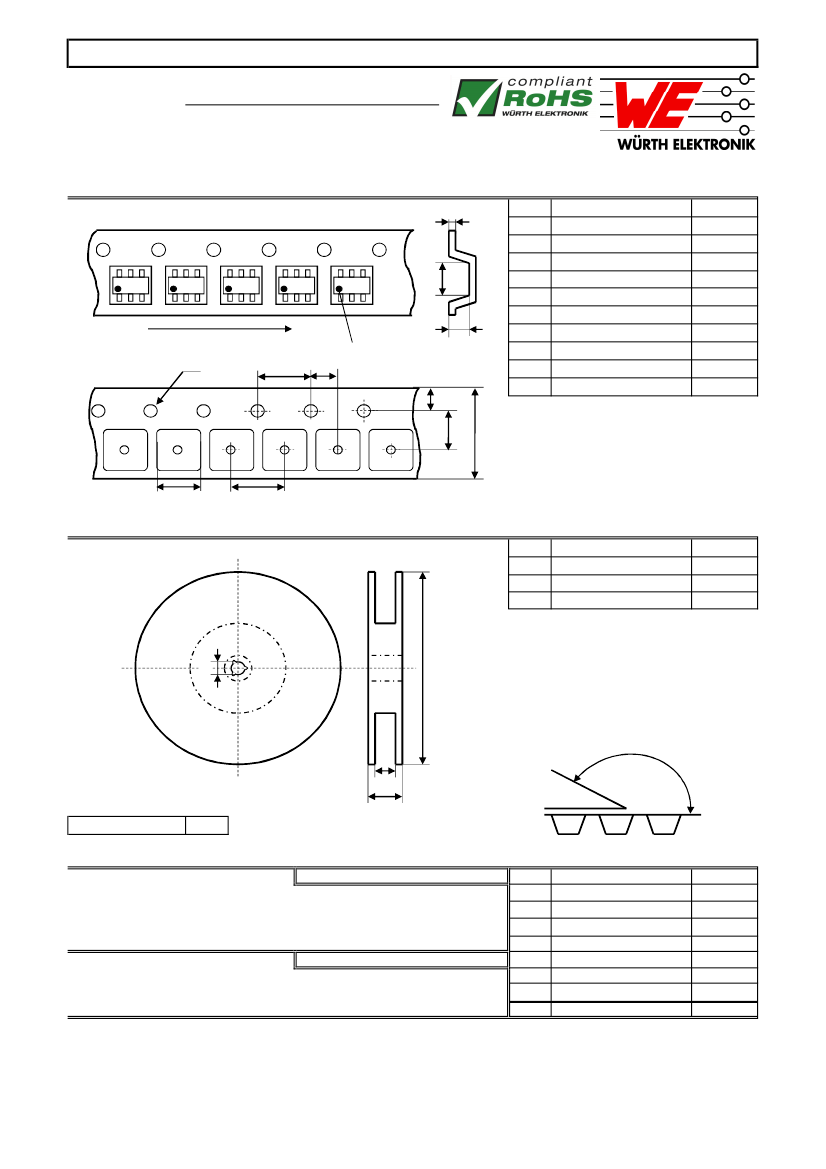

Tape:
K
I
Feeding Direction
Ø
D
E
F
Pin 1
J
A
B
C
D
E
F
G
H
I
J
K
C
2.25 REF
4.00 ± 0.10
8.00 ± 0.20
1.55 ± 0.05
4.00 ± 0.10
2.00 ± 0.05
1.75 ± 0.10
3.50 ± 0.05
2.4 REF
1.2 REF
0.30 ± 0.02
mm
mm
mm
mm
mm
mm
mm
mm
mm
mm
mm
G
H
A
B
J
Reel:
a
b
c
d
178.0 ± 2.0
13.0 ± 0.8
10.0 ± 1.5
12.5 ± 2.0
mm
mm
mm
mm
b
a
165° to 180°
c
d
Quantity per Reel:
3000
General Release:
Customer
..................................................................................
..................................................................................
Date
Signature
Würth Elektronik
..................................................................................
..................................................................................
JB
Name
Version 1
Modification
2010-01-27
Checked
Approved
Date
This electronic component has been designed and developed for usage in general electronic equipment. Before incorporating this component into any equipment where higher safety
and reliability is especially required or if there is the possibility of direct damage or injury to human body, for example in the range of aerospace, aviation, nuclear control, submarine,
transportation, (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc, Würth Elektronik eiSos GmbH must be
informed before the design-in stage. In addition, sufficient reliability evaluation checks for safety must be performed on every electronic component which is used in electrical circuits
that require high safety and reliability functions or performance.
Würth Elektronik eiSos GmbH & Co. KG
D-74638 Waldenburg · Max-Eyth-Strasse 1 · Germany · Phone (+49) (0) 7942 - 945 - 0 · Fax (+49) (0) 7942 - 945 - 400
PAGE 5 OF 5
http://www.we-online.com
