RT8869A Overview

Advanced 2/1-Phase PWM Controller for CPU Core Power

RT8869A Parametric

Parameter Name	Attribute value
Status	Active
VID Table Su	VR11.0;VR11.1
Number of Phases	2
Vcc (typ)(V)	12
Vin (min)(V)	10.8
Vin (max)(V)	13.2
Accuracy (Vout>=1V)(+/- %)	0.5
Freq (typ)(kHz)	300
Built-in DAC Gene	Yes
Number of MOSFET Drivers	2
Features	Adjustable Frequency;Adjustable Soft-Start;Built-in Bootstrap Switch;DCR Current Sense;Droop Control;Enable Input;OCP;OVP;Power Good;SCP;UVP;Voltage Mode Control
Package Type	WQFN5x5-40

Preview

Download Datasheet

View All

RT8869A

Advanced 2/1-Phase PWM Controller for CPU Core Power

General Description

The RT8869A is an advanced 2/1-phase synchronous buck

controller with 2 integrated MOSFET drivers. It integrates

an 8-bit DAC that supports Intel VR11.x CPUs power

application.

The IC adopts state-of-the-art dynamic phase control

capability by PS1 pin and achieves high efficiency over a

wide load range. It uses lossless R

DS(ON)

current sensing

to achieve phase current balance. Other features include

adjustable operating frequency, adjustable soft-start, short

circuit protection, adjustable over current protection, over

voltage protection, under voltage protection, power good

indication, VR_HOT indication and VR_SHDN indication.

The RT8869A is available in a small footprint with WQFN-

40L 5x5 package.

Features

12V Power Supply Voltage

2/1-Phase Power Conversion

Integrated 2 MOSFET Drivers with Internal

Bootstrap Diode

Dynamic Phase Control Capability

8-bit DAC Supports Intel VR11.x CPUs

Lossless R

DS(ON)

Current Sensing for Current Balance

Adjustable Frequency : 50kHz to 1MHz

Adjustable Over Current Protection

Adjustable Soft-Start

VR_RDY, VR_HOT and VR_SHDN Indications

Small 40-Lead WQFN Package

RoHS Compliant and Halogen Free

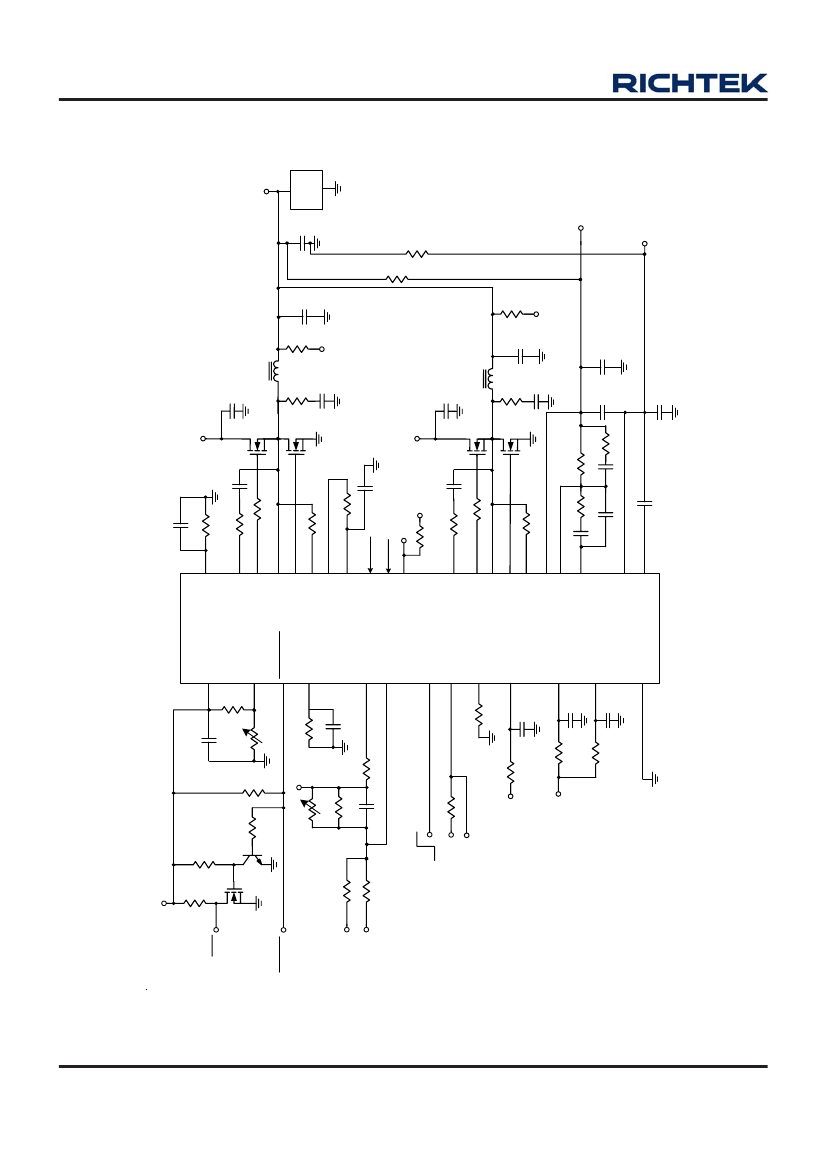

Applications

Desktop CPU Core Power

Middle/High End Graphic Cards

Low Voltage, High Current DC/ DC Converters

Ordering Information

RT8869A

Package Type

QW : WQFN-40L 5x5 (W-Type)

Lead Plating System

Z : ECO (Ecological Element with

Halogen Free and Pb free))

Note :

Richtek products are :

RoHS compliant and compatible with the current require-

ments of IPC/JEDEC J-STD-020.

Suitable for use in SnPb or Pb-free soldering processes.

Pin Configurations

(TOP VIEW)

FBRTN

VID0

VID1

VID2

VID3

VID4

VID5

VID6

VID7

BOOT1

40 39 38 37 36 35 34 33 32 31

Marking Information

RT8869AZQW : Product Number

DS8869A-00 May 2011

IMAX

VR_SHDN

PS1

ISEN2

ISEN1

VCC5

VOUT

RT8869A

ZQW

YMDNN

VRSEL

VR_RDY

DAC

EAP

COMP

CSP

CSN

11 12 13 14 15 16 17 18 19 20

GND

UGATE1

PHASE1

LGATE1

VCC12A

VCC12B

LGATE2

PHASE2

UGATE2

BOOT2

VR_HOT

YMDNN : Date Code

WQFN-40L 5x5
