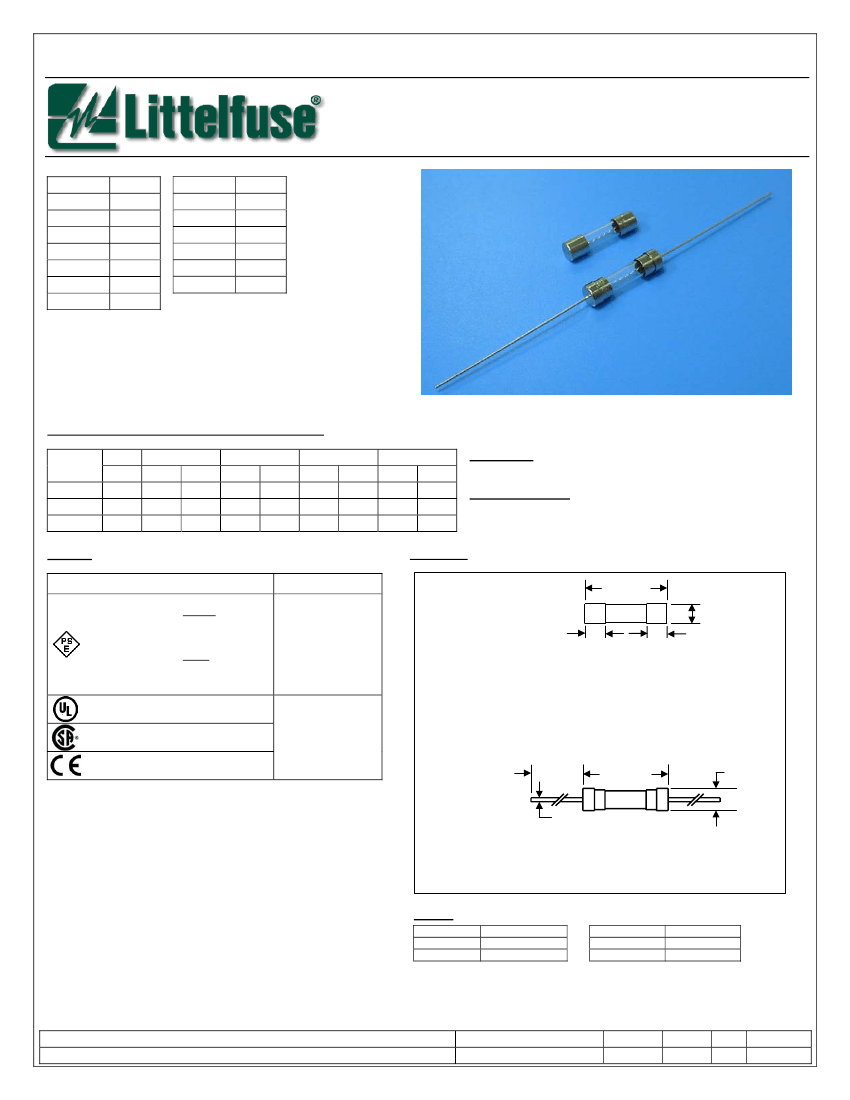

0237 - Series 5x20mm
Designed to UL/CSA Standards
Medium Acting Fuse
Part No.
0237001.
02371.25
023701.6
0237002.
023702.5
0237003.
02373.15
Rating
1A
1.25A
1.6A
2A
2.5A
3A
3.15
Part No.
0237004.
0237005.
0237006.
023706.3
0237008.
0237010.
Rating
4A
5A
6A
6.3A
8A
10A
For Full Part number, please reference packaging and version specifications
Electrical Characteristics (UL248 Part 14 – Supplemental Fuses)
Rated
Current
1A – 6A
6.3A – 10A
1.0 In
MIN
4
1
h
MIN
3
3
s
1.35 In
MAX
1
1
h
MIN
400
400
ms
2 In
MAX
2.25
2.25
s
MIN
80
80
ms
4 In
MAX
300
300
ms
MIN
10
10
ms
10 In
MAX
40
40
ms
Dimensions
Agency Approvals
Cartridge
NBK280602-E10480 C
NBK290502-E10480 I
Leaded
NBK280602-E10480 D
NBK290502-E10480 J
Listed File No.
Guide No.
File No.
Certified Class No.
E10480
JDYX
029862
LR1422-01
1A – 10A
40
22.5 max.
∅5.8
Max
Ampere Range
20±0.5
Voltage Rating
125V ac.
Interrupting Rating(UL)
1A – 10A 10000A @ 125V ac 0.7-0.8 power factor.
Approvals
Certificate No.
1A – 5A 125V 10000A
6A – 10A 125V 500A
1A – 5A 125V 10000A
6A – 10A 125V 500A
0237000
5.1
±
0.6
5.1
±
0.6
5.2+0.1
- 0.2
0237000 XE
∅0.65*
All dimensions in mm
* Ratings above 6.3A
∅0.8
Lead.
Materials
Body
Cap
Lead
Glass
Nickel Plated Brass
Tin Plated Copper
Rating
1A – 2.5A
3A – 10A
Element Type
Corrugated
Straight
Suzhou Littelfuse OVS Ltd., 6 Xinghai Street, Singapore Suzhou Industrial Park, China
Tel: +86 512 6761 3189
•
Fax: +86 512 6761 1489
•
Internet: http://www.littelfuse.com
Title
0237 Series Sales Drawing
Doc. No.
0237000
Rev.
D
DCR
898
Date
July 2003
