Preview

51915-191: DescriptionBoard Connector, 36 Contact(s), 4 Row(s), Female, Right Angle, Press Fit Terminal, Locking, Receptacle,; CategoryThe connector The connector; File Size251KB，4 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

51915-191 Overview

Board Connector, 36 Contact(s), 4 Row(s), Female, Right Angle, Press Fit Terminal, Locking, Receptacle,

51915-191 Parametric

Parameter Name	Attribute value
Objectid	1760628877
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	8.85
Other features	TERMINAL PITCH FOR POWER CONTACTS: 5.08 MM
Board mount options	SPLIT BOARD LOCK
body width	0.47 inch
subject depth	0.865 inch
body length	3.675 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact arrangement	S24P12
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	TIN/LEAD OVER NICKEL
Contact point gender	FEMALE
Contact material	COPPER ALLOY
Contact resistance	20 mΩ
Contact style	HYBRID
DIN compliance	NO
Dielectric withstand voltage	2500VDC V
Durability	200 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	.973 N
Insulation resistance	500000000 Ω
insulator material	GLASS FILLED POLYETHYLENE
MIL compliance	NO
Mixed contacts	YES
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
Number of rows loaded	4
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Rated current (signal)	3 A
Guideline	UL
Terminal length	0.154 inch
Terminal pitch	2.54 mm
Termination type	PRESS FIT
Total number of contacts	36
UL Flammability Code	94V-0
Evacuation force-minimum value	.17792 N

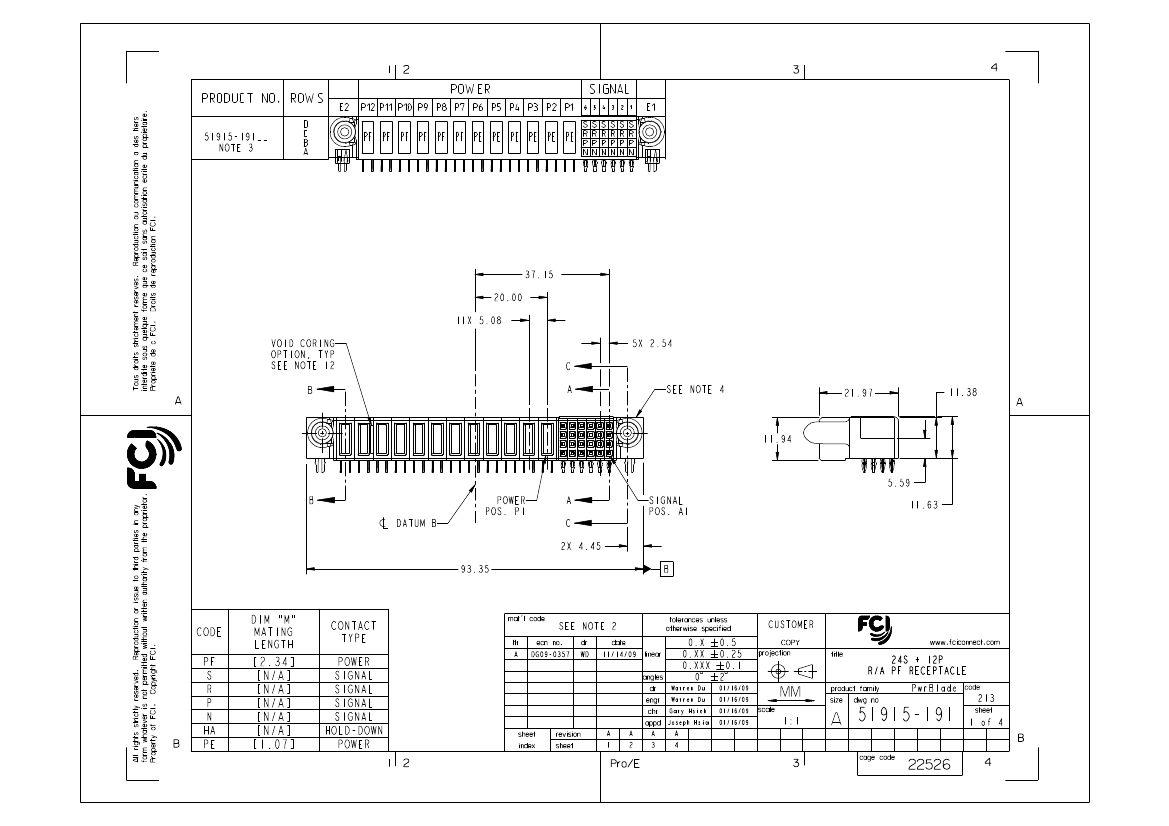

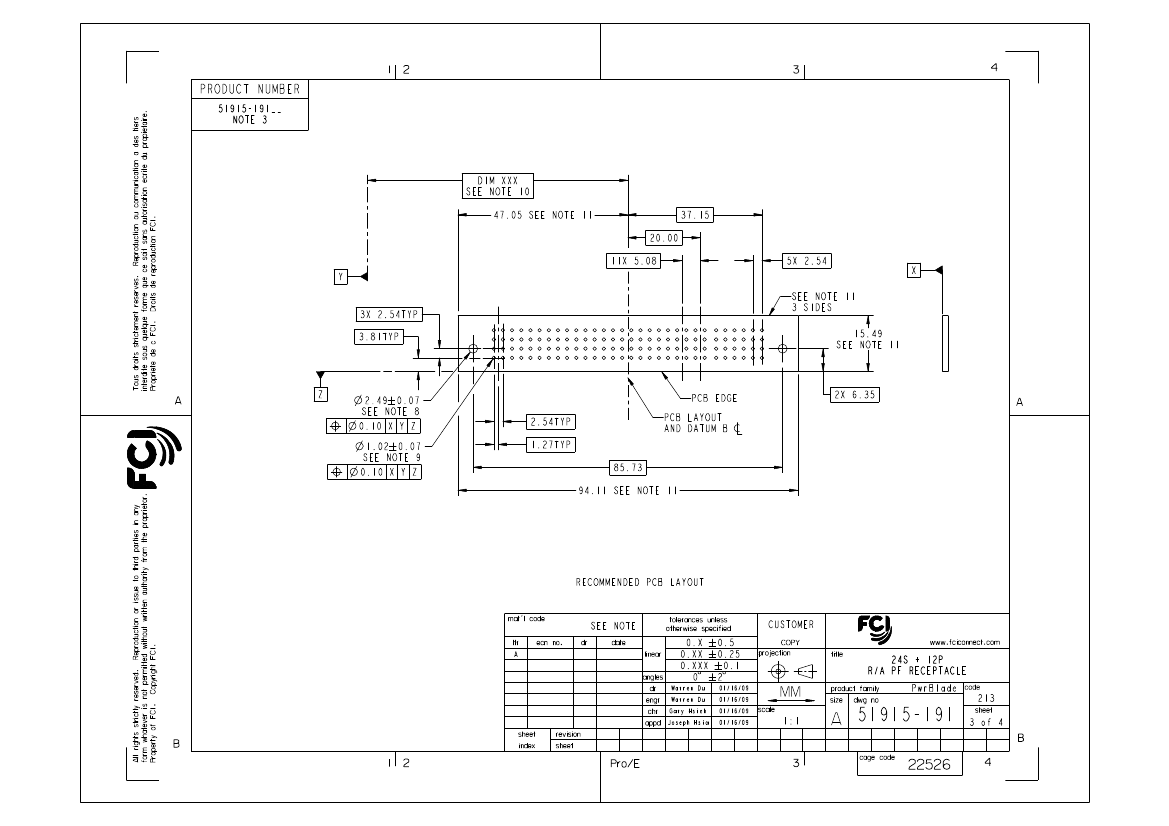

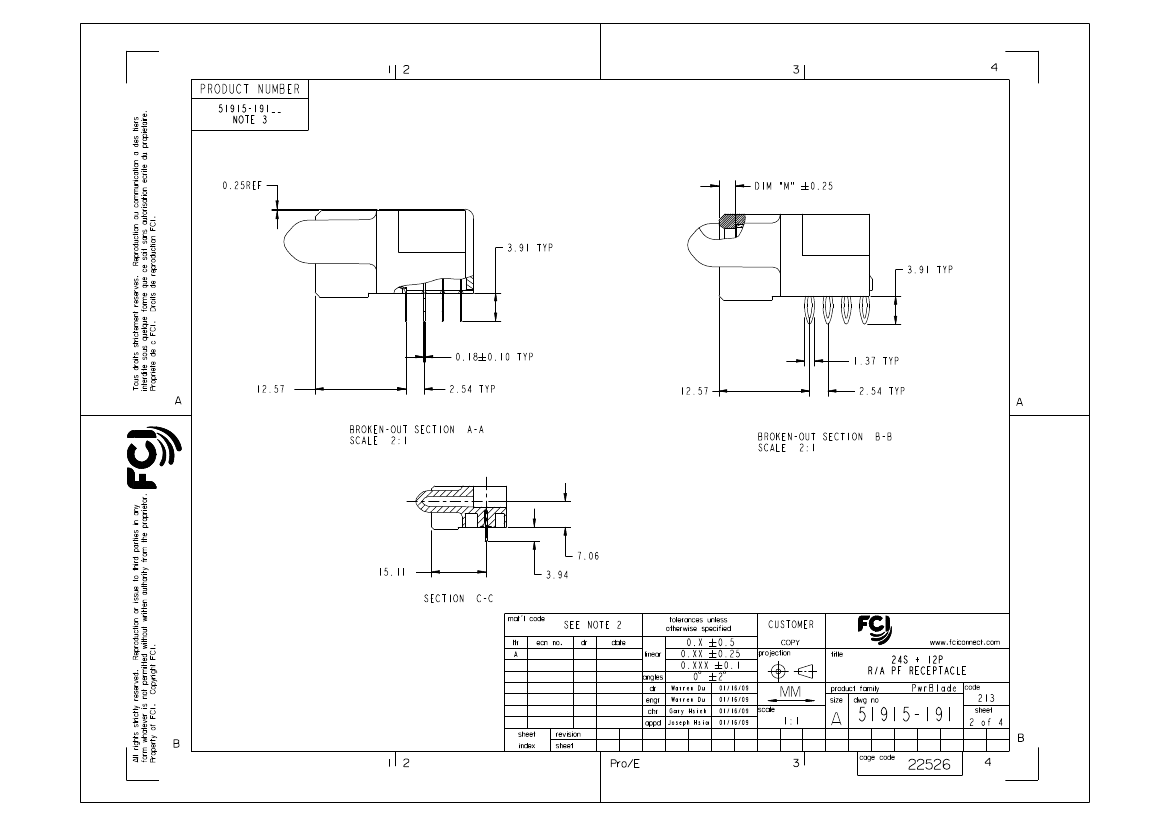

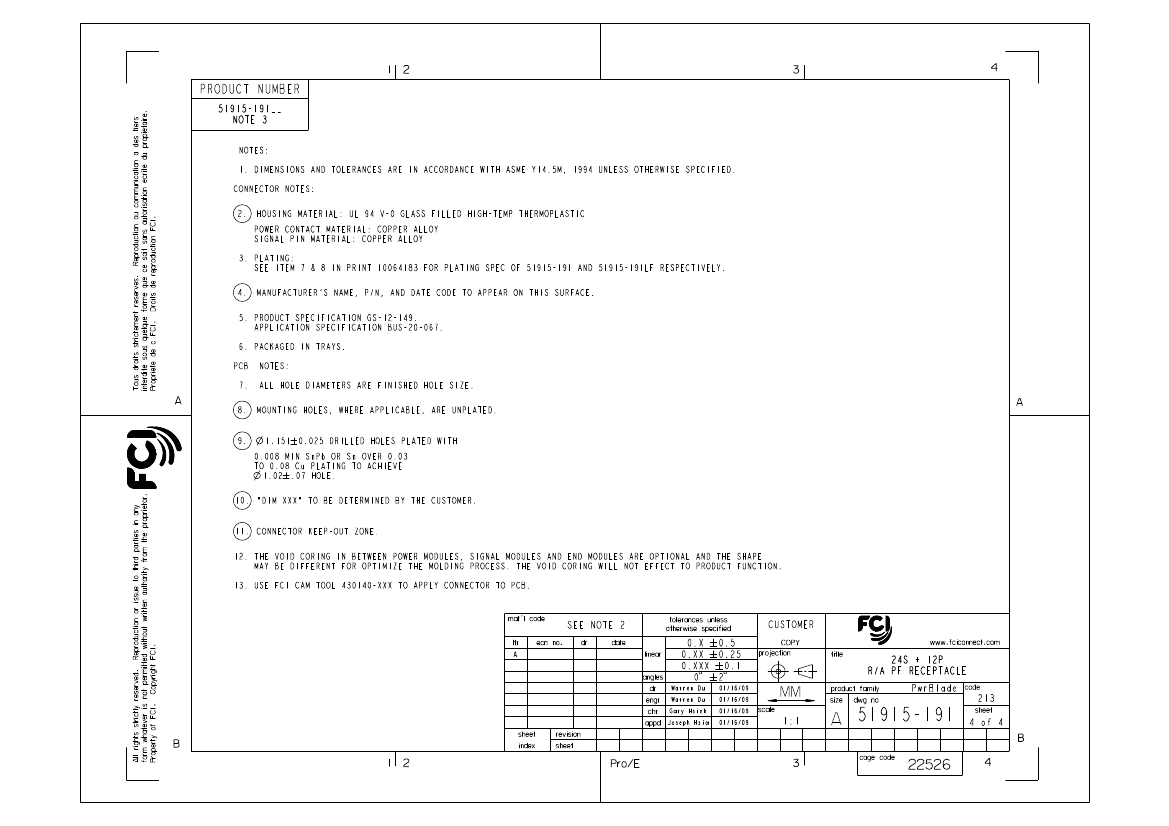

Preview

Download Datasheet

View All

PDM: Rev:A

STATUS:

Released

Printed: Dec 20, 2010

.

51915-191 Related Products

	51915-191	51915-191LF
Description	Board Connector, 36 Contact(s), 4 Row(s), Female, Right Angle, Press Fit Terminal, Locking, Receptacle,	PwrBlade®, Power Connectors, 24S 12P Right Angle Receptacle, Press Fit
Objectid	1760628877	1760628876
Reach Compliance Code	compliant	compliant
ECCN code	EAR99	EAR99
YTEOL	8.85	8.85
Other features	TERMINAL PITCH FOR POWER CONTACTS: 5.08 MM	TERMINAL PITCH FOR POWER CONTACTS: 5.08 MM
Board mount options	SPLIT BOARD LOCK	SPLIT BOARD LOCK
body width	0.47 inch	0.47 inch
subject depth	0.865 inch	0.865 inch
body length	3.675 inch	3.675 inch
Body/casing type	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR
Contact arrangement	S24P12	S24P12
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED
Contact completed and terminated	TIN/LEAD OVER NICKEL	TIN OVER NICKEL
Contact point gender	FEMALE	FEMALE
Contact material	COPPER ALLOY	NOT SPECIFIED
Contact resistance	20 mΩ	20 mΩ
Contact style	HYBRID	HYBRID
DIN compliance	NO	NO
Dielectric withstand voltage	2500VDC V	2500VDC V
Durability	200 Cycles	200 Cycles
Filter function	NO	NO
IEC compliance	NO	NO
maximum insertion force	.973 N	.973 N
Insulation resistance	500000000 Ω	500000000 Ω
insulator material	GLASS FILLED POLYETHYLENE	GLASS FILLED POLYETHYLENE
MIL compliance	NO	NO
Mixed contacts	YES	YES
Installation option 1	LOCKING	LOCKING
Installation method	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD
Number of connectors	ONE	ONE
Number of rows loaded	4	4
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE
Rated current (signal)	3 A	3 A
Guideline	UL	UL
Terminal length	0.154 inch	0.154 inch
Terminal pitch	2.54 mm	2.54 mm
Termination type	PRESS FIT	PRESS FIT
Total number of contacts	36	36
UL Flammability Code	94V-0	94V-0
Evacuation force-minimum value	.17792 N	.17792 N
