FEATURES AND SPECIFICATIONS
Features and Benefits
s
3, 4, 6, 9, 12 and 15 circuits available
s
Pre-assembled
s
Intermix of male and female terminals for polarization
s
Polarized housing design assures proper mating
Reference Information
Packaging: Bag
UL File No.: E29179
CSA File No.: LR19980
Mates With: Standard .093" receptacles
Use With: 1840 header as a board-to-board connector
(contact Molex for details)
Designed In: Inches
Electrical
Voltage: 250V
Current: 5.0A max.
Contact Resistance: 10m
Ω
max.
Dielectric Withstanding Voltage: 1500V AC rms
Mechanical
Mating Force: 3.5 lb max.
Unmating Force: 1.5 lb min.
Durability: 25 cycles
Physical
Housing: Polyester, UL 94V-0
Contact: Male–Brass, Female–Phosphor Bronze
Plating: Electro-Tin
Operating Temperature: -40 to +105˚C
5.03mm (.198") Pitch
.093" Pin and Socket
Shrouded Header
3099
F
Power Connectors

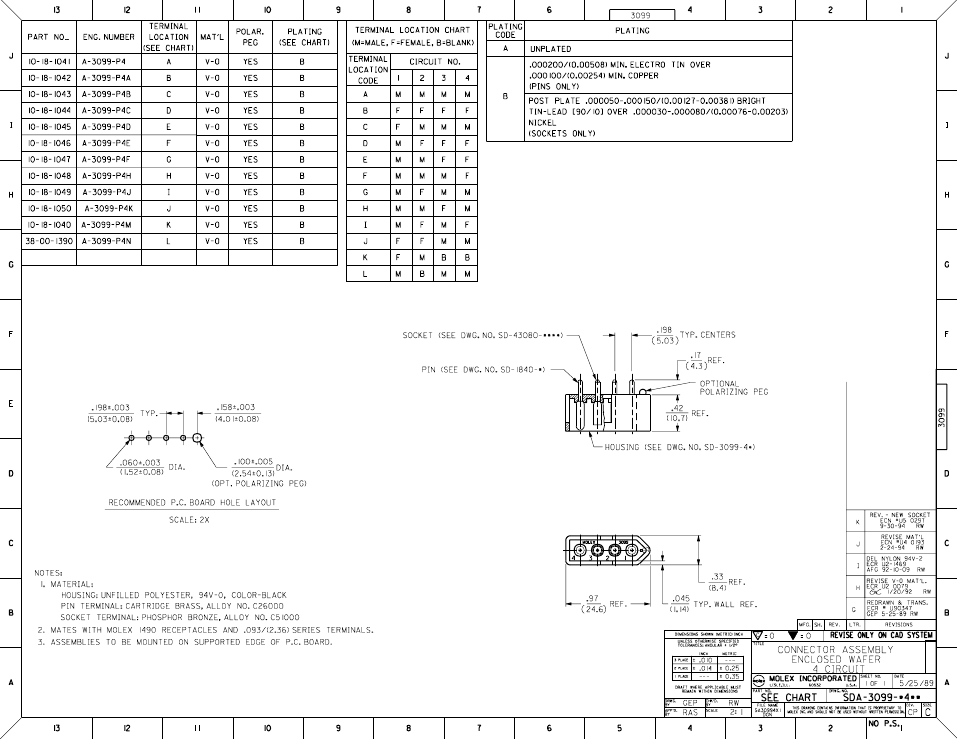

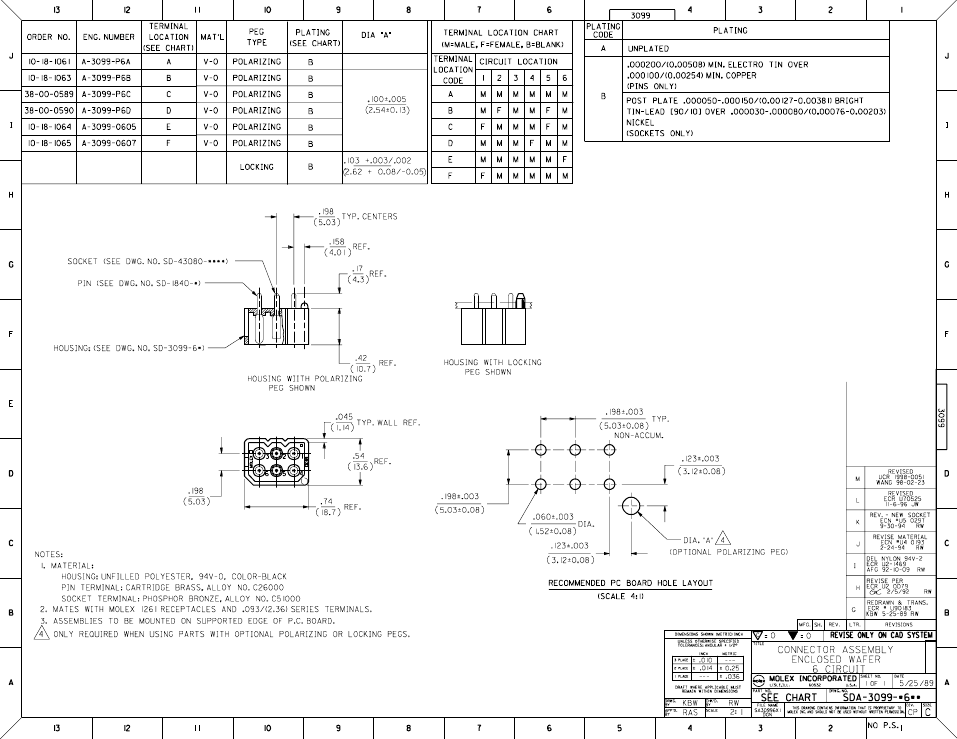

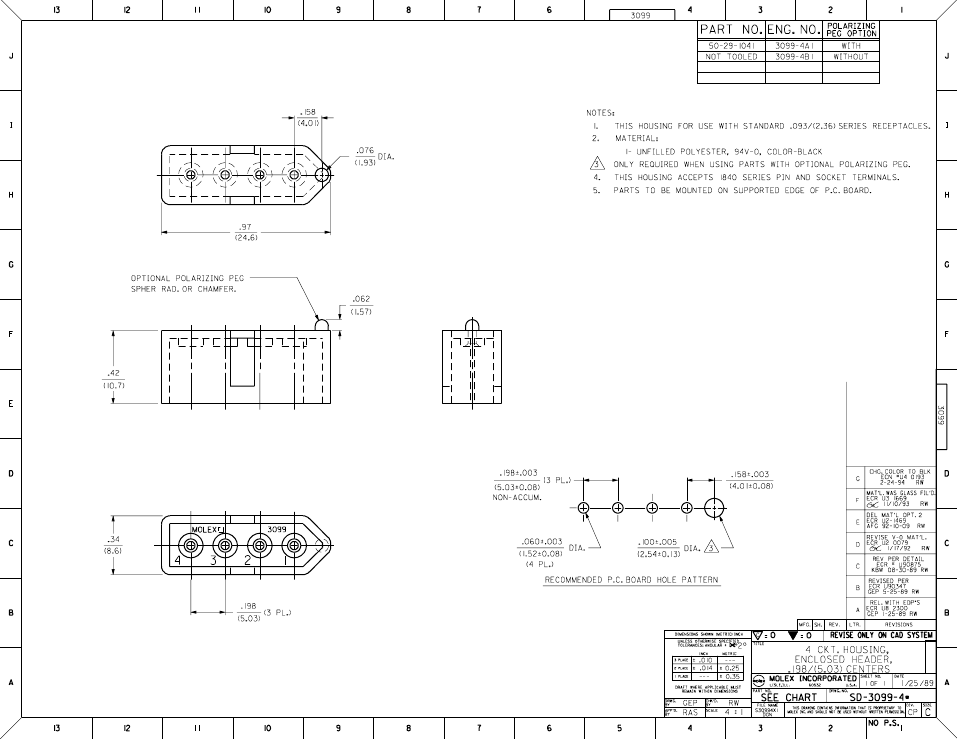

CATALOG DRAWING (FOR REFERENCE ONLY)
ORDERING INFORMATION AND DIMENSIONS
Order No.
10-18-1031
10-18-1032
10-18-1033
10-18-1034
10-18-1035
10-18-1036
10-18-1037
10-18-1038
50-29-1031
10-18-1041
10-18-1042
10-18-1043
10-18-1044
10-18-1045
10-18-1046
10-18-1047
10-18-1048
Order No
3099-3
3099-4
3099-6
3099-9
3099-12
3099-15
Circuits
3
3
3
3
3
3
3
3
3
4
4
4
4
4
4
4
4
1
M
M
F
M
M
M
M
F
B
M
F
F
M
M
M
M
M
2
B
M
M
F
M
F
F
F
B
M
F
M
F
M
M
F
M
Terminal
3
M
M
M
M
F
B
F
F
B
M
F
M
F
F
M
M
F
Pattern
4
5
6
Order No.
10-18-1049
10-18-1050
10-18-1040
50-29-1041
10-18-1061
10-18-1063
38-00-0589
38-00-0590
10-18-1064
10-18-1065
50-29-1061
10-18-1090
50-29-1409
10-18-1120
50-29-1412
10-18-1150
50-29-1415
Circuits
4
4
4
4
6
6
6
6
6
6
6
9
9
12
12
15
15
1
M
F
F
B
M
M
F
M
M
F
B
M
B
M
B
M
B
2
F
F
M
B
M
F
M
M
M
M
B
M
B
M
B
M
B
3
M
M
B
B
M
M
M
M
M
M
B
M
B
M
B
M
B
4
F
M
B
B
M
M
M
F
M
M
B
M
B
M
B
M
B
5
6
Terminal Pattern
7 8 9 10 11 12 13 14 15
M
F
M
F
F
F
M
M
M
F
F
M
M
M
B
M
B
M
B
M
B
M
M
M
M
F
M
B
M
B
M
B
M
B
M
B
M
B
M
B
M
B
M
B
M
B
M
B
M
B
M
B
M
B
M
B
M
B
M
B
M
B
M
B
M
B
M
B
M
B
A
19.60 (.770)
24.60 (.970)
13.70 (.540)
19.60 (.770)
24.80 (.980)
29.80 (1.17)
Dimension
B
C
10.06 (.396)
8.50 (.340)
15.09 (.594)
8.50 (.340)
5.03 (1.98)
18.80 (.740)
10.06 (.396)
18.50 (.730)
15.09 (.594)
18.80 (.740)
20.12 (.792)
18.80 (.740)
Assembly Tooling*
D
Description
Arbor Press with Universal Tool Kit
Order No. for Loose Terminals
Male
Female
16-06-0002
43080-0001
Order No.
11-20-1172
10.06
10.06
10.06
10.06
(.396)
(.396)
(.396)
(.396)
* Used for assembling blank housings and loose terminals
M = Male terminal, F = Female terminal, B = Blank, no terminal
F-96
MX01
