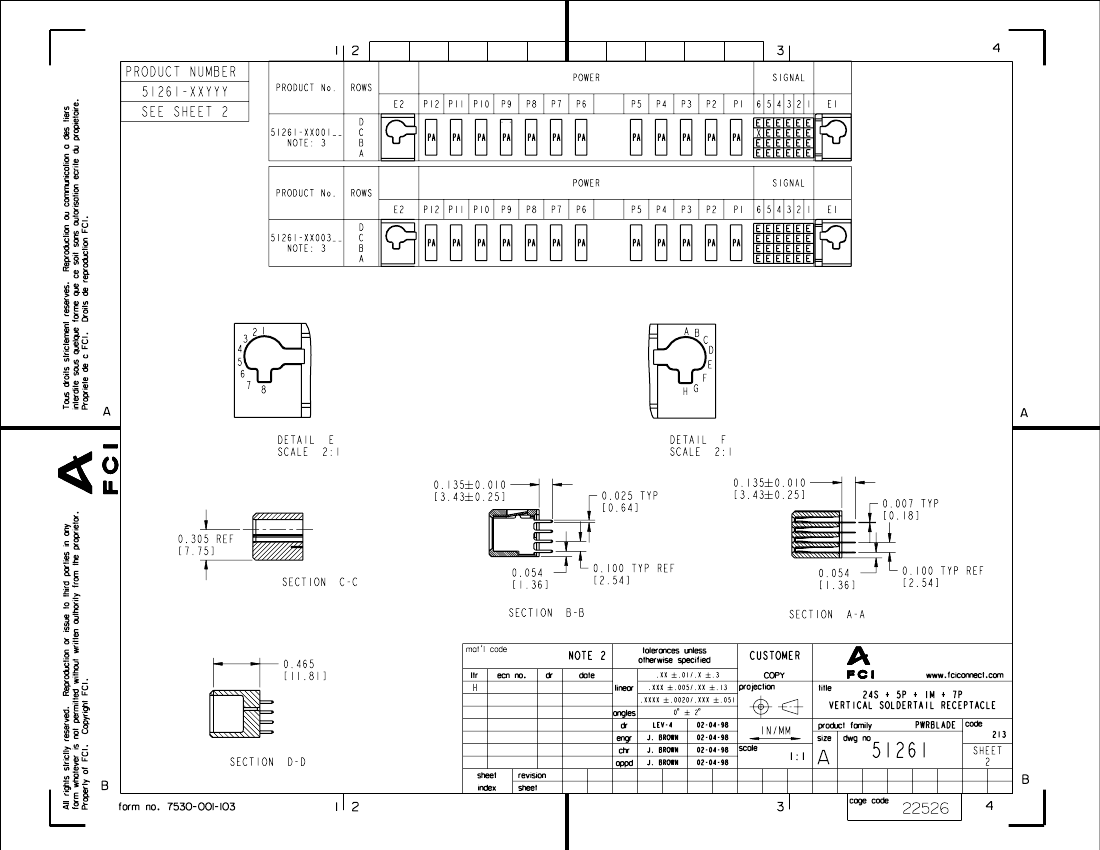

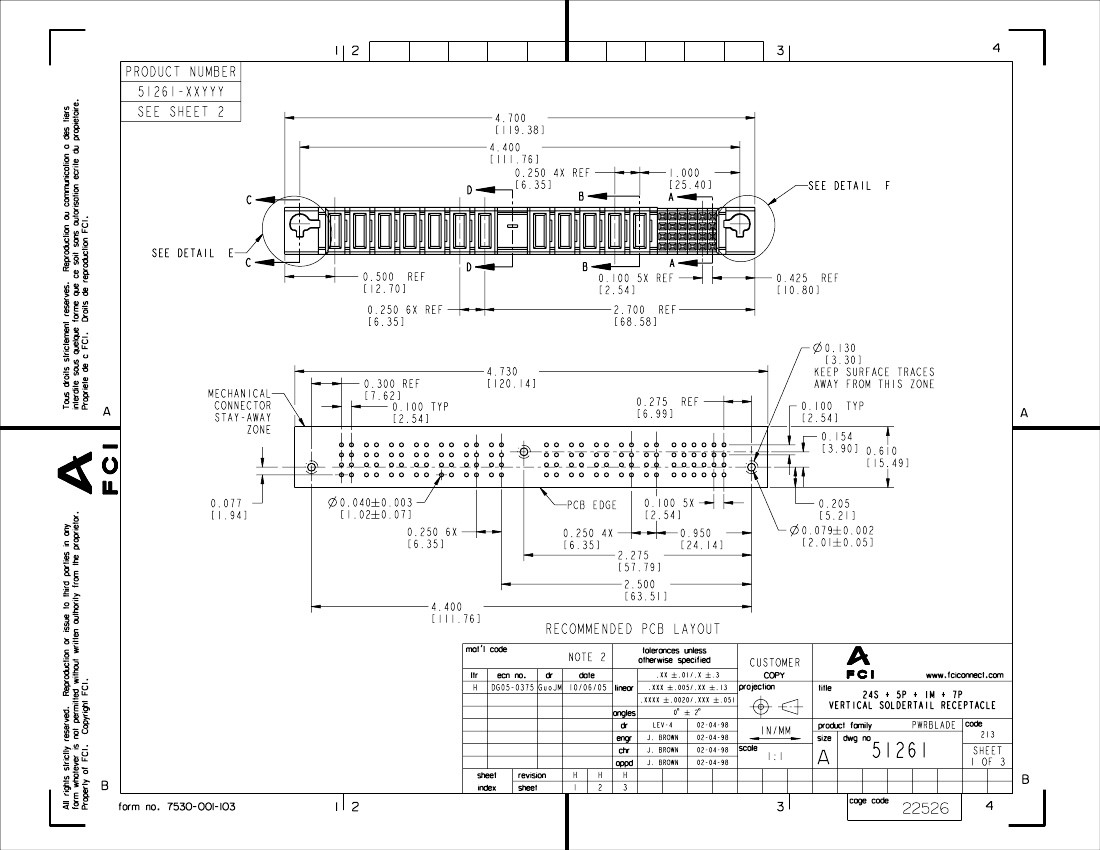

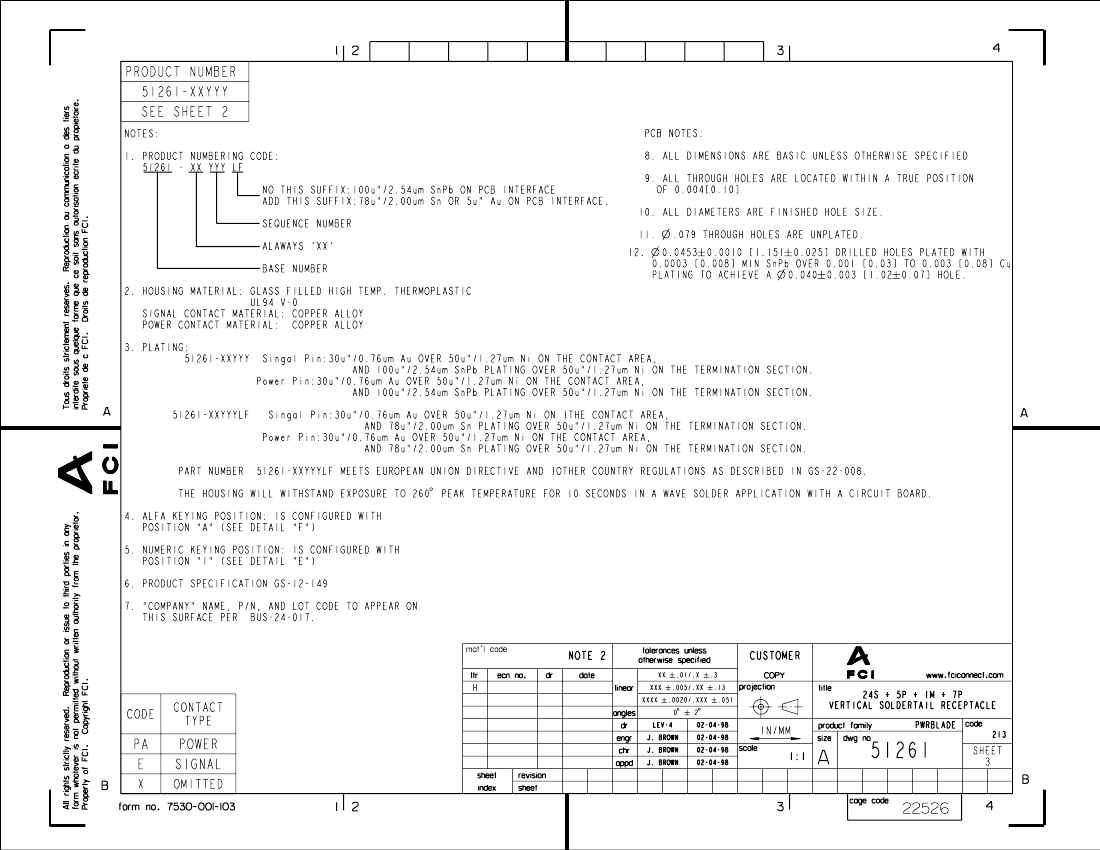

Board Connector, 36 Contact(s), Male, Straight, Solder Terminal, Locking, Receptacle
| Parameter Name | Attribute value |
| Is it Rohs certified? | conform to |
| Maker | Amphenol |
| Reach Compliance Code | compliant |
| Board mount options | HOLE .125-.137 |
| body width | 0.61 inch |
| subject depth | 0.465 inch |
| body length | 4.7 inch |
| Body/casing type | RECEPTACLE |
| Connector type | BOARD CONNECTOR |
| Contact arrangement | S24P12 |
| Contact to complete cooperation | AU ON NI |
| Contact completed and terminated | TIN OVER NICKEL |
| Contact point gender | MALE |
| Contact material | COPPER ALLOY |
| Contact resistance | 20 mΩ |
| Contact style | HYBRID |
| Dielectric withstand voltage | 2500VDC V |
| Durability | 200 Cycles |
| maximum insertion force | .973 N |
| Insulation resistance | 500000000 Ω |
| insulator material | GLASS FILLED THERMOPLASTIC |
| Manufacturer's serial number | 51261 |
| Mixed contacts | YES |
| Installation option 1 | LOCKING |
| Installation method | STRAIGHT |
| Installation type | BOARD |
| Number of connectors | ONE |
| Maximum operating temperature | 105 °C |
| Minimum operating temperature | -55 °C |
| Plating thickness | 30u inch |
| Rated current (signal) | 3 A |
| Guideline | UL |
| reliability | COMMERCIAL |
| Terminal length | 0.135 inch |
| Termination type | SOLDER |
| Total number of contacts | 36 |
| Evacuation force-minimum value | .17792 N |
| 51261-XX002LF | 51261-XX001 | 51261-XX001LF | 51261-XX003LF | 51261-XX003 | 51261-XX002 | |
|---|---|---|---|---|---|---|
| Description | Board Connector, 36 Contact(s), Male, Straight, Solder Terminal, Locking, Receptacle | PWRBLADE RECEP VERT | XX001LF PWRBLADE VERT LF REC | Board Connector, 36 Contact(s), 4 Row(s), Female, Straight, Solder Terminal, Receptacle, LEAD FREE | Board Connector, 36 Contact(s), 4 Row(s), Female, Straight, Solder Terminal, Receptacle | Board Connector, 36 Contact(s), Male, Straight, Solder Terminal, Locking, Receptacle |
| Maker | Amphenol | Amphenol | Amphenol | Amphenol | Amphenol | Amphenol |
| Reach Compliance Code | compliant | compliant | compliant | compliant | compliant | compliant |
| Body/casing type | RECEPTACLE | RECEPTACLE | RECEPTACLE | RECEPTACLE | RECEPTACLE | RECEPTACLE |
| Connector type | BOARD CONNECTOR | RECTANGULAR POWER CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR |
| Contact to complete cooperation | AU ON NI | GOLD (30) OVER NICKEL | GOLD (30) OVER NICKEL | GOLD (30) OVER NICKEL | GOLD (30) OVER NICKEL | AU ON NI |
| Contact completed and terminated | TIN OVER NICKEL | GOLD (30) OVER NICKEL | TIN (78) OVER NICKEL | TIN (78) OVER NICKEL | TIN LEAD (100) OVER NICKEL | TIN/LEAD OVER NICKEL |
| Contact point gender | MALE | FEMALE | FEMALE | FEMALE | FEMALE | MALE |
| Contact material | COPPER ALLOY | COPPER ALLOY | COPPER ALLOY | COPPER ALLOY | COPPER ALLOY | COPPER ALLOY |
| Manufacturer's serial number | 51261 | 51261 | 51261 | 51261 | 51261 | 51261 |
| Mixed contacts | YES | YES | YES | YES | YES | YES |
| Installation method | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT |
| Installation type | BOARD | BOARD | BOARD | BOARD | BOARD | BOARD |
| Termination type | SOLDER | SOLDER | SOLDER | SOLDER | SOLDER | SOLDER |
| Total number of contacts | 36 | 36 | 35 | 36 | 36 | 36 |
| Is it Rohs certified? | conform to | incompatible | conform to | conform to | incompatible | - |
| Board mount options | HOLE .125-.137 | HOLE .125-.137 | HOLE .125-.137 | - | - | HOLE .125-.137 |
| body width | 0.61 inch | 0.61 inch | 0.61 inch | - | - | 0.61 inch |
| subject depth | 0.465 inch | 0.465 inch | 0.465 inch | - | - | 0.465 inch |
| body length | 4.7 inch | 4.7 inch | 4.7 inch | - | - | 4.7 inch |
| Contact arrangement | S24P12 | S24P12 | S24P12 | - | - | S24P12 |
| Contact resistance | 20 mΩ | 20 mΩ | 20 mΩ | - | - | 20 mΩ |
| Contact style | HYBRID | HYBRID | HYBRID | - | - | HYBRID |
| Dielectric withstand voltage | 2500VDC V | 2500VDC V | 2500VDC V | - | - | 2500VDC V |
| Durability | 200 Cycles | 200 Cycles | 200 Cycles | - | - | 200 Cycles |
| maximum insertion force | .973 N | .973 N | .973 N | - | - | .973 N |
| Insulation resistance | 500000000 Ω | 500000000 Ω | 500000000 Ω | - | - | 500000000 Ω |
| insulator material | GLASS FILLED THERMOPLASTIC | GLASS FILLED NYLON | GLASS FILLED THERMOPLASTIC | - | - | GLASS FILLED THERMOPLASTIC |
| Installation option 1 | LOCKING | LOCKING | LOCKING | - | - | LOCKING |
| Number of connectors | ONE | ONE | ONE | - | - | ONE |
| Maximum operating temperature | 105 °C | 105 °C | 105 °C | - | - | 105 °C |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C | - | - | -55 °C |
| Plating thickness | 30u inch | 30u inch | 30u inch | - | - | 30u inch |
| Rated current (signal) | 3 A | 3 A | 3 A | - | - | 3 A |
| Guideline | UL | UL | UL | - | - | UL |
| reliability | COMMERCIAL | COMMERCIAL | COMMERCIAL | - | - | COMMERCIAL |
| Terminal length | 0.135 inch | 0.135 inch | 0.135 inch | - | - | 0.135 inch |
| Evacuation force-minimum value | .17792 N | .17792 N | .17792 N | - | - | .17792 N |
| Is it lead-free? | - | Contains lead | Lead free | Lead free | Contains lead | - |
| Other features | - | SERVER MOUNTED CONNECTOR | TERMINAL PITCH FOR POWER CONTACTS: 6.35 MM | TERMINAL PITCH FOR POWER CONTACTS: 6.35 MM | TERMINAL PITCH FOR POWER CONTACTS: 6.35 MM | - |
| DIN compliance | - | NO | NO | NO | NO | - |
| IEC compliance | - | NO | NO | NO | NO | - |
| JESD-609 code | - | e4 | e3 | e3 | e0 | - |
| MIL compliance | - | NO | NO | NO | NO | - |
| Options | - | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | - |
