MT4LC16M4A7DJ-7 datasheet, PDF

Datasheet> All Categories > storage> storage> MT4LC16M4A7DJ-7

MT4LC16M4A7DJ-7: DescriptionFast Page DRAM, 16MX4, 70ns, CMOS, PDSO32, 0.400 INCH, PLASTIC, SOJ-32; Categorystorage storage; File Size506KB，16 Pages; ManufacturerMicron Technology; Websitehttp://www.mdtic.com.tw/

Download Datasheet Parametric Compare View All

MT4LC16M4A7DJ-7 Overview

Fast Page DRAM, 16MX4, 70ns, CMOS, PDSO32, 0.400 INCH, PLASTIC, SOJ-32

MT4LC16M4A7DJ-7 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Micron Technology
Parts packaging code	SOJ
package instruction	0.400 INCH, PLASTIC, SOJ-32
Contacts	32
Reach Compliance Code	not_compliant
ECCN code	EAR99
access mode	FAST PAGE
Maximum access time	70 ns
Other features	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH
I/O type	COMMON
JESD-30 code	R-PDSO-J32
JESD-609 code	e0
length	20.98 mm
memory density	67108864 bit
Memory IC Type	FAST PAGE DRAM
memory width	4
Number of functions	1
Number of ports	1
Number of terminals	32
word count	16777216 words
character code	16000000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	16MX4
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	SOJ
Encapsulate equivalent code	SOJ32,.44
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	3.3 V
Certification status	Not Qualified
refresh cycle	8192
Maximum seat height	3.81 mm
self refresh	NO
Maximum standby current	0.0005 A
Maximum slew rate	0.15 mA
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	3 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	10.21 mm

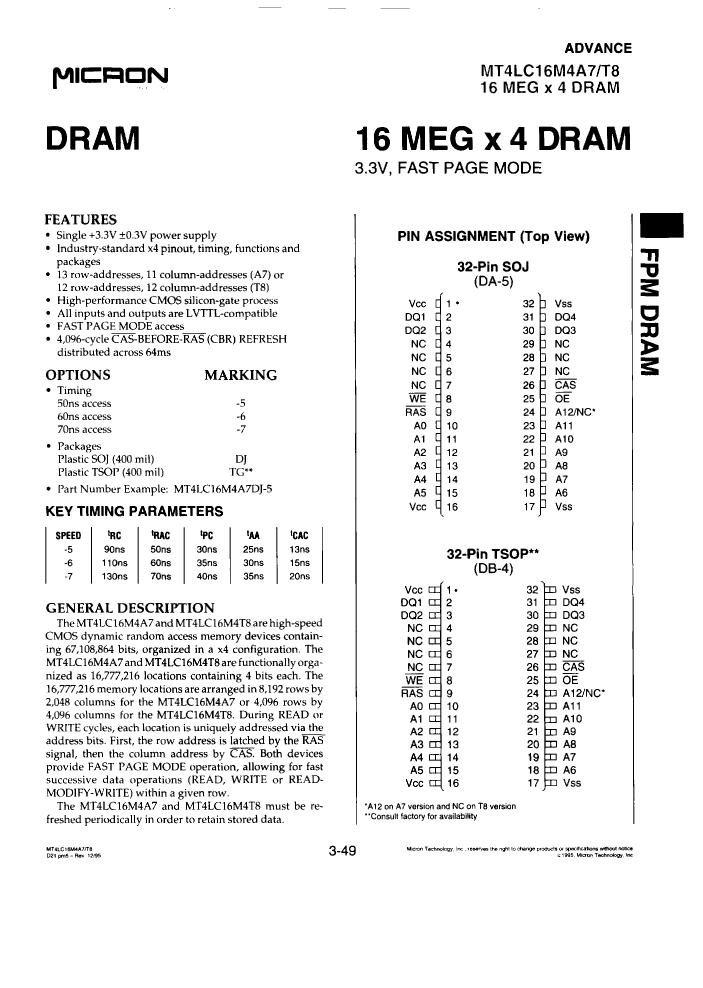

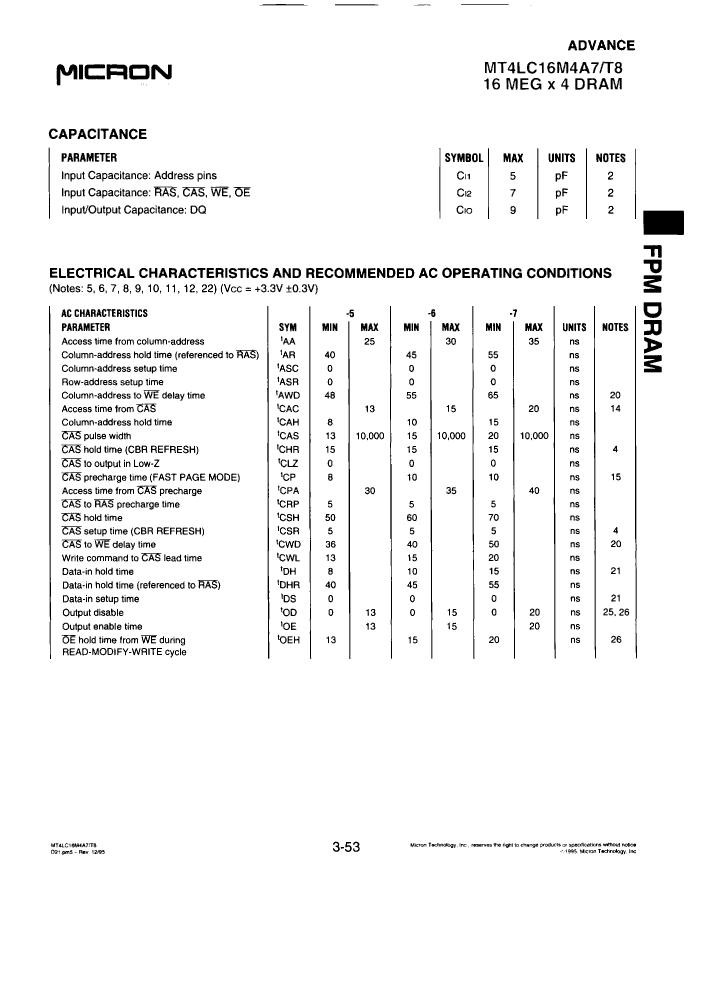

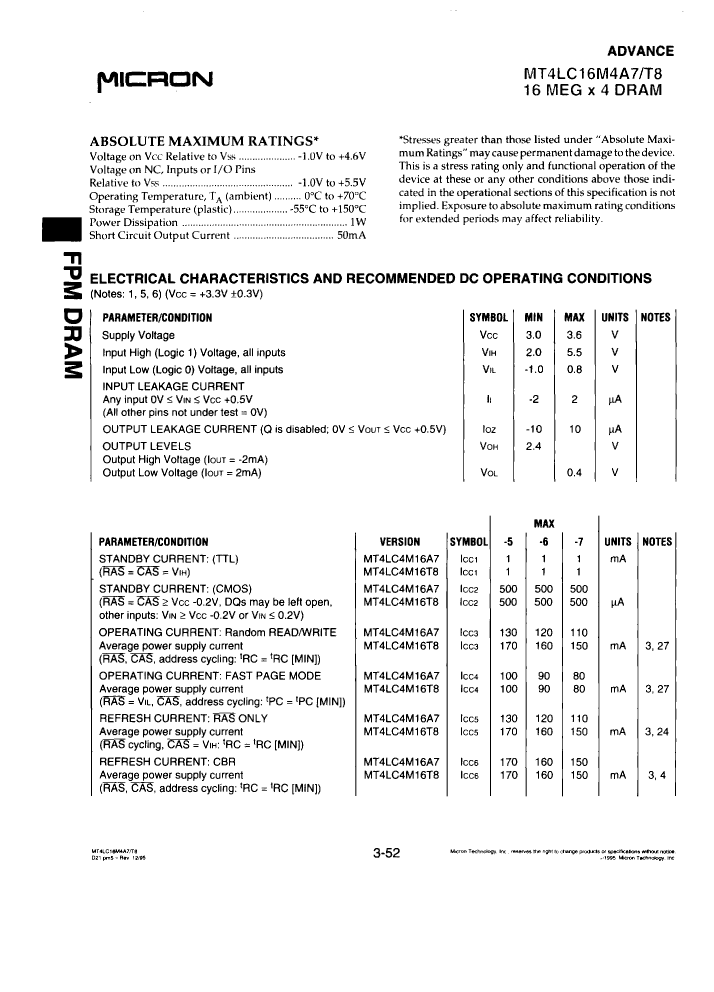

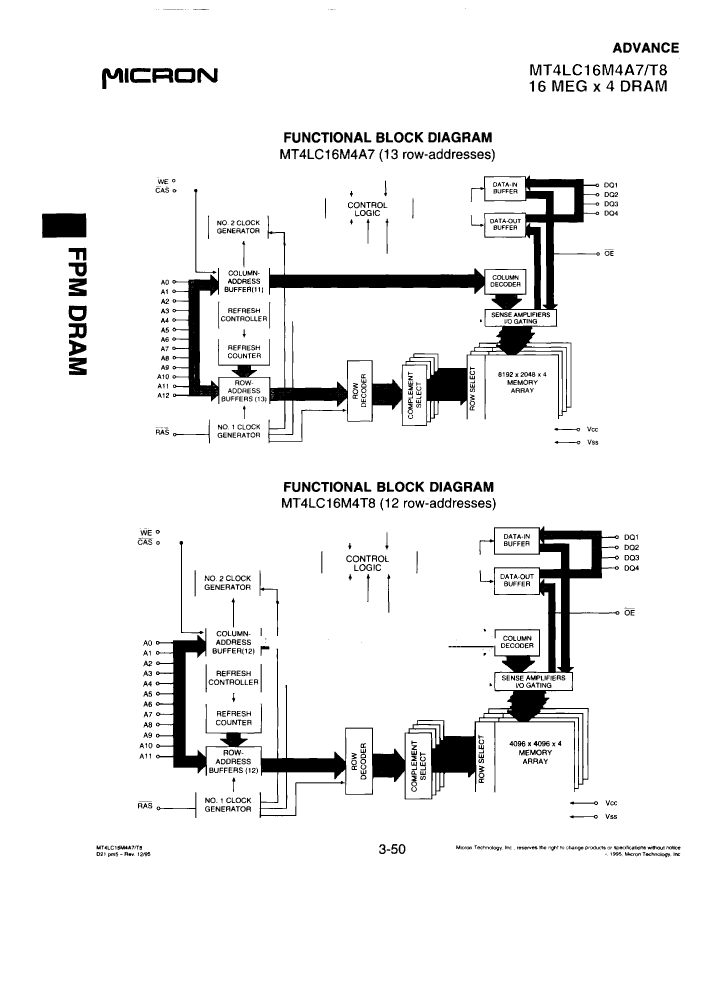

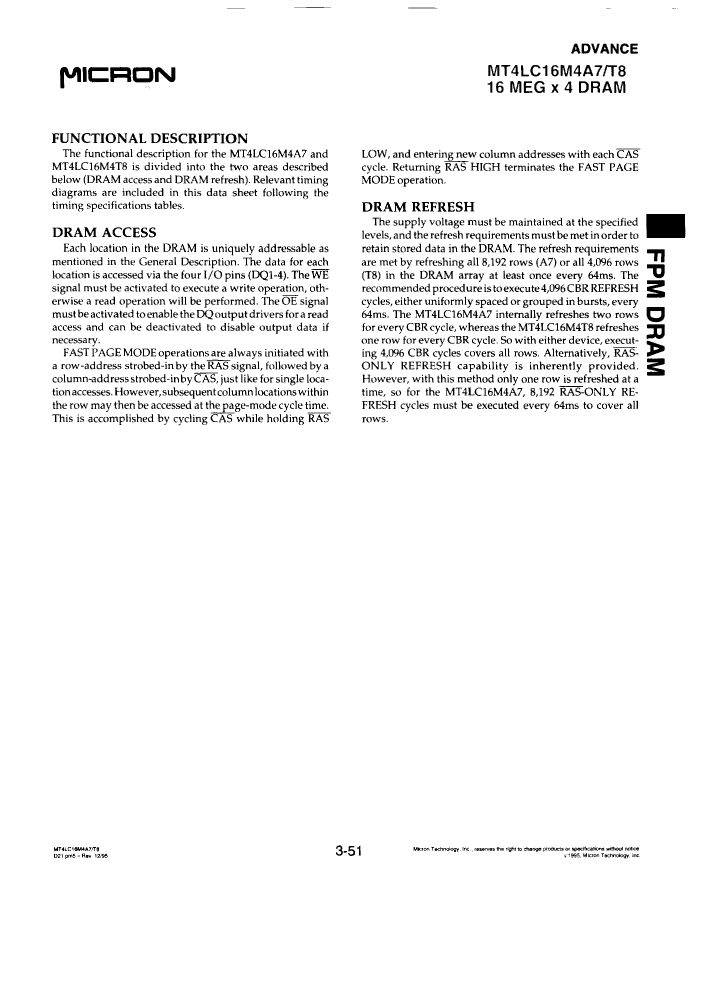

Preview

Download Datasheet

View All

MT4LC16M4A7DJ-7 Related Products

	MT4LC16M4A7DJ-7	MT4LC16M4T8DJ-7TR	MT4LC16M4A7TG-7TR	MT4LC16M4A7TG-7	MT4LC16M4T8TG-7	MT4LC16M4T8TG-7TR	MT4LC16M4A7DJ-7TR	MT4LC16M4T8DJ-7
Description	Fast Page DRAM, 16MX4, 70ns, CMOS, PDSO32, 0.400 INCH, PLASTIC, SOJ-32	Fast Page DRAM, 16MX4, 70ns, CMOS, PDSO32, 0.400 INCH, PLASTIC, SOJ-32	Fast Page DRAM, 16MX4, 70ns, CMOS, PDSO32, 0.400 INCH, PLASTIC, TSOP-32	Fast Page DRAM, 16MX4, 70ns, CMOS, PDSO32, 0.400 INCH, PLASTIC, TSOP-32	Fast Page DRAM, 16MX4, 70ns, CMOS, PDSO32, 0.400 INCH, PLASTIC, TSOP-32	Fast Page DRAM, 16MX4, 70ns, CMOS, PDSO32, 0.400 INCH, PLASTIC, TSOP-32	Fast Page DRAM, 16MX4, 70ns, CMOS, PDSO32, 0.400 INCH, PLASTIC, SOJ-32	Fast Page DRAM, 16MX4, 70ns, CMOS, PDSO32, 0.400 INCH, PLASTIC, SOJ-32
Parts packaging code	SOJ	SOJ	TSOP	TSOP	TSOP	TSOP	SOJ	SOJ
package instruction	0.400 INCH, PLASTIC, SOJ-32	SOJ,	TSOP2,	0.400 INCH, PLASTIC, TSOP-32	0.400 INCH, PLASTIC, TSOP-32	TSOP2,	SOJ,	0.400 INCH, PLASTIC, SOJ-32
Contacts	32	32	32	32	32	32	32	32
Reach Compliance Code	not_compliant	unknown	unknown	not_compliant	unknown	unknown	unknown	not_compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
access mode	FAST PAGE	FAST PAGE	FAST PAGE	FAST PAGE	FAST PAGE	FAST PAGE	FAST PAGE	FAST PAGE
Maximum access time	70 ns	70 ns	70 ns	70 ns	70 ns	70 ns	70 ns	70 ns
Other features	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH
JESD-30 code	R-PDSO-J32	R-PDSO-J32	R-PDSO-G32	R-PDSO-G32	R-PDSO-G32	R-PDSO-G32	R-PDSO-J32	R-PDSO-J32
length	20.98 mm	20.98 mm	20.96 mm	20.96 mm	20.96 mm	20.96 mm	20.98 mm	20.98 mm
memory density	67108864 bit	67108864 bit	67108864 bit	67108864 bit	67108864 bit	67108864 bit	67108864 bit	67108864 bit
Memory IC Type	FAST PAGE DRAM	FAST PAGE DRAM	FAST PAGE DRAM	FAST PAGE DRAM	FAST PAGE DRAM	FAST PAGE DRAM	FAST PAGE DRAM	FAST PAGE DRAM
memory width	4	4	4	4	4	4	4	4
Number of functions	1	1	1	1	1	1	1	1
Number of ports	1	1	1	1	1	1	1	1
Number of terminals	32	32	32	32	32	32	32	32
word count	16777216 words	16777216 words	16777216 words	16777216 words	16777216 words	16777216 words	16777216 words	16777216 words
character code	16000000	16000000	16000000	16000000	16000000	16000000	16000000	16000000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
organize	16MX4	16MX4	16MX4	16MX4	16MX4	16MX4	16MX4	16MX4
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOJ	SOJ	TSOP2	TSOP2	TSOP2	TSOP2	SOJ	SOJ
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE	SMALL OUTLINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
refresh cycle	8192	4096	8192	8192	4096	4096	8192	4096
Maximum seat height	3.81 mm	3.81 mm	1.2 mm	1.2 mm	1.2 mm	1.2 mm	3.81 mm	3.81 mm
Maximum supply voltage (Vsup)	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V
Minimum supply voltage (Vsup)	3 V	3 V	3 V	3 V	3 V	3 V	3 V	3 V
Nominal supply voltage (Vsup)	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	J BEND	J BEND	GULL WING	GULL WING	GULL WING	GULL WING	J BEND	J BEND
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
width	10.21 mm	10.21 mm	10.16 mm	10.16 mm	10.16 mm	10.16 mm	10.21 mm	10.21 mm
Maker	Micron Technology	Micron Technology	Micron Technology	-	Micron Technology	Micron Technology	Micron Technology	Micron Technology
JESD-609 code	e0	-	e0	e0	e0	e0	-	e0
Terminal surface	Tin/Lead (Sn/Pb)	-	TIN LEAD	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	TIN LEAD	-	Tin/Lead (Sn/Pb)
