Part Number

Search

121-24662

Description
SMC - STRAIGHT JACK P.C MOUNT
CategoryThe connector    The connector
File Size78KB,1 Pages
ManufacturerWinchester Interconnect
Websitehttps://www.winconn.com/
Download Datasheet Parametric Compare View All

121-24662 Overview

SMC - STRAIGHT JACK P.C MOUNT

121-24662 Parametric

Parameter NameAttribute value
MakerWinchester Interconnect
Reach Compliance Codeunknown
Other featuresVSWR MAX AT 4 GHZ
Body/casing typeJACK
Characteristic impedance50 Ω
Connector typeRF SMC CONNECTOR
Contact to complete cooperationGOLD (50) OVER NICKEL (150)
Contact completed and terminatedGOLD (50) OVER NICKEL (150)
Contact point genderMALE
Contact materialBERYLLIUM COPPER
Coupling typeTHREADED
DIN complianceNO
Filter functionNO
IEC complianceNO
insulator materialPOLYTETRAFLUORO ETHYLENE
JESD-609 codee4
MIL complianceNO
Manufacturer's serial number121-24662
Plug information121-24672
Installation methodSTRAIGHT
Installation typeBOARD
Maximum operating frequency10 GHz
OptionsGENERAL PURPOSE
Panel mountingNO
Termination typeSOLDER
voltage standing wave ratio1.3

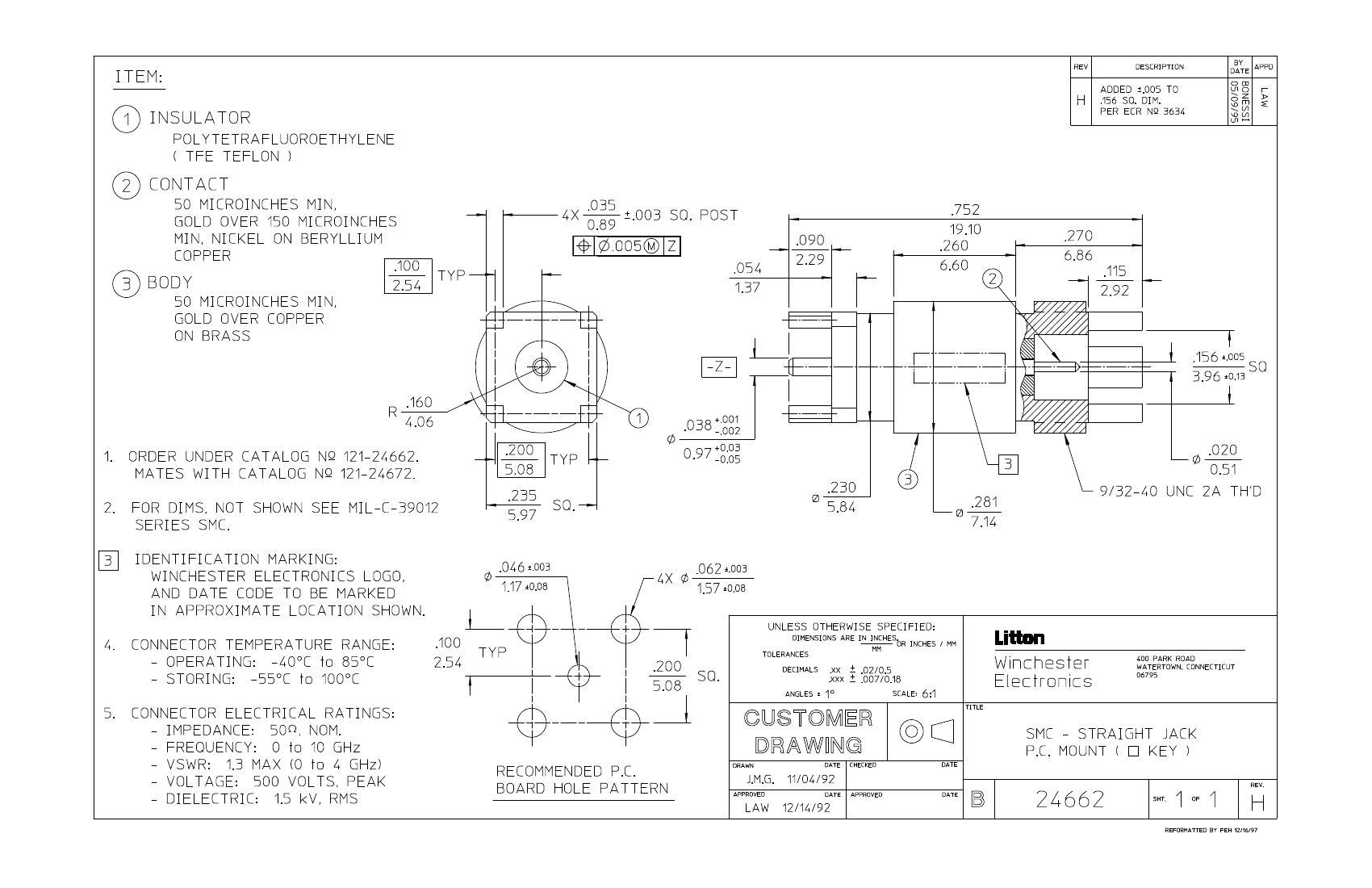

June 2006 - This drawing became the property of Winchester Electronics Corporation, Wallingford, CT.
