MECLDL-13 datasheet, PDF - EEWORLD Datasheet

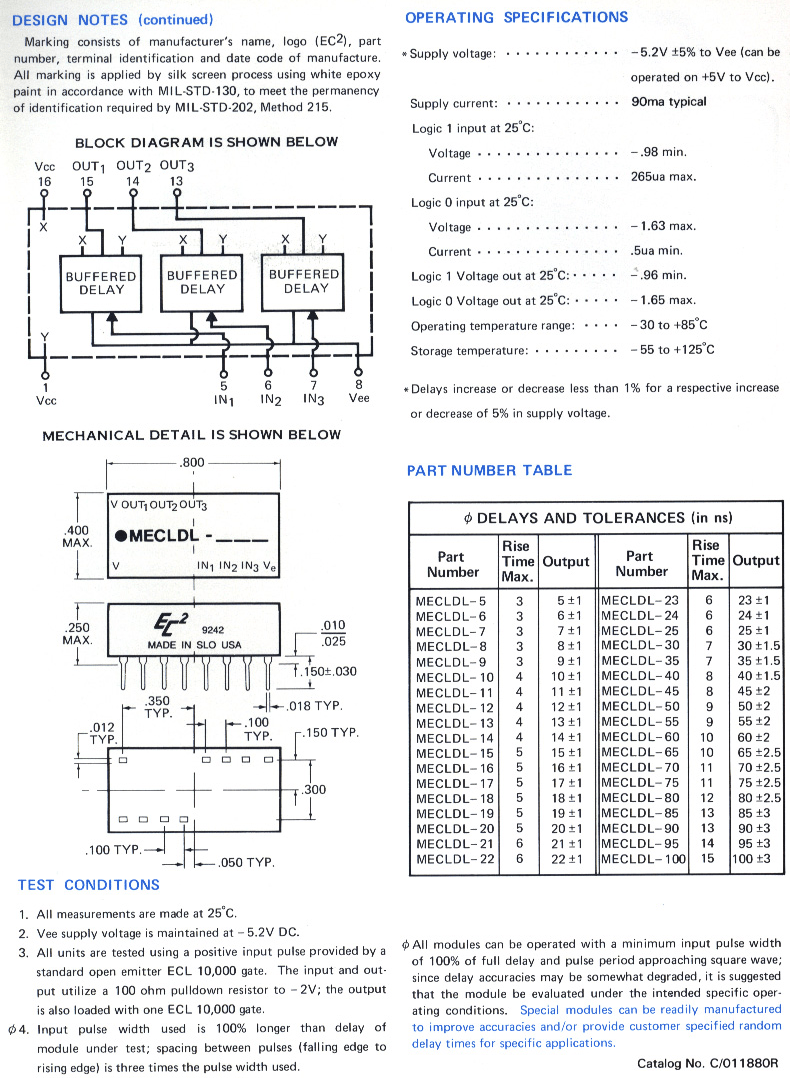

MECLDL-13: DescriptionActive Delay Line, 3-Func, 1-Tap, True Output, ECL, 0.250 INCH HEIGHT, DIP-16/9; Categorylogic logic; File Size447KB，1 Pages; ManufacturerEngineered Components Co.

Download Datasheet Parametric View All

MECLDL-13 Overview

Active Delay Line, 3-Func, 1-Tap, True Output, ECL, 0.250 INCH HEIGHT, DIP-16/9

Parameter Name	Attribute value
Maker	Engineered Components Co.
Parts packaging code	DIP
package instruction	DIP, DIP16,.3
Contacts	16/9
Reach Compliance Code	unknown
Other features	BURNED-IN TO LEVEL B OF MIL-STD-883; TYP. ICC = 90MA; MAX RISE TIME & TEMP. COEFF. CAPTURED
series	10K
JESD-30 code	R-XDIP-T9
length	20.32 mm
Logic integrated circuit type	ACTIVE DELAY LINE
Number of functions	3
Number of taps/steps	1
Number of terminals	9
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
Output characteristics	OPEN-EMITTER
Output polarity	TRUE
Package body material	UNSPECIFIED
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	-5.2 V
programmable delay line	NO
Prop。Delay @ Nom-Sup	13 ns
Certification status	Not Qualified
Maximum seat height	6.35 mm
surface mount	NO
technology	ECL
Temperature level	OTHER
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Total delay nominal (td)	13 ns
width	7.62 mm
