CO1-050-FREQ-T-GW datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> CO1-050-FREQ-T-GW

CO1-050-FREQ-T-GW: DescriptionTTL Output Clock Oscillator, 0.5MHz Min, 125MHz Max, SURFACE MOUNT PACKAGE-14; CategoryPassive components oscillator; File Size44KB，2 Pages; ManufacturerRaltron; Websitehttp://www.raltron.com/; Environmental Compliance

Download Datasheet Parametric View All

CO1-050-FREQ-T-GW Overview

TTL Output Clock Oscillator, 0.5MHz Min, 125MHz Max, SURFACE MOUNT PACKAGE-14

CO1-050-FREQ-T-GW Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Raltron
Reach Compliance Code	compliant
Other features	TUBE
maximum descent time	15 ns
Frequency Adjustment - Mechanical	NO
frequency stability	50%
Installation features	SURFACE MOUNT
Maximum operating frequency	125 MHz
Minimum operating frequency	0.5 MHz
Maximum operating temperature	70 °C
Minimum operating temperature
Oscillator type	TTL
Output load	10 TTL
physical size	20.8mm x 13.2mm x 5.08mm
longest rise time	15 ns
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
maximum symmetry	55/45 %

Preview

Download Datasheet

View All

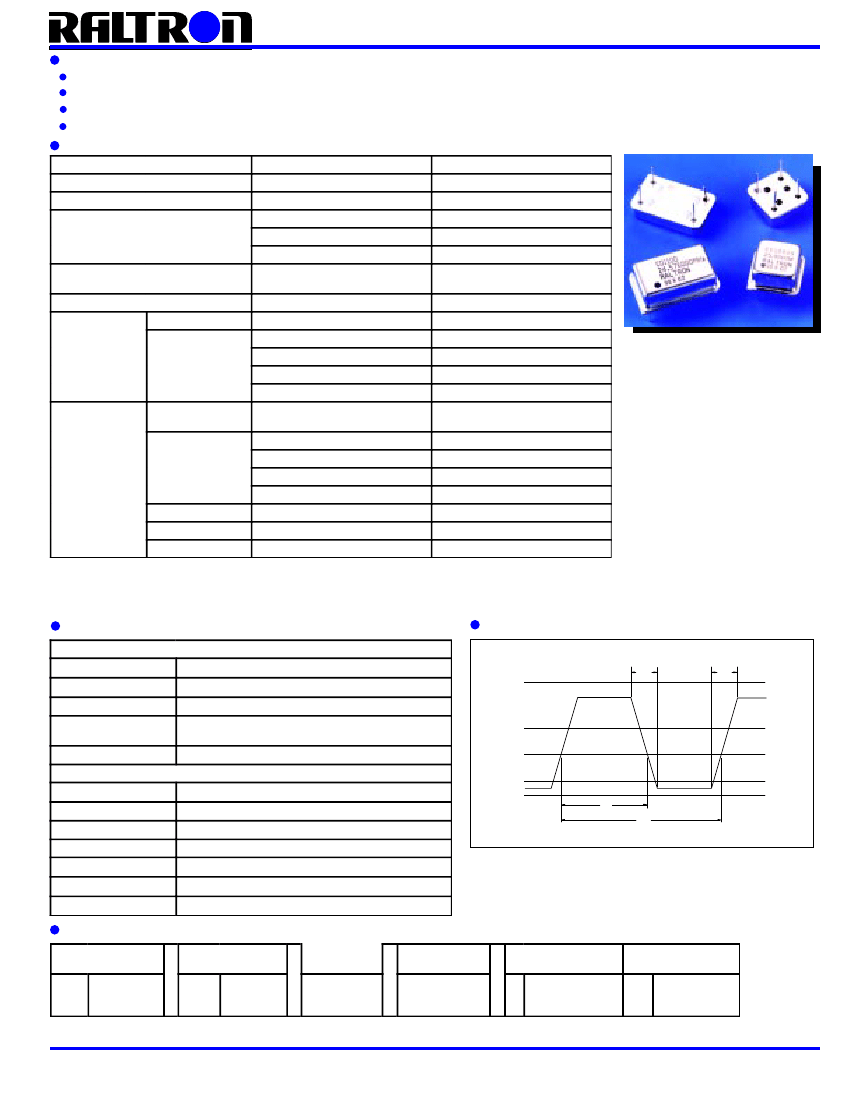

THROUGH HOLE CLOCK OSCILLATORS - TTL COMPATIBLE

FEATURES

STANDARD 8 AND 14 PIN DIP PACKAGE

TOLERANCE AND STABILITY TO

25 PPM

LOW COST

AVAILABLE IN 3.3 VOLT

SPECIFICATIONS

SERIES

PACKAGE

FREQUENCY RANGE

CO1

14 PIN DIP

500.00 KHz TO 125.00 MHz

CO1100 : ±100 ppm

FREQUENCY STABILITY†

CO1050 : ±50 ppm

CO1025 : ±25 ppm

OPERATING TEMPERATURE RANGE

STORAGE TEMPERATURE RANGE

VOLTAGE††

0° C TO +70° C STANDARD

-40° C TO +85° C EXTENDED

-55° C TO +125° C

+5 VDC ±0.5 VDC

500.00 KHz TO 2.999 MHz: 30 mA

INPUT

CURRENT (MAX)

3.00 MHz TO 31.999 MHz: 50 mA

32.00 MHz TO 79.999 MHz: 70 mA

80.00 MHz TO 125.00 MHz: 80 mA

SYMMETRY

(AT 1.4 VDC LEVEL)

40 TO 60% NORMAL

45 TO 55% TIGHT

UNDER 9 MHz : ±15 ns MAX

RISE AND FALL TIME

(0.4 - 2.4 VDC)

9 MHz TO 32 MHz : ±10 ns MAX

32 MHz TO 80 MHz : ±6 ns MAX

80 MHz TO 125 MHz : ±4 ns MAX

LOGIC "0" LEVEL

LOGIC "1" LEVEL

LOAD†††

+0.5 V MAX, SINK TO 16 mA

+2.4 V MIN, SOURCE 0.4 mA

1 TO 10 TTL STANDARD

SERIES CO1 AND CO13

CO13

8 PIN DIP

500.00 KHz TO 125.00 MHz

CO13100 : ±100 ppm

CO13050 : ±50 ppm

CO13025 : ±25 ppm

0° C TO +70° C STANDARD

-40° C TO +85° C EXTENDED

-55° C TO +125° C

+5 VDC ±0.5 VDC

500.00 KHz TO 2.999 MHz: 30 mA

3.00 MHz TO 31.999 MHz: 50 mA

32.00 MHz TO 79.999 MHz: 70 mA

80.00 MHz TO 125.00 MHz: 80 mA

40 TO 60% NORMAL

45 TO 55% TIGHT

UNDER 9 MHz : ±15 ns MAX

9 MHz TO 32 MHz : ±10 ns MAX

32 MHz TO 80 MHz : ±6 ns MAX

80 MHz TO 125 MHz : ±4 ns MAX

+0.5 V MAX, SINK TO 16 mA

+2.4 V MIN, SOURCE 0.4 mA

1 TO 10 TTL STANDARD

OUTPUT

† FREQUENCY STABILITY INCLUSIVE OF ROOM TOLERANCE ,

FREQUENCY STABILITY OVER TEMPERATURE, 10% POWER SUPPLY VARIATION, AGING, SHOCK, AND VIBRATION

†† +3.3 VOLT VERSION IS AVAILABLE. CONSULT RALTRON FOR SPECIFICATIONS

††† OUTPUT LOADS ALSO AVAILABLE AT 15 pF, 30 pF AND 50 pF. CONSULT RALTRON FOR SPECIFICATIONS

ENVIRONMENTAL AND TECHNICAL CONDITIONS

ENVIRONMENTAL

TEMPERATURE CYCLE

SHOCK

VIBRATION

RESISTANCE TO

SOLDERING HEAT

HUMIDITY

MIL-STD 883, METHOD 1010, 10 CYCLES -20° C TO 85° C

MIL-STD-202, METHOD 213, TEST CONDITION C

MIL-STD-202, METHOD 204, TEST CONDITION A

MIL-STD-202, METHOD 210, TEST CONDITION B

85% RELATIVE HUMIDITY AT 85° C 250 HOURS

MECHANICAL

GROSS LEAK TEST

FINE LEAK TEST

TERMINAL STRENGTH

MARKING INK

MIL-STD-883, METHOD 1014, TEST CONDITION C

MIL-STD-883, METHOD 1014, TEST CONDITION A

MIL-STD-202, METHOD 211, TEST CONDITION A AND C

EPOXY, HEAT CURED.

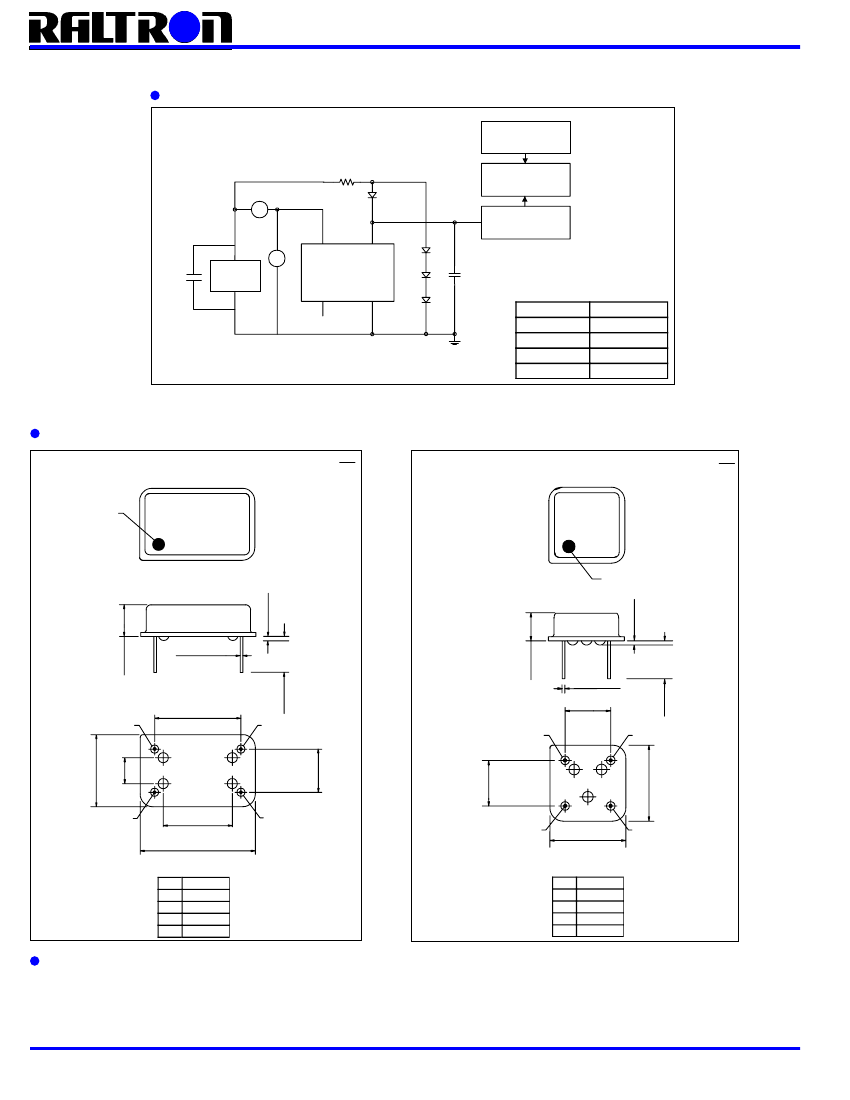

OUTPUT WAVEFORM

VCC

"1" LEVEL

+2.5 VDC

+1.5 VDC

"0" LEVEL

0 VDC

+0.5 VDC

MOISTURE RESISTANCE MIL-STD 202, METHOD 106, OMIT STEP 7B

SOLDERABILITY

SOLVENT RESISTANCE

MIL-STD-202, METHOD 208, 95% COVERAGE

MIL-STD-202, METHOD 2002, METHOD 215

PART NUMBERING SYSTEM

SERIES

CO1

CO13

(14 PIN DIP)

(8 PIN DIP)

FREQUENCY

STABILITY

100

050

025

±100 PPM

±50 PPM

±25 PPM

IN MHz

FREQUENCY

EXT

EXTENDED

TEMPERATURE

TIGHT SYMMETRY

SYMMETRY

OPTIONS

TR TAPE AND REEL

GW GULL WING

3.3V +3.3 V

EXAMPLE: CO1100-20.000-EXT-T, CO13050-32.000-T-TR

Raltron Electronics Corporation 10651 NW 19th St. Miami, Florida 33172 U.S.A.

Tel: 305-593-6033 Fax: 305-594-3973 e-mail: sales@raltron.com Internet: http://www.raltron.com
