SLA6816MP
High Voltage 3-Phase Motor Driver
Features and Benefits
▪
▪
▪
▪
▪
▪
▪
▪
▪
▪
Built-in pre-drive IC
IGBT power element
Alleviate noise generation by adjusting an internal resistor
CMOS compatible input (5 V)
High-side gate driver using bootstrap circuit or floating
power supply
Built-in protection circuit for controlling power supply
voltage drop
Overcurrent protection circuit (OCP)
Output of fault signal during operation of protection circuit
Output current 3 A
Small SIP (SLA 23-pin)
Not to scale
Description
The SLA6816MP inverter power module (IPM) device provides
a robust, highly-integrated solution for optimally controlling
3-phase motor power inverter systems and variable speed
control systems used in energy-conserving designs to drive
motors of residential and commercial appliances. These ICs
take 230 VAC input voltage, and 3 A (continuous) output
current. They can withstand voltages of up to 600 V (IGBT
breakdown voltage).
The SMA6800MP power package includes an IC with all of the
necessary power elements (six IGBTs), pre-driver ICs (two),
and flyback diodes (six), needed to configure the main circuit
of an inverter. This enables the main circuit of the inverter to
be configured with fewer external components than traditional
designs.
Applications include residential white goods (home
applications) and commercial appliance motor control:
• Air conditioner fan
• Refrigerator compressor
• Dishwasher pump

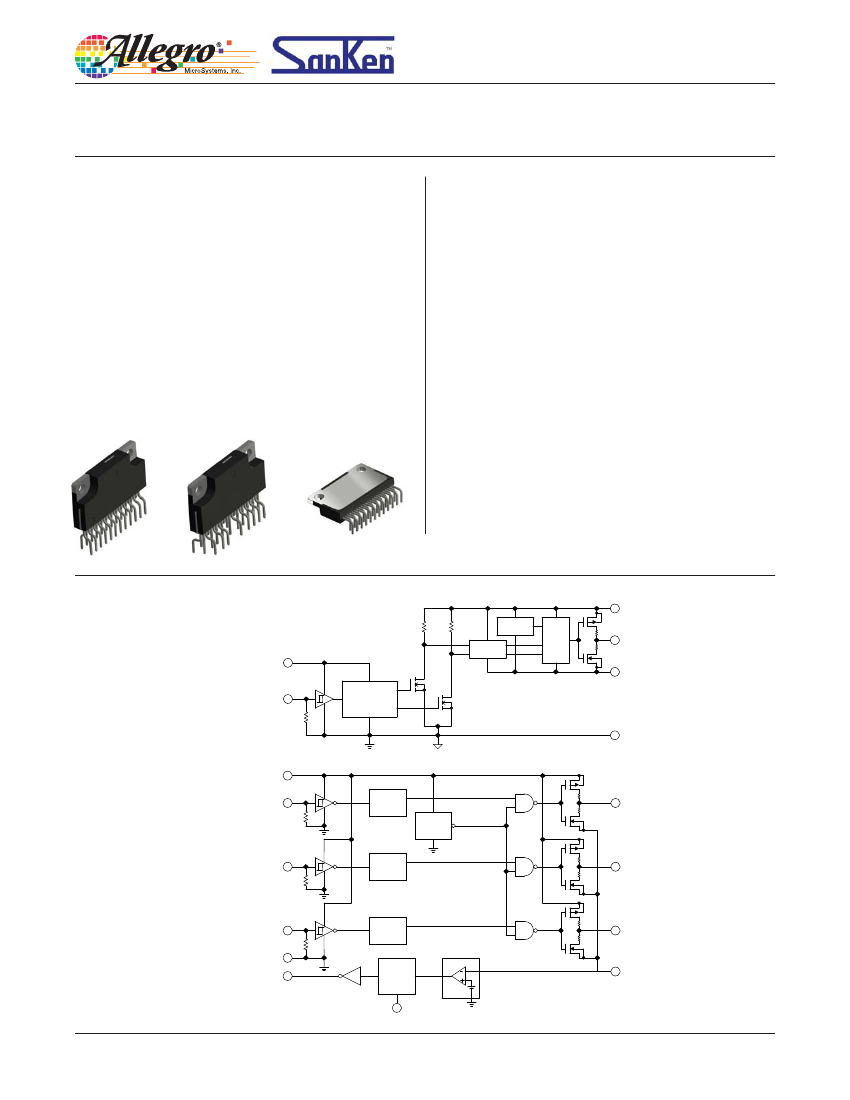

Packages: Power SIP
Leadform
2151
Leadform
2152 (IEC)
Leadform 2153
Functional Block Diagram
High-Side Driver
VCC
HV
LEV EL
SHIFT
HIN
P U LS E
G EN
P U LS E
R
ER A TO
UV
D ETEC T
P U LSE
FILTER
R
R
S
Q
VB
HO
HS
COM
VCC
LIN1
D ELA Y
UV
D ETEC T
LO 1
Low-Side Driver
LIN2
D ELA Y
LO 2
LIN3
D ELA Y
COM
BLANK
TIMER
and
HOLD
RC
OCP
LO 3
RS
FO (TOTEM POLE)
VTRIP
Figure 1. Driver block diagrams.
28610.04
SLA6816MP
Selection Guide
Part Number
Packing
High Voltage 3-Phase Motor Driver
IGBT Breakdown
Voltage, V
CES
(min)
(V)
600
IGBT Saturation
Voltage, V
CE(sat)
(typ)
(V)
1.75
Output Current
Continuous, I
O
(max)
(A)
3
Pulsed, I
OP
(max)
(A)
6
SLA6816MP
18 pieces per tube
Absolute Maximum Ratings,
valid at T
A
= 25°C
Characteristic
IGBT Breakdown Voltage
Logic Supply Voltage
Bootstrap Voltage
Output Current, Continuous
Output Current, Pulsed
Input Voltage
RC Pin Input Voltage
Allowable power dissipation
Thermal resistance (Junction to Case)
Case Operating Temperature
Junction Temperature (MOSFET)
Storage Temperature
Symbol
V
CES
V
CC
V
BS
I
O
I
OP
V
IN
V
RC
P
D
R
θJC
T
COP
T
J
T
stg
Between VCC and COM
Remarks
V
CC
= 15 V, I
C
= 1 mA, V
IN
= 0 V
Between VB and HS (U,V, and W phases)
T
C
= 25°C
PW
≤
1 ms, duty cycle = 50%
Between RC and COM; C
C
≤
2200 pF
T
C
= 25°C, all elements operating
All elements operating (IGBT)
All elements operating (FWD)
Rating
600
20
20
3
6
–0.5 to 7
20
32
3.8
5.4
–20 to 100
150
–40 to 150
Unit
V
V
V
A
A
V
V
W
°C/W
°C
°C
°C
°C
Recommended Operating Conditions
Characteristic
Main Supply Voltage
Logic Supply Voltage
Dead Time
Junction Temperature
Symbol
V
BB
V
CC
t
dead
T
J
Remarks
Between VBB and LS, I
BB
≤
2 A
Between VCC and COM
Min.
–
13.5
1.5
–
Typ.
300
–
–
–
Max.
450
16.5
–
125
Units
V
V
μs
°C
All performance characteristics given are typical values for circuit or
system baseline design only and are at the nominal operating voltage and
an ambient temperature, T
A
, of 25°C, unless otherwise stated.
Allegro MicroSystems, Inc.
115 Northeast Cutoff, Box 15036
Worcester, Massachusetts 01615-0036 (508) 853-5000
www.allegromicro.com
2
SLA6816MP

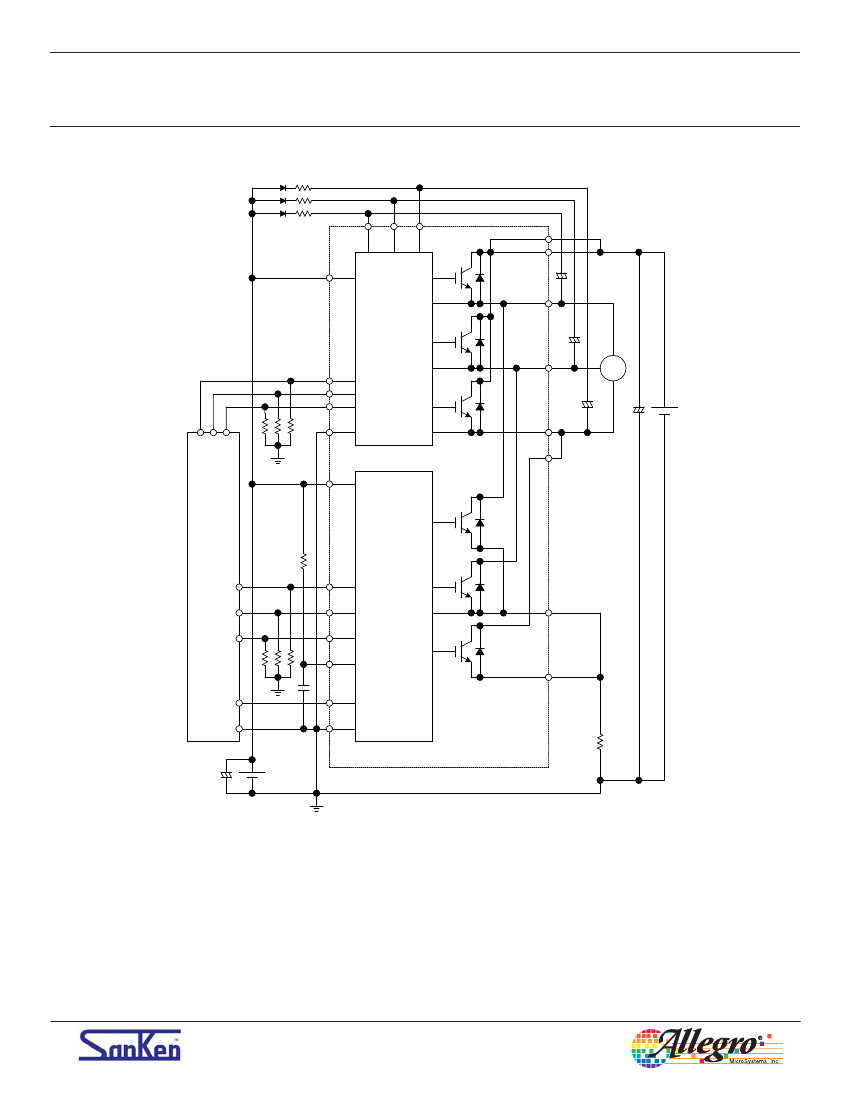

Typical Application Diagram
High Voltage 3-Phase Motor Driver
2
VB1
5
VCC1
3
VB2
4
VB3
HO1
HS1
11
10
1
HVIC
HO2
HS2
HIN1
HIN2
HIN3
COM1
HO3
HS3
12
14
23
13
M
9
8
7
6
VCC2
LO1
C o n t r o lle r
RC
LVIC
20
19
18
16
LIN1
LIN2
LIN3
LO2
RS
17
LO3
RCIN
15
CC
22
21
FO
COM2
RS
15V
NOTE:
▪
All of the input pins are connected to GND with internal pull-down resistors rated at 100 kΩ, however, an external pull-down
resistor may be required to secure stable condition of the inputs if high impedance conditions are applied to them.
▪
To use the OCP circuit, an external shunt resistor, RS, is needed. The RS value can be obtained from the formula:
R
S
(Ω) = 0.5 V / Overcurrent Detection Set Current (A) .
▪
A blanking timer is built-in to mask the noise generated on RS at turn-on.
▪
The external electrolytic capacitors should be placed as close to the IC as possible, in order to avoid malfunctions from
external noise interference. Put a ceramic capacitor in parallel with the electrolytic capacitor if further reduction of noise
susceptibility is necessary.
Allegro MicroSystems, Inc.
115 Northeast Cutoff, Box 15036
Worcester, Massachusetts 01615-0036 (508) 853-5000
www.allegromicro.com
3
SLA6816MP
High Voltage 3-Phase Motor Driver
ELECTRICAL CHARACTERISTICS, valid at T
A
=25°C, C
C
≤
2200 pF, unless otherwise noted
Characteristics
Logic Supply Voltage
Logic Supply Current
Input Voltage
Input Voltage Hysteresis
Input Current
Symbol
V
CC
I
CC
V
IH
V
IL
V
Ihys
I
IH
I
IL
V
UVHL
V
UVHH
Undervoltage Lock Out
V
UVHhys
V
UVLL
V
UVLH
V
UVLhys
FO Terminal Output Voltage
Overcurrent Protection Trip Voltage
Overcurrent Protection Hold Time
Blanking Time
IGBT Breakdown Voltage
IGBT Leakage Current
IGBT Saturation Voltage
Diode Forward Voltage
Diode Recovery Time
V
FOL
V
FOH
V
TRIP
t
p1
t
p2
t
blank
V
CES
I
CES
V
CE(sat)
V
F
t
rr
t
dH(on)
Switching Time, High Side
t
rH
t
dH(off)
t
fH
t
dL(on)
Switching Time, Low Side
t
rL
t
dL(off)
t
fL
V
BB
= 300 V, V
CC
= 15 V, I
C
= 3 A, 0 V
≤
V
IN
≤
5 V,
inductive load
Between VCC and COM
V
CC
= 15 V
V
CC
= 15 V, output on
V
CC
= 15 V, output off
V
CC
= 15 V
High side, V
CC
= 15 V, V
IN
= 5 V
Low side, V
CC
= 15 V, V
IN
= 0 V
High side, between VB and U, V, or W
High side, hysteresis
Low side, between VB and U, V, or W
Low side, hysteresis
V
CC
= 15 V
V
CC
= 15 V
V
RC
= 15 V, R
C
= 1 MΩ, C
C
= 1000 pF
V
RC
= 5 V, R
C
= 330 kΩ, C
C
= 2200 pF
V
CC
= 15 V
V
CC
= 15 V, I
C
= 1 mA, V
IN
= 0 V
V
CC
= 15 V, V
CE
= 600 V, V
IN
= 0 V
V
CC
= 15 V, I
C
= 3 A, V
IN
= 5 V
V
CC
= 15 V, I
F
= 3 A, V
IN
= 0 V
I
F
= 3 A,
di
/
dt
= 100 A/μs
Conditions
Min
13.5
–
–
1.0
–
–
–
9.0
9.5
–
10.0
10.5
–
0
4.5
0.45
–
–
–
600
–
–
–
–
–
–
–
–
–
–
–
–
Typ
15
4
2.0
1.5
0.5
50
–
10.0
10.5
0.5
11.0
11.5
0.5
–
–
0.50
260
870
2
–
–
1.75
1.65
50
420
80
420
180
460
100
420
180
Max
16.5
6
2.5
–
–
100
2
11.0
11.5
–
12.0
12.5
–
1.0
5.5
0.55
–
–
–
–
1
2.1
2.0
–
–
–
–
–
–
–
–
–
Units
V
mA
V
V
V
μA
μA
V
V
V
V
V
V
V
V
V
μs
μs
μs
V
mA
V
V
ns
ns
ns
ns
ns
ns
ns
ns
ns
Allegro MicroSystems, Inc.
115 Northeast Cutoff, Box 15036
Worcester, Massachusetts 01615-0036 (508) 853-5000
www.allegromicro.com
4
SLA6816MP
High Voltage 3-Phase Motor Driver

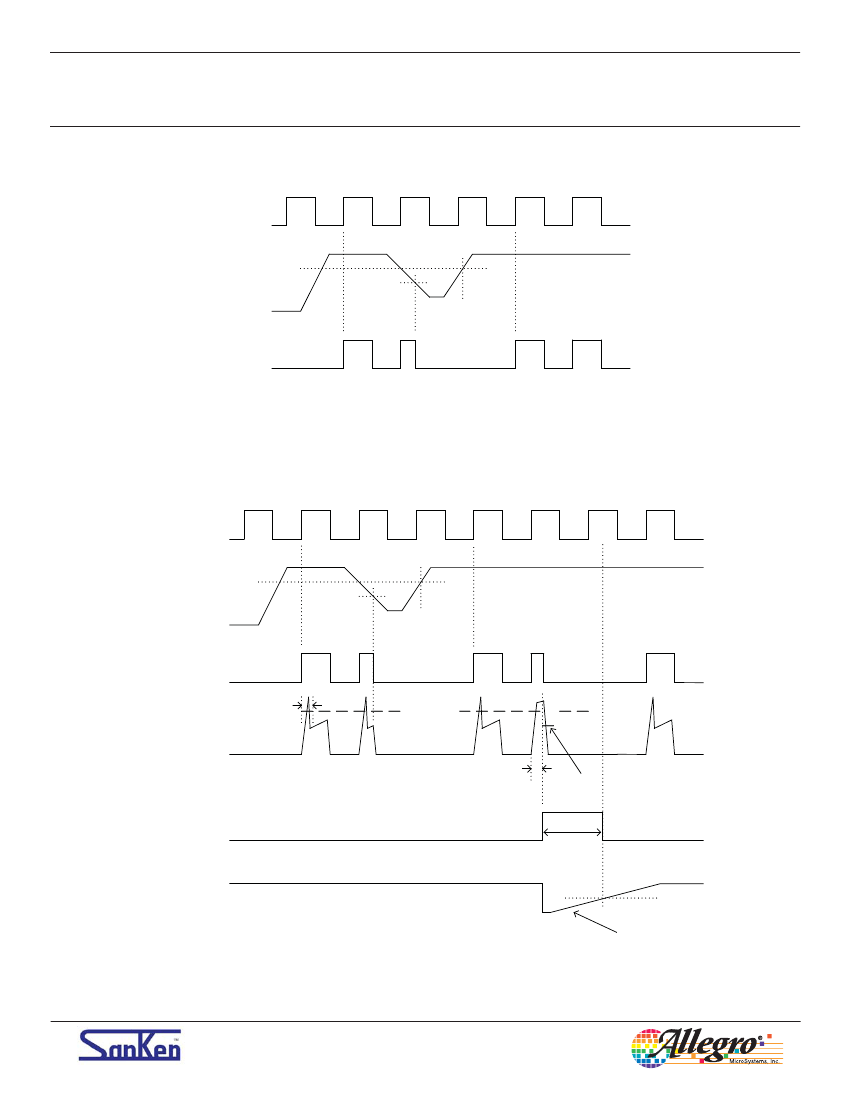

High Side Driver Input/Output Timing Diagrams
HIN
V
UVHH
VB-HS
V
UVHL
UVLO
Release
HO
After UVLO is released, IC operation is started by the first rising edge of input
Low Side Driver Input/Output Timing Diagrams
LIN
VCC
V
UVHH
V
UVHL
UVLO
Release
LO
t
blank
RS
t
blank
V
TRIP(L)
FO
t
p
= R
C
× C
C
× {–ln (1–3.5 / V
RC
)}
where C
C
≤
2200 pF
V
TRIP(H)
t
p
RC
Slope by RC,CC
After UVLO is released, IC operation is started by the first rising edge of input
After RC charging and releasing, the OCP operation is started by the first rising edge of input
Allegro MicroSystems, Inc.
115 Northeast Cutoff, Box 15036
Worcester, Massachusetts 01615-0036 (508) 853-5000
www.allegromicro.com
5
